Waimana: South Details

Property	Value
Rupture Count	24,353
Ruptures Above Sect Min Mag	24,349
Ruptures w/ Nonzero Rates	224
Magnitude Range	[6.92, 8.51]
Length Range	[25, 1,132] km
Total Rate	1.9812812E-4 /yr
Multi-Fault Rate	1.9812812E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	126

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

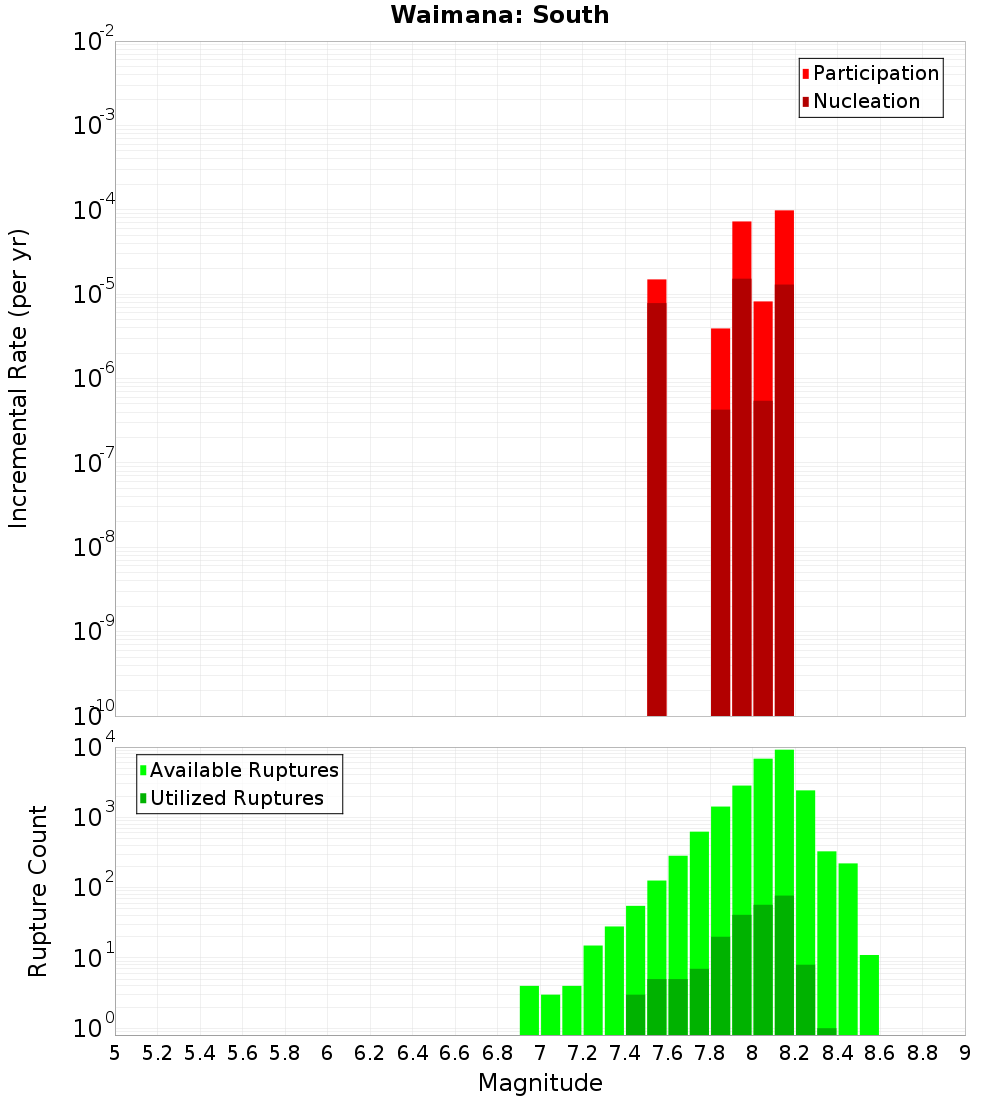

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

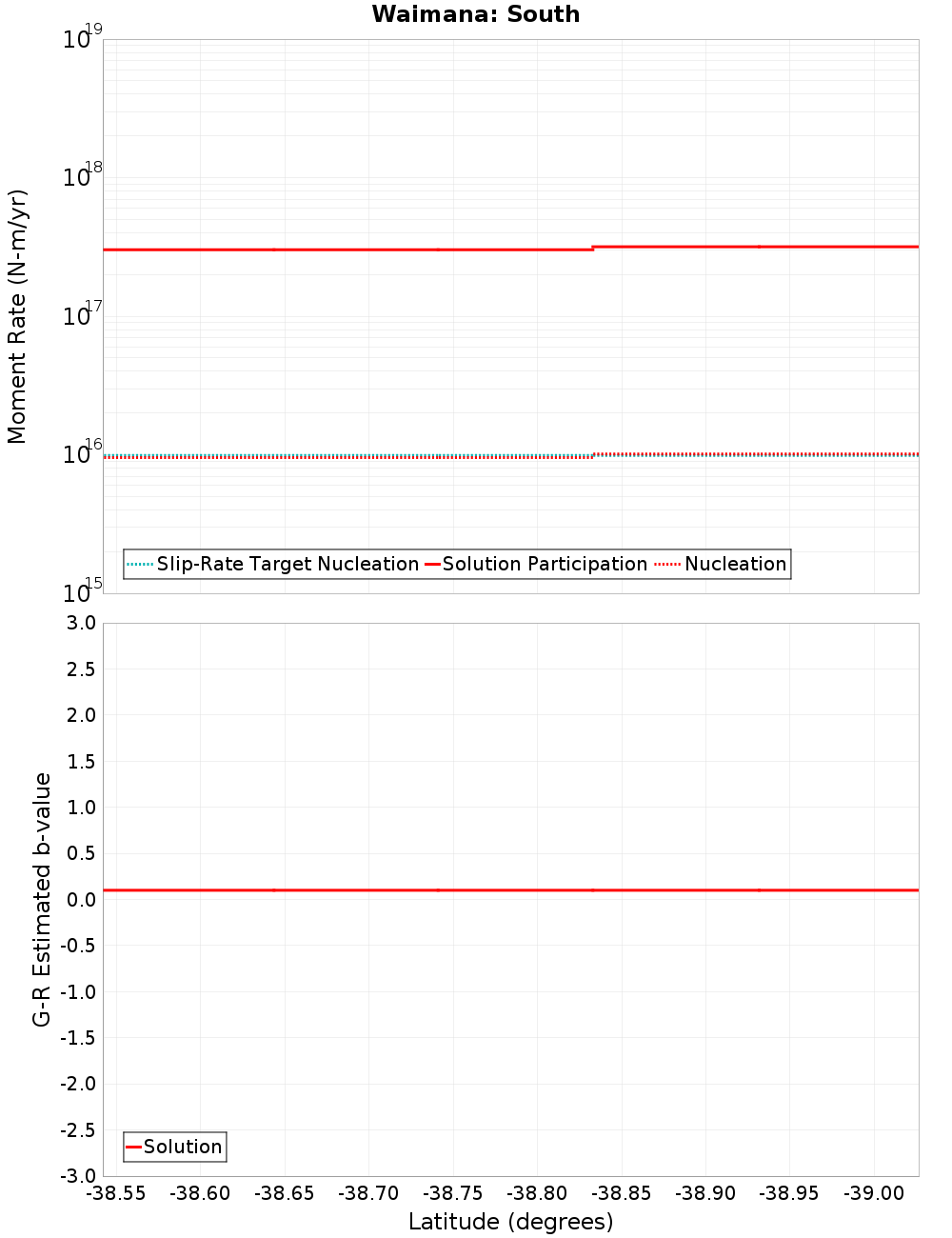

Moment-Rates and b-Values

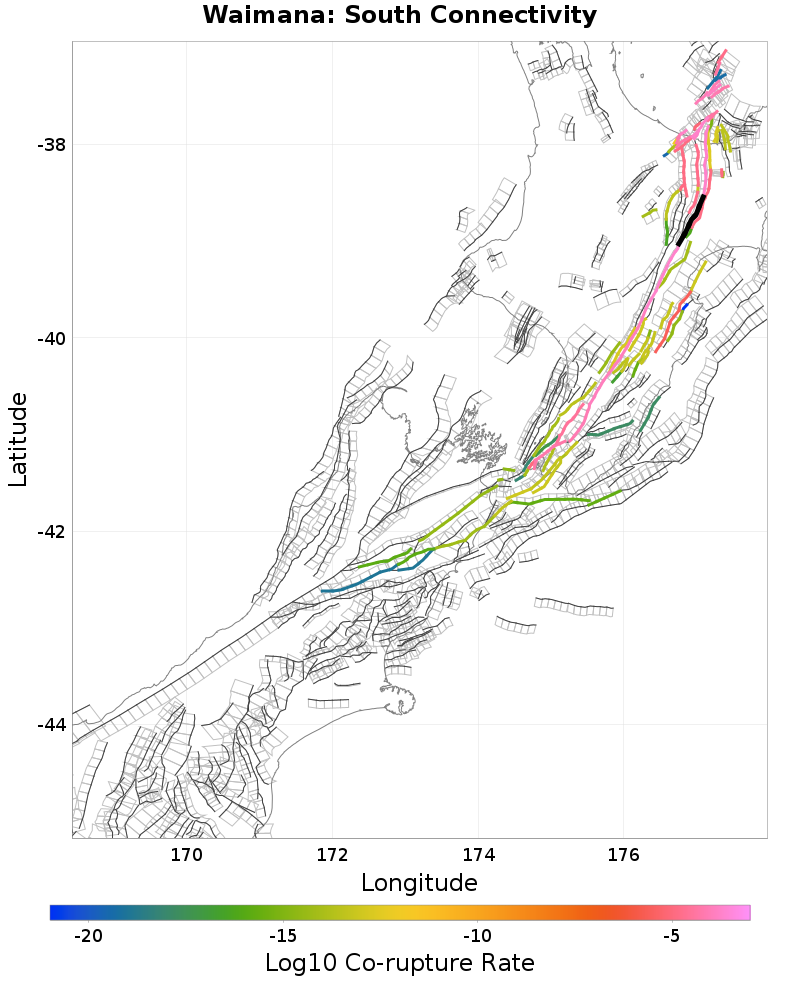

Connectivity

Nearby Sections

Fault Section
Waimana: North, 0 km away
Whakatane: South, 0 km away
Mohaka: North, 0 km away
Waiotahi: South, 2.15 km away
Waiotahi: North, 2.4 km away
Waiohau: South, 8.02 km away
Whakatane: North, 8.55 km away
Patoka - Rangiora, 10.75 km away
Ruahine: North, 11.54 km away
Wheao: South, 14.54 km away
Te Whaiti South, 14.57 km away

Waimana: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	17,662
Co-rupture Rate	1.7254286E-4

Whakatane: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	693
Co-rupture Rate	1.4948969E-5

Mohaka: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	23,921
Co-rupture Rate	1.8317916E-4

Waiotahi: South, 2.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	2,028
Co-rupture Rate	1.2118102E-5

Waiotahi: North, 2.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	2,202
Co-rupture Rate	1.0636298E-5

Waiohau: South, 8.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakatane: North, 8.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	false
Co-rupture Count	481
Co-rupture Rate	1.4948969E-5

Patoka - Rangiora, 10.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	false
Co-rupture Count	1,030
Co-rupture Rate	6.9292792E-15

Ruahine: North, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	false
Co-rupture Count	244
Co-rupture Rate	0.0

Wheao: South, 14.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	false
Co-rupture Count	1,066
Co-rupture Rate	2.8245335E-14

Te Whaiti South, 14.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
