Wairarapa: Needles Details

Property	Value
Rupture Count	44,612
Ruptures Above Sect Min Mag	44,608
Ruptures w/ Nonzero Rates	606
Magnitude Range	[6.75, 8.40]
Length Range	[19, 925] km
Total Rate	6.3870696E-4 /yr
Multi-Fault Rate	6.3870696E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	161

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

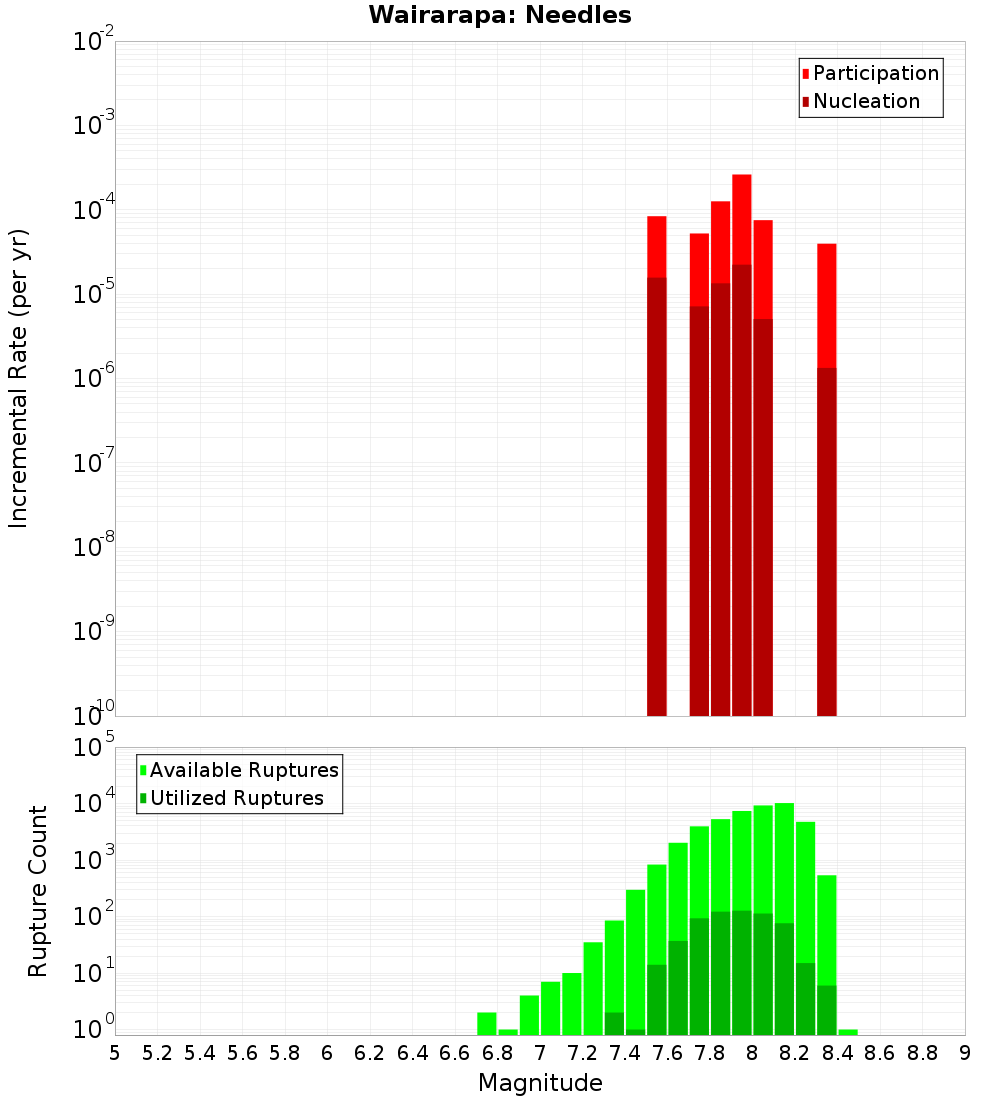

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

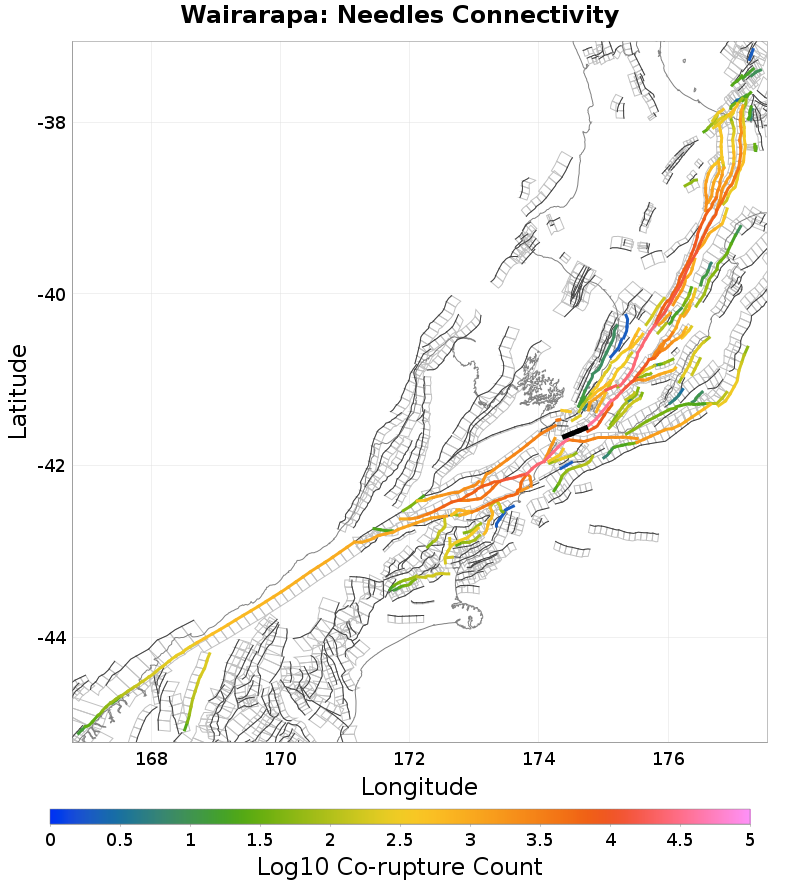

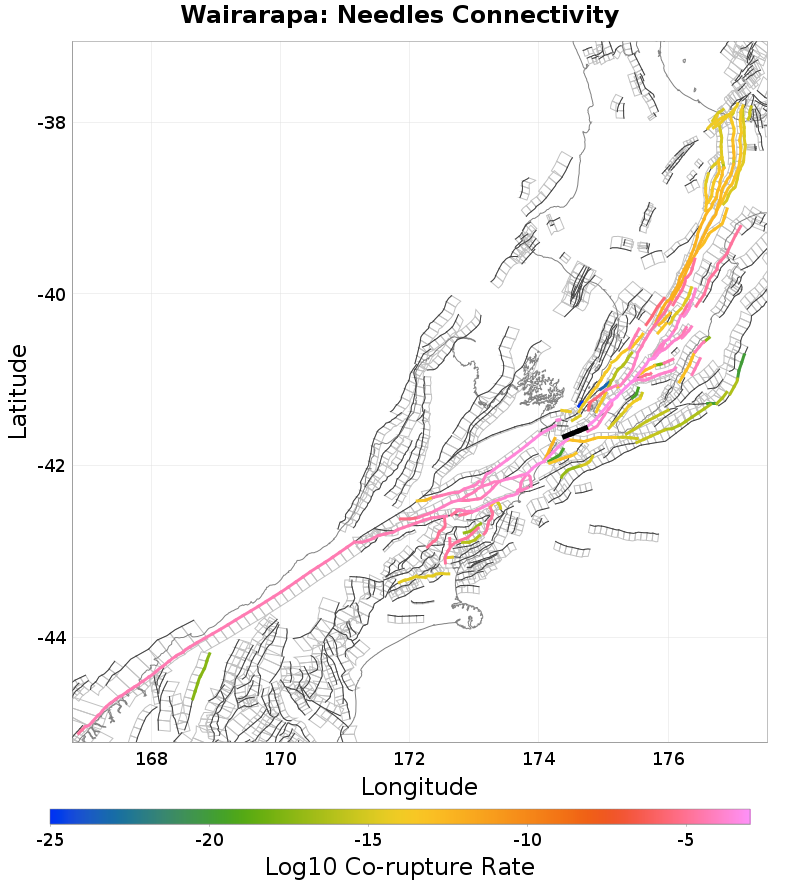

Connectivity

Nearby Sections

Fault Section	Fault Section
Wairarapa: 1, 0 km away	Wairau 3, 9.87 km away
Cloudy 3, 0.29 km away	Cloudy 1, 10.84 km away
Wharekauhau, 0.3 km away	Wellington Hutt Valley: 2, 12.47 km away
Vernon 4, 0.42 km away	Needles East 2, 12.75 km away
Needles, 4.57 km away	Vernon 2, 14.03 km away
BooBoo, 5.6 km away	Wellington Hutt Valley: 1, 14.52 km away
Cloudy 2, 6.58 km away	Awatere: Northeast 2, 14.79 km away
Vernon 3, 9.01 km away	Ohariu, 14.92 km away
London Hill, 9.47 km away

Wairarapa: 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	36,897
Co-rupture Rate	4.416711E-4

Cloudy 3, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wharekauhau, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	8,440
Co-rupture Rate	1.1320181E-4

Vernon 4, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Needles, 4.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	33,033
Co-rupture Rate	3.5417062E-4

BooBoo, 5.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	3,601
Co-rupture Rate	1.05665246E-13

Cloudy 2, 6.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	3,699
Co-rupture Rate	2.8453636E-4

Vernon 3, 9.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

London Hill, 9.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	false
Co-rupture Count	2,277
Co-rupture Rate	3.426811E-13

Wairau 3, 9.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	395
Co-rupture Rate	5.4110324E-15

Cloudy 1, 10.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 2, 12.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Needles East 2, 12.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	false
Co-rupture Count	354
Co-rupture Rate	2.5339024E-20

Vernon 2, 14.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 1, 14.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	true
Co-rupture Count	217
Co-rupture Rate	1.4946654E-15

Awatere: Northeast 2, 14.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	false
Co-rupture Count	3,213
Co-rupture Rate	2.6924934E-4

Ohariu, 14.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0MzcuMHg5a2Jr
Connected?	true
Directly Connected?	false
Co-rupture Count	422
Co-rupture Rate	2.7384745E-14
