Palliser - Kaiwhata Details

Property	Value
Rupture Count	12,249
Ruptures Above Sect Min Mag	12,234
Ruptures w/ Nonzero Rates	1,624
Magnitude Range	[6.74, 8.30]
Length Range	[21, 714] km
Total Rate	7.2370685E-4 /yr
Multi-Fault Rate	7.2370685E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	83

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

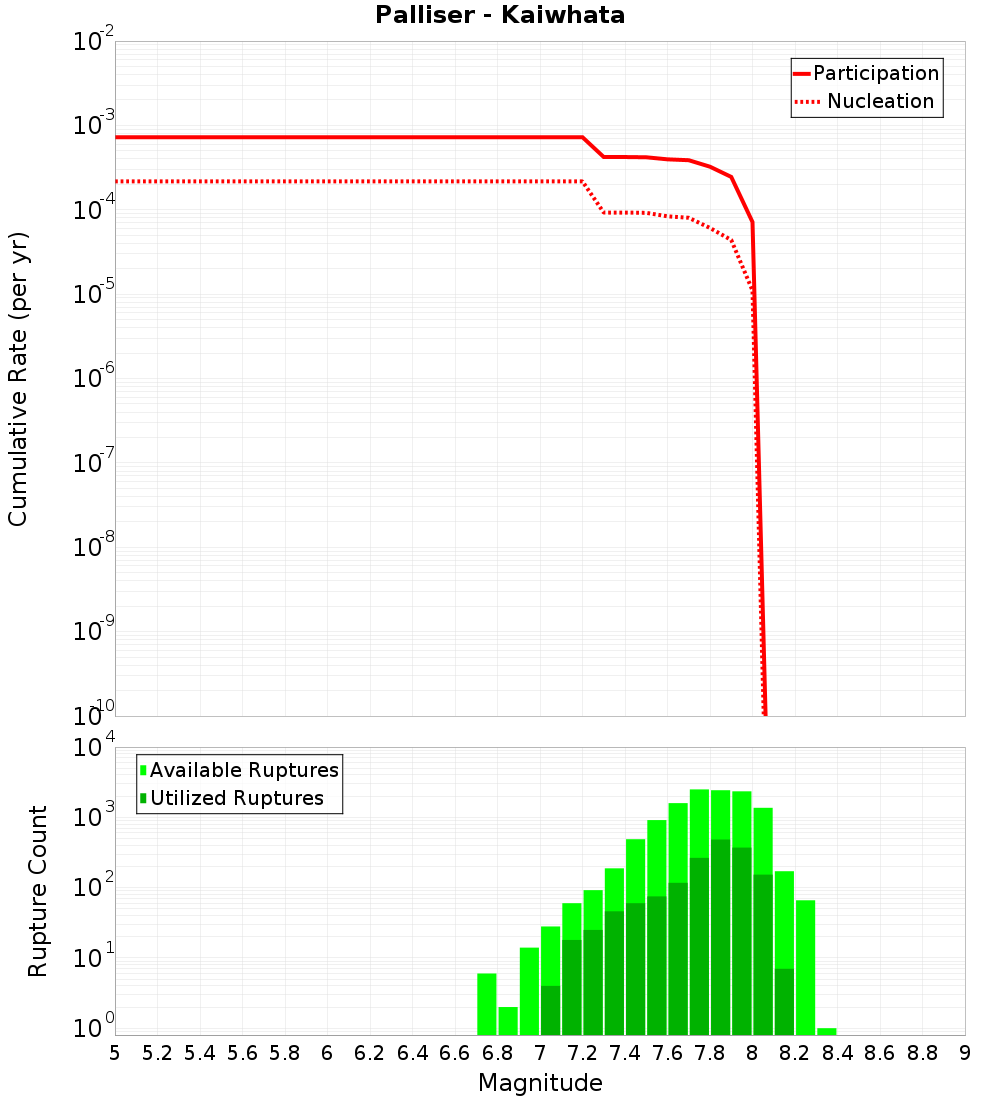

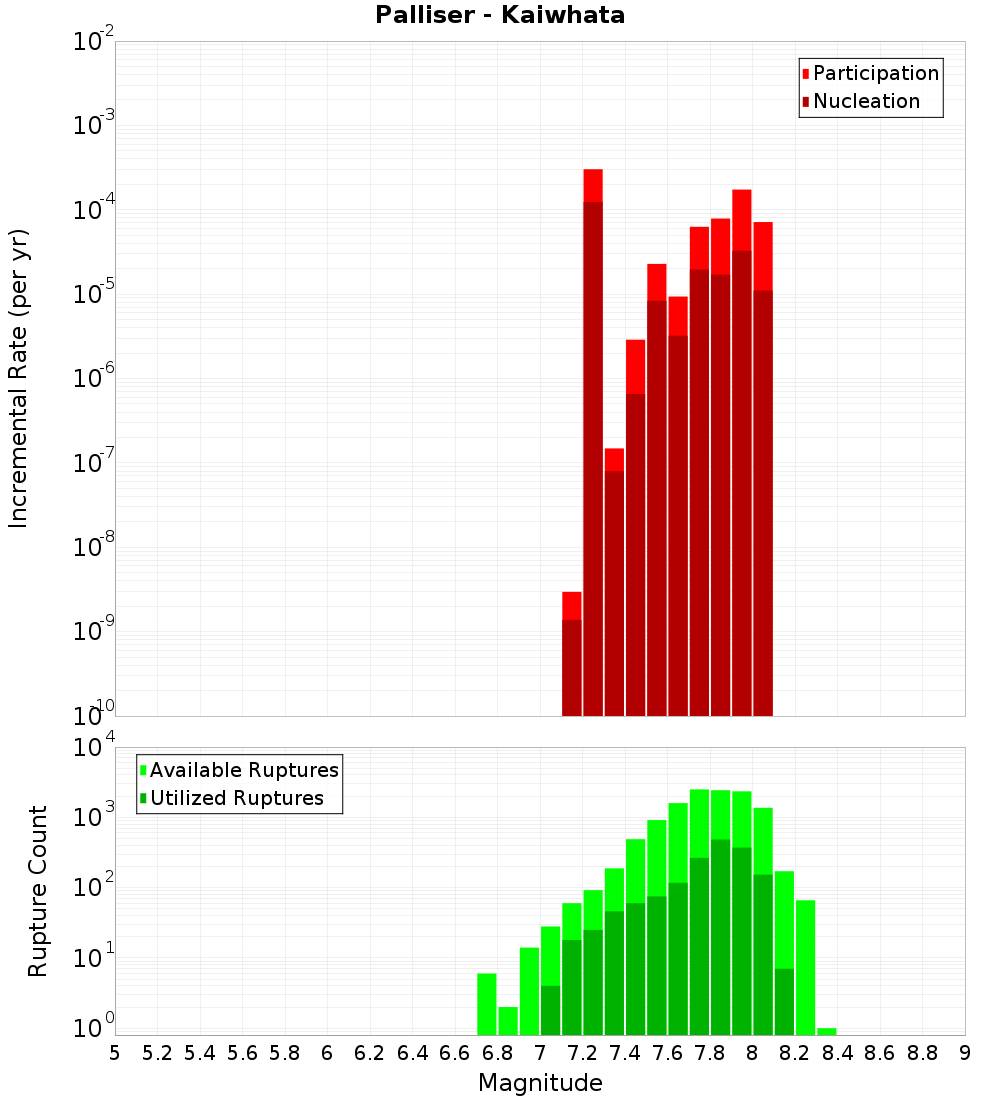

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

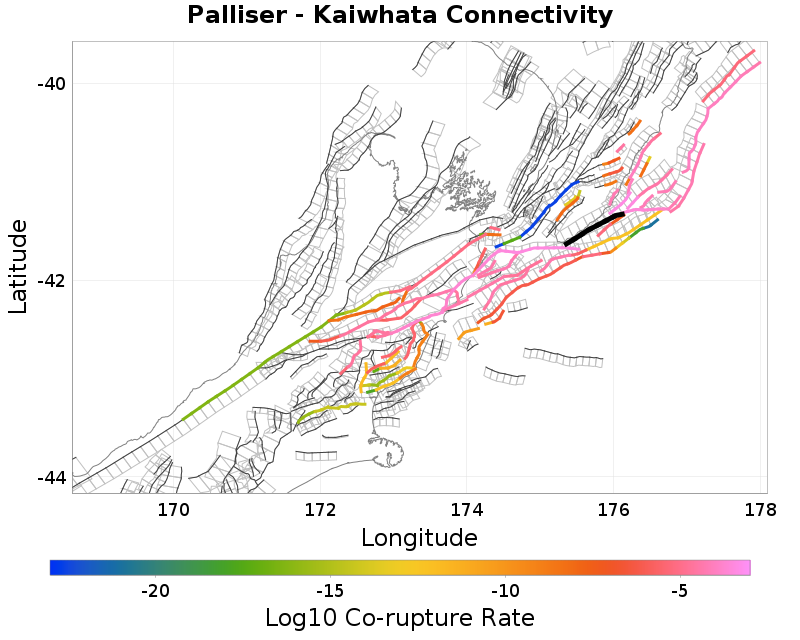

Connectivity

Nearby Sections

Fault Section
Honeycomb, 1.22 km away
Uruti Basin, 1.36 km away
Otaraia, 1.7 km away
Riversdale, 3.25 km away
Uruti Point, 3.6 km away
BooBoo, 4.24 km away
Whareama Bank, 6.44 km away
Opouawe - Uruti, 8.58 km away
Dry River - Huangarua: 1, 11.83 km away
Pahaua, 13.63 km away
Riversdale North, 14.39 km away

Honeycomb, 1.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDEuNTV4Rnp5
Connected?	true
Directly Connected?	true
Co-rupture Count	308
Co-rupture Rate	5.598835E-6

Uruti Basin, 1.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDEuNTV4Rnp5
Connected?	true
Directly Connected?	true
Co-rupture Count	6,821
Co-rupture Rate	2.4741318E-4

Otaraia, 1.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDEuNTV4Rnp5
Connected?	true
Directly Connected?	true
Co-rupture Count	131
Co-rupture Rate	9.405003E-9

Riversdale, 3.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDEuNTV4Rnp5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,798
Co-rupture Rate	3.847796E-4

Uruti Point, 3.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDEuNTV4Rnp5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,143
Co-rupture Rate	5.4819033E-5

BooBoo, 4.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDEuNTV4Rnp5
Connected?	true
Directly Connected?	true
Co-rupture Count	7,841
Co-rupture Rate	3.395757E-4

Whareama Bank, 6.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDEuNTV4Rnp5
Connected?	true
Directly Connected?	false
Co-rupture Count	68
Co-rupture Rate	3.3670475E-4

Opouawe - Uruti, 8.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDEuNTV4Rnp5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,041
Co-rupture Rate	4.4865665E-5

Dry River - Huangarua: 1, 11.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDEuNTV4Rnp5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahaua, 13.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDEuNTV4Rnp5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,432
Co-rupture Rate	6.378433E-6

Riversdale North, 14.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDEuNTV4Rnp5
Connected?	true
Directly Connected?	false
Co-rupture Count	1,394
Co-rupture Rate	9.1826E-5
