Alfredton North Details

Property	Value
Rupture Count	2,925
Ruptures Above Sect Min Mag	2,917
Ruptures w/ Nonzero Rates	183
Magnitude Range	[6.55, 8.39]
Length Range	[15, 892] km
Total Rate	7.784789E-5 /yr
Multi-Fault Rate	7.784789E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	77

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

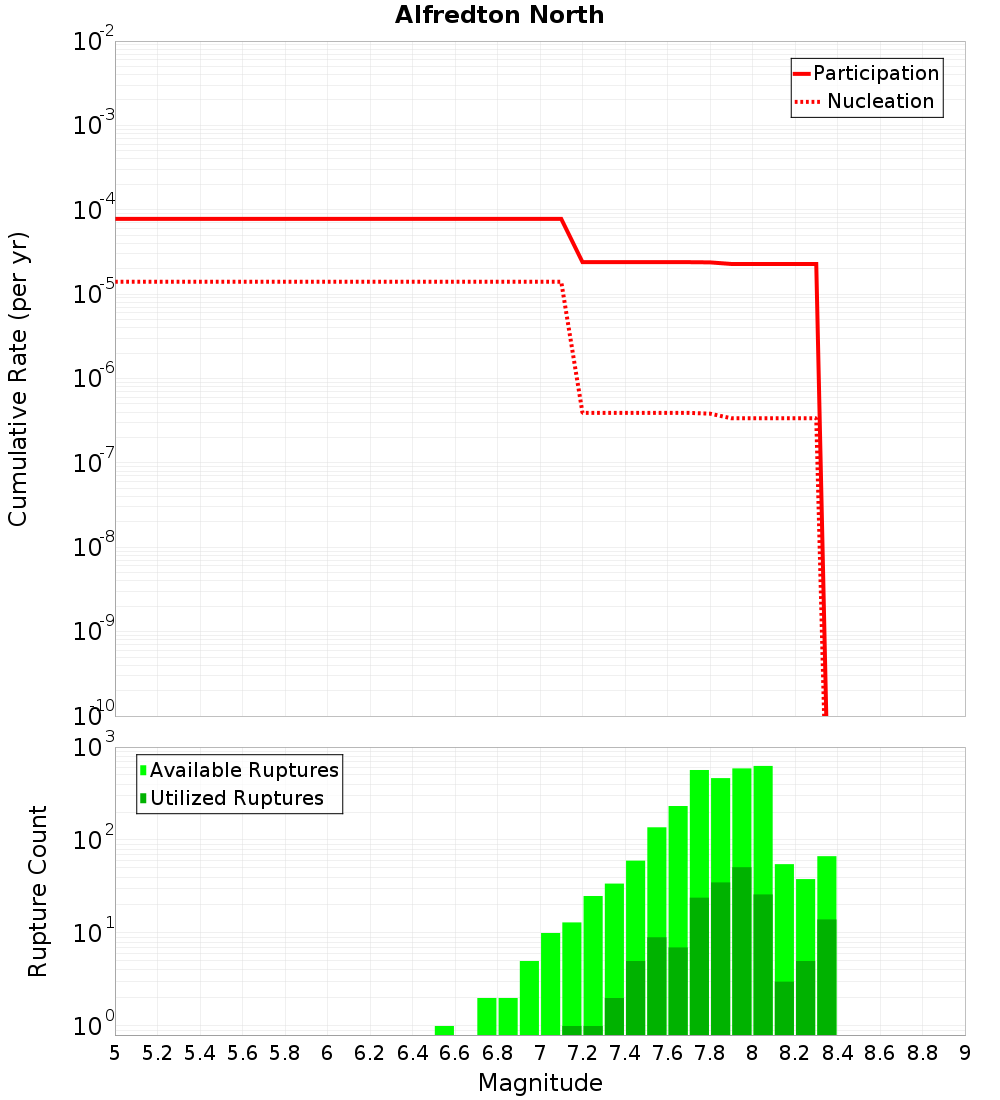

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alfredton South, 0 km away
Saunders Road, 0 km away
Pa Valley, 0.21 km away
Makuri - Waewaepa, 0.29 km away
Dreyers Rock, 5.12 km away
Pahiatua, 12.97 km away
Waitawhiti, 14.48 km away

Alfredton South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDQuMFpzWlpt
Connected?	true
Directly Connected?	true
Co-rupture Count	1,947
Co-rupture Rate	7.722166E-5

Saunders Road, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDQuMFpzWlpt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pa Valley, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDQuMFpzWlpt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Makuri - Waewaepa, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDQuMFpzWlpt
Connected?	true
Directly Connected?	true
Co-rupture Count	2,266
Co-rupture Rate	2.0777632E-5

Dreyers Rock, 5.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDQuMFpzWlpt
Connected?	true
Directly Connected?	true
Co-rupture Count	2,872
Co-rupture Rate	2.3919323E-5

Pahiatua, 12.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDQuMFpzWlpt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitawhiti, 14.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NDQuMFpzWlpt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
