Hunters Details

PropertyValue
Rupture Count578
Ruptures Above Sect Min Mag574
Ruptures w/ Nonzero Rates17
Magnitude Range[6.97, 8.29]
Length Range[21, 420] km
Total Rate2.450968E-5 /yr
Multi-Fault Rate2.450968E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults35

Table Of Contents

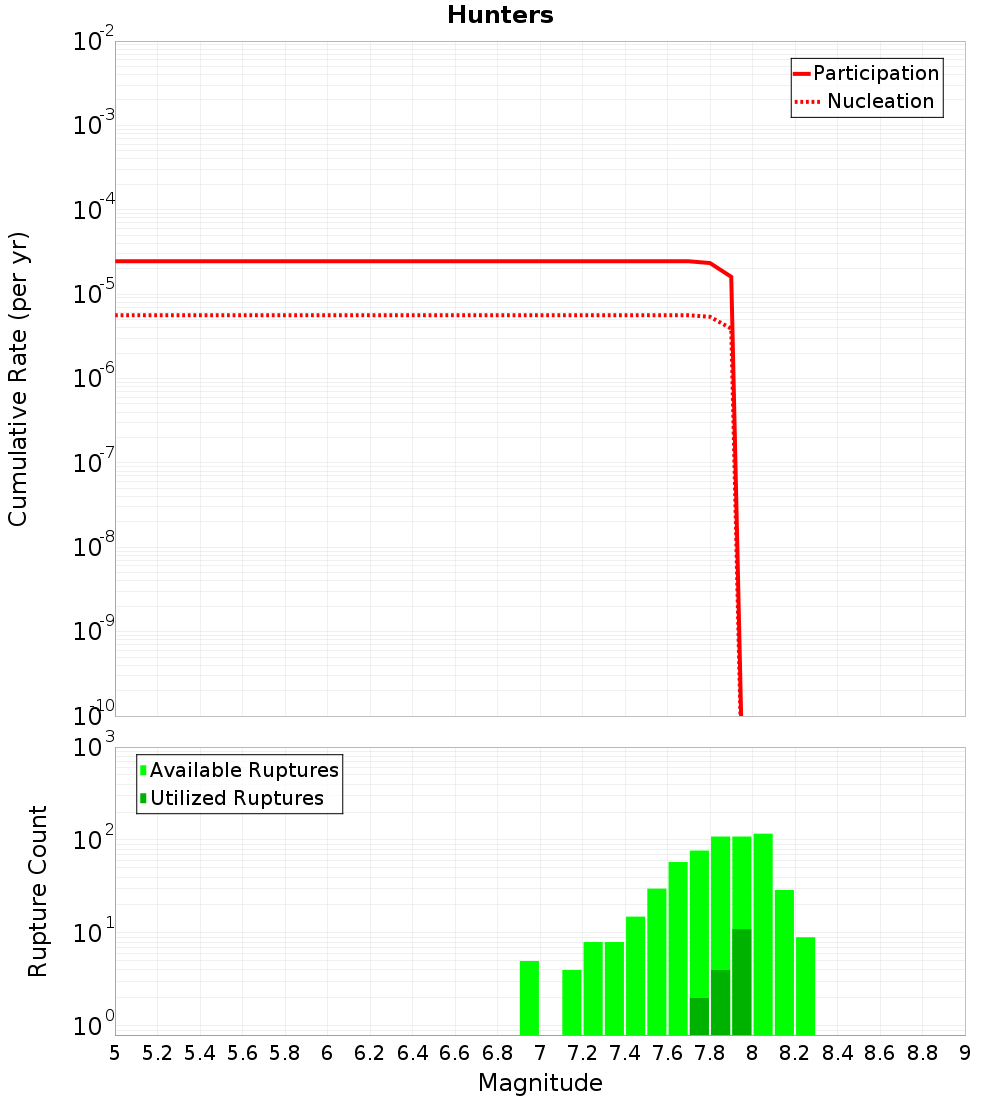

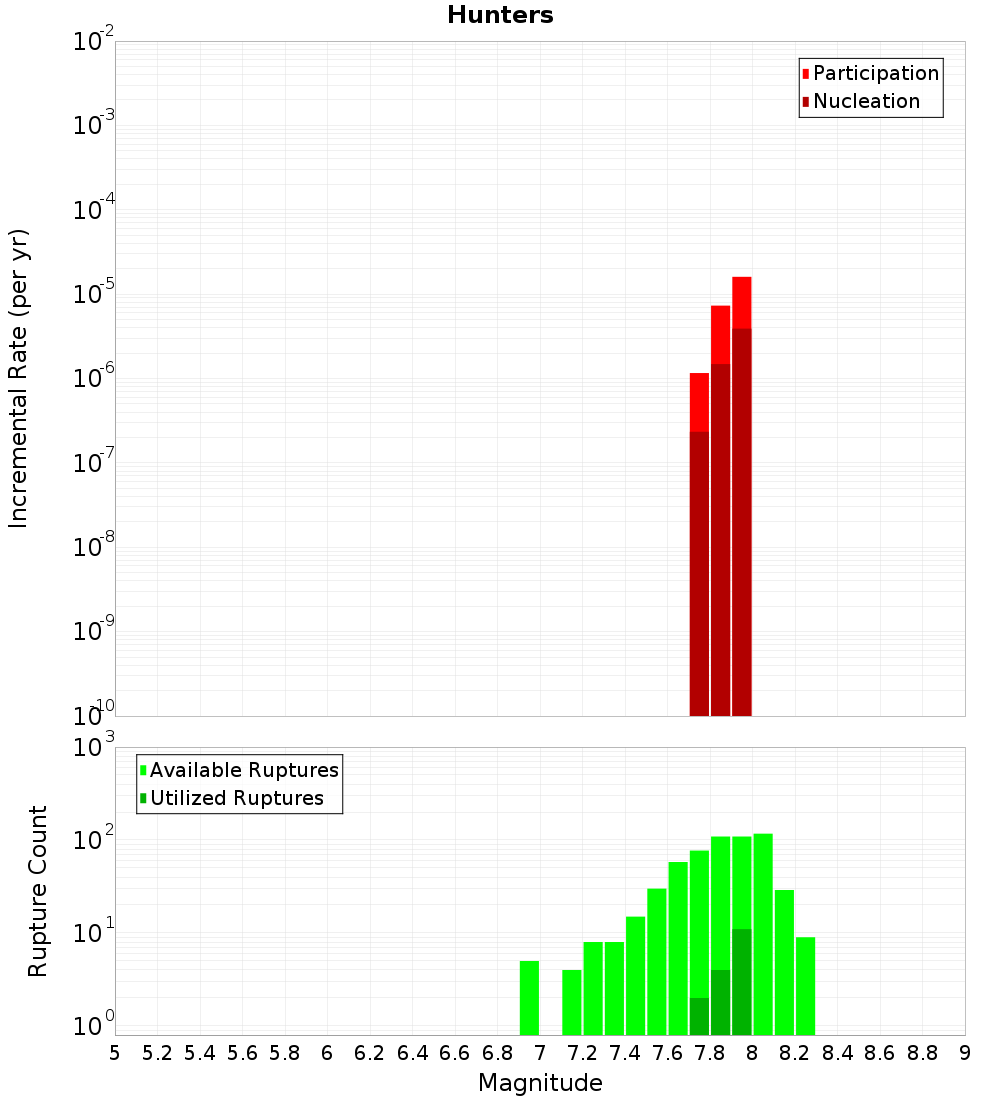

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

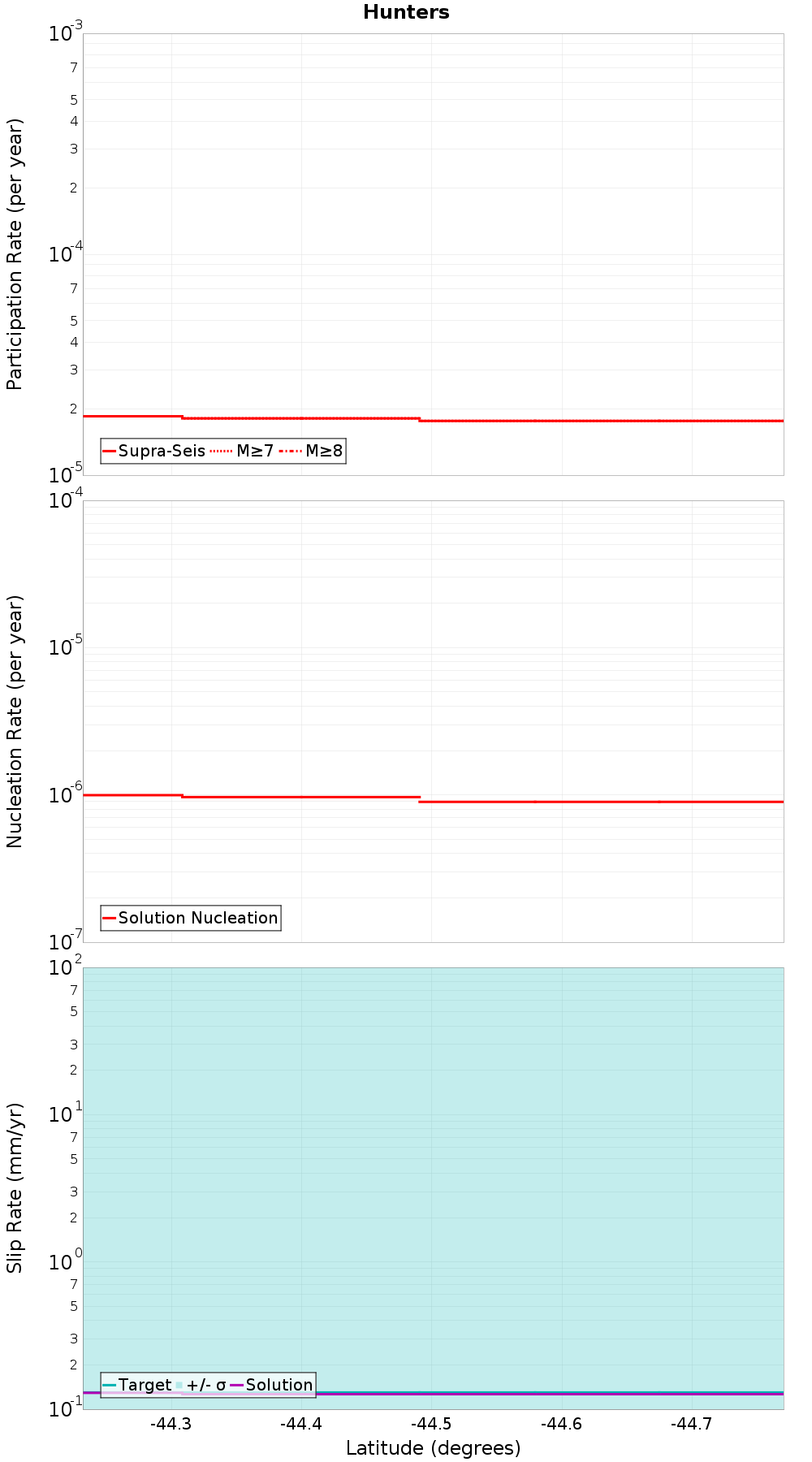

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

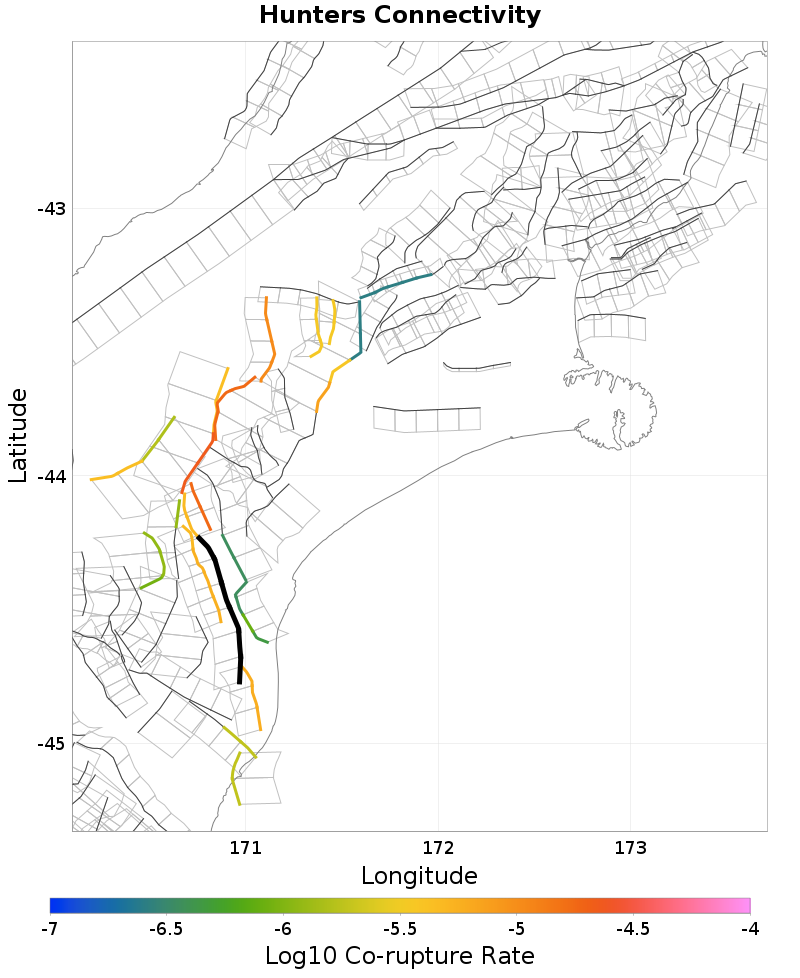

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Stonewall, 0.33 km away
Opawa, 0.54 km away
Waimate, 0.59 km away
Chamberlain, 2.48 km away
Maungati, 3.56 km away
Albury, 4.68 km away
Brothers, 7.39 km away
Dalgety, 8.91 km away
Campbell Hills, 11.24 km away
Black Hill, 11.54 km away
Grampian, 14.81 km away
Kirkliston, 14.9 km away

Stonewall, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NTguMDc5aU5w
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate0.0

Opawa, 0.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NTguMDc5aU5w
Connected?true
Directly Connected?true
Co-rupture Count166
Co-rupture Rate4.828376E-6

Waimate, 0.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NTguMDc5aU5w
Connected?true
Directly Connected?true
Co-rupture Count118
Co-rupture Rate5.957552E-6

Chamberlain, 2.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NTguMDc5aU5w
Connected?true
Directly Connected?true
Co-rupture Count126
Co-rupture Rate5.687126E-6

Maungati, 3.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NTguMDc5aU5w
Connected?true
Directly Connected?true
Co-rupture Count102
Co-rupture Rate7.969996E-7

Albury, 4.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NTguMDc5aU5w
Connected?true
Directly Connected?true
Co-rupture Count196
Co-rupture Rate1.774261E-5

Brothers, 7.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NTguMDc5aU5w
Connected?true
Directly Connected?false
Co-rupture Count75
Co-rupture Rate3.540302E-7

Dalgety, 8.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NTguMDc5aU5w
Connected?true
Directly Connected?false
Co-rupture Count95
Co-rupture Rate1.1855743E-6

Campbell Hills, 11.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NTguMDc5aU5w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Black Hill, 11.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NTguMDc5aU5w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Grampian, 14.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NTguMDc5aU5w
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate1.1608957E-6

Kirkliston, 14.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NTguMDc5aU5w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
