Alpine: Springs Junction to Tophouse Details

Property	Value
Rupture Count	70,243
Ruptures Above Sect Min Mag	70,239
Ruptures w/ Nonzero Rates	1,006
Magnitude Range	[7.00, 8.62]
Length Range	[24, 1,132] km
Total Rate	6.9945224E-4 /yr
Multi-Fault Rate	6.4832176E-4 /yr (92.69%)
Directly-Connected Faults	8
All Co-Rupturing Faults	142

Table Of Contents

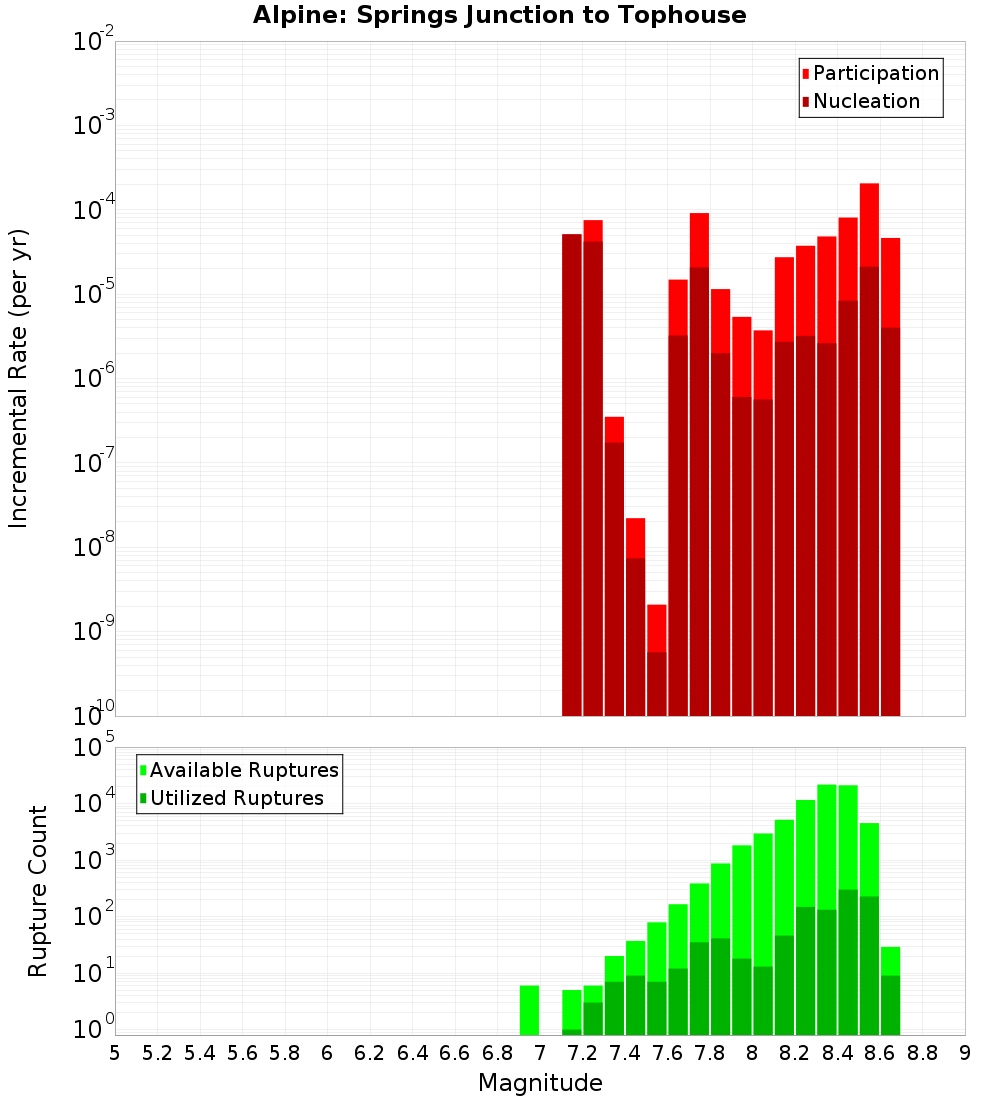

Magnitude-Frequency Distribution

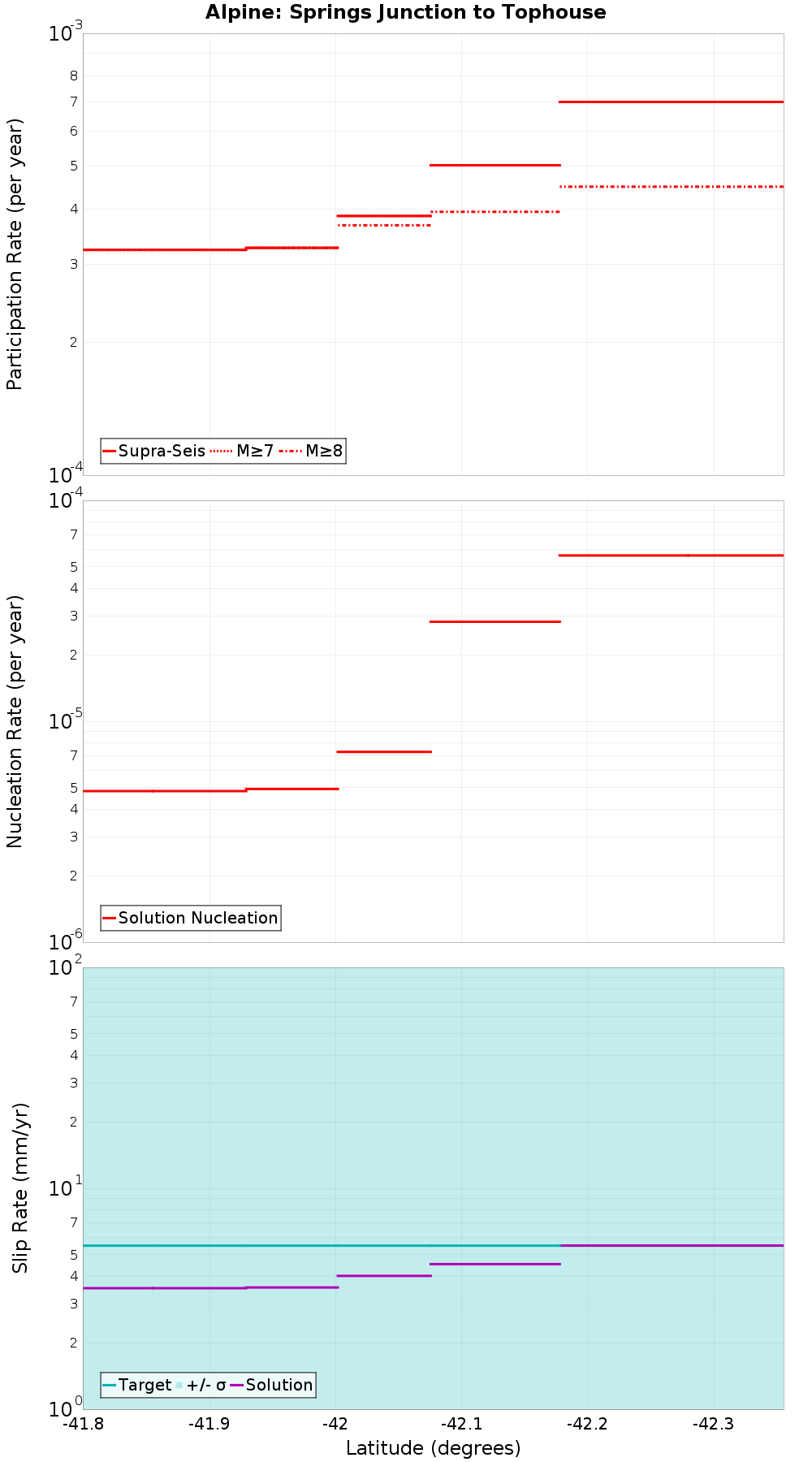

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Kaniere to Springs Junction, 0 km away
Whangamoa, 0 km away
Awatere: Southwest, 0 km away
Wairau, 0 km away
Tutaki, 0.13 km away
Fowlers, 0.19 km away
Flaxmore - Waimea - Tahunanui, 0.45 km away
Clarence: Southwest, 5.57 km away
Hope: Hope River, 13.43 km away

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	true
Co-rupture Count	68,054
Co-rupture Rate	6.0083554E-4

Whangamoa, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	true
Co-rupture Count	31,470
Co-rupture Rate	1.9995377E-5

Awatere: Southwest, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	true
Co-rupture Count	692
Co-rupture Rate	3.056008E-5

Wairau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	true
Co-rupture Count	25,931
Co-rupture Rate	2.8981644E-4

Tutaki, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	true
Co-rupture Count	7,144
Co-rupture Rate	3.8393635E-5

Fowlers, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	true
Co-rupture Count	335
Co-rupture Rate	3.94622E-5

Flaxmore - Waimea - Tahunanui, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	true
Co-rupture Count	5,883
Co-rupture Rate	1.7022196E-5

Clarence: Southwest, 5.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	true
Co-rupture Count	838
Co-rupture Rate	1.7369264E-6

Hope: Hope River, 13.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	false
Co-rupture Count	6,599
Co-rupture Rate	2.0449215E-5
