Mt Culverden Details

Property	Value
Rupture Count	5,455
Ruptures Above Sect Min Mag	5,455
Ruptures w/ Nonzero Rates	77
Magnitude Range	[7.12, 8.45]
Length Range	[28, 781] km
Total Rate	1.042039E-4 /yr
Multi-Fault Rate	1.042039E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	83

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

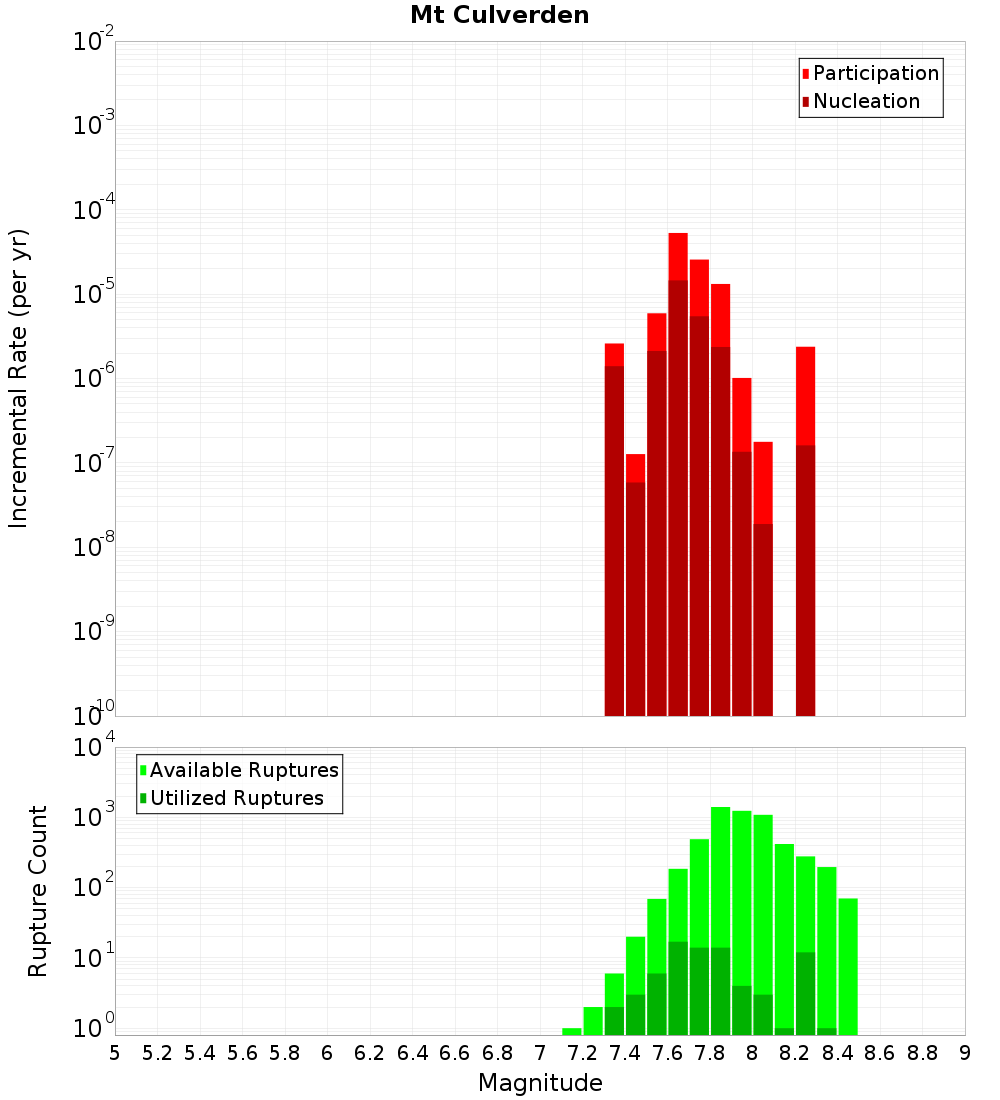

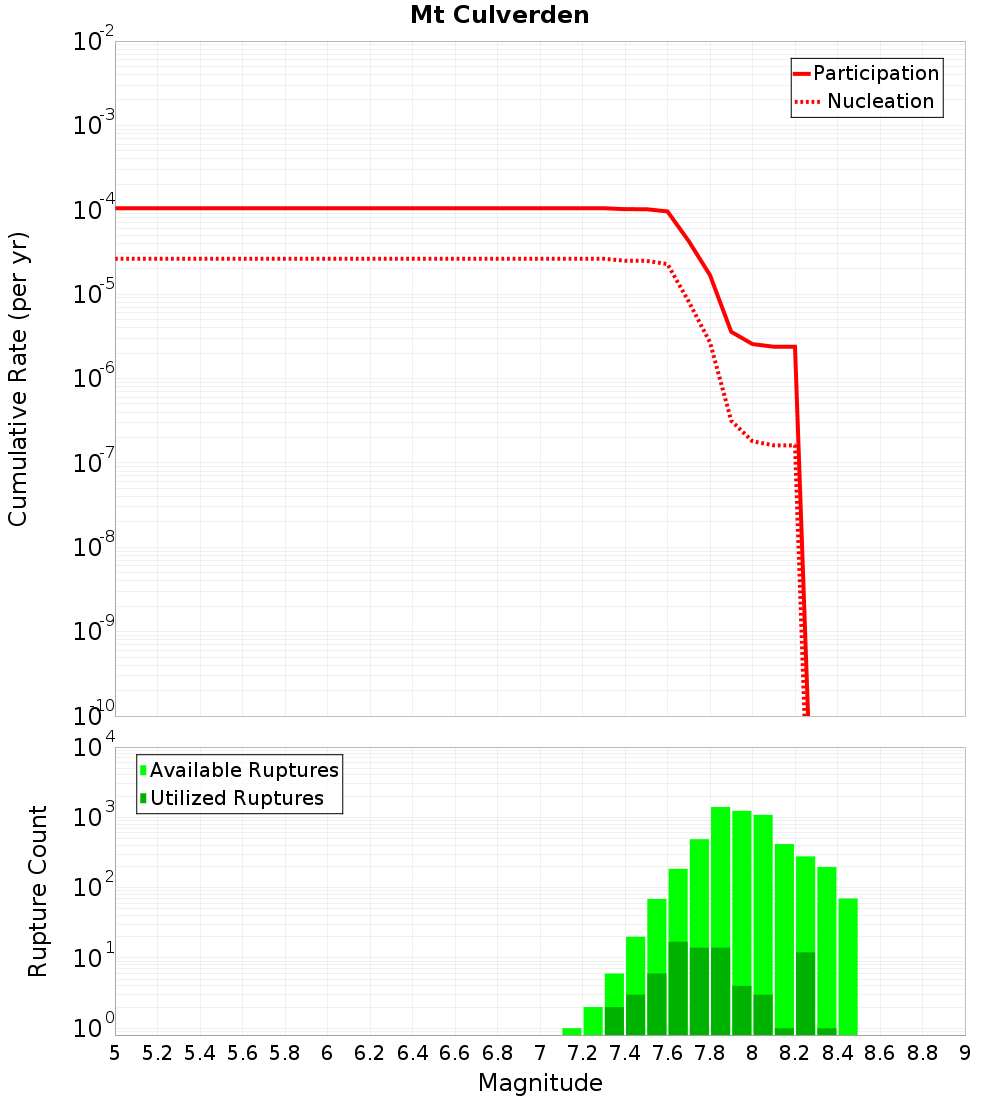

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Balmoral, 0.28 km away
Kaiwara North, 0.53 km away
Hurunui Peak, 1.53 km away
The Humps, 1.72 km away
Doctors, 2.68 km away
Leonard Mound, 4.83 km away
Lowry, 7.58 km away
Hanmer, 11.2 km away
Leader: South, 11.62 km away
Esk North, 12.11 km away
Hope: Hamner SE, 12.56 km away
Hope: Conway, 12.62 km away
Alexander, 14.58 km away
Hope: Hanmer NW, 14.84 km away

Balmoral, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	true
Co-rupture Count	1,225
Co-rupture Rate	3.757297E-5

Kaiwara North, 0.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	true
Co-rupture Count	2,537
Co-rupture Rate	1.6363939E-6

Hurunui Peak, 1.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	true
Co-rupture Count	2,613
Co-rupture Rate	6.4118445E-5

The Humps, 1.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	true
Co-rupture Count	2,643
Co-rupture Rate	6.258486E-5

Doctors, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	true
Co-rupture Count	2,653
Co-rupture Rate	3.010792E-5

Leonard Mound, 4.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	true
Co-rupture Count	20
Co-rupture Rate	2.988031E-5

Lowry, 7.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hanmer, 11.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leader: South, 11.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	false
Co-rupture Count	44
Co-rupture Rate	4.0830666E-5

Esk North, 12.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Hamner SE, 12.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Conway, 12.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	true
Directly Connected?	false
Co-rupture Count	1,865
Co-rupture Rate	2.9845543E-17

Alexander, 14.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Hanmer NW, 14.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0NzIuMFhvSzRI
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
