Otara West 1 Details
| Property | Value |
|---|---|
| Rupture Count | 21 |
| Ruptures Above Sect Min Mag | 20 |
| Ruptures w/ Nonzero Rates | 20 |
| Magnitude Range | [6.77, 7.51] |
| Length Range | [14, 86] km |
| Total Rate | 2.9953766E-5 /yr |
| Multi-Fault Rate | 2.9953766E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 12 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

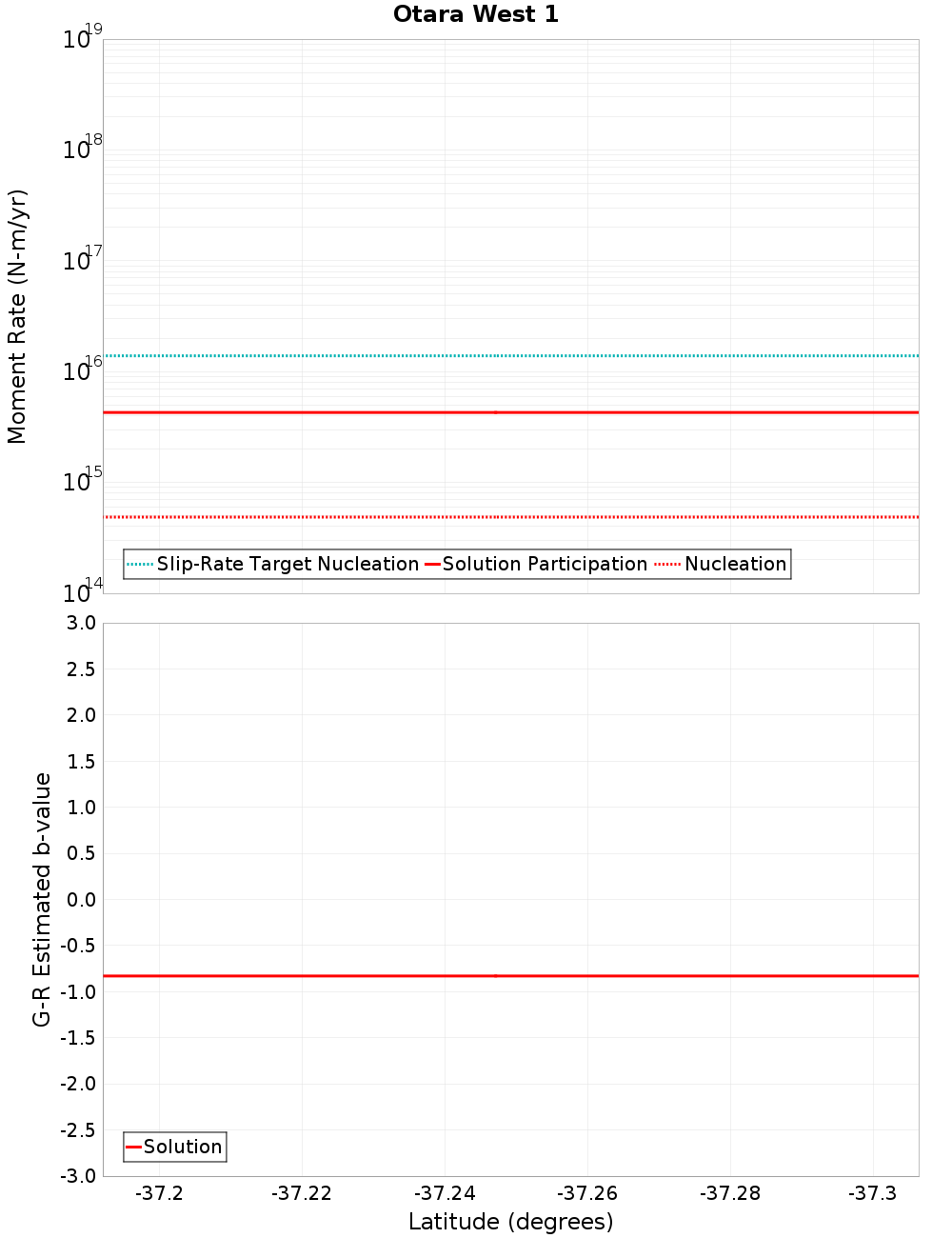

Moment-Rates and b-Values

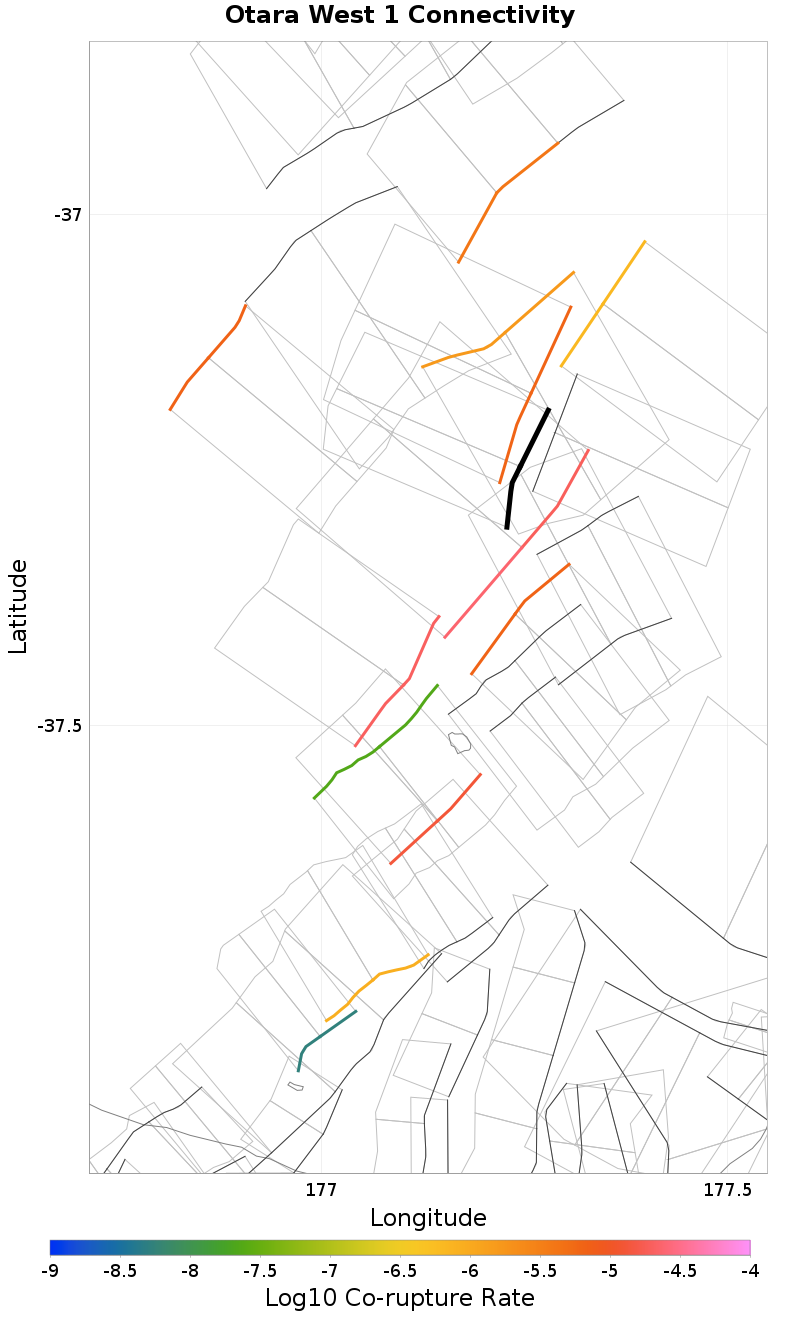

Connectivity
 |  |
|---|
Nearby Sections
Otara West 3, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 1.5705045E-6 |
Tuakana 6, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 6.6833004E-6 |
Tuakana 7, 0.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 2, 0.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 6.434765E-6 |
Volkner 4, 1.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 17 |
| Co-rupture Rate | 2.3270466E-5 |
Otara East 1, 1.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Arawa 3, 4.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara East 2, 4.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 6.7281104E-7 |
Te Arawa 2, 7.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 6.4487576E-6 |
Volkner 3, 8.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 12 |
| Co-rupture Rate | 1.9875784E-5 |
Te Arawa 1, 11.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuatoru 2, 12.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
