Pisa Details

Property	Value
Rupture Count	49,572
Ruptures Above Sect Min Mag	49,571
Ruptures w/ Nonzero Rates	15,608
Magnitude Range	[7.14, 8.52]
Length Range	[32, 963] km
Total Rate	3.927469E-5 /yr
Multi-Fault Rate	3.927469E-5 /yr (100.00%)
Directly-Connected Faults	10
All Co-Rupturing Faults	89

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

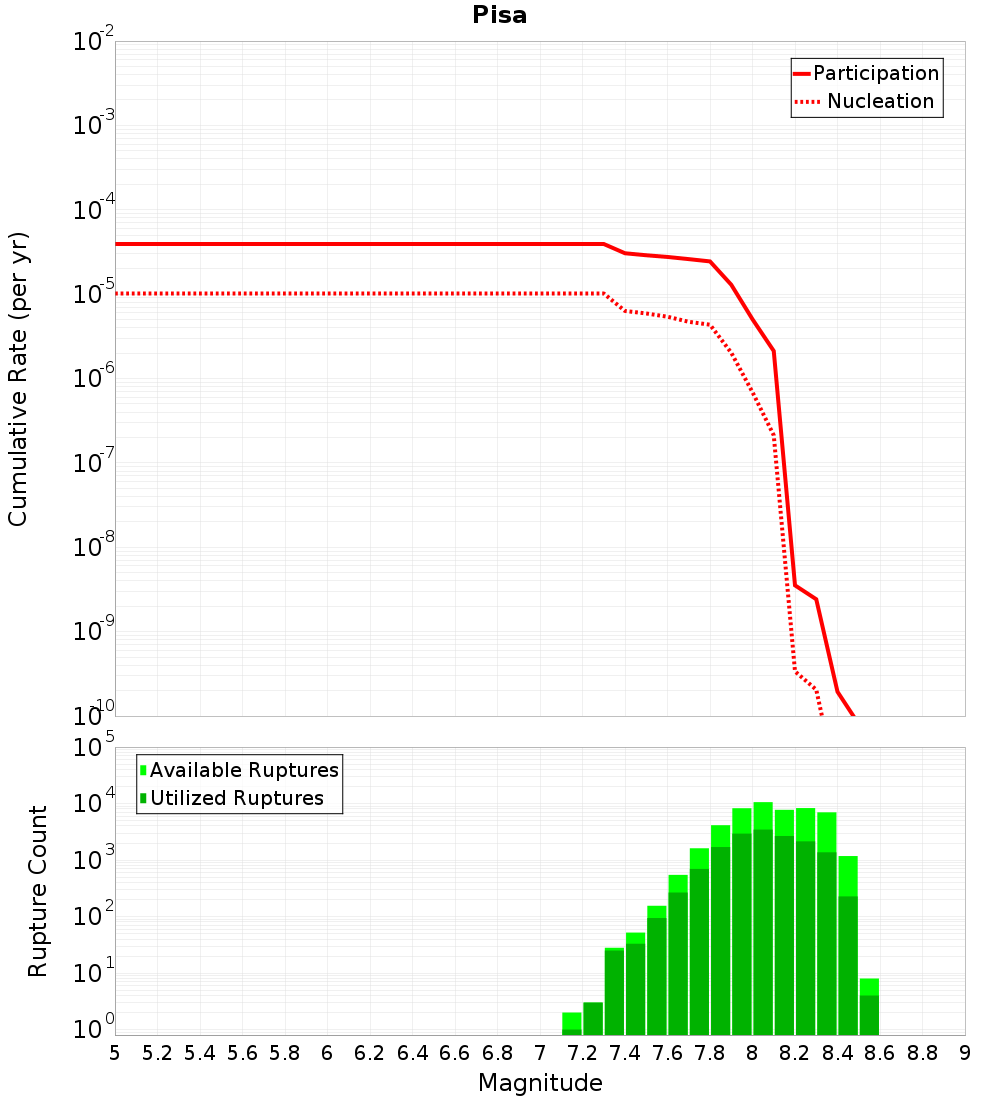

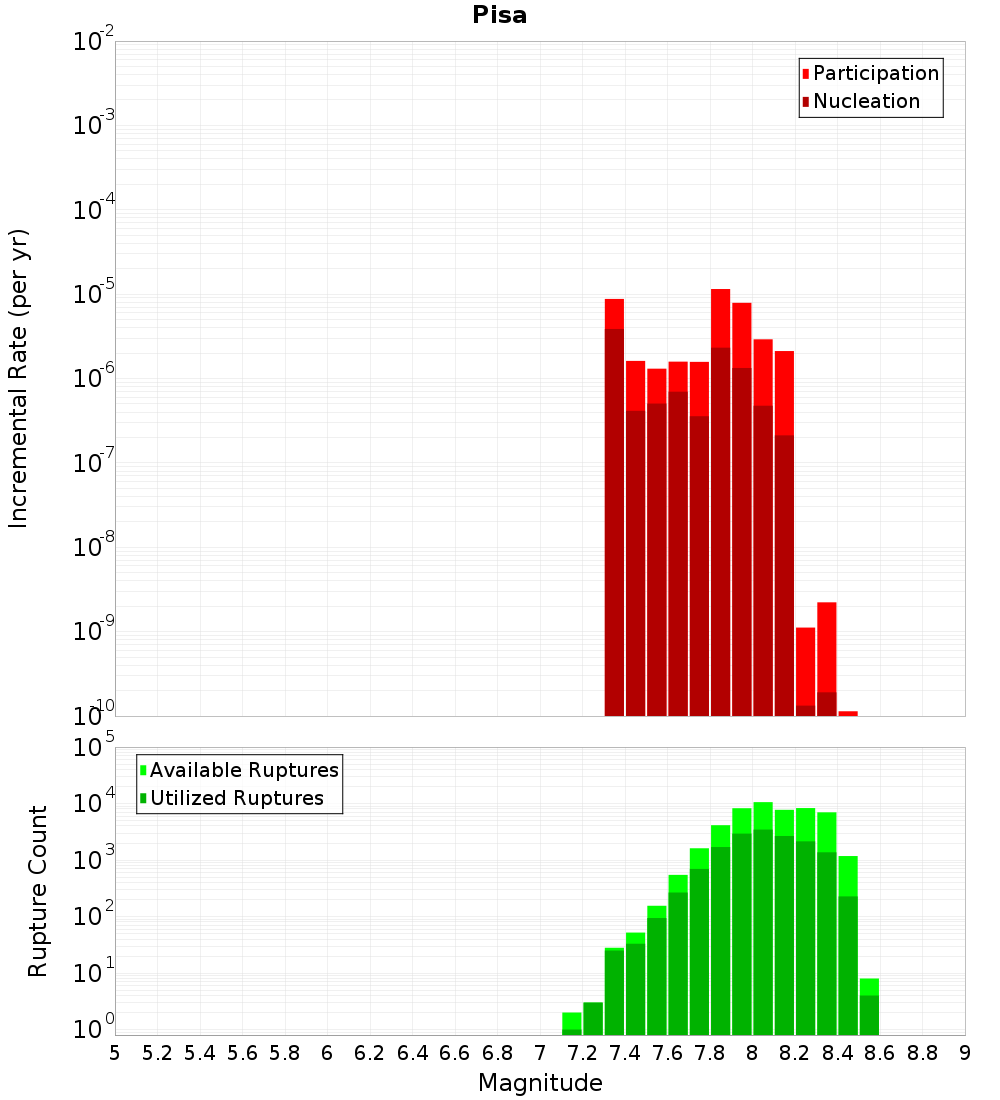

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

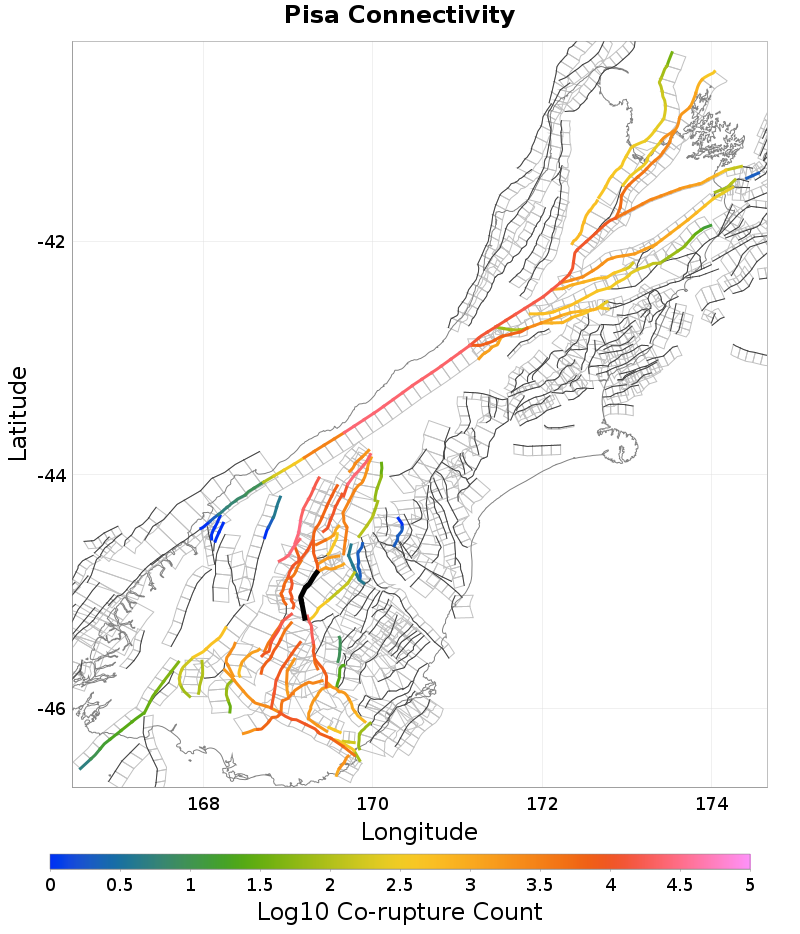

Connectivity

Nearby Sections

Fault Section	Fault Section
Motatapu, 0.13 km away	NW Cardrona South, 5.46 km away
Roaring Meg, 0.18 km away	Goodger, 7.74 km away
Paddys Ridge, 0.29 km away	Galloway, 7.93 km away
Roaring Lion, 0.83 km away	Garvie, 8.36 km away
Grandview, 1.55 km away	NW Cardrona North, 9.29 km away
Old Man, 1.75 km away	Nevis, 9.56 km away
Cluden, 1.98 km away	Lindis River, 12.93 km away
Dunstan, 4.43 km away	Cardrona - Hawea, 13.25 km away

Motatapu, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk
Connected?	true
Directly Connected?	true
Co-rupture Count	27,303
Co-rupture Rate	3.0047488E-5

Roaring Meg, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk
Connected?	true
Directly Connected?	true
Co-rupture Count	10,705
Co-rupture Rate	1.098097E-5

Paddys Ridge, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk
Connected?	true
Directly Connected?	true
Co-rupture Count	3,759
Co-rupture Rate	7.1329447E-7

Roaring Lion, 0.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk
Connected?	true
Directly Connected?	true
Co-rupture Count	16,574
Co-rupture Rate	1.1764205E-5

Grandview, 1.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk
Connected?	true
Directly Connected?	true
Co-rupture Count	7,727
Co-rupture Rate	3.6193213E-9

Old Man, 1.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk
Connected?	true
Directly Connected?	true
Co-rupture Count	20,623
Co-rupture Rate	3.6899773E-6

Cluden, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk
Connected?	true
Directly Connected?	true
Co-rupture Count	1,465
Co-rupture Rate	7.2378934E-6

Dunstan, 4.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk
Connected?	true
Directly Connected?	false
Co-rupture Count	454
Co-rupture Rate	9.793907E-12

NW Cardrona South, 5.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk
Connected?	true
Directly Connected?	true
Co-rupture Count	5,891
Co-rupture Rate	3.924621E-6

Goodger, 7.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk
Connected?	true
Directly Connected?	true
Co-rupture Count	1,505
Co-rupture Rate	1.9300984E-10

Galloway, 7.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Garvie, 8.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk
Connected?	true
Directly Connected?	true
Co-rupture Count	7,567
Co-rupture Rate	1.0781293E-5

NW Cardrona North, 9.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk
Connected?	true
Directly Connected?	false
Co-rupture Count	10,821
Co-rupture Rate	9.58707E-6

Nevis, 9.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk
Connected?	true
Directly Connected?	false
Co-rupture Count	3,810
Co-rupture Rate	1.7920336E-6

Lindis River, 12.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk
Connected?	true
Directly Connected?	false
Co-rupture Count	409
Co-rupture Rate	2.7658238E-9

Cardrona - Hawea, 13.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODAuMDV0V0tk
Connected?	true
Directly Connected?	false
Co-rupture Count	9,171
Co-rupture Rate	3.2277126E-6
