Awatere: Northeast 2 Details

Property	Value
Rupture Count	10,792
Ruptures Above Sect Min Mag	10,787
Ruptures w/ Nonzero Rates	5,672
Magnitude Range	[6.79, 8.48]
Length Range	[22, 1,082] km
Total Rate	4.0027915E-4 /yr
Multi-Fault Rate	4.0027915E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	160

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

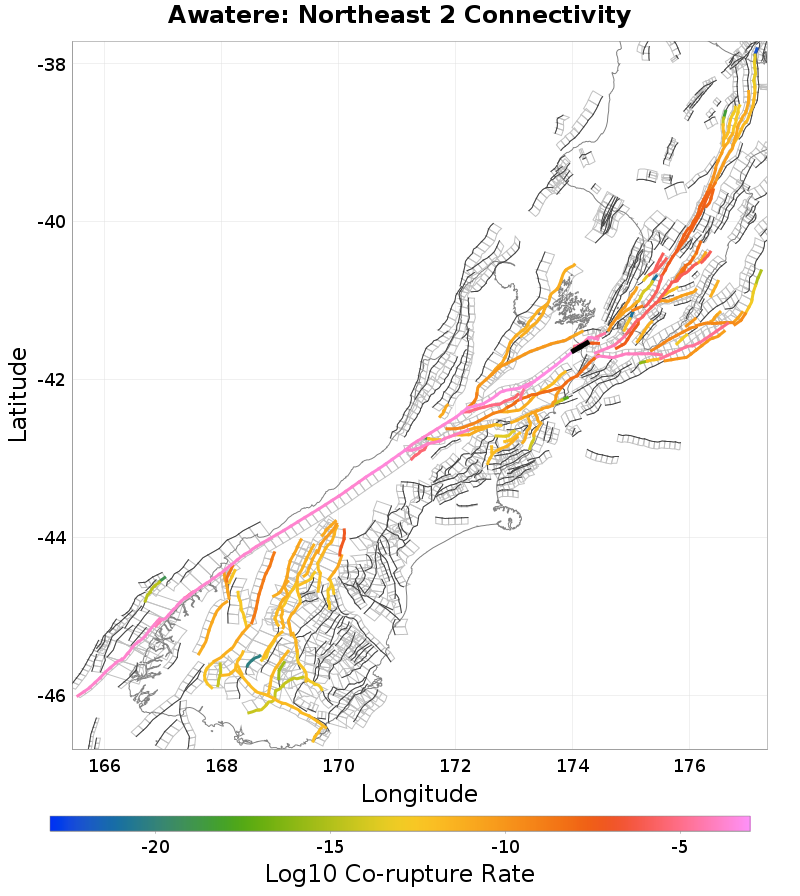

Connectivity

Nearby Sections

Fault Section
Awatere: Northeast 1, 0 km away
Vernon 1, 0 km away
Vernon 4, 0 km away
Vernon 3, 0 km away
Cloudy 1, 0.04 km away
Vernon 2, 0.12 km away
Cloudy 2, 4.02 km away
Cloudy 3, 5.28 km away
Wairau 2, 7.45 km away
Wairau 3, 10.16 km away
Wairau, 12.04 km away
London Hill, 14.08 km away
Wairarapa: Needles, 14.79 km away

Awatere: Northeast 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	10,284
Co-rupture Rate	4.0027182E-4

Vernon 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	131
Co-rupture Rate	5.379451E-9

Vernon 4, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	false
Co-rupture Count	86
Co-rupture Rate	3.9564956E-8

Vernon 3, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	324
Co-rupture Rate	3.0899544E-5

Cloudy 1, 0.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	1,863
Co-rupture Rate	2.860735E-5

Vernon 2, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	460
Co-rupture Rate	2.2068816E-5

Cloudy 2, 4.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	3,477
Co-rupture Rate	1.9905073E-4

Cloudy 3, 5.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	3,521
Co-rupture Rate	1.1542547E-4

Wairau 2, 7.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairau 3, 10.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairau, 12.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	false
Co-rupture Count	263
Co-rupture Rate	7.7627425E-11

London Hill, 14.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: Needles, 14.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	false
Co-rupture Count	3,213
Co-rupture Rate	1.10981346E-4
