Leader: Central Details

Property	Value
Rupture Count	7,533
Ruptures Above Sect Min Mag	7,527
Ruptures w/ Nonzero Rates	4,306
Magnitude Range	[6.32, 8.27]
Length Range	[10, 663] km
Total Rate	4.9564733E-5 /yr
Multi-Fault Rate	4.9564733E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	115

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

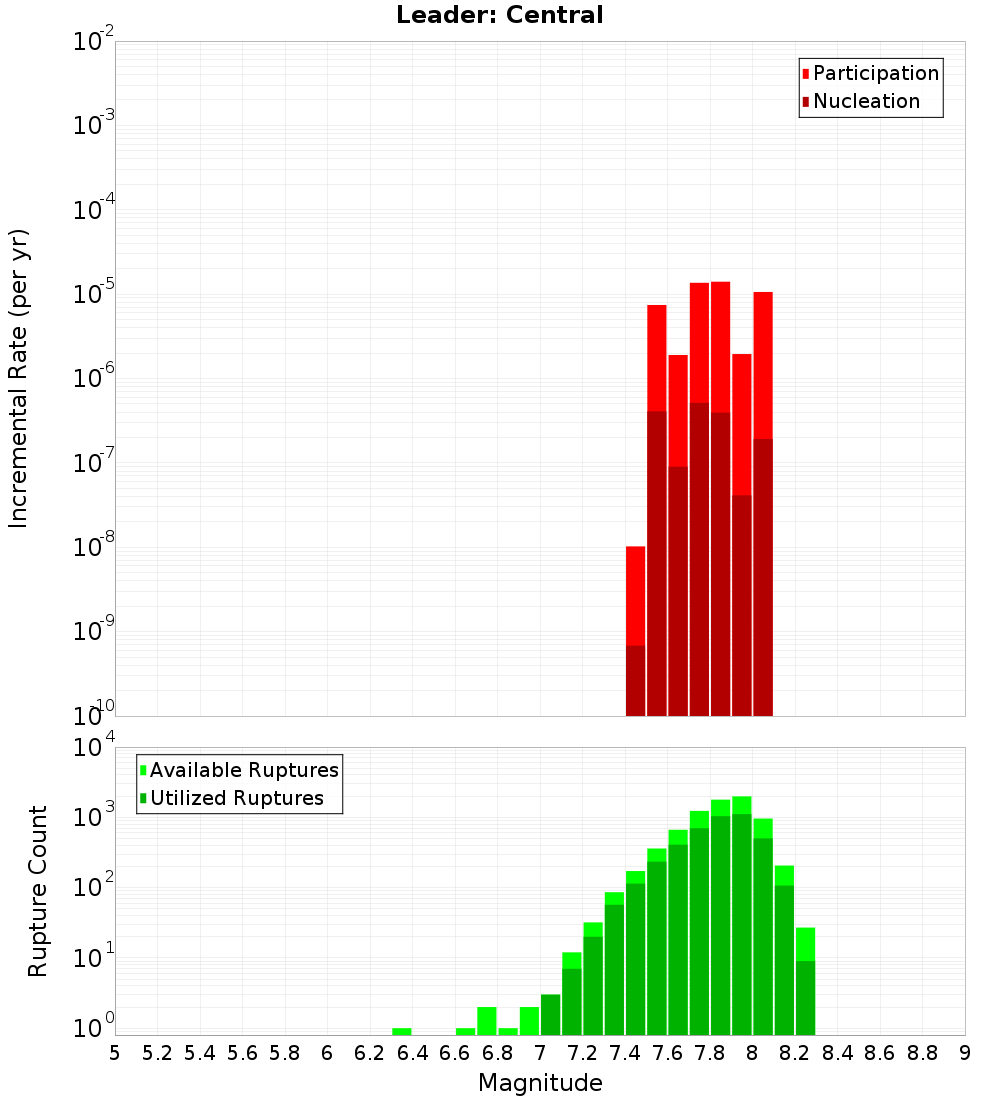

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

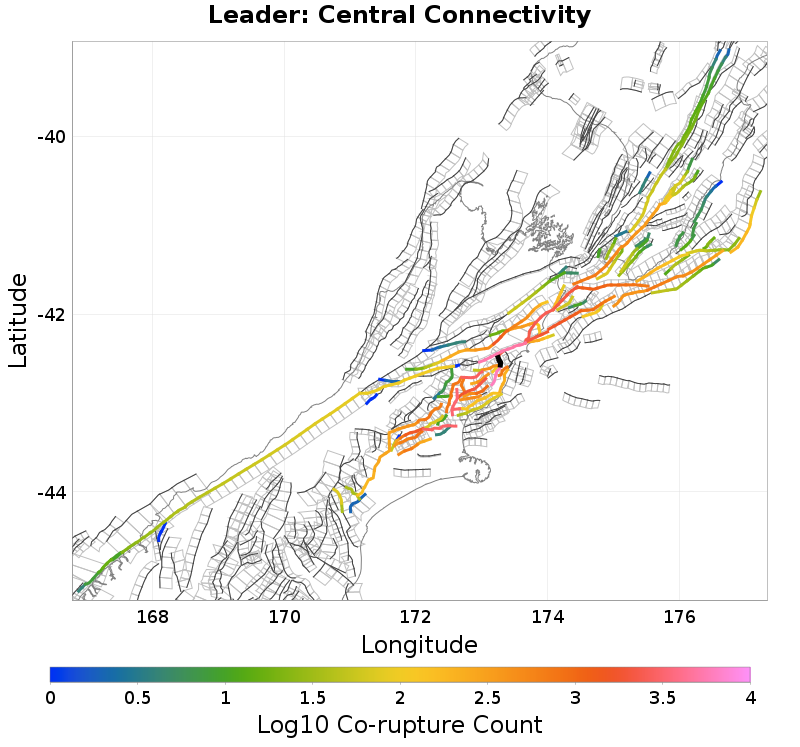

Connectivity

Nearby Sections

Fault Section
Leader: North, 0 km away
Leader: South, 0 km away
Hundalee, 0.1 km away
Kaiwara North, 2.03 km away
The Humps, 2.9 km away
Hope: Conway, 4.85 km away
StoneJug, 9.3 km away
Hawkswood, 10.66 km away

Leader: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	1,884
Co-rupture Rate	8.571336E-9

Leader: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	103
Co-rupture Rate	6.9591076E-11

Hundalee, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	747
Co-rupture Rate	4.1175216E-10

Kaiwara North, 2.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	6,159
Co-rupture Rate	4.9564096E-5

The Humps, 2.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	false
Co-rupture Count	460
Co-rupture Rate	1.462794E-10

Hope: Conway, 4.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	5,323
Co-rupture Rate	4.9556063E-5

StoneJug, 9.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hawkswood, 10.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	false
Co-rupture Count	220
Co-rupture Rate	2.4594402E-10
