Mascarin Details

Property	Value
Rupture Count	298
Ruptures Above Sect Min Mag	297
Ruptures w/ Nonzero Rates	220
Magnitude Range	[7.03, 7.89]
Length Range	[28, 232] km
Total Rate	3.2832355E-5 /yr
Multi-Fault Rate	2.8555181E-5 /yr (86.97%)
Directly-Connected Faults	5
All Co-Rupturing Faults	34

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

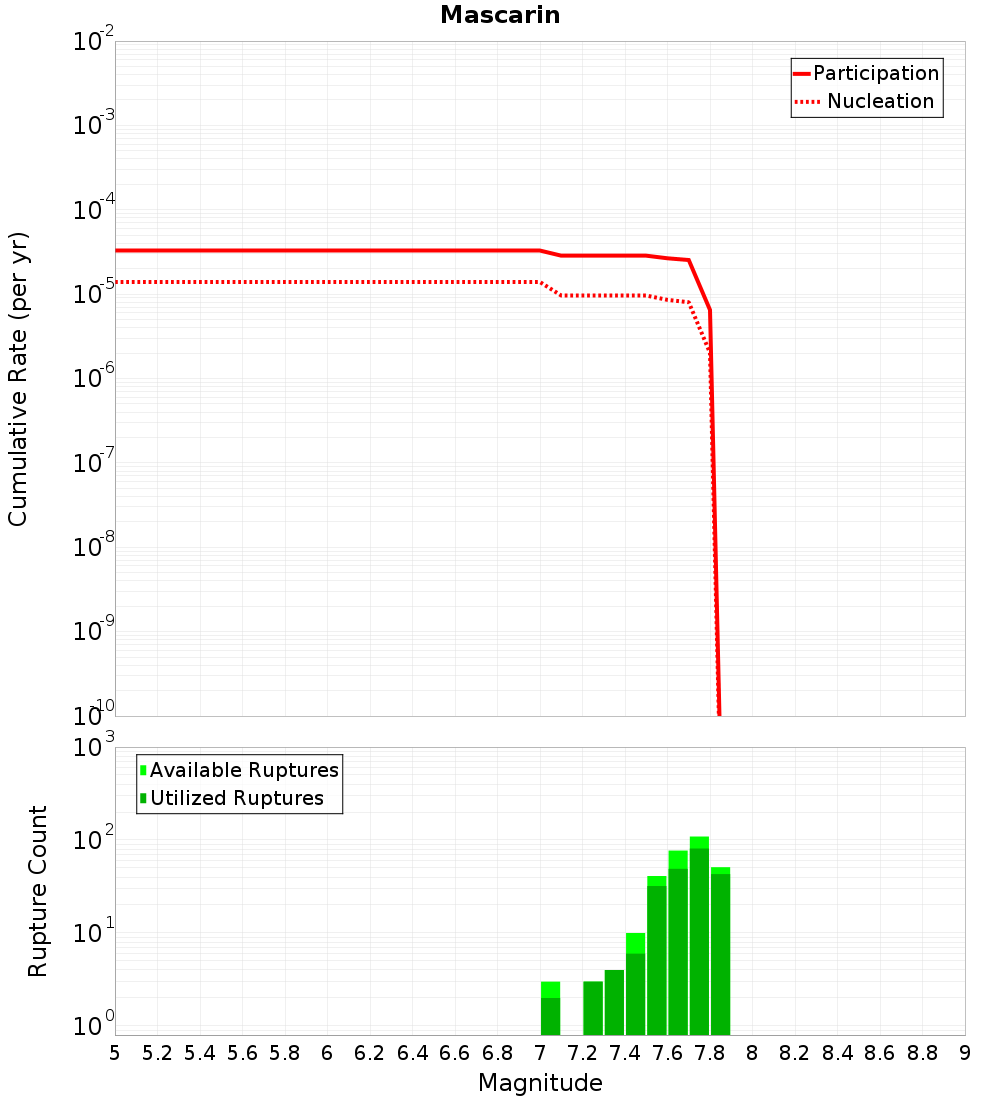

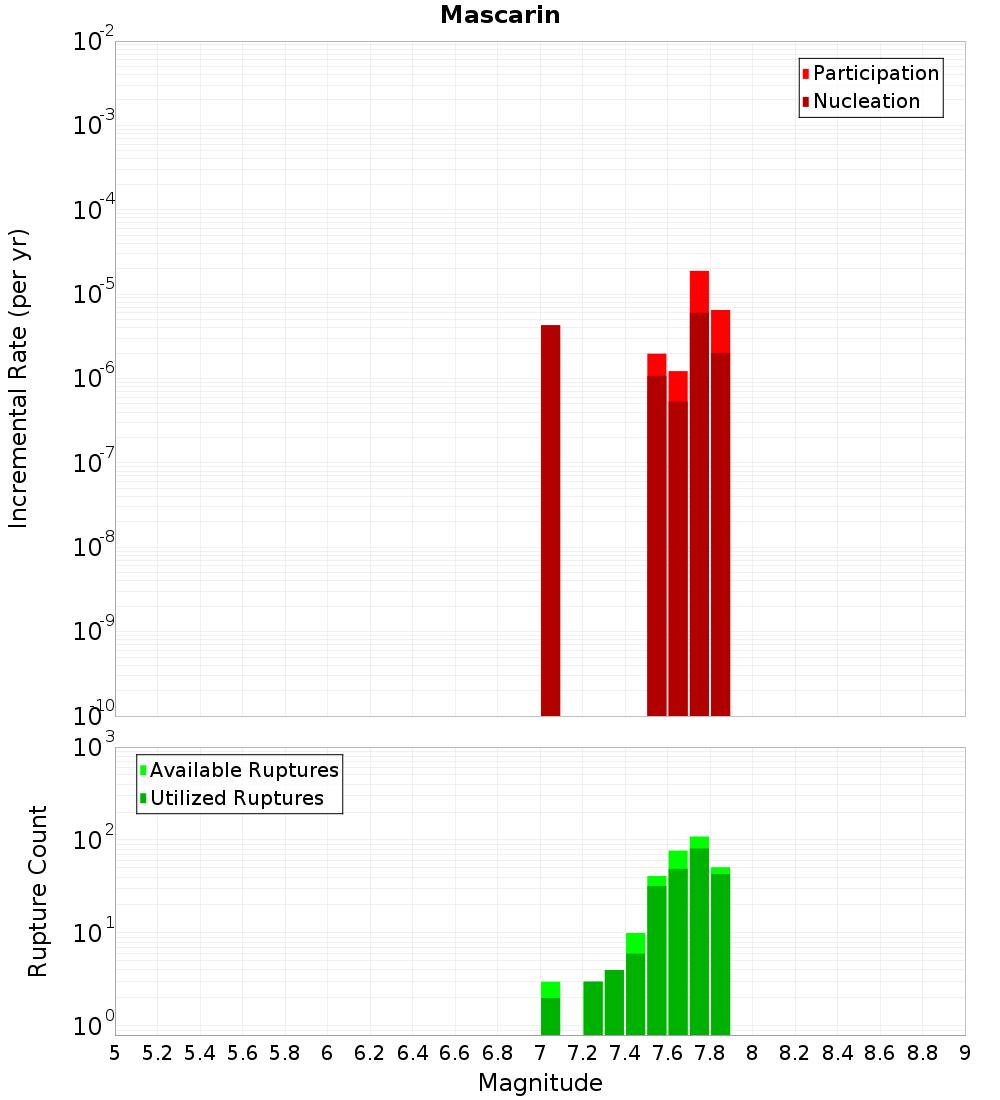

Magnitude-Frequency Distribution

Incremental	Cumulative

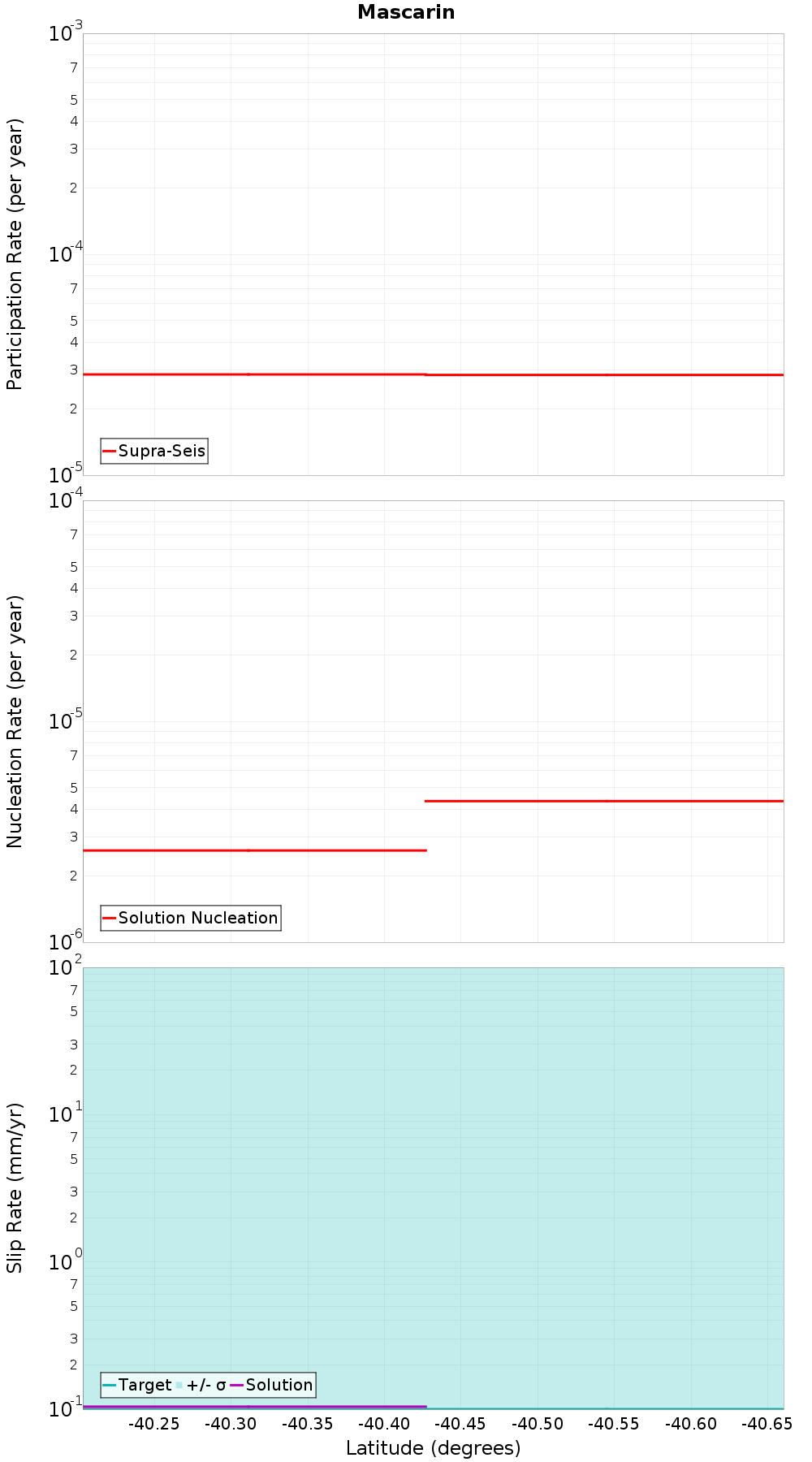

Along-Strike Values

Moment-Rates and b-Values

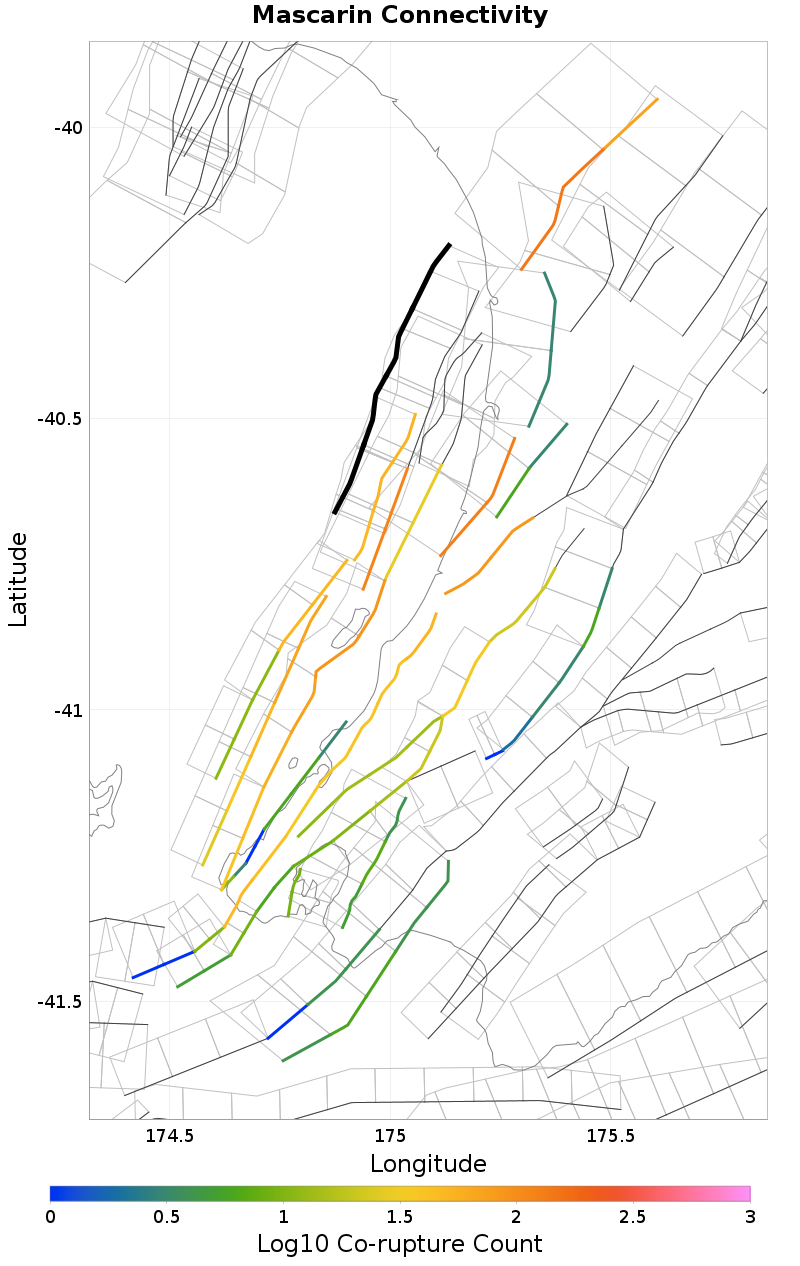

Connectivity

Nearby Sections

Fault Section
Onepoto, 0.05 km away
Fisherman 3, 0.15 km away
Poroutawhao, 0.23 km away
Himatangi, 0.26 km away
Otaheke North, 0.44 km away
Mt Stewart, 2.19 km away
Levin Anticline, 2.93 km away
Leedstown, 3.96 km away
Fisherman 2, 6.99 km away
Otaheke South, 7.25 km away
Rangitikei Offshore 1, 9.59 km away
Rauoterangi, 11.5 km away
Taonui, 13.08 km away

Onepoto, 0.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	118
Co-rupture Rate	1.7069175E-5

Fisherman 3, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	52
Co-rupture Rate	1.420833E-6

Poroutawhao, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	130
Co-rupture Rate	2.9906025E-6

Himatangi, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	9.954412E-14

Otaheke North, 0.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	28
Co-rupture Rate	8.0789405E-6

Mt Stewart, 2.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Levin Anticline, 2.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	1.8102892E-8

Leedstown, 3.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	true
Co-rupture Count	144
Co-rupture Rate	2.8553024E-5

Fisherman 2, 6.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	false
Co-rupture Count	50
Co-rupture Rate	1.8873565E-5

Otaheke South, 7.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	true
Directly Connected?	false
Co-rupture Count	90
Co-rupture Rate	1.6150619E-6

Rangitikei Offshore 1, 9.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rauoterangi, 11.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Taonui, 13.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0ODYuMHZla3pY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
