Awatere: Northeast 1 Details

Property	Value
Rupture Count	19,862
Ruptures Above Sect Min Mag	19,855
Ruptures w/ Nonzero Rates	180
Magnitude Range	[6.79, 8.48]
Length Range	[22, 1,082] km
Total Rate	0.0010093858 /yr
Multi-Fault Rate	0.0010093858 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	157

Table Of Contents

Magnitude-Frequency Distribution

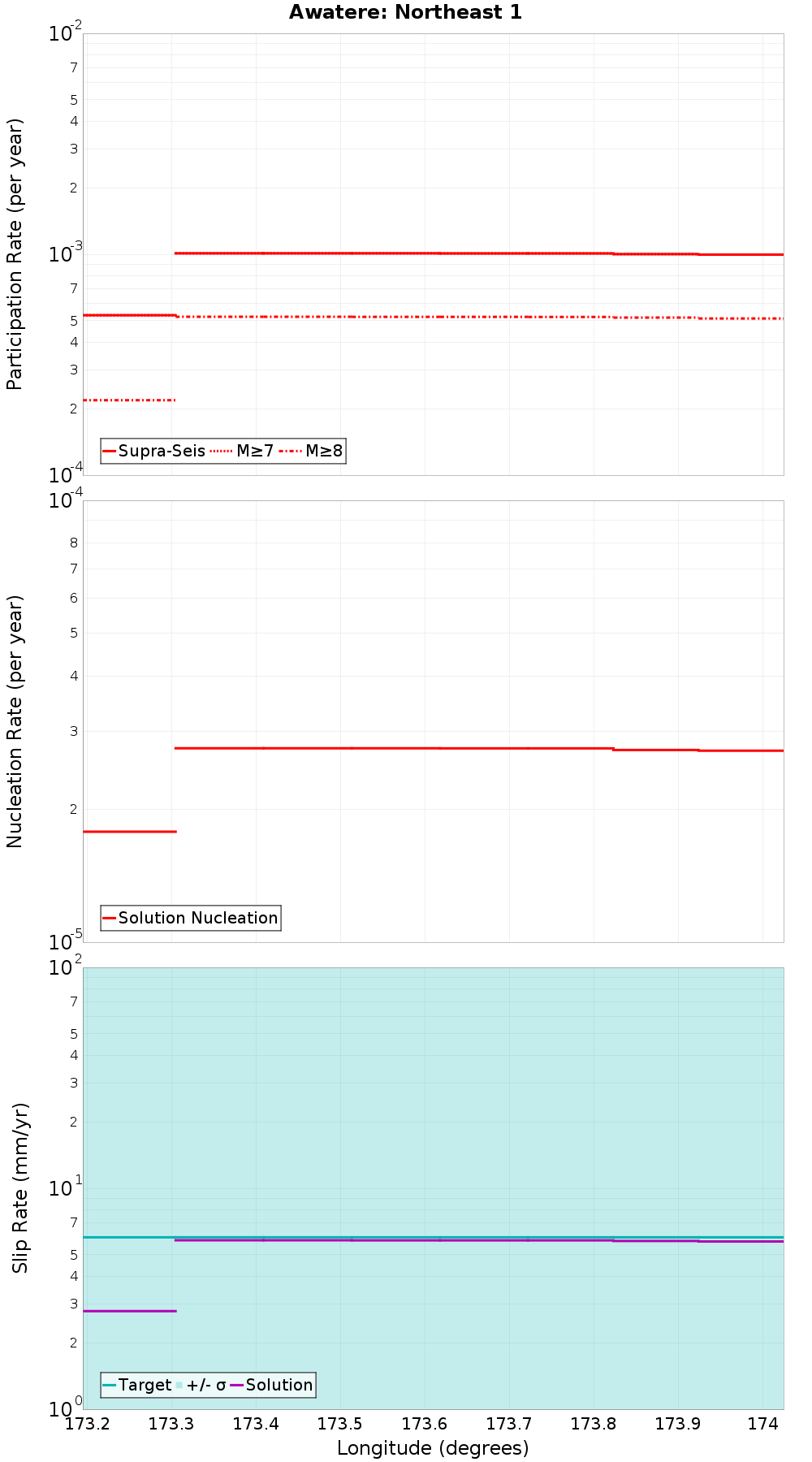

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

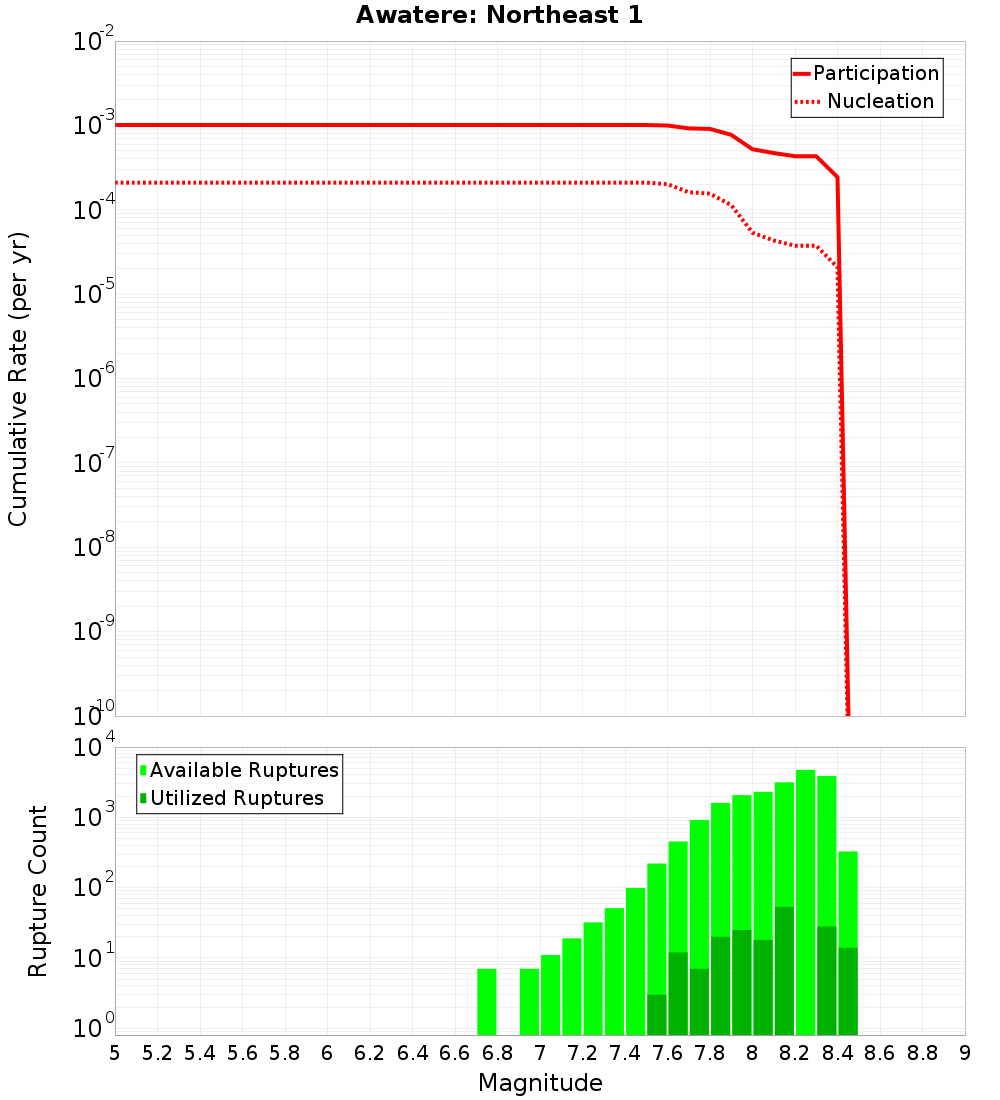

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Barefell, 0 km away
Vernon 1, 0 km away
Awatere: Northeast 2, 0 km away
Awatere: Southwest, 0.1 km away
Vernon 2, 4.62 km away
Elliott, 9.09 km away
Clarence: Northeast, 9.18 km away
Clarence: Central, 10.17 km away
Wairau, 11.05 km away
Jordan, 12.64 km away
Fowlers, 14.06 km away

Barefell, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0OTQuMHlIeW51
Connected?	true
Directly Connected?	true
Co-rupture Count	2,405
Co-rupture Rate	1.2281841E-4

Vernon 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0OTQuMHlIeW51
Connected?	true
Directly Connected?	true
Co-rupture Count	362
Co-rupture Rate	3.6920246E-4

Awatere: Northeast 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0OTQuMHlIeW51
Connected?	true
Directly Connected?	true
Co-rupture Count	10,284
Co-rupture Rate	3.1269548E-4

Awatere: Southwest, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0OTQuMHlIeW51
Connected?	true
Directly Connected?	true
Co-rupture Count	14,826
Co-rupture Rate	8.8656734E-4

Vernon 2, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0OTQuMHlIeW51
Connected?	true
Directly Connected?	true
Co-rupture Count	2,269
Co-rupture Rate	5.8656646E-4

Elliott, 9.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0OTQuMHlIeW51
Connected?	true
Directly Connected?	true
Co-rupture Count	32
Co-rupture Rate	0.0

Clarence: Northeast, 9.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0OTQuMHlIeW51
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	0.0

Clarence: Central, 10.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0OTQuMHlIeW51
Connected?	true
Directly Connected?	false
Co-rupture Count	556
Co-rupture Rate	4.086161E-6

Wairau, 11.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0OTQuMHlIeW51
Connected?	true
Directly Connected?	true
Co-rupture Count	1,606
Co-rupture Rate	5.1698788E-26

Jordan, 12.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0OTQuMHlIeW51
Connected?	true
Directly Connected?	true
Co-rupture Count	214
Co-rupture Rate	0.0

Fowlers, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0OTQuMHlIeW51
Connected?	true
Directly Connected?	false
Co-rupture Count	2,348
Co-rupture Rate	1.1391827E-4
