CenPeg1n2 Details
| Property | Value |
|---|---|
| Rupture Count | 41 |
| Ruptures Above Sect Min Mag | 34 |
| Ruptures w/ Nonzero Rates | 16 |
| Magnitude Range | [6.47, 7.37] |
| Length Range | [14, 107] km |
| Total Rate | 1.20428835E-4 /yr |
| Multi-Fault Rate | 1.20428835E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 8 |
Table Of Contents

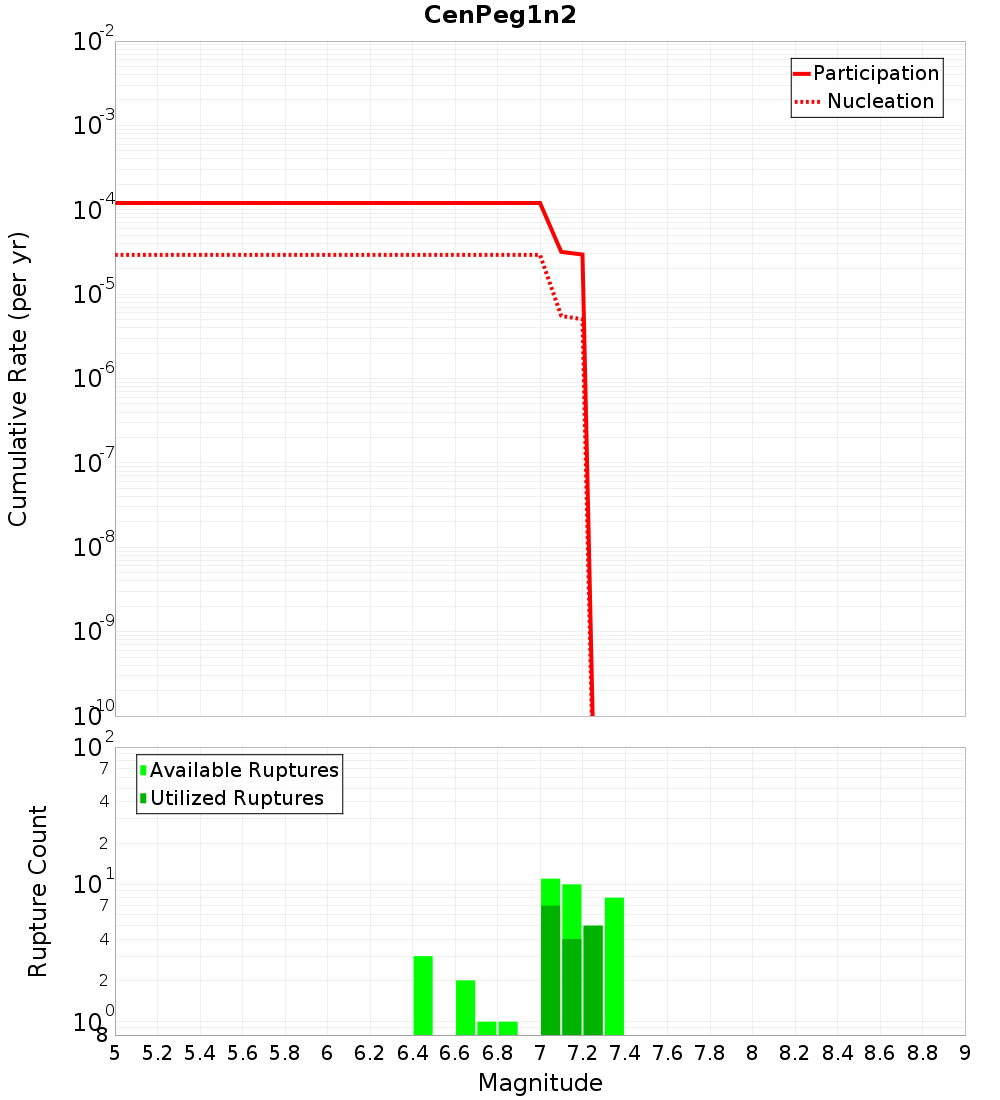

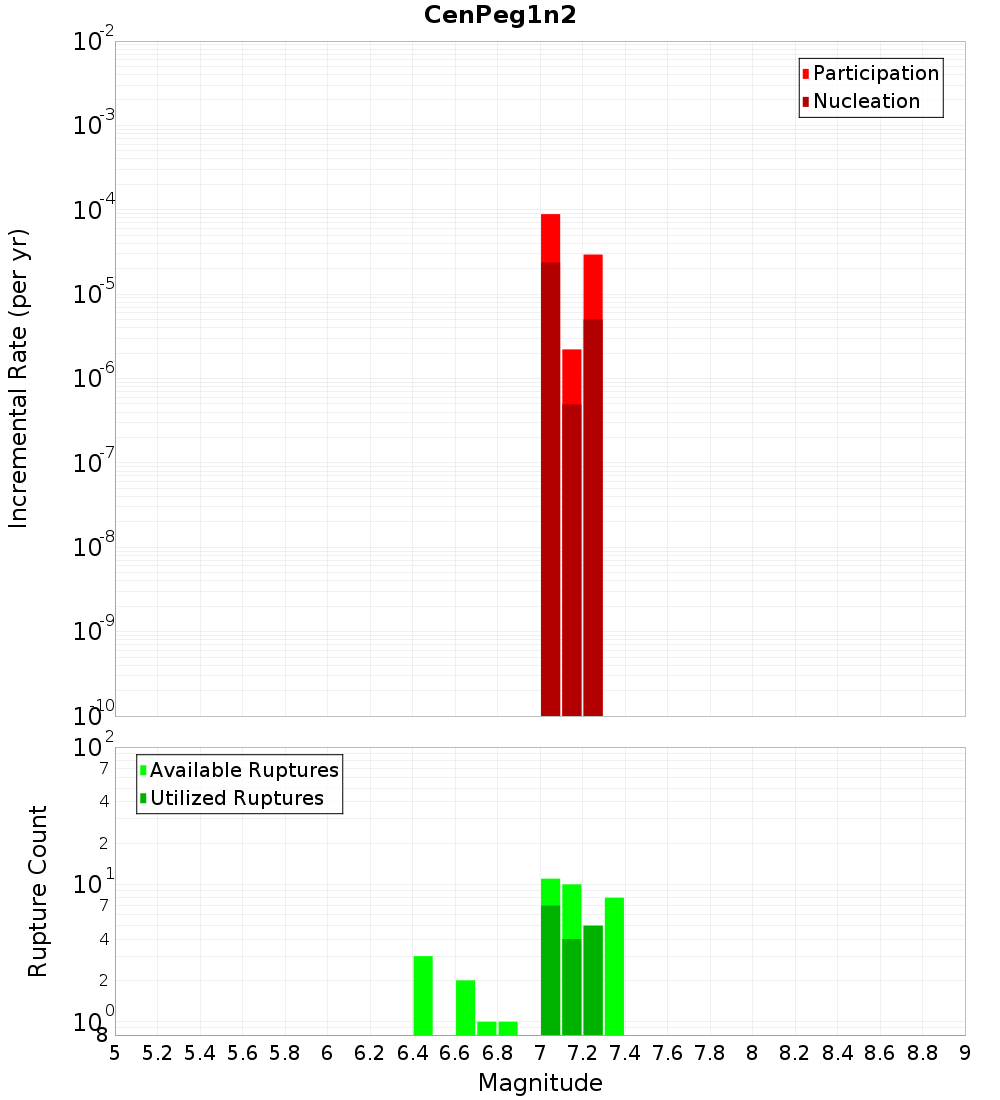

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

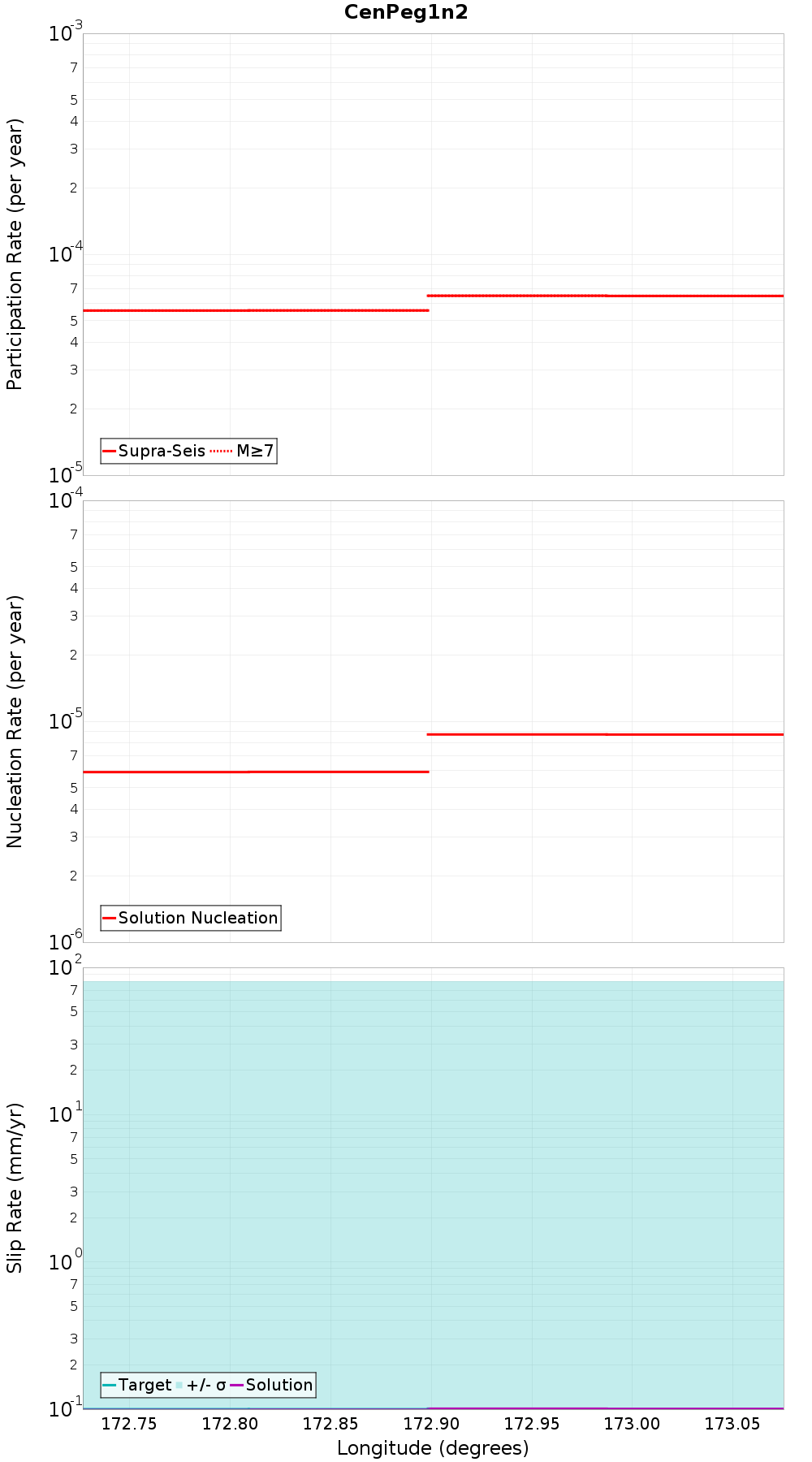

Along-Strike Values

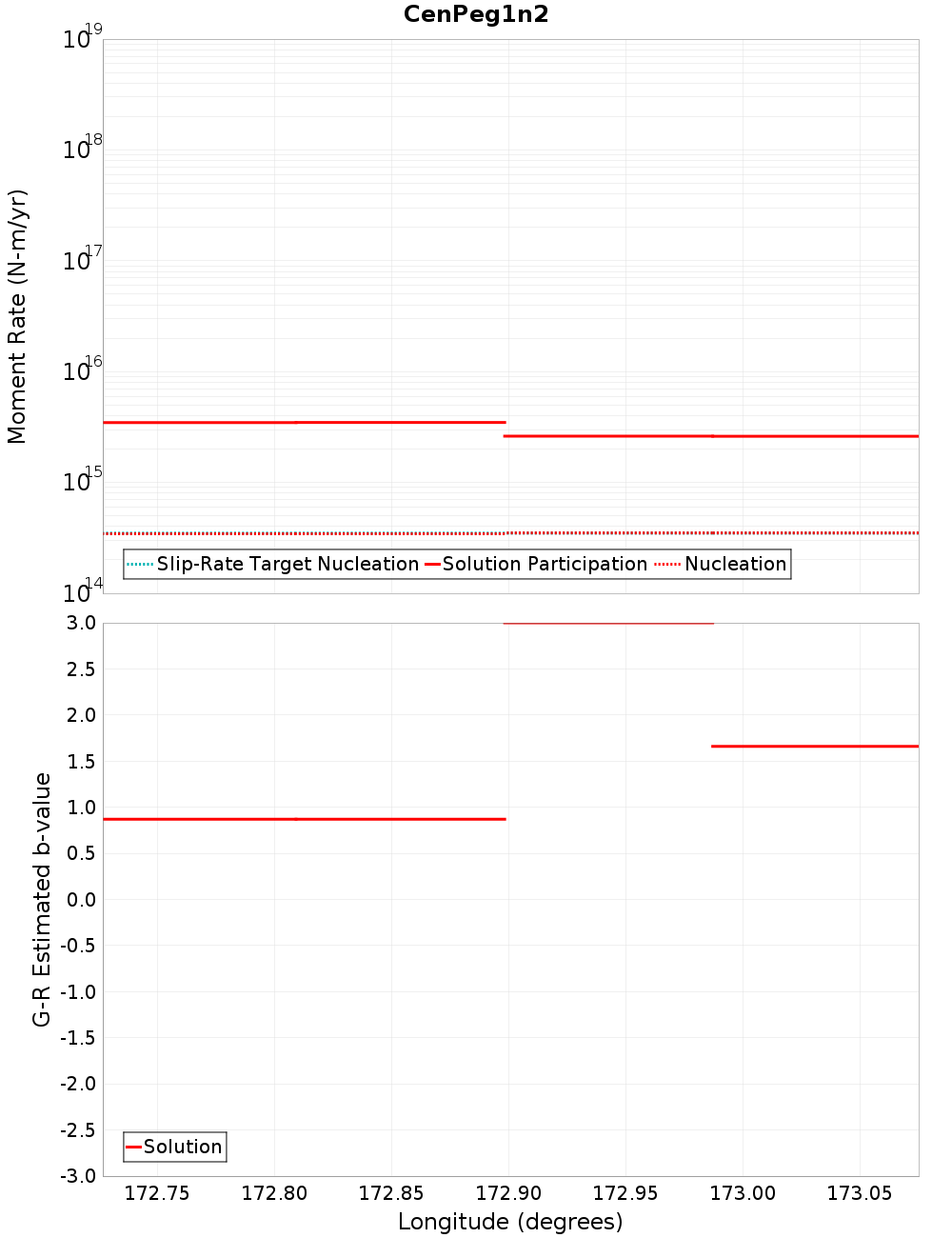

Moment-Rates and b-Values

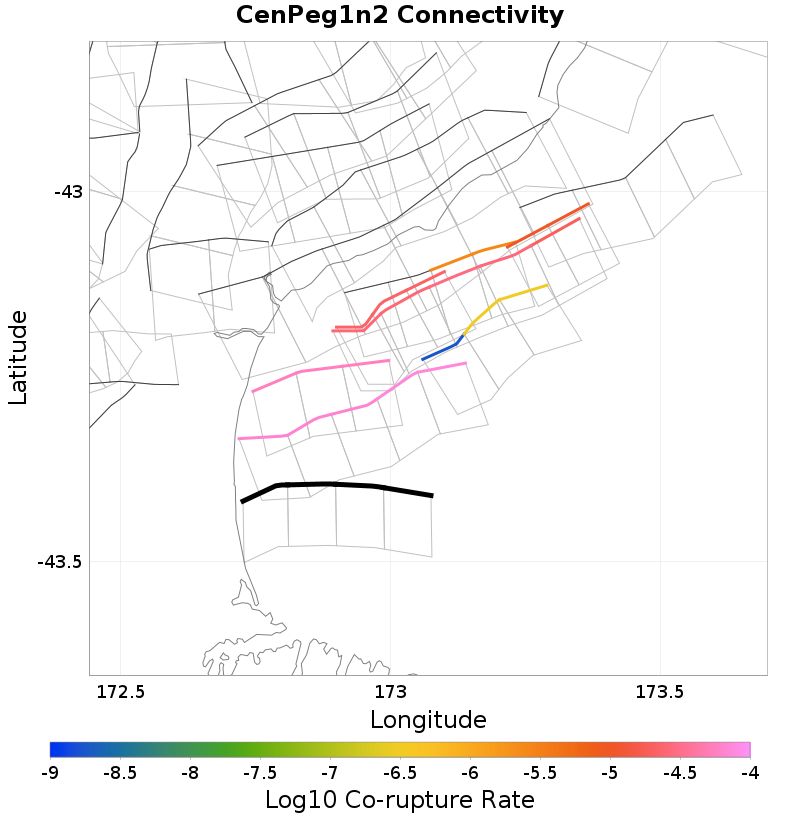

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Pegasus Bay, 6.09 km away |
| Waikuku, 11.9 km away |
Pegasus Bay, 6.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0OTQuMHlIeW51 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 7.3147494E-5 |
Waikuku, 11.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg0OTQuMHlIeW51 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 31 |
| Co-rupture Rate | 5.567024E-5 |
