Waiotahi: North Details

PropertyValue
Rupture Count4,382
Ruptures Above Sect Min Mag4,372
Ruptures w/ Nonzero Rates2,657
Magnitude Range[6.81, 8.34]
Length Range[22, 750] km
Total Rate3.341354E-4 /yr
Multi-Fault Rate3.341354E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults70

Table Of Contents

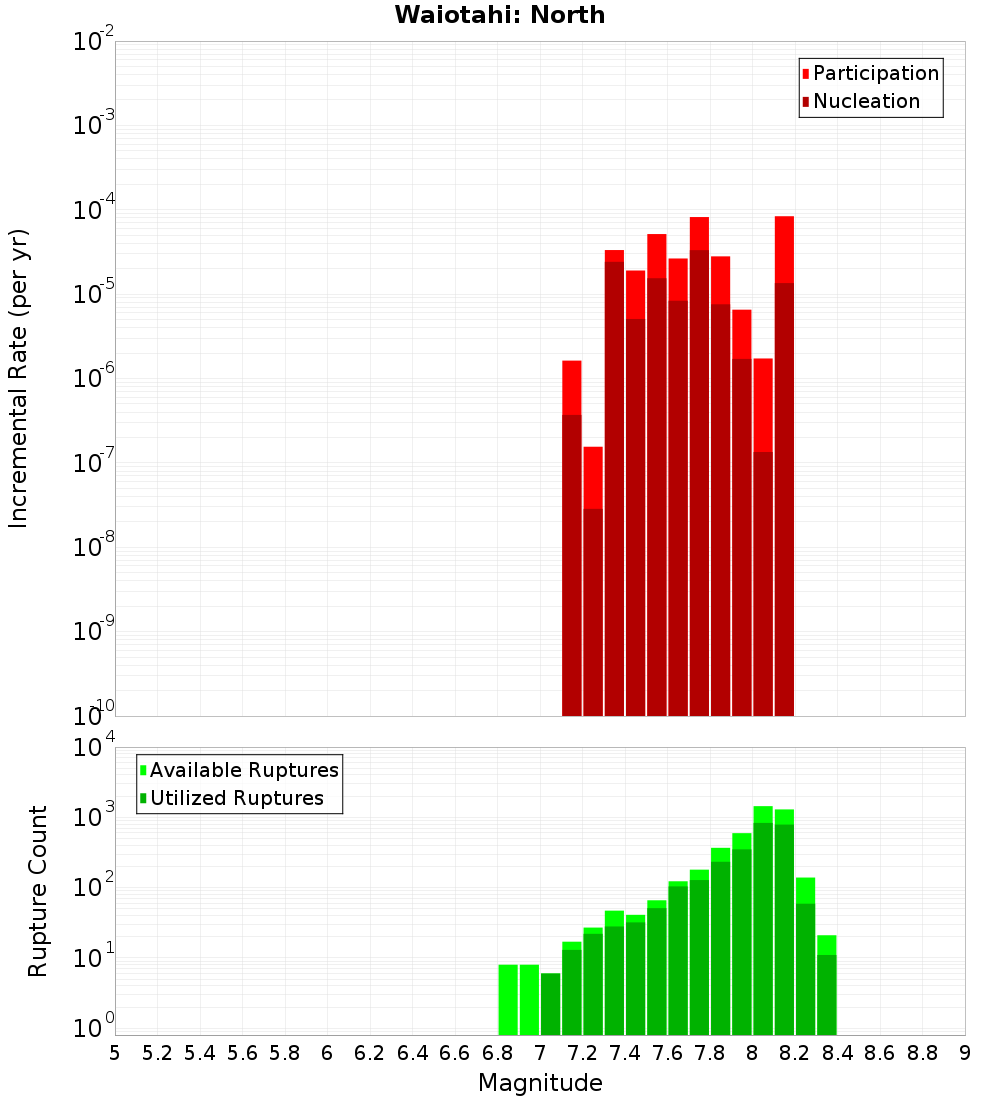

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

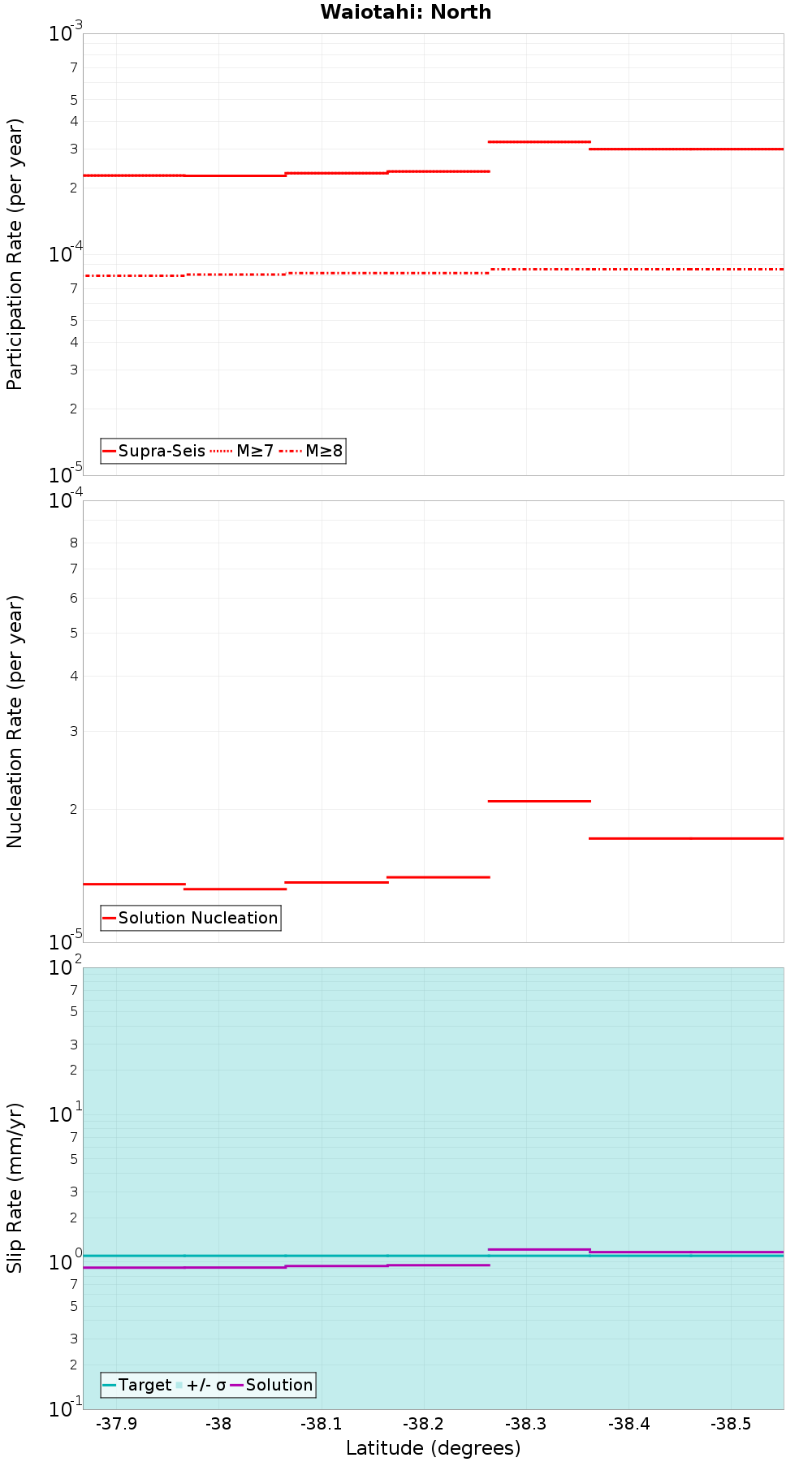

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waiotahi: South, 0 km awayOpotiki 2, 10.14 km away
Waimanawa - Waikaremoana, 0.38 km awayWhakatane: North, 10.4 km away
Waimana: North, 1.8 km awayKeepa, 11.27 km away
Waimana: South, 2.4 km awayOhae 2, 12.28 km away
Opotiki 3, 3.94 km awayWhite Island 2, 12.85 km away
Wairata, 5.27 km awayTirohanga, 13.3 km away
Raukumara 9, 6.8 km awayRangitaiki 1, 13.71 km away
Ohae 1, 8.91 km awayOtakiri, 13.76 km away
White Island 1, 9.79 km awayOhiwa 1, 14.52 km away
Whakatane: South, 10.09 km awayRangitaiki 2, 14.87 km away

Waiotahi: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?true
Directly Connected?true
Co-rupture Count2,893
Co-rupture Rate2.9885102E-4

Waimanawa - Waikaremoana, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?true
Directly Connected?true
Co-rupture Count454
Co-rupture Rate9.9167286E-5

Waimana: North, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?true
Directly Connected?true
Co-rupture Count157
Co-rupture Rate3.415444E-5

Waimana: South, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?true
Directly Connected?true
Co-rupture Count2,202
Co-rupture Rate1.1827181E-4

Opotiki 3, 3.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?true
Directly Connected?true
Co-rupture Count411
Co-rupture Rate5.8062156E-5

Wairata, 5.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?true
Directly Connected?true
Co-rupture Count239
Co-rupture Rate1.093939E-4

Raukumara 9, 6.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?true
Directly Connected?true
Co-rupture Count196
Co-rupture Rate3.208265E-7

Ohae 1, 8.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 9.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakatane: South, 10.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate1.2900798E-5

Opotiki 2, 10.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?true
Directly Connected?true
Co-rupture Count213
Co-rupture Rate4.0097504E-5

Whakatane: North, 10.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate5.6458484E-6

Keepa, 11.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate3.1707477E-5

Ohae 2, 12.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate1.6614758E-5

White Island 2, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tirohanga, 13.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 13.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otakiri, 13.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 2, 14.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MDIuNVdNSHVy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
