Awatere: Northeast 1 Details

Property	Value
Rupture Count	19,862
Ruptures Above Sect Min Mag	19,855
Ruptures w/ Nonzero Rates	2,024
Magnitude Range	[6.79, 8.48]
Length Range	[22, 1,082] km
Total Rate	0.0011580727 /yr
Multi-Fault Rate	0.0011579682 /yr (99.99%)
Directly-Connected Faults	8
All Co-Rupturing Faults	157

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

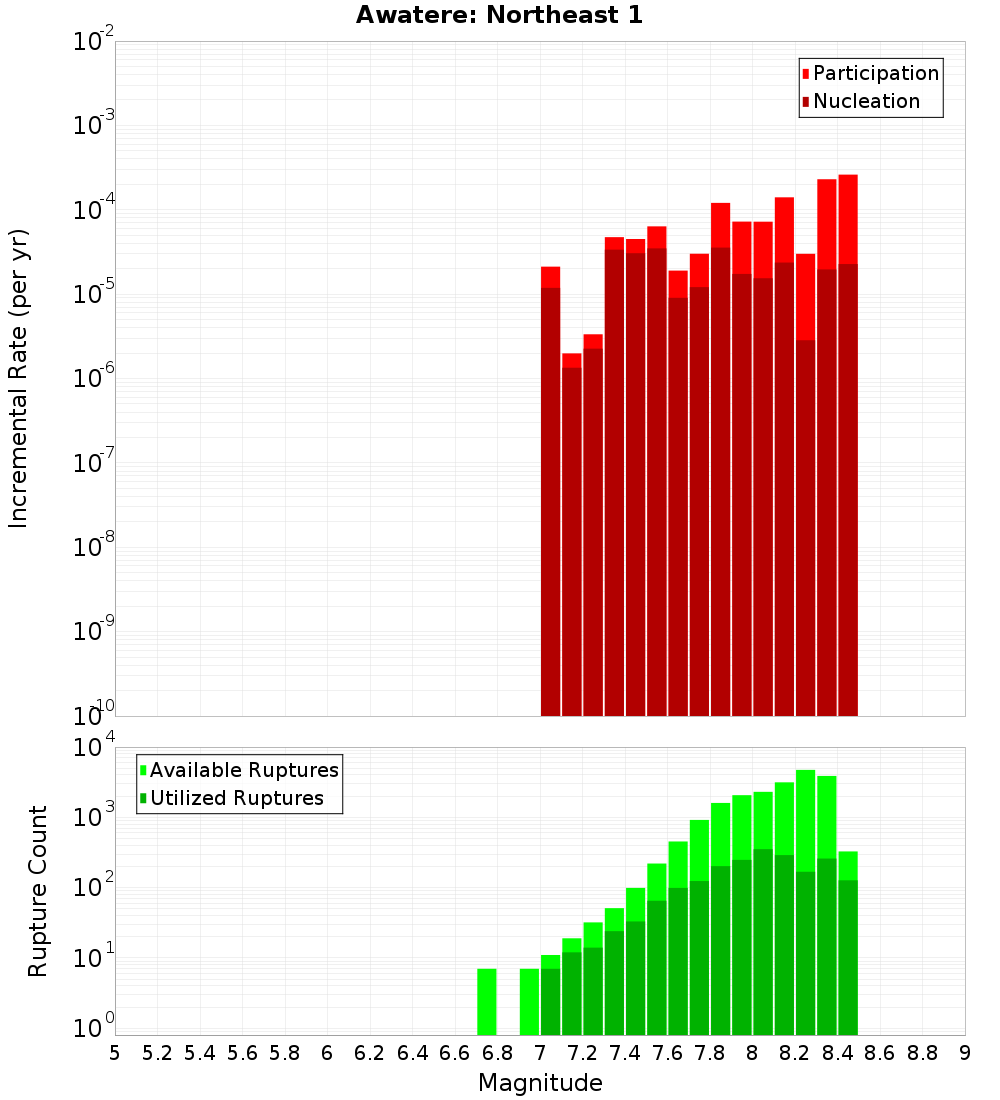

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

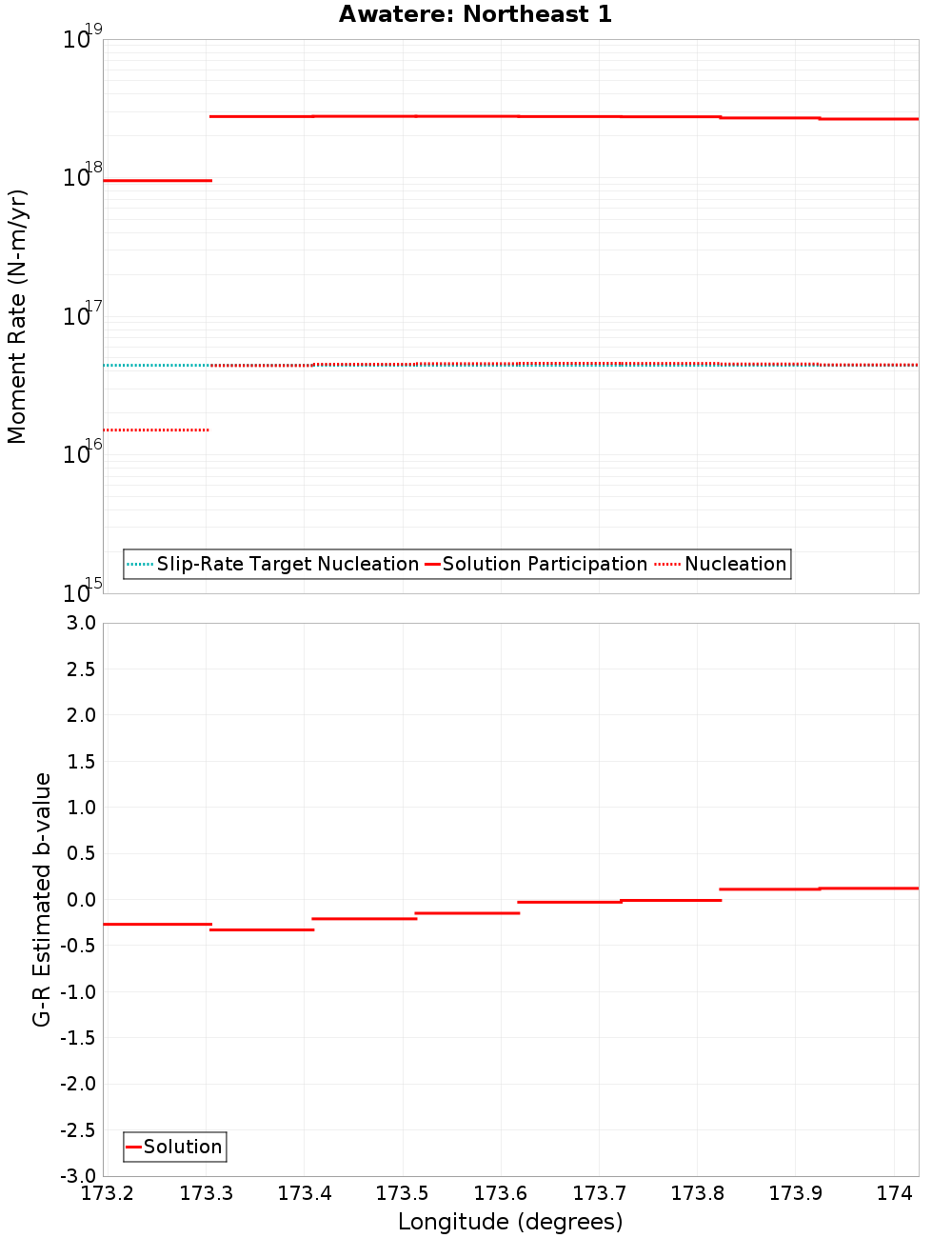

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Barefell, 0 km away
Vernon 1, 0 km away
Awatere: Northeast 2, 0 km away
Awatere: Southwest, 0.1 km away
Vernon 2, 4.62 km away
Elliott, 9.09 km away
Clarence: Northeast, 9.18 km away
Clarence: Central, 10.17 km away
Wairau, 11.05 km away
Jordan, 12.64 km away
Fowlers, 14.06 km away

Barefell, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MTIuMExMVkU5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,405
Co-rupture Rate	1.01947E-4

Vernon 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MTIuMExMVkU5
Connected?	true
Directly Connected?	true
Co-rupture Count	362
Co-rupture Rate	1.0168352E-4

Awatere: Northeast 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MTIuMExMVkU5
Connected?	true
Directly Connected?	true
Co-rupture Count	10,284
Co-rupture Rate	4.332563E-4

Awatere: Southwest, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MTIuMExMVkU5
Connected?	true
Directly Connected?	true
Co-rupture Count	14,826
Co-rupture Rate	8.2852005E-4

Vernon 2, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MTIuMExMVkU5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,269
Co-rupture Rate	4.970569E-4

Elliott, 9.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MTIuMExMVkU5
Connected?	true
Directly Connected?	true
Co-rupture Count	32
Co-rupture Rate	1.6244569E-12

Clarence: Northeast, 9.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MTIuMExMVkU5
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	1.6243972E-12

Clarence: Central, 10.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MTIuMExMVkU5
Connected?	true
Directly Connected?	false
Co-rupture Count	556
Co-rupture Rate	1.1854711E-6

Wairau, 11.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MTIuMExMVkU5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,606
Co-rupture Rate	1.4166963E-4

Jordan, 12.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MTIuMExMVkU5
Connected?	true
Directly Connected?	true
Co-rupture Count	214
Co-rupture Rate	1.7733888E-5

Fowlers, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MTIuMExMVkU5
Connected?	true
Directly Connected?	false
Co-rupture Count	2,348
Co-rupture Rate	1.287105E-4
