Hawkdun Details

Property	Value
Rupture Count	6,809
Ruptures Above Sect Min Mag	6,804
Ruptures w/ Nonzero Rates	214
Magnitude Range	[6.92, 8.54]
Length Range	[19, 679] km
Total Rate	2.1982596E-5 /yr
Multi-Fault Rate	2.137053E-5 /yr (97.22%)
Directly-Connected Faults	8
All Co-Rupturing Faults	79

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

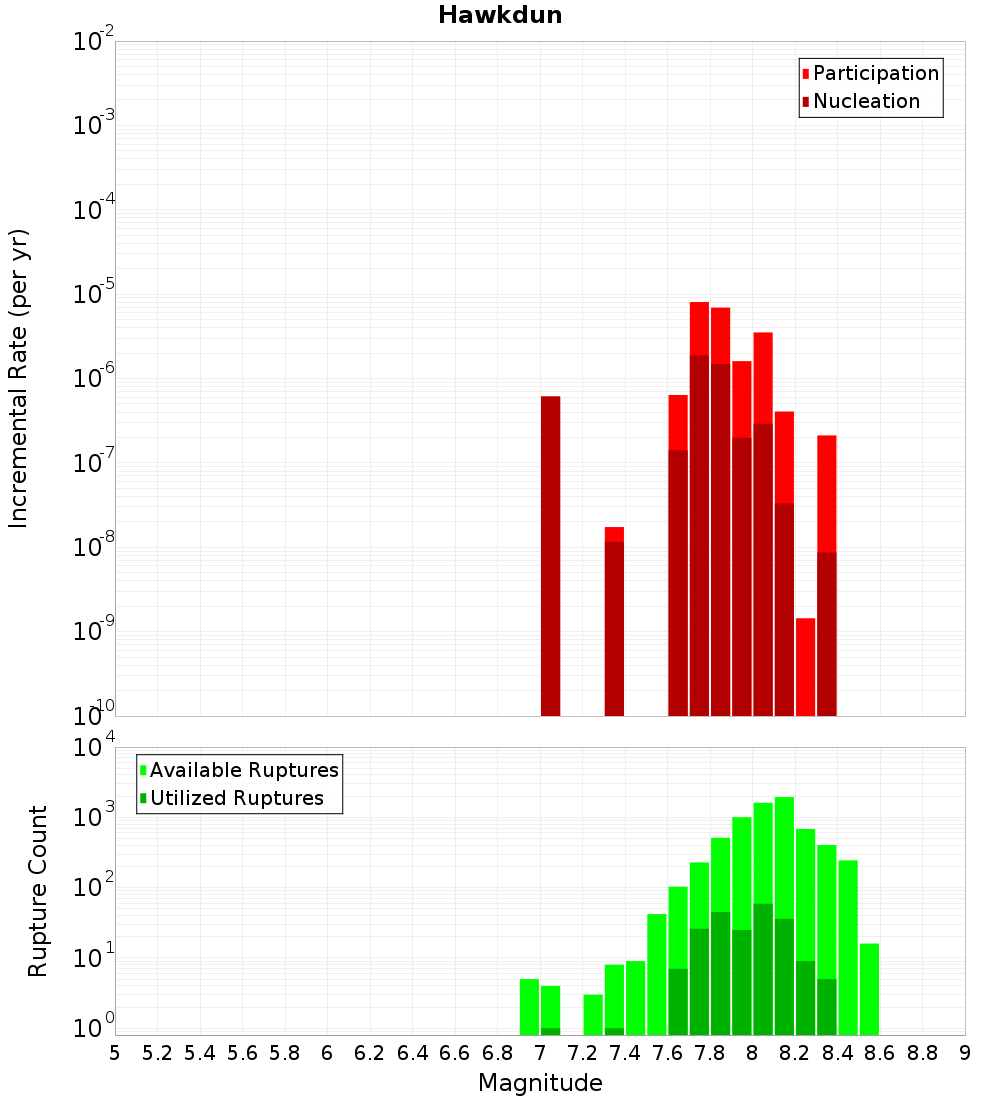

Magnitude-Frequency Distribution

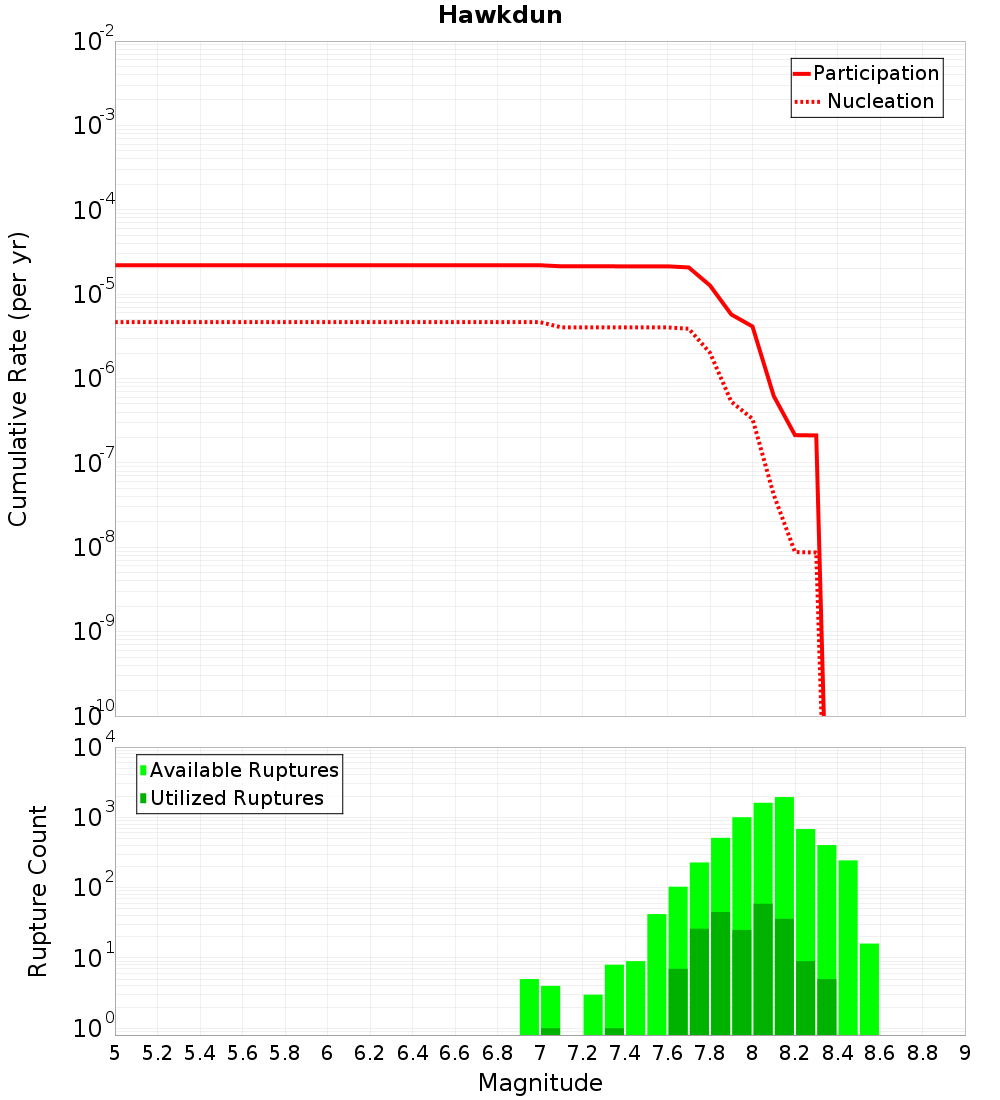

Incremental	Cumulative

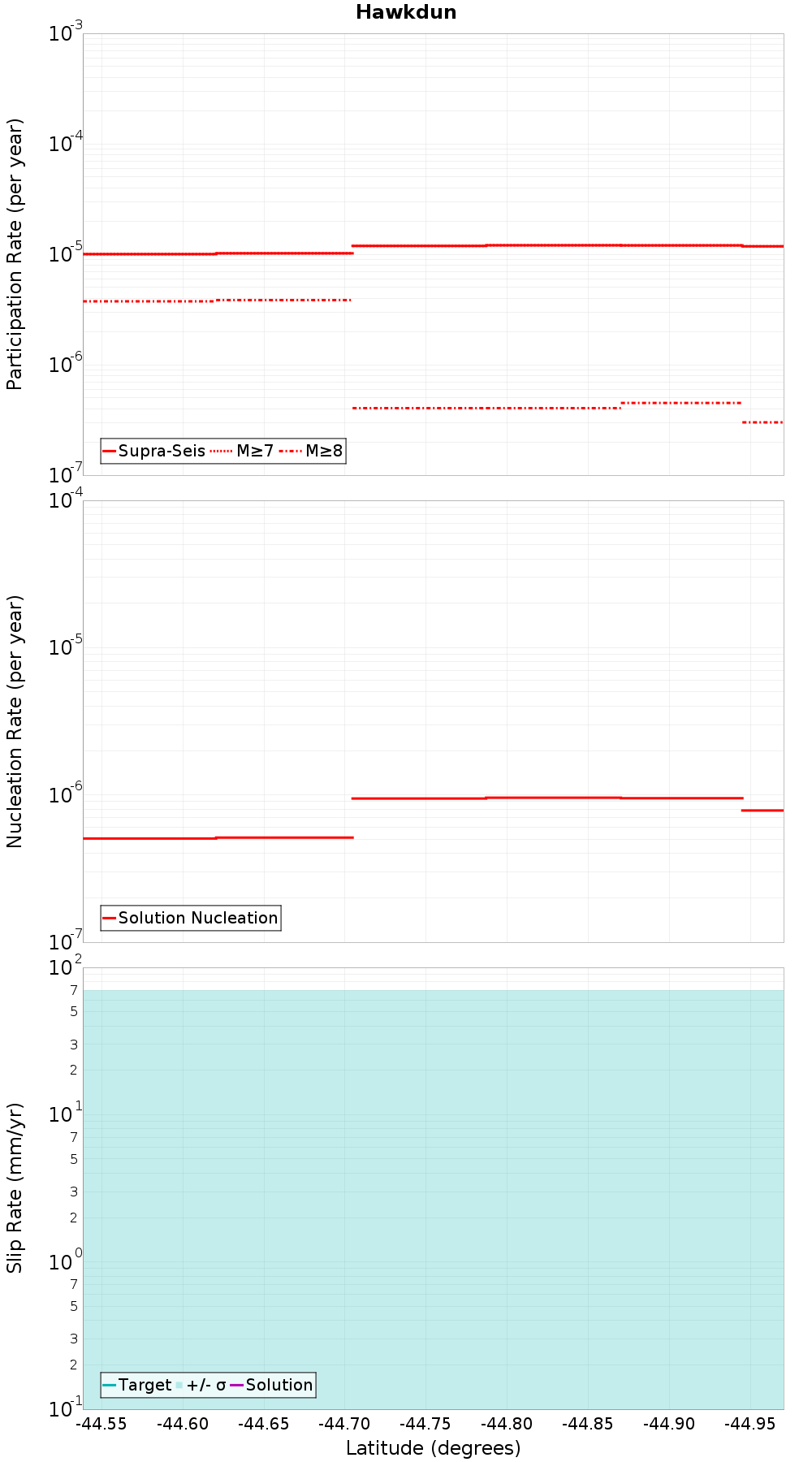

Along-Strike Values

Moment-Rates and b-Values

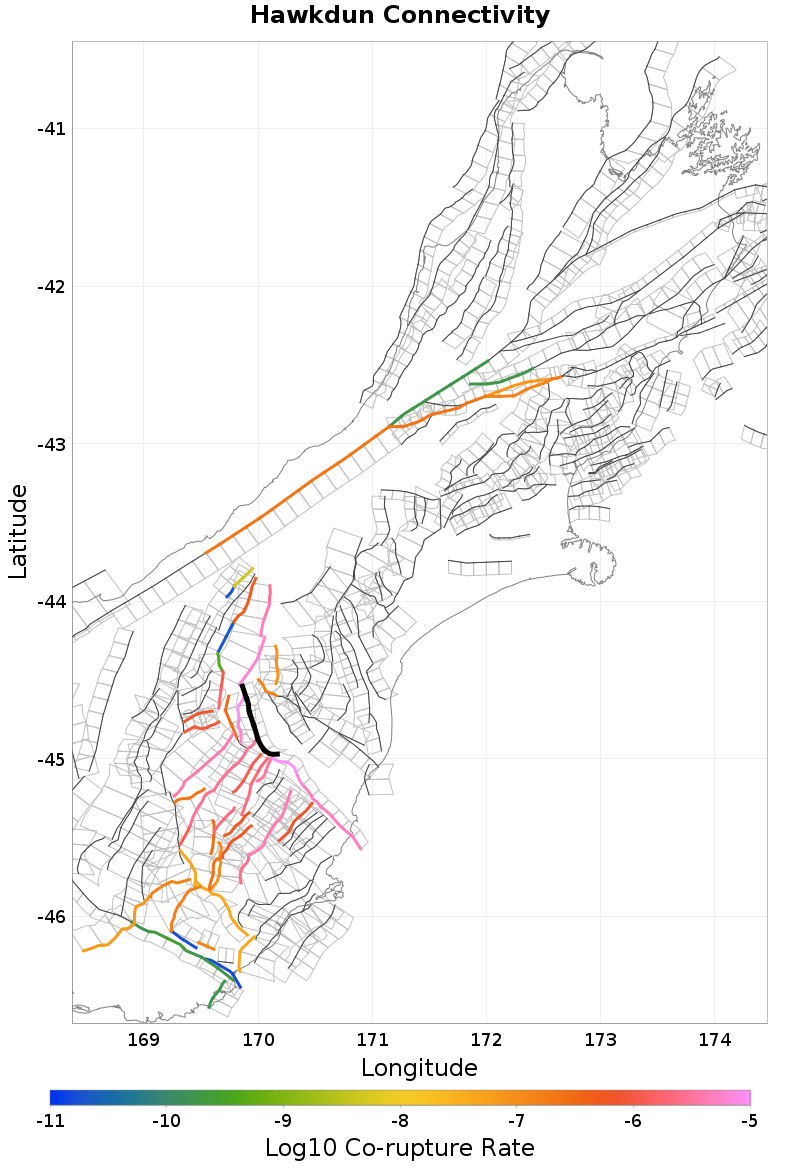

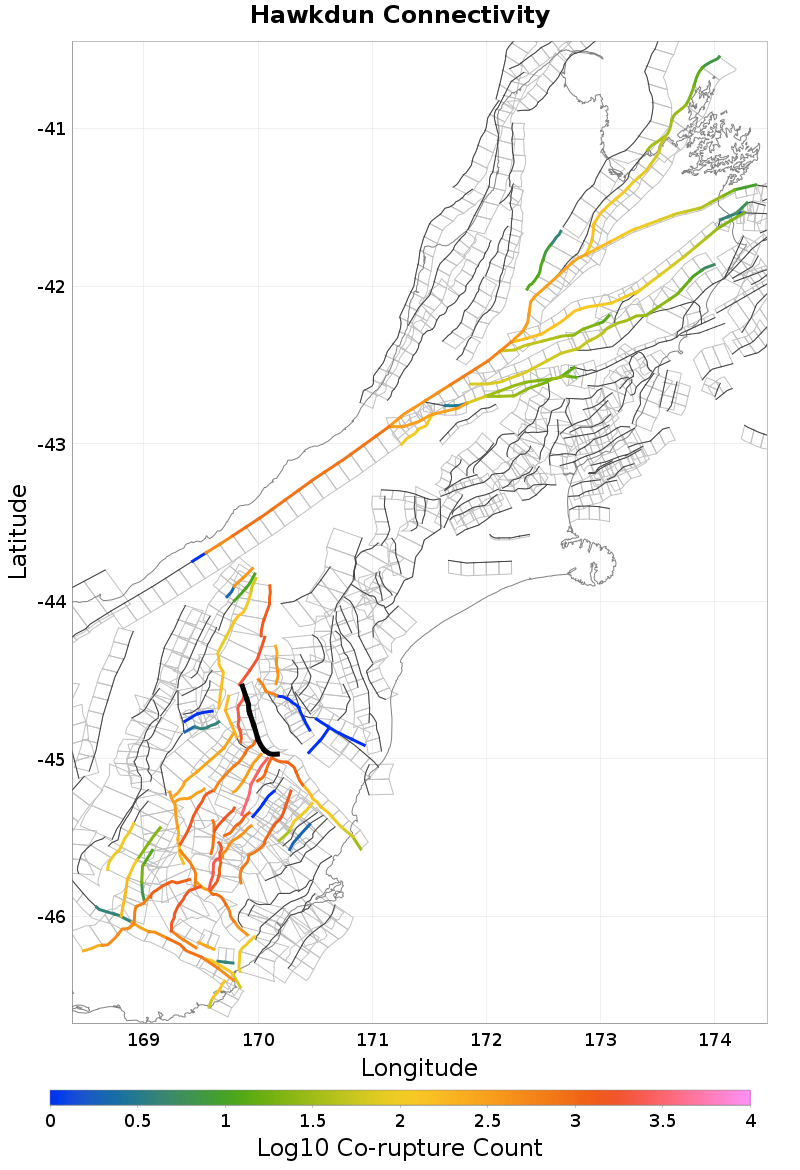

Connectivity

Nearby Sections

Fault Section	Fault Section
Omarama Saddle, 0.14 km away	Garibaldi, 3.71 km away
Fern Gully, 0.99 km away	Falstone, 3.91 km away
Waihemo, 1.35 km away	Mt Sutton, 9.36 km away
Ostler South, 2.35 km away	Blue Lake, 9.5 km away
Gibson, 2.41 km away	Awahokomo, 10.54 km away
Raggedy - Blackstone, 2.51 km away	Ranfurly, 10.99 km away
Cross Eden, 3.2 km away	Dromedary, 14.4 km away
Gimmerburn, 3.64 km away	Middle Range, 14.45 km away

Omarama Saddle, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MjQuMDR1dFdM
Connected?	true
Directly Connected?	true
Co-rupture Count	2,225
Co-rupture Rate	9.7834545E-6

Fern Gully, 0.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MjQuMDR1dFdM
Connected?	true
Directly Connected?	true
Co-rupture Count	585
Co-rupture Rate	1.4790085E-7

Waihemo, 1.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MjQuMDR1dFdM
Connected?	true
Directly Connected?	true
Co-rupture Count	1,049
Co-rupture Rate	9.715701E-6

Ostler South, 2.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MjQuMDR1dFdM
Connected?	true
Directly Connected?	true
Co-rupture Count	1,846
Co-rupture Rate	6.2633294E-6

Gibson, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MjQuMDR1dFdM
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raggedy - Blackstone, 2.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MjQuMDR1dFdM
Connected?	true
Directly Connected?	true
Co-rupture Count	889
Co-rupture Rate	2.9998619E-6

Cross Eden, 3.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MjQuMDR1dFdM
Connected?	true
Directly Connected?	true
Co-rupture Count	949
Co-rupture Rate	3.2873436E-6

Gimmerburn, 3.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MjQuMDR1dFdM
Connected?	true
Directly Connected?	true
Co-rupture Count	3,252
Co-rupture Rate	2.2965025E-6

Garibaldi, 3.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MjQuMDR1dFdM
Connected?	true
Directly Connected?	true
Co-rupture Count	344
Co-rupture Rate	1.1863831E-6

Falstone, 3.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MjQuMDR1dFdM
Connected?	true
Directly Connected?	false
Co-rupture Count	397
Co-rupture Rate	8.636246E-8

Mt Sutton, 9.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MjQuMDR1dFdM
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Blue Lake, 9.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MjQuMDR1dFdM
Connected?	true
Directly Connected?	false
Co-rupture Count	190
Co-rupture Rate	2.7763892E-7

Awahokomo, 10.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MjQuMDR1dFdM
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Ranfurly, 10.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MjQuMDR1dFdM
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dromedary, 14.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MjQuMDR1dFdM
Connected?	true
Directly Connected?	false
Co-rupture Count	160
Co-rupture Rate	1.8539877E-6

Middle Range, 14.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MjQuMDR1dFdM
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
