Madagascar Details

Property	Value
Rupture Count	283
Ruptures Above Sect Min Mag	282
Ruptures w/ Nonzero Rates	48
Magnitude Range	[7.52, 8.61]
Length Range	[36, 754] km
Total Rate	8.803365E-5 /yr
Multi-Fault Rate	1.8702274E-5 /yr (21.24%)
Directly-Connected Faults	1
All Co-Rupturing Faults	10

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

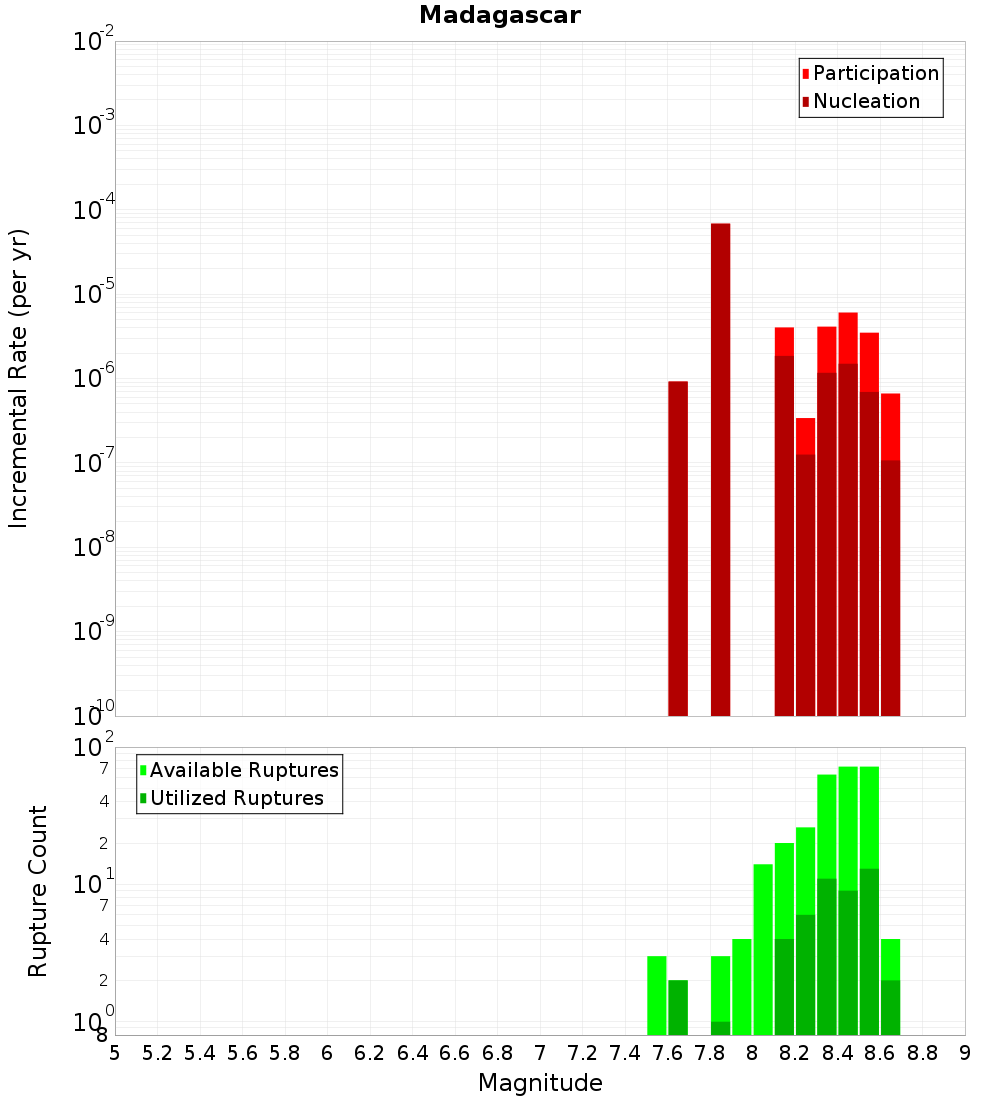

Magnitude-Frequency Distribution

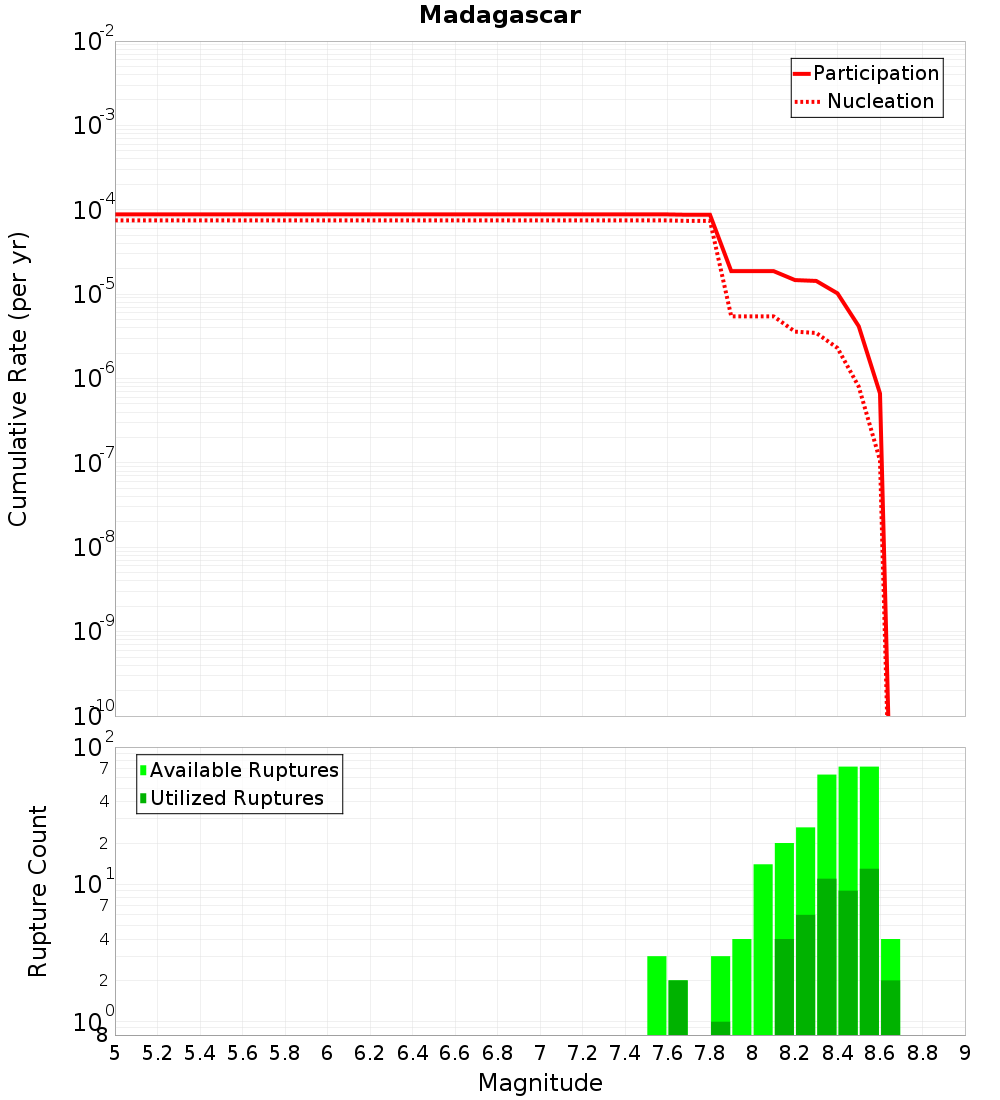

Incremental	Cumulative

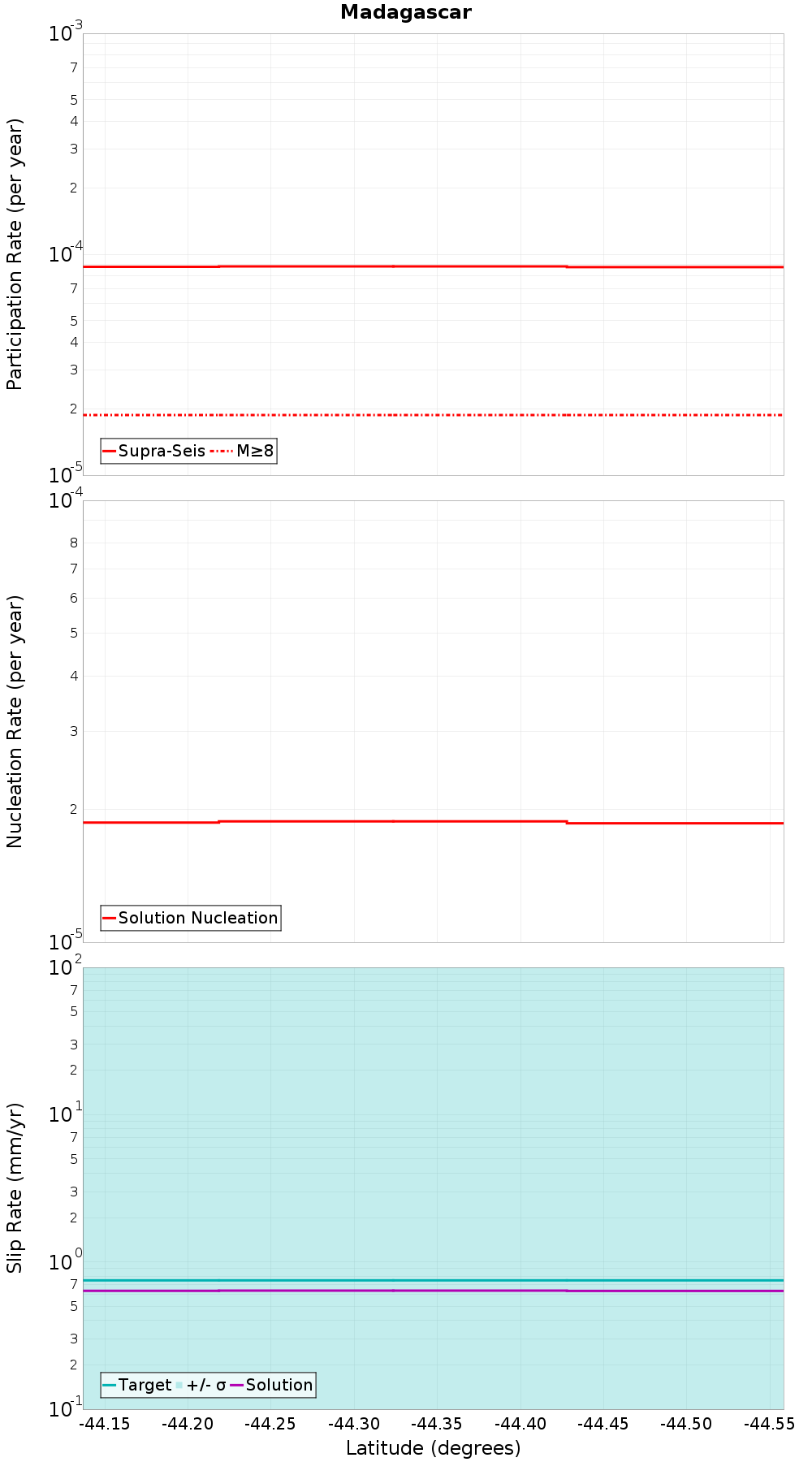

Along-Strike Values

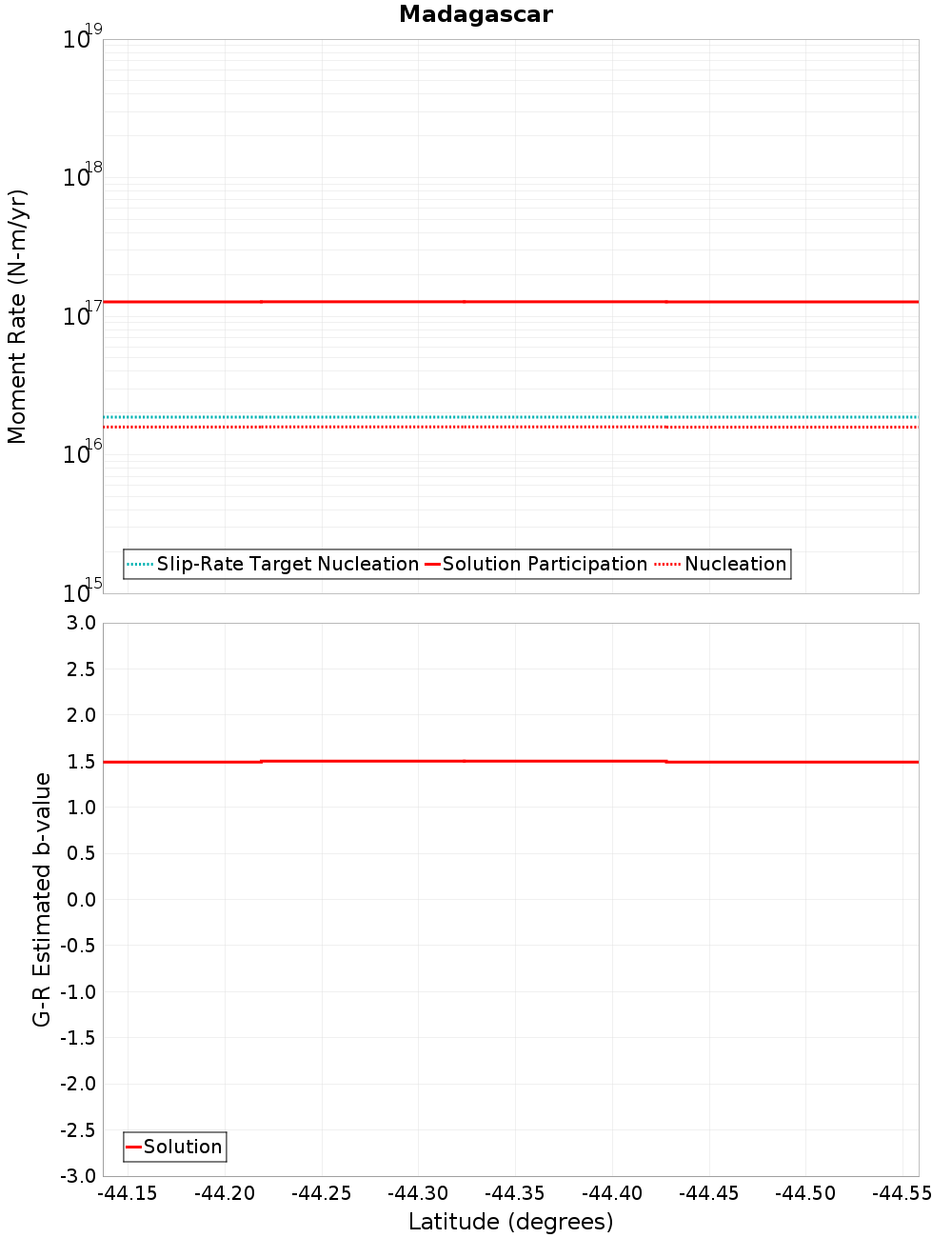

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Barn, 0 km away
Alpine: George landward, 0.18 km away
Skippers, 0.19 km away
Hollyford, 0.2 km away
Alpine: George seaward, 0.23 km away
Alpine: George to Jacksons, 0.25 km away
Darran, 0.27 km away
Milford Basin 5 to George R2, 7.23 km away
Alpine: Caswell - South George, 12.23 km away

Barn, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MzIuMHozSExm
Connected?	true
Directly Connected?	true
Co-rupture Count	277
Co-rupture Rate	1.8702274E-5

Alpine: George landward, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MzIuMHozSExm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Skippers, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MzIuMHozSExm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hollyford, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MzIuMHozSExm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: George seaward, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MzIuMHozSExm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: George to Jacksons, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MzIuMHozSExm
Connected?	true
Directly Connected?	false
Co-rupture Count	272
Co-rupture Rate	1.8702274E-5

Darran, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MzIuMHozSExm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Milford Basin 5 to George R2, 7.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MzIuMHozSExm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Caswell - South George, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1MzIuMHozSExm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
