Alpine: Springs Junction to Tophouse Details

PropertyValue
Rupture Count70,243
Ruptures Above Sect Min Mag70,237
Ruptures w/ Nonzero Rates611
Magnitude Range[6.90, 8.52]
Length Range[24, 1,132] km
Total Rate7.770528E-4 /yr
Multi-Fault Rate7.770528E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults142

Table Of Contents

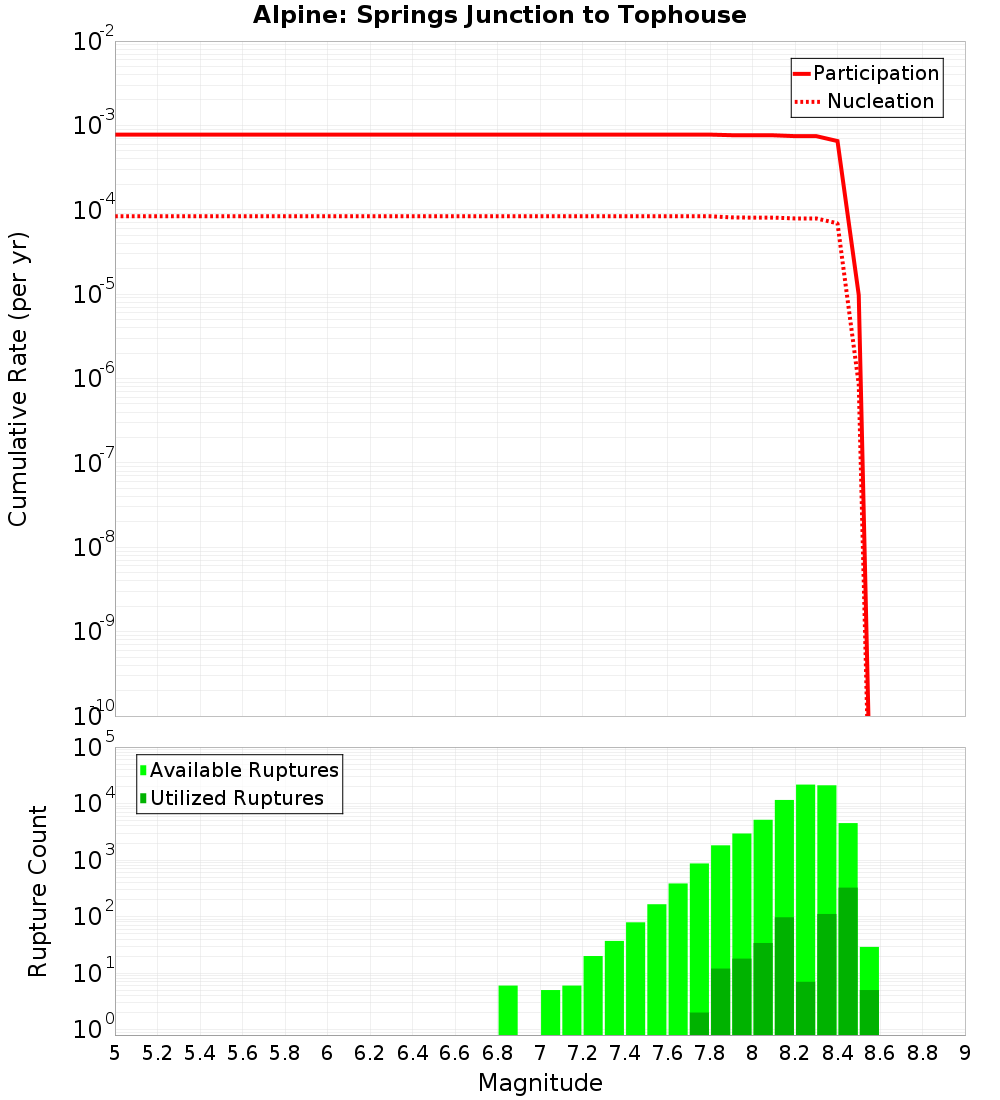

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

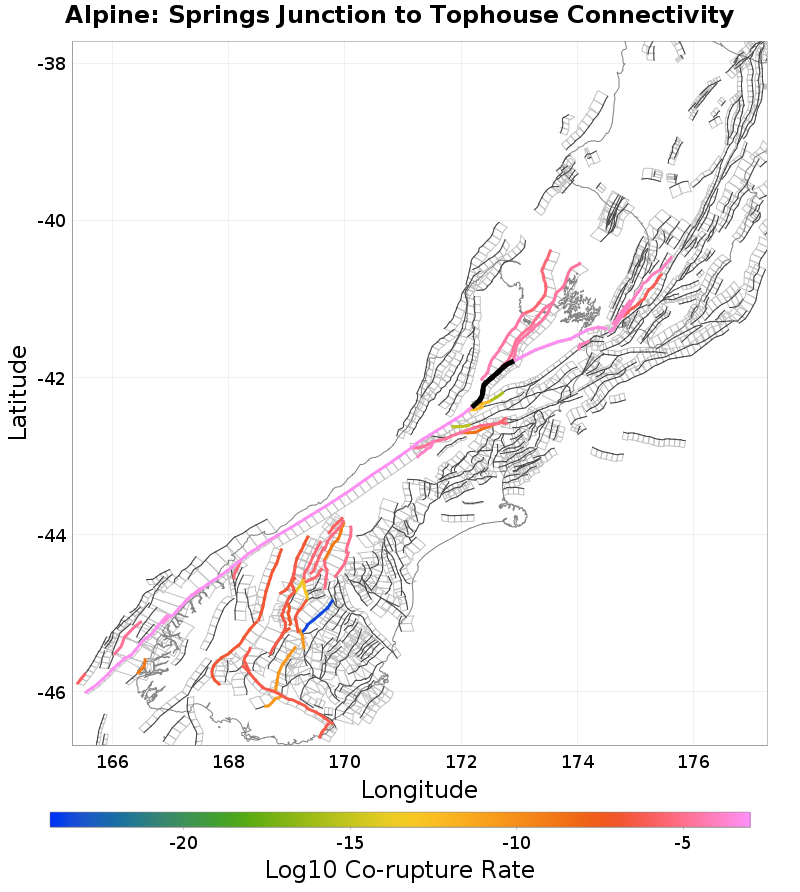

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Kaniere to Springs Junction, 0 km away
Whangamoa, 0 km away
Awatere: Southwest, 0 km away
Wairau, 0 km away
Tutaki, 0.13 km away
Fowlers, 0.19 km away
Flaxmore - Waimea - Tahunanui, 0.45 km away
Clarence: Southwest, 5.57 km away
Hope: Hope River, 13.43 km away

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NjIuMHNyamtW
Connected?true
Directly Connected?true
Co-rupture Count68,054
Co-rupture Rate7.770528E-4

Whangamoa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NjIuMHNyamtW
Connected?true
Directly Connected?true
Co-rupture Count31,470
Co-rupture Rate2.655076E-5

Awatere: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NjIuMHNyamtW
Connected?true
Directly Connected?true
Co-rupture Count692
Co-rupture Rate6.059532E-13

Wairau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NjIuMHNyamtW
Connected?true
Directly Connected?true
Co-rupture Count25,931
Co-rupture Rate6.895004E-4

Tutaki, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NjIuMHNyamtW
Connected?true
Directly Connected?true
Co-rupture Count7,144
Co-rupture Rate4.8333655E-5

Fowlers, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NjIuMHNyamtW
Connected?true
Directly Connected?true
Co-rupture Count335
Co-rupture Rate6.059532E-13

Flaxmore - Waimea - Tahunanui, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NjIuMHNyamtW
Connected?true
Directly Connected?true
Co-rupture Count5,883
Co-rupture Rate1.2928189E-5

Clarence: Southwest, 5.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NjIuMHNyamtW
Connected?true
Directly Connected?true
Co-rupture Count838
Co-rupture Rate4.892782E-16

Hope: Hope River, 13.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NjIuMHNyamtW
Connected?true
Directly Connected?false
Co-rupture Count6,599
Co-rupture Rate2.0826883E-5
