Ruataniwha Details

Property	Value
Rupture Count	1,322
Ruptures Above Sect Min Mag	1,318
Ruptures w/ Nonzero Rates	132
Magnitude Range	[6.68, 8.04]
Length Range	[17, 381] km
Total Rate	6.0152553E-5 /yr
Multi-Fault Rate	6.0152553E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	78

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

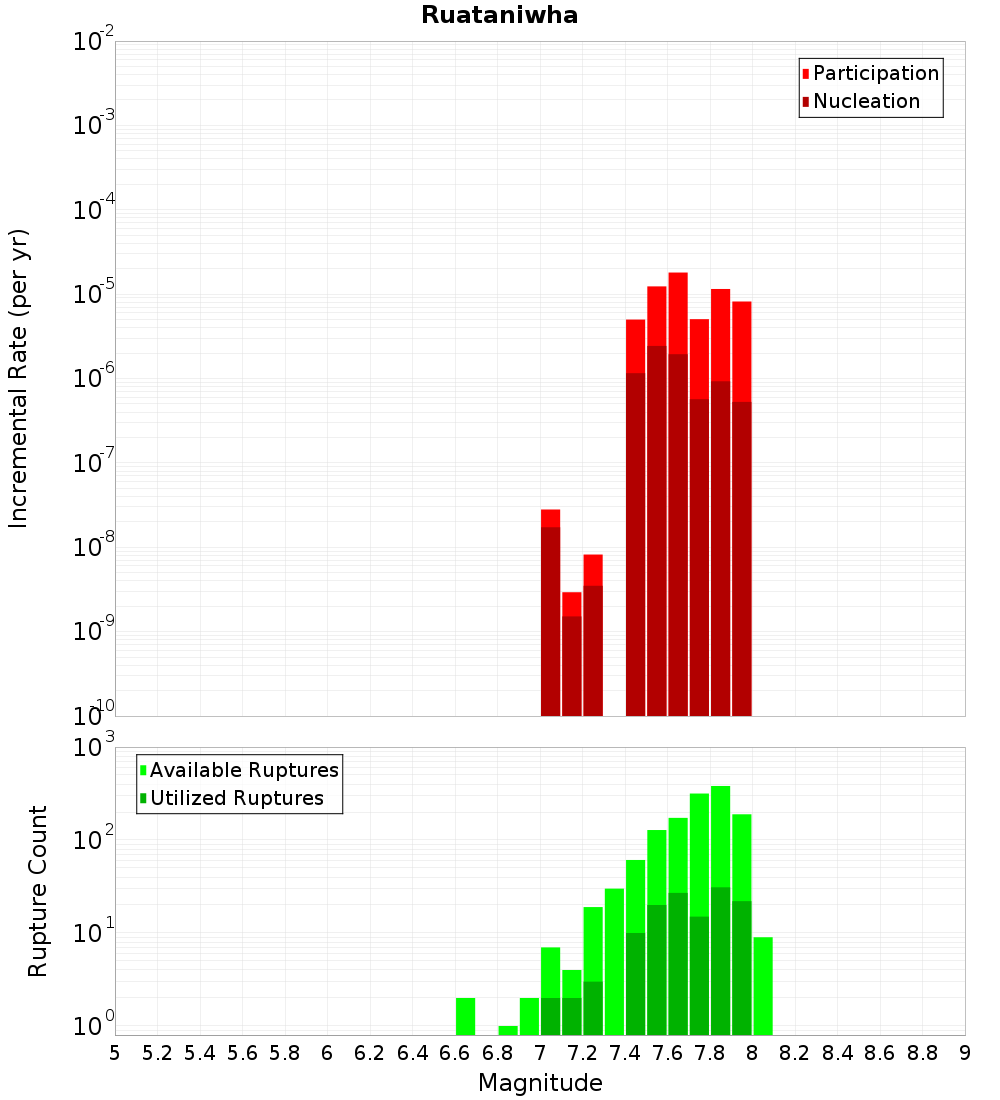

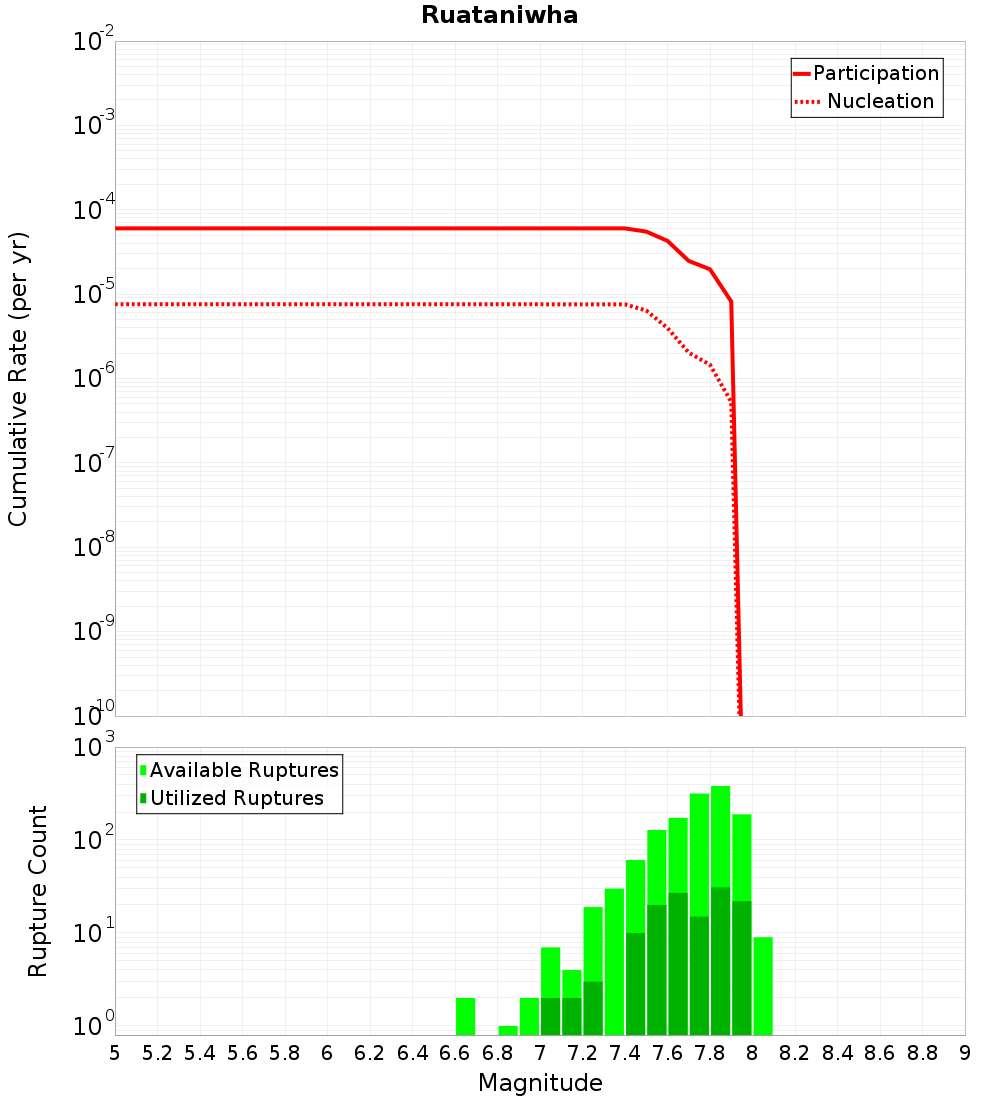

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

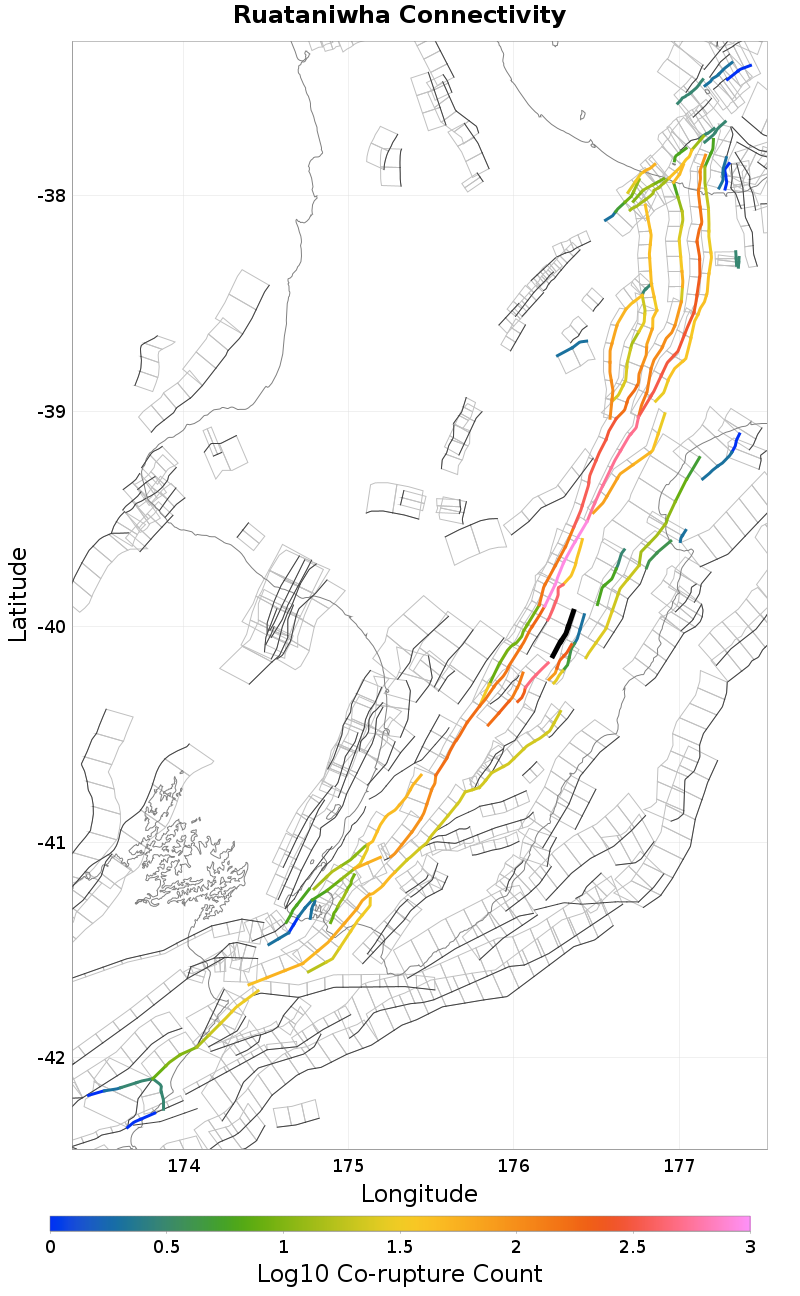

Connectivity

Nearby Sections

Fault Section
Maunga, 3.9 km away
Clear Hills - Waikopiro, 4.28 km away
Oruawharo - Mangatoro, 5.67 km away
Mohaka: South, 6.61 km away
Rangefront, 8.95 km away
Ruahine: South, 9.87 km away
Ruahine: Central, 9.9 km away
Te Heka, 12.04 km away
Waipukurau - Poukawa, 13.21 km away
Wakarara, 13.37 km away
Waewaepa, 13.99 km away
Pahiatua, 14.82 km away

Maunga, 3.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NzkuMFlYbUdp
Connected?	true
Directly Connected?	true
Co-rupture Count	468
Co-rupture Rate	5.2109594E-5

Clear Hills - Waikopiro, 4.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NzkuMFlYbUdp
Connected?	true
Directly Connected?	true
Co-rupture Count	217
Co-rupture Rate	4.459015E-6

Oruawharo - Mangatoro, 5.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NzkuMFlYbUdp
Connected?	true
Directly Connected?	false
Co-rupture Count	27
Co-rupture Rate	6.711712E-11

Mohaka: South, 6.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NzkuMFlYbUdp
Connected?	true
Directly Connected?	true
Co-rupture Count	1,094
Co-rupture Rate	2.4005387E-5

Rangefront, 8.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NzkuMFlYbUdp
Connected?	true
Directly Connected?	true
Co-rupture Count	414
Co-rupture Rate	2.150084E-5

Ruahine: South, 9.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NzkuMFlYbUdp
Connected?	true
Directly Connected?	false
Co-rupture Count	35
Co-rupture Rate	2.4013782E-5

Ruahine: Central, 9.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NzkuMFlYbUdp
Connected?	true
Directly Connected?	false
Co-rupture Count	149
Co-rupture Rate	7.4826095E-10

Te Heka, 12.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NzkuMFlYbUdp
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	1.6193978E-12

Waipukurau - Poukawa, 13.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NzkuMFlYbUdp
Connected?	true
Directly Connected?	false
Co-rupture Count	25
Co-rupture Rate	4.4568615E-6

Wakarara, 13.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NzkuMFlYbUdp
Connected?	true
Directly Connected?	false
Co-rupture Count	39
Co-rupture Rate	8.012966E-6

Waewaepa, 13.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NzkuMFlYbUdp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahiatua, 14.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg1NzkuMFlYbUdp
Connected?	true
Directly Connected?	false
Co-rupture Count	233
Co-rupture Rate	4.8634498E-5
