Chancet Details

PropertyValue
Rupture Count2,760
Ruptures Above Sect Min Mag2,753
Ruptures w/ Nonzero Rates148
Magnitude Range[6.68, 8.28]
Length Range[14, 495] km
Total Rate4.014414E-4 /yr
Multi-Fault Rate4.0141027E-4 /yr (99.99%)
Directly-Connected Faults6
All Co-Rupturing Faults70

Table Of Contents

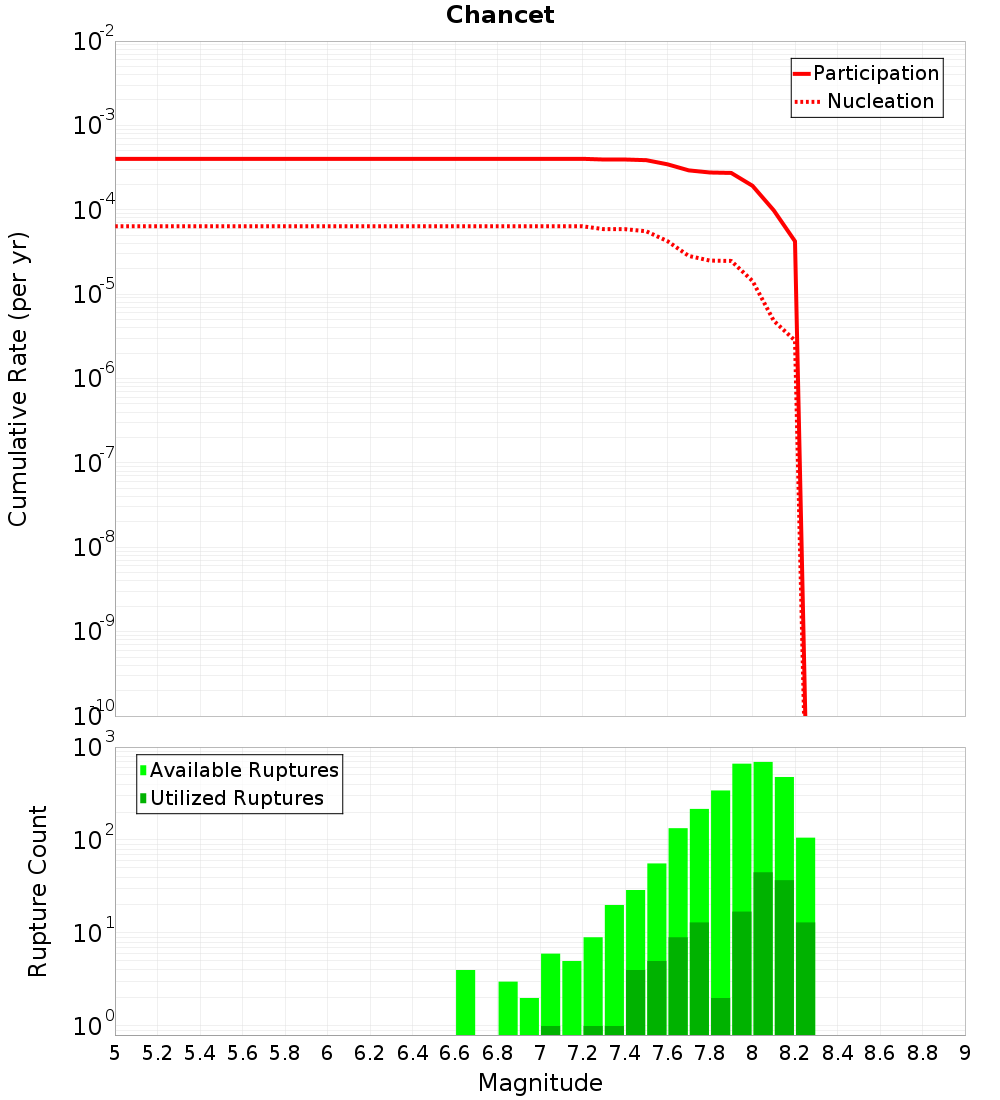

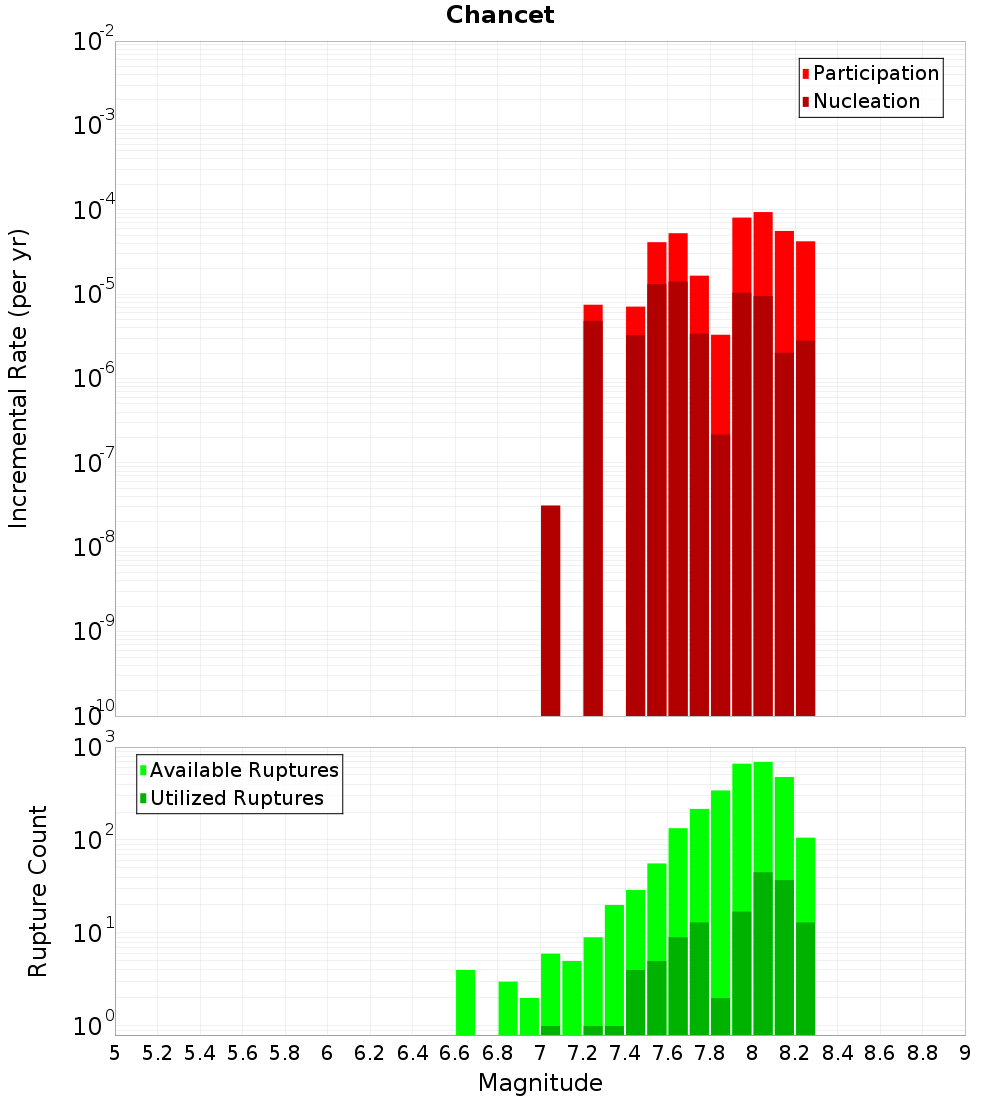

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

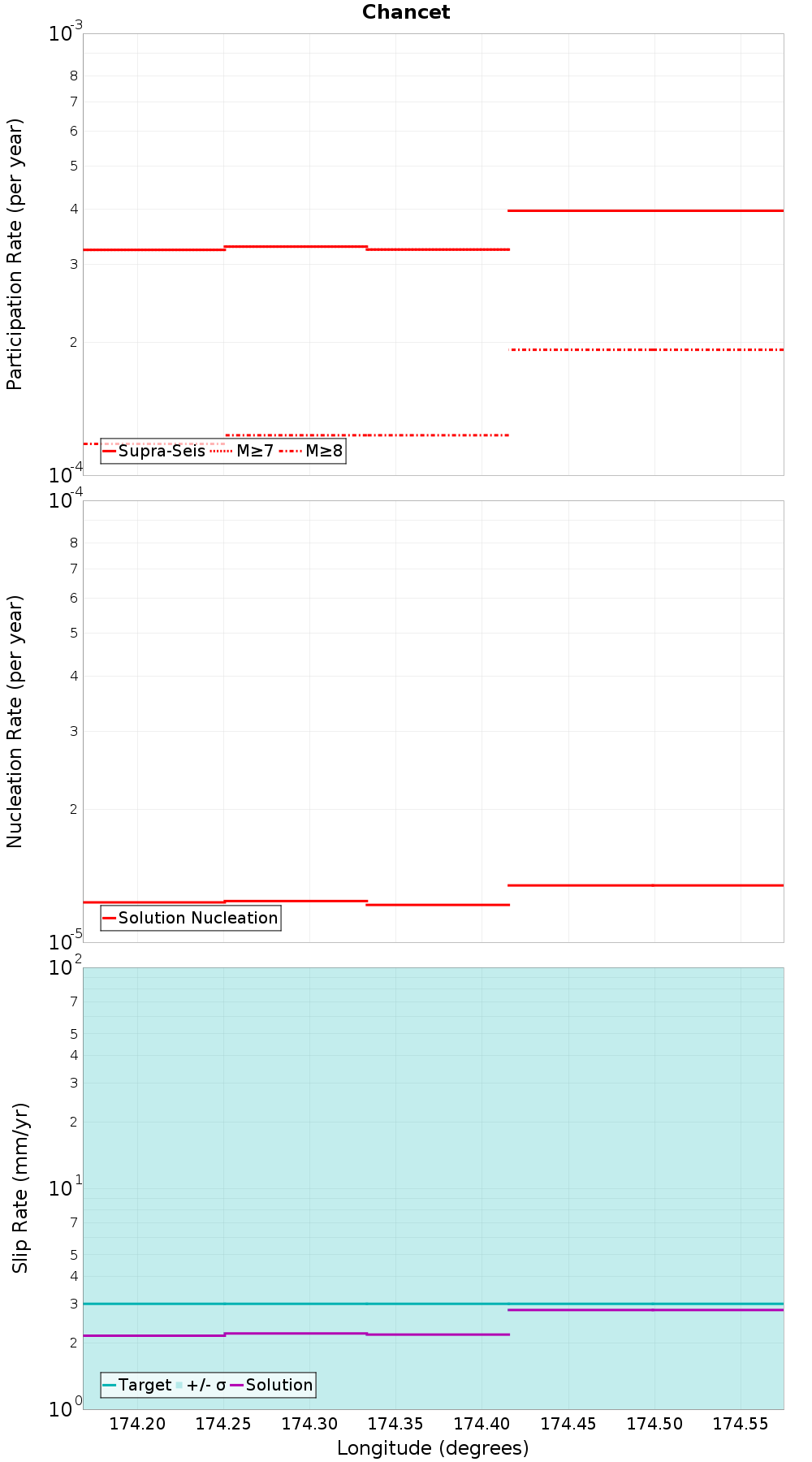

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

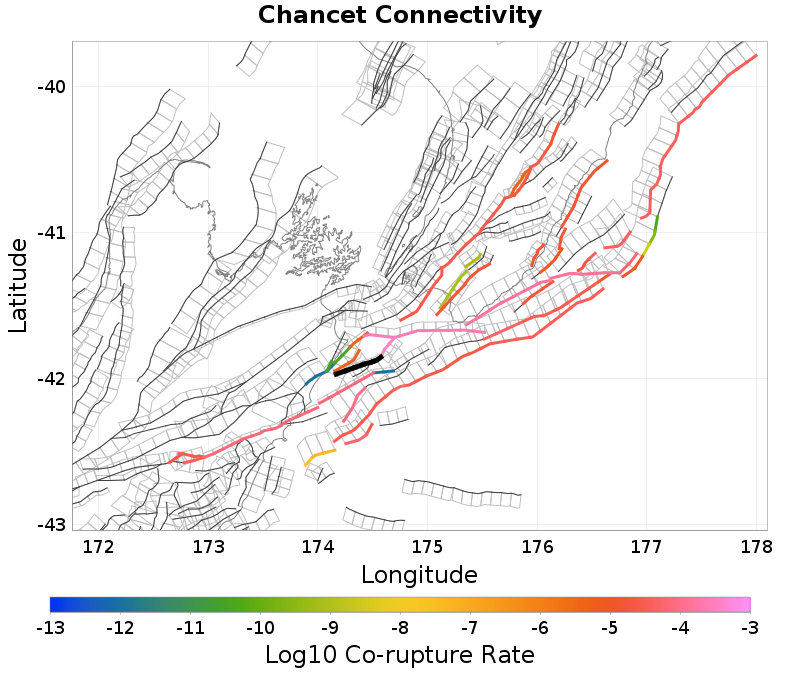

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Campbell Bank, 0 km away
Wharanui, 0.07 km away
London Hill, 0.17 km away
Upper Slope, 1.61 km away
Needles East 2, 2.61 km away
Needles, 6.52 km away
Kekerengu 1, 7.4 km away
Hope: Te Rapa, 8.16 km away
Te Rapa 1, 8.16 km away
Te Rapa 2, 11.11 km away

Campbell Bank, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?true
Directly Connected?true
Co-rupture Count2,048
Co-rupture Rate3.8938454E-4

Wharanui, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

London Hill, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate3.2974616E-11

Upper Slope, 1.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?true
Directly Connected?true
Co-rupture Count163
Co-rupture Rate1.04404244E-4

Needles East 2, 2.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate4.914111E-6

Needles, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?true
Directly Connected?true
Co-rupture Count625
Co-rupture Rate4.914144E-6

Kekerengu 1, 7.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?true
Directly Connected?false
Co-rupture Count37
Co-rupture Rate9.325116E-13

Hope: Te Rapa, 8.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?true
Directly Connected?true
Co-rupture Count1,133
Co-rupture Rate7.246601E-5

Te Rapa 1, 8.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate9.712526E-13

Te Rapa 2, 11.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0
