Starvation - Ashley Details

Property	Value
Rupture Count	12,580
Ruptures Above Sect Min Mag	12,578
Ruptures w/ Nonzero Rates	137
Magnitude Range	[6.97, 8.35]
Length Range	[21, 538] km
Total Rate	8.9247114E-5 /yr
Multi-Fault Rate	8.9247114E-5 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	87

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

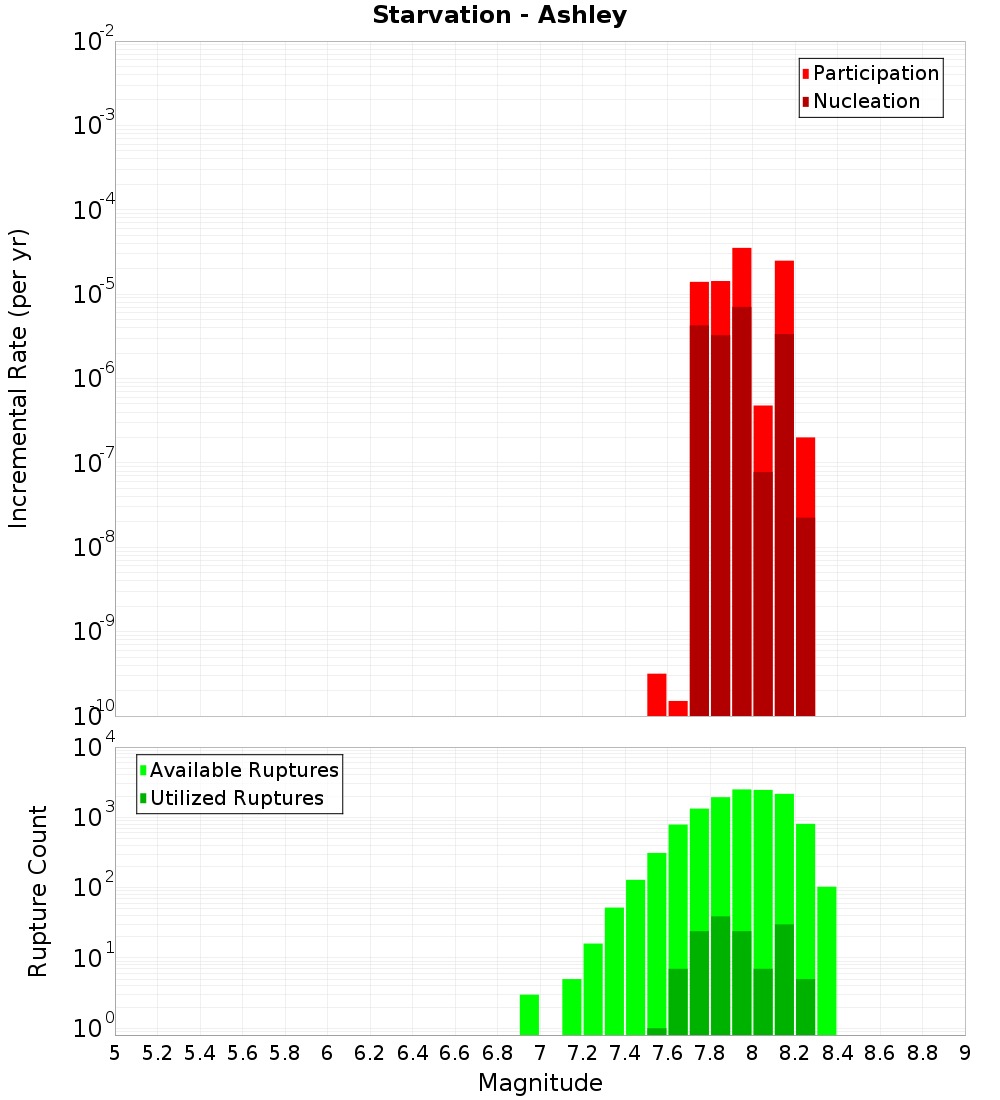

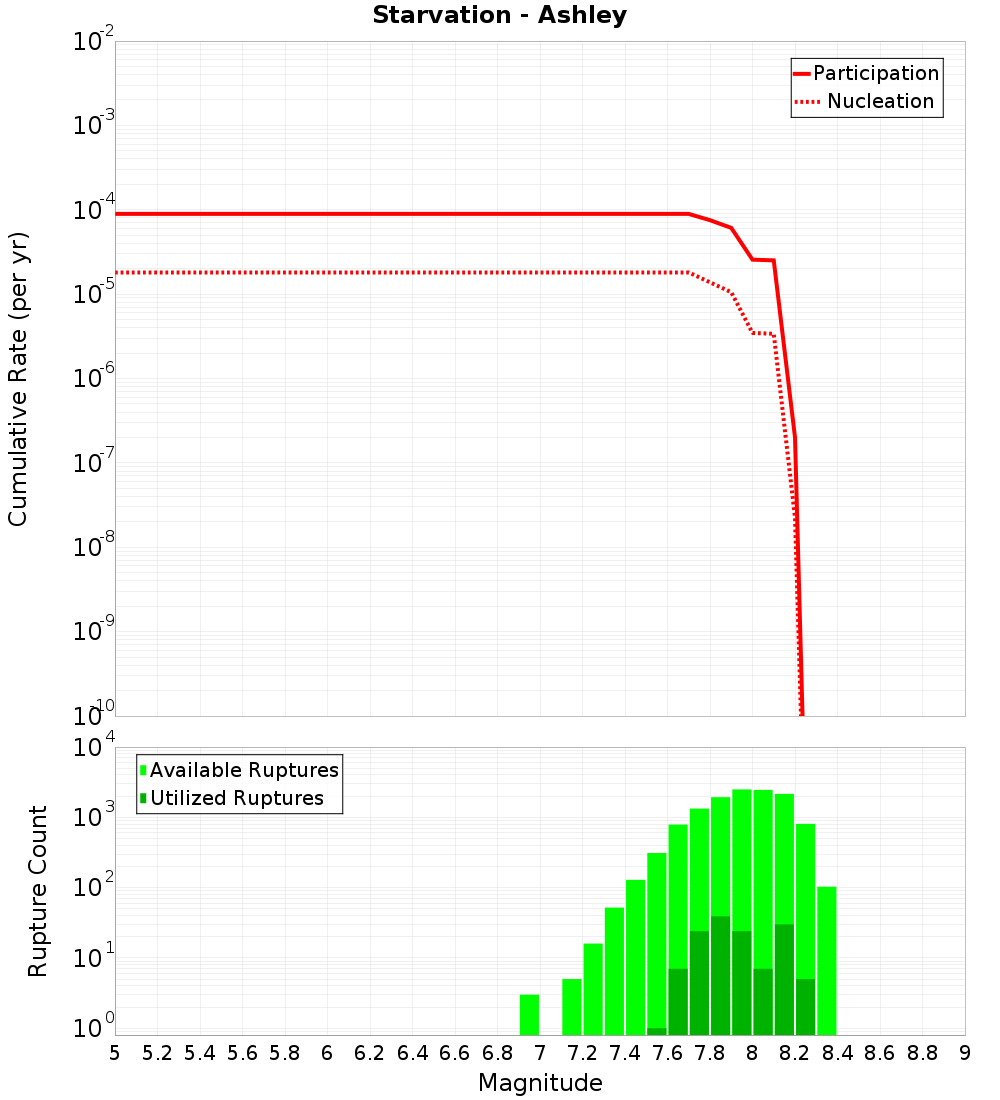

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

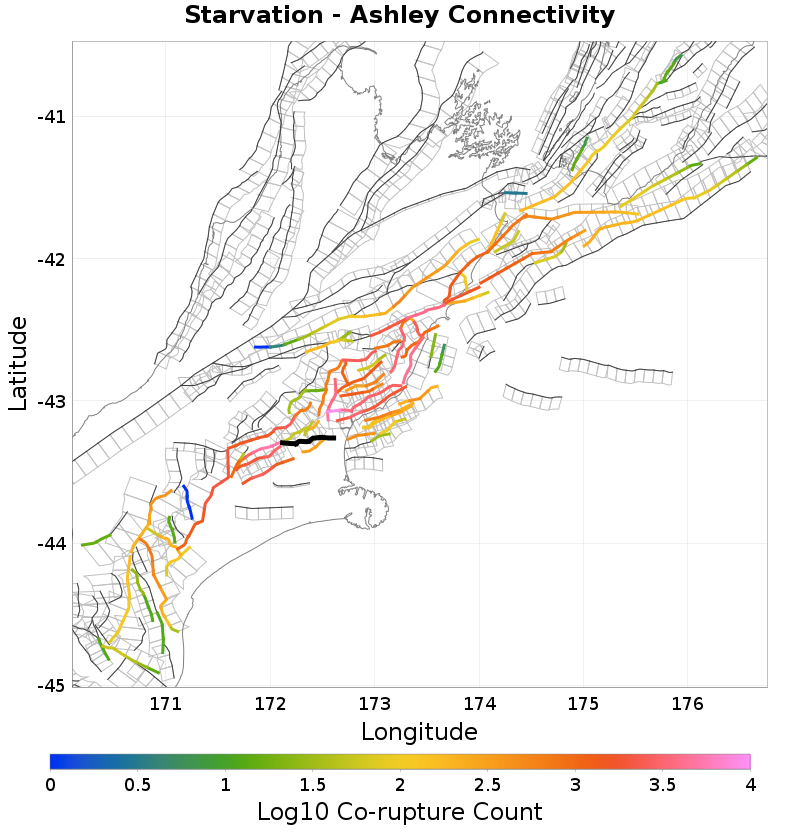

Connectivity

Nearby Sections

Fault Section	Fault Section
Springbank, 0.14 km away	High Peak - Sheffield, 3.73 km away
Mt Lawry, 0.17 km away	Hororata, 6.38 km away
Lees Valley, 0.3 km away	AmberBlyth, 7.86 km away
Pancake, 0.4 km away	Doctors, 8.76 km away
Boby Stream, 0.62 km away	Porters Pass, 10.36 km away
Esk South, 0.76 km away	Waikuku, 11.22 km away
Kowai - View Hill, 0.87 km away	Pegasus Bay, 12.18 km away
Knowles Top, 1.58 km away	Torlesse, 12.83 km away

Springbank, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?	true
Directly Connected?	true
Co-rupture Count	338
Co-rupture Rate	8.219802E-6

Mt Lawry, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?	true
Directly Connected?	true
Co-rupture Count	225
Co-rupture Rate	0.0

Lees Valley, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?	true
Directly Connected?	true
Co-rupture Count	2,884
Co-rupture Rate	4.995289E-5

Pancake, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?	true
Directly Connected?	false
Co-rupture Count	34
Co-rupture Rate	3.329942E-13

Boby Stream, 0.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?	true
Directly Connected?	true
Co-rupture Count	8,865
Co-rupture Rate	8.6414246E-7

Esk South, 0.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kowai - View Hill, 0.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?	true
Directly Connected?	true
Co-rupture Count	5,335
Co-rupture Rate	1.2236266E-5

Knowles Top, 1.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?	true
Directly Connected?	false
Co-rupture Count	53
Co-rupture Rate	3.821365E-6

High Peak - Sheffield, 3.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?	true
Directly Connected?	true
Co-rupture Count	3,893
Co-rupture Rate	2.6708103E-5

Hororata, 6.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?	true
Directly Connected?	false
Co-rupture Count	3,481
Co-rupture Rate	3.457815E-5

AmberBlyth, 7.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?	true
Directly Connected?	true
Co-rupture Count	3,404
Co-rupture Rate	8.837839E-5

Doctors, 8.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?	true
Directly Connected?	false
Co-rupture Count	4,915
Co-rupture Rate	1.41092E-10

Porters Pass, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?	true
Directly Connected?	false
Co-rupture Count	1,606
Co-rupture Rate	3.932605E-5

Waikuku, 11.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?	true
Directly Connected?	true
Co-rupture Count	474
Co-rupture Rate	8.552449E-9

Pegasus Bay, 12.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?	true
Directly Connected?	false
Co-rupture Count	31
Co-rupture Rate	0.0

Torlesse, 12.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDUuMGJoVEpm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
