Inangahua Details
| Property | Value |
|---|---|
| Rupture Count | 2,838 |
| Ruptures Above Sect Min Mag | 2,837 |
| Ruptures w/ Nonzero Rates | 85 |
| Magnitude Range | [6.77, 8.04] |
| Length Range | [20, 396] km |
| Total Rate | 3.4799089E-12 /yr |
| Multi-Fault Rate | 3.4799089E-12 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 18 |
Table Of Contents

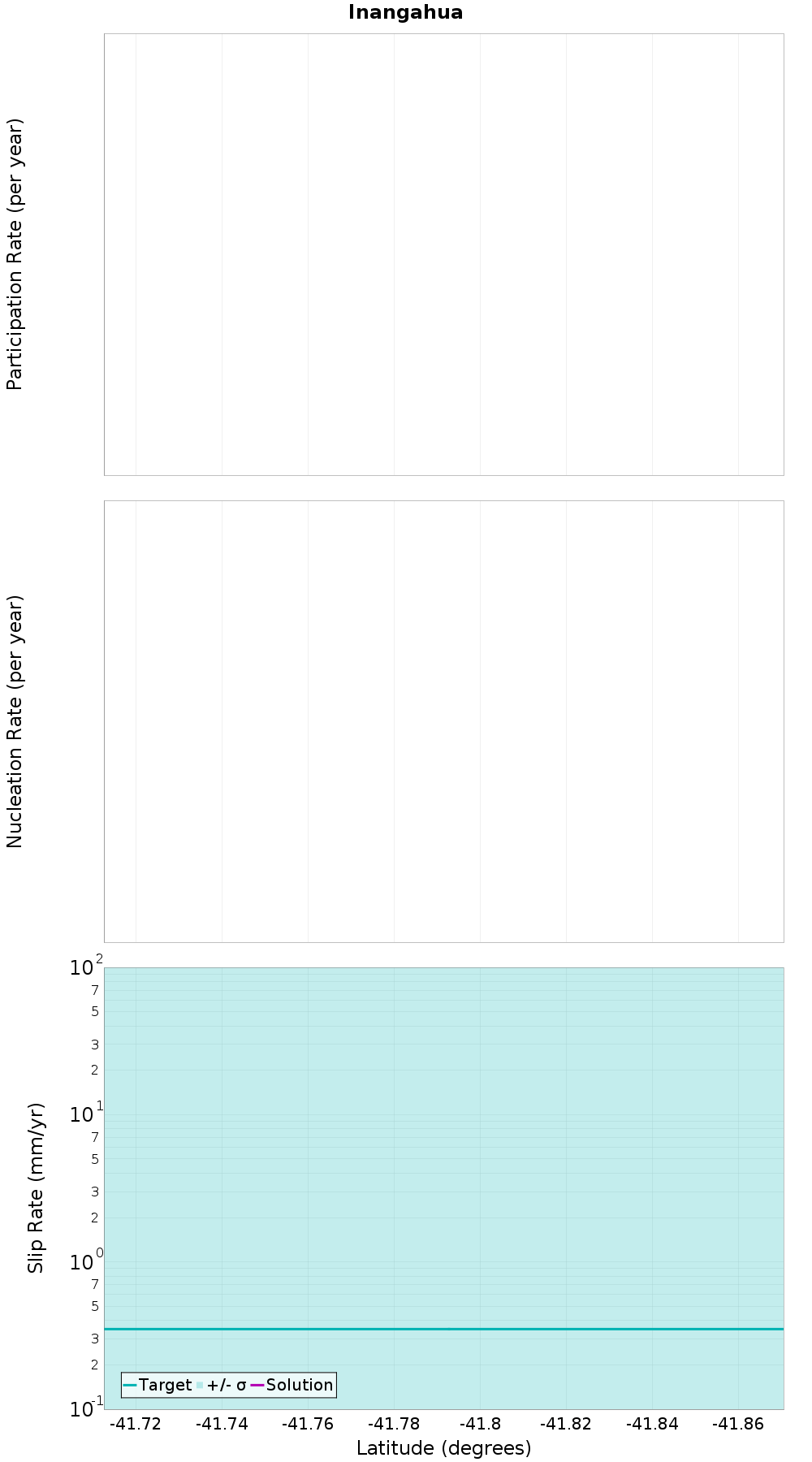

Along-Strike Values
Moment-Rates and b-Values

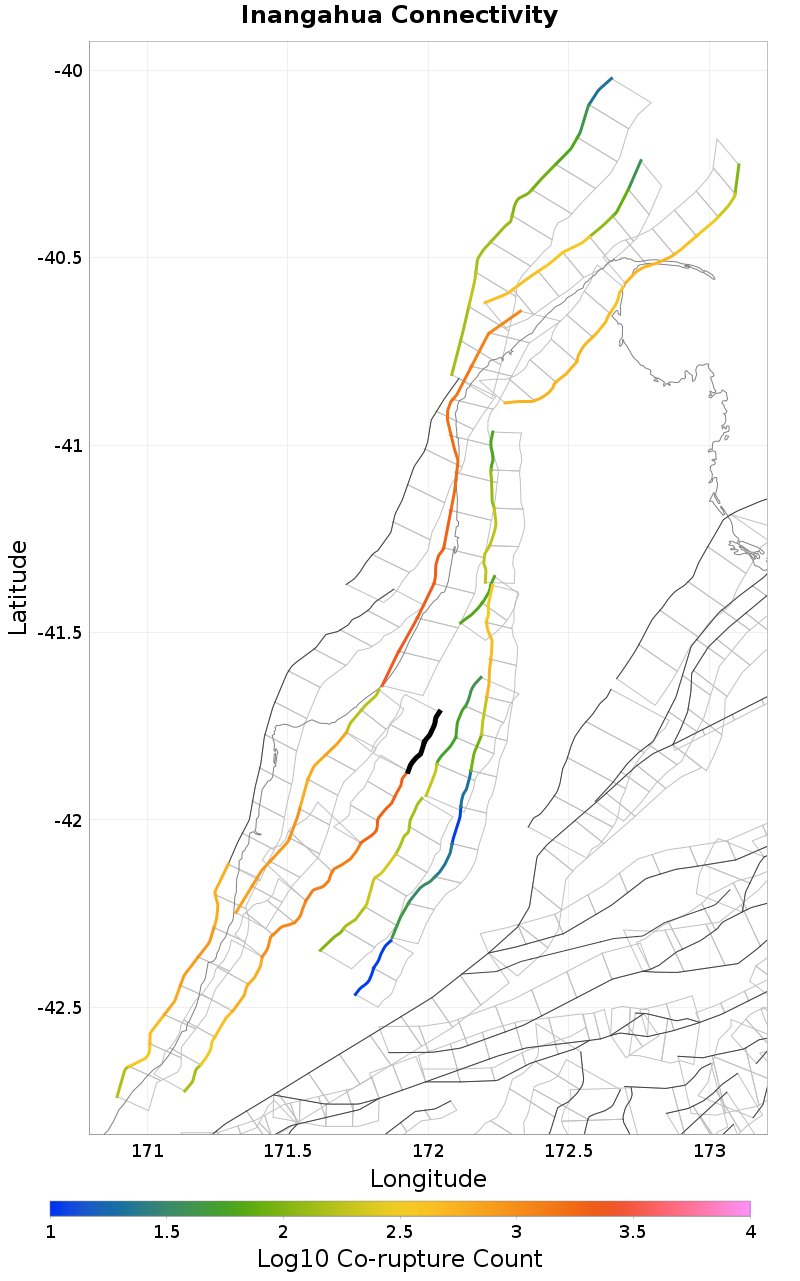

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Maimai: North, 0 km away |
| Paparoa West: North, 0.83 km away |
| Paparoa West, 1.12 km away |
| Kongahau, 1.46 km away |
| Lyell, 5.51 km away |
| Lyell South, 9 km away |
| White Creek, 13.07 km away |
Maimai: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDcuMGpla1dt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,952 |
| Co-rupture Rate | 2.6662988E-12 |
Paparoa West: North, 0.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDcuMGpla1dt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 167 |
| Co-rupture Rate | 2.1304022E-16 |
Paparoa West, 1.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDcuMGpla1dt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,228 |
| Co-rupture Rate | 1.4155088E-12 |
Kongahau, 1.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDcuMGpla1dt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,350 |
| Co-rupture Rate | 2.5961997E-12 |
Lyell, 5.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDcuMGpla1dt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 192 |
| Co-rupture Rate | 2.5022028E-13 |
Lyell South, 9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDcuMGpla1dt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 249 |
| Co-rupture Rate | 6.235115E-13 |
White Creek, 13.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDcuMGpla1dt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 618 |
| Co-rupture Rate | 3.6151147E-13 |
