Motu o Kura Ridge Details
| Property | Value |
|---|---|
| Rupture Count | 1,377 |
| Ruptures Above Sect Min Mag | 1,373 |
| Ruptures w/ Nonzero Rates | 25 |
| Magnitude Range | [6.79, 8.33] |
| Length Range | [17, 546] km |
| Total Rate | 3.2325234E-4 /yr |
| Multi-Fault Rate | 1.9778522E-4 /yr (61.19%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 27 |
Table Of Contents

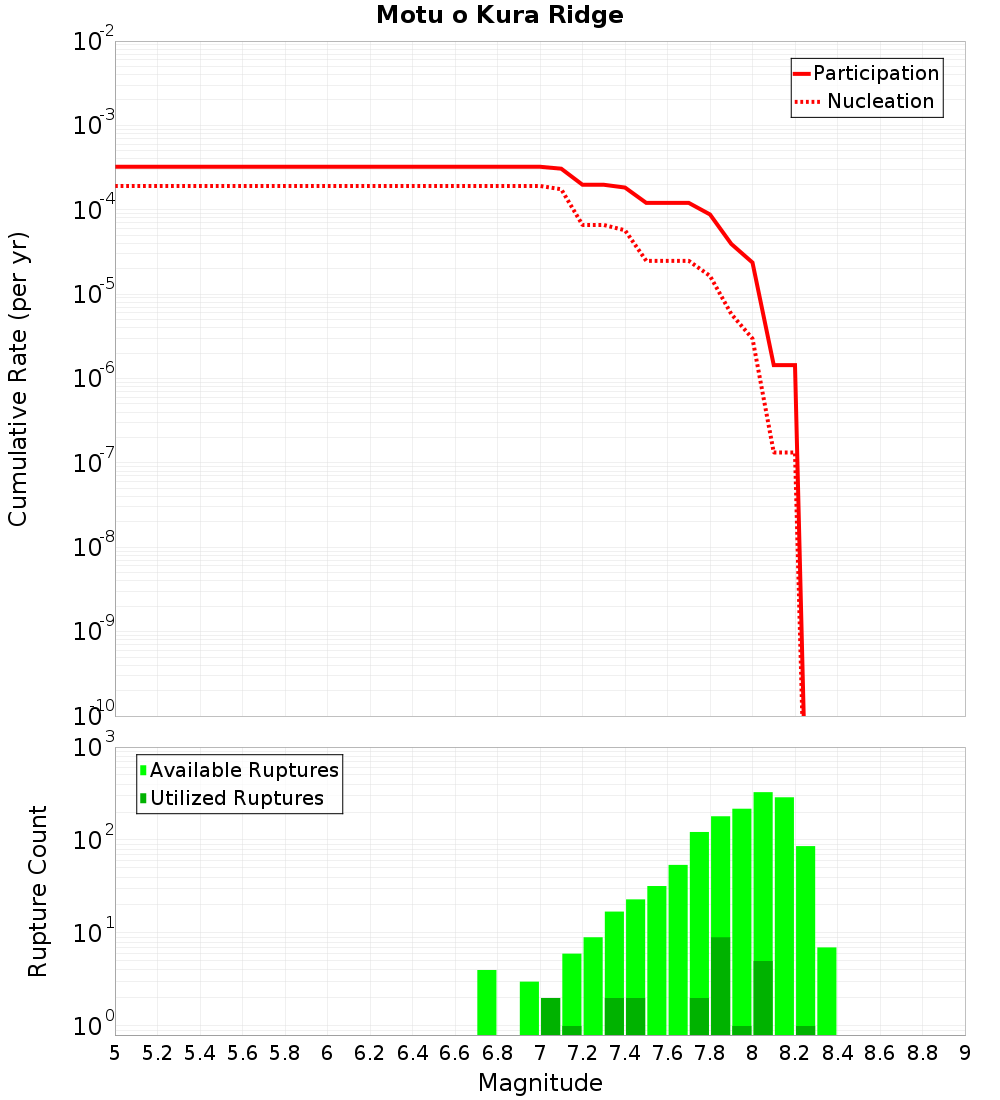

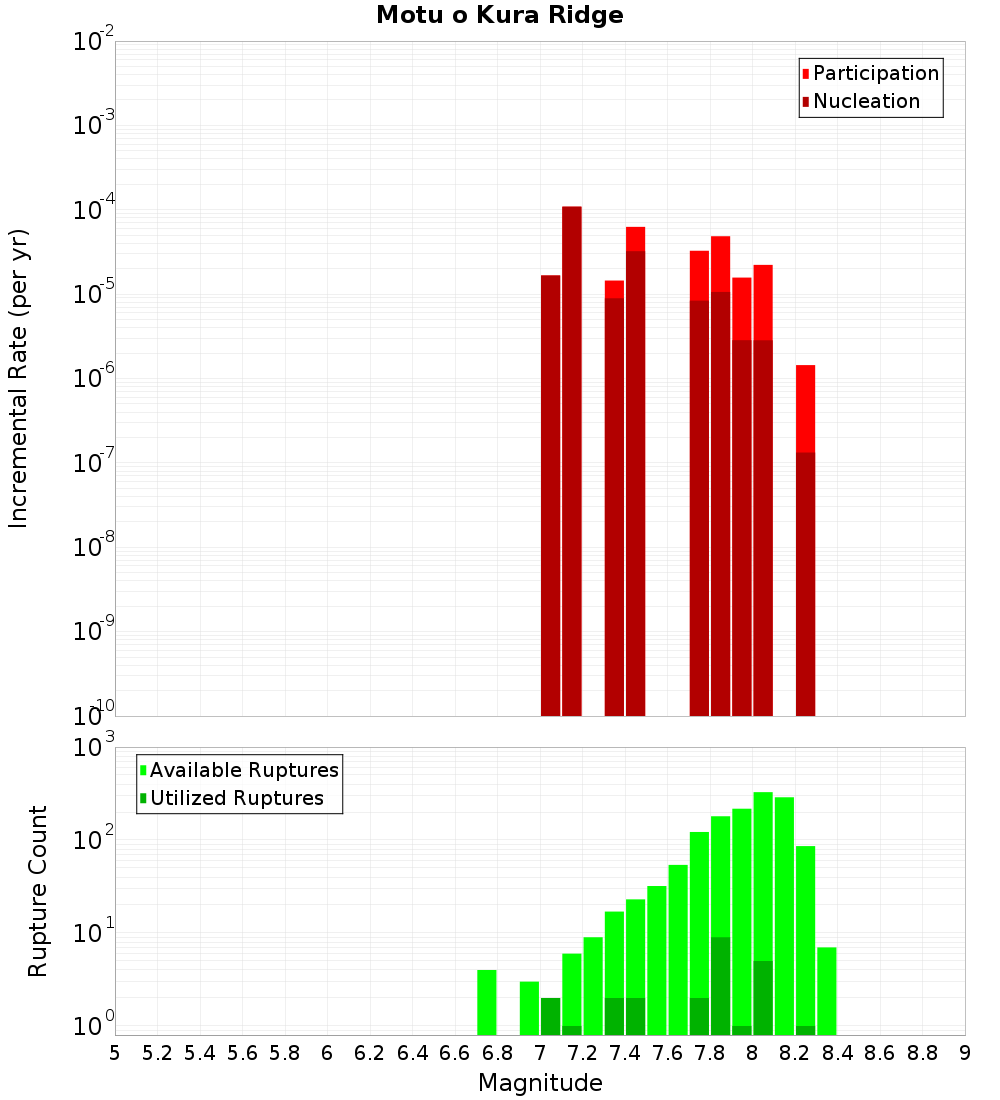

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

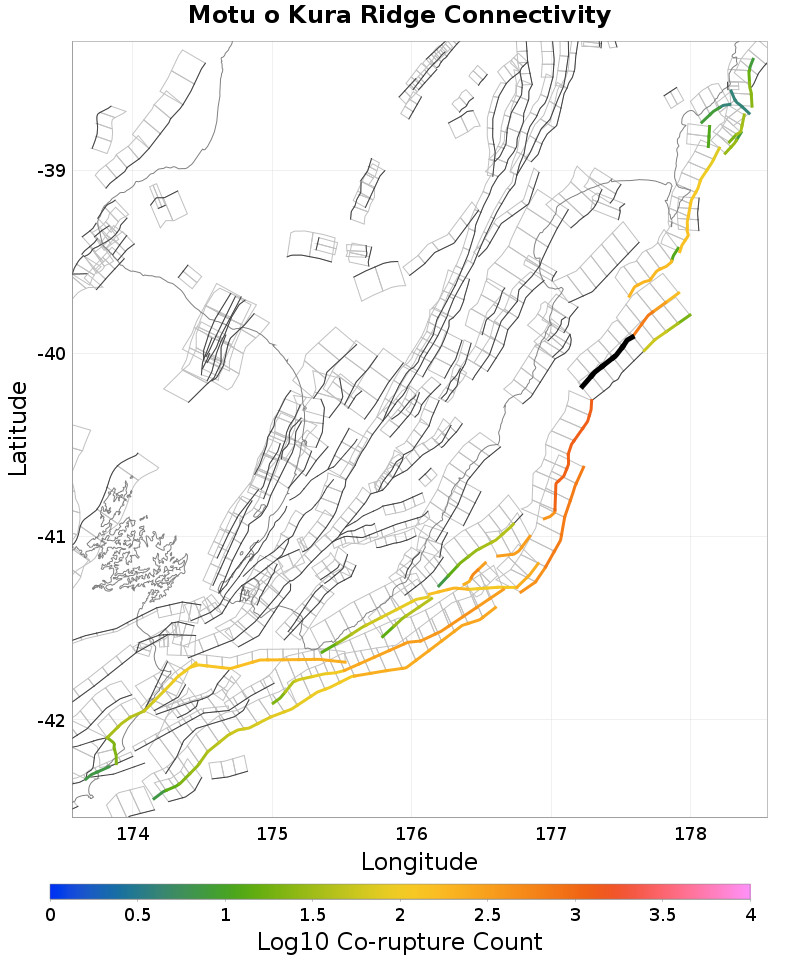

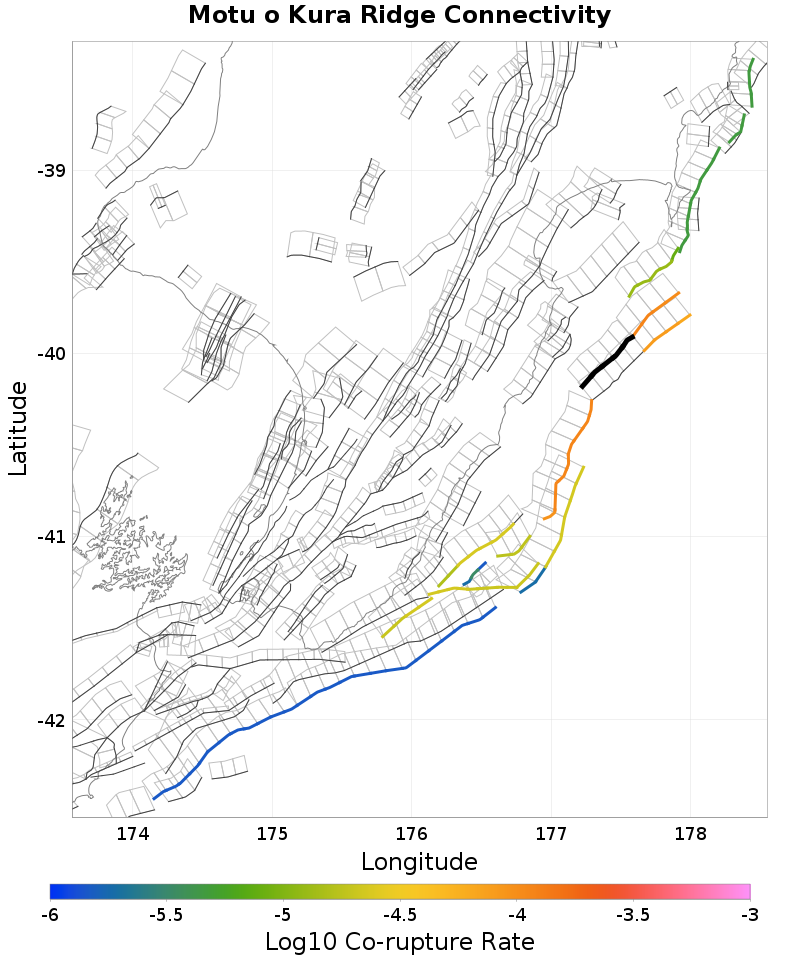

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Motuokura North, 0 km away |
| Motu o Kura East, 6.46 km away |
| Madden Banks, 7.97 km away |
| Kairakau 2, 13.65 km away |
Motuokura North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 678 |
| Co-rupture Rate | 1.1615893E-4 |
Motu o Kura East, 6.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 57 |
| Co-rupture Rate | 7.906054E-5 |
Madden Banks, 7.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,239 |
| Co-rupture Rate | 1.1601414E-4 |
Kairakau 2, 13.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
