Pancake Details

PropertyValue
Rupture Count140
Ruptures Above Sect Min Mag140
Ruptures w/ Nonzero Rates30
Magnitude Range[7.20, 8.20]
Length Range[24, 325] km
Total Rate1.4319434E-4 /yr
Multi-Fault Rate2.1832679E-5 /yr (15.25%)
Directly-Connected Faults1
All Co-Rupturing Faults35

Table Of Contents

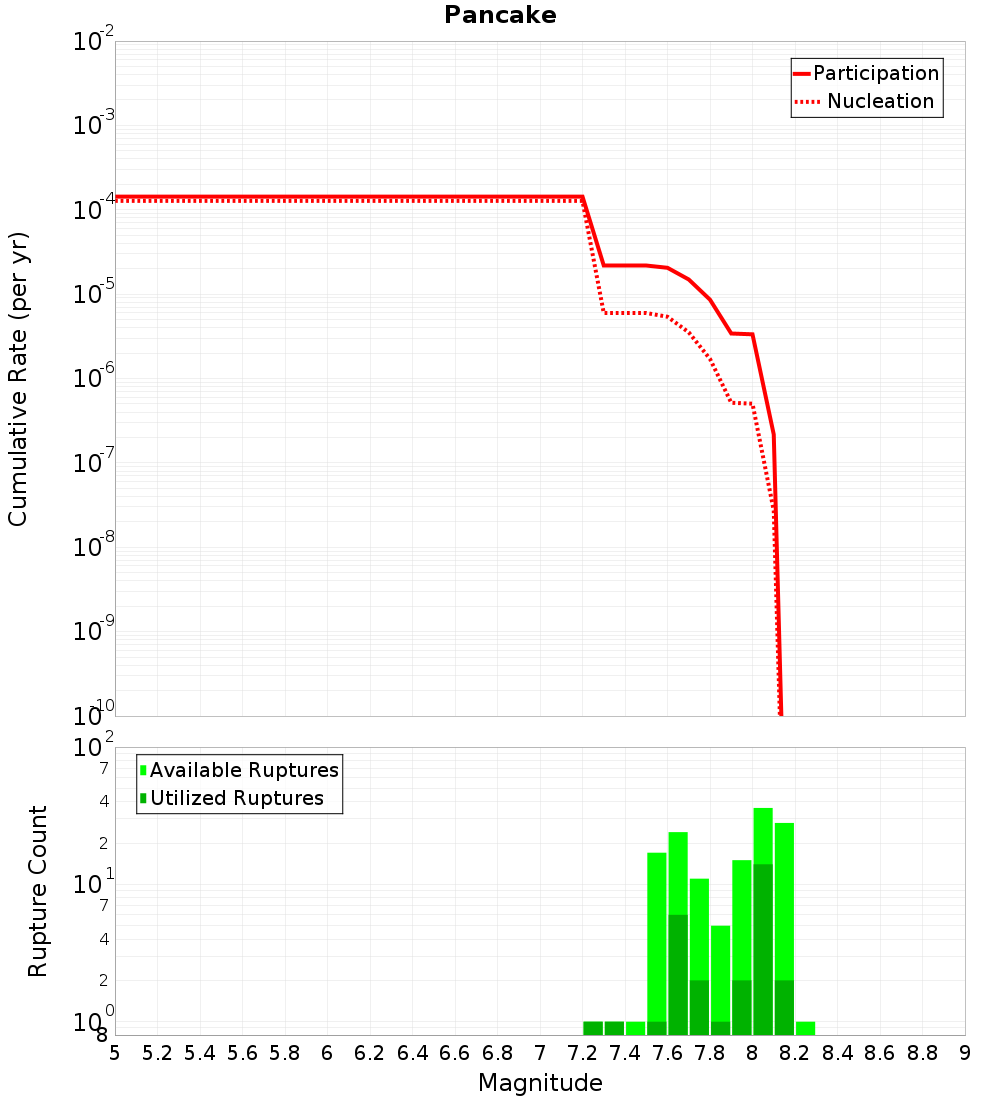

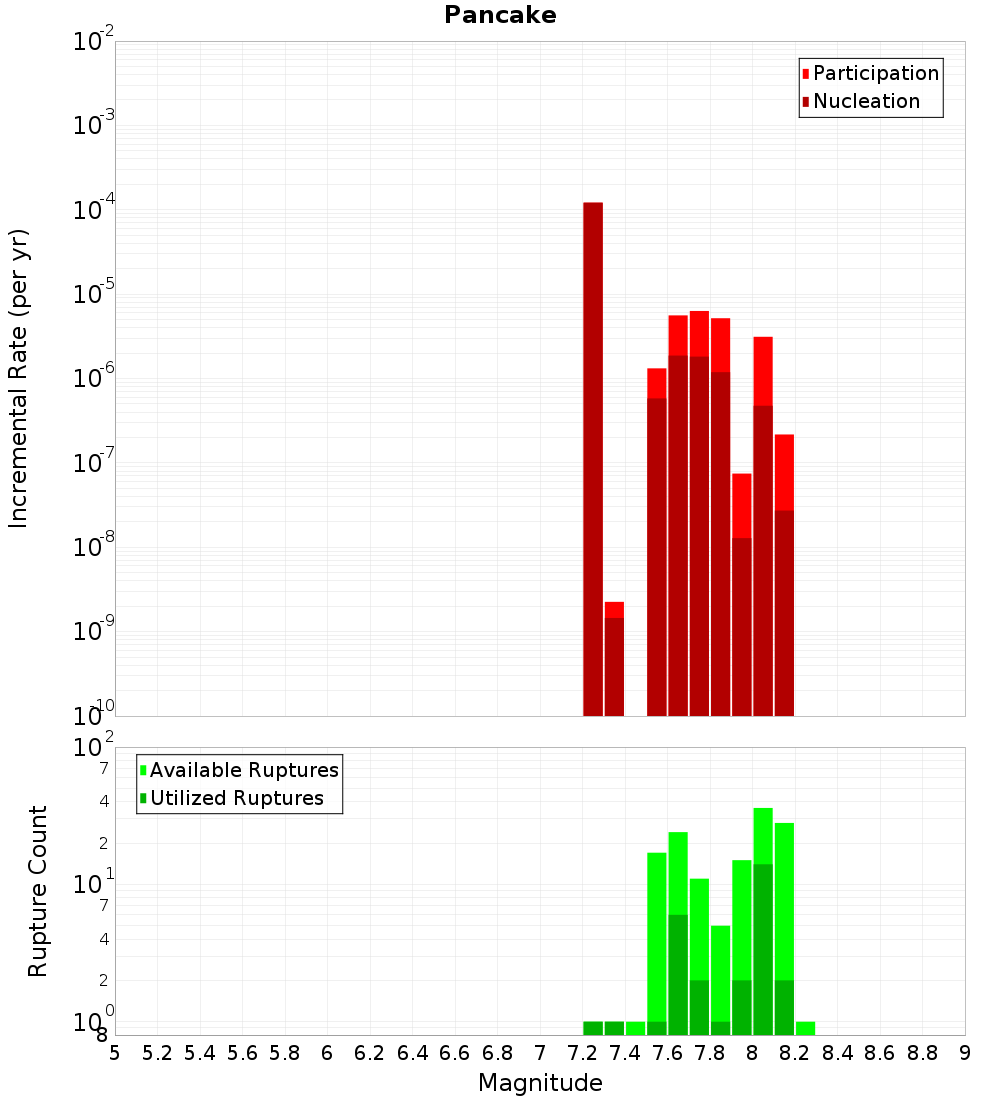

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

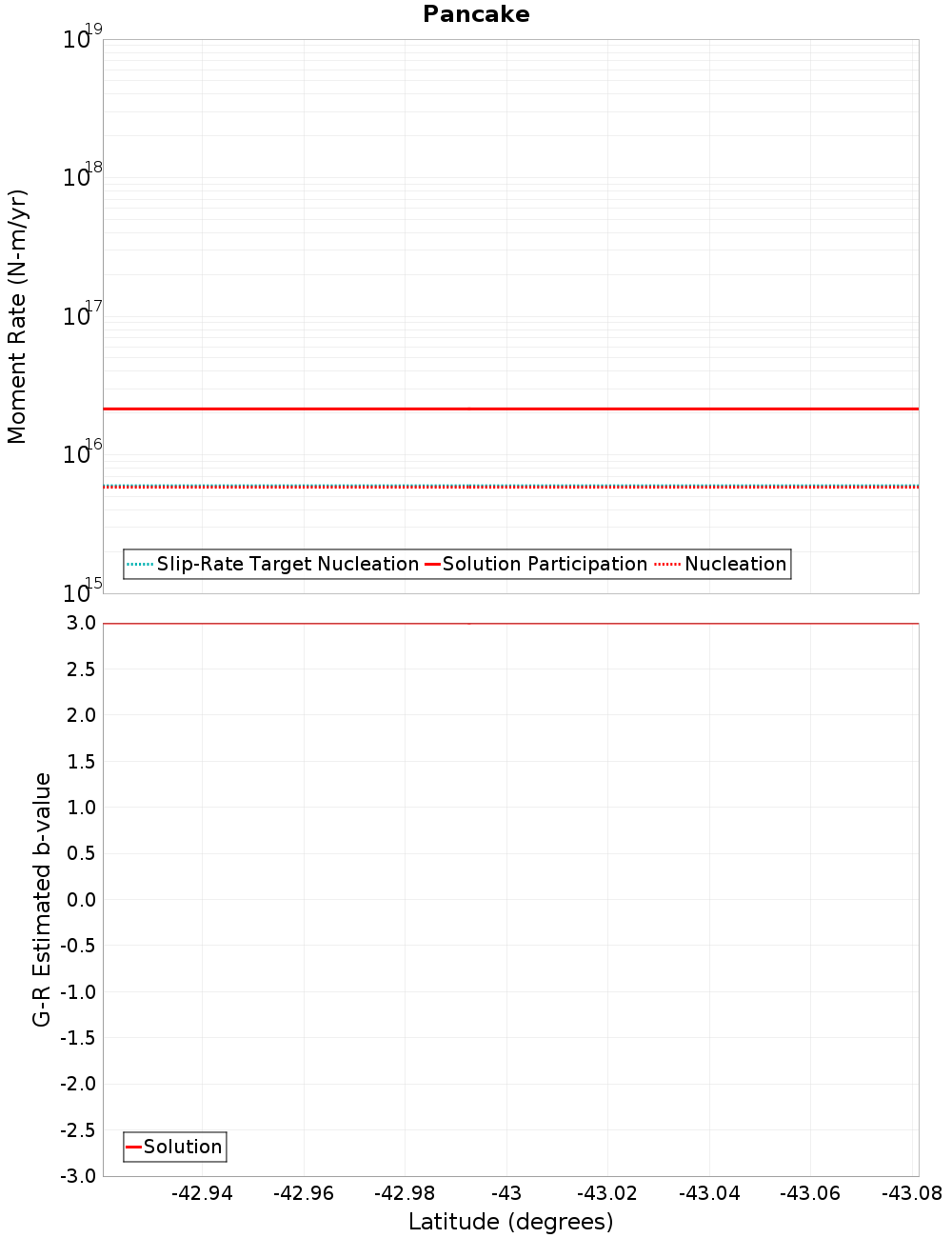

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Springbank, 0.13 km away
Lees Valley, 0.22 km away
Mt Arden, 0.23 km away
Knowles Top, 0.3 km away
Starvation - Ashley, 0.4 km away
Virginia, 0.5 km away
Esk North, 1.2 km away
Esk South, 3.7 km away
Hurunui Peak, 8.97 km away
Mt Lawry, 9.34 km away
Boby Stream, 10 km away
Sailor, 10.92 km away
Doctors, 12.94 km away
Kaiwara South, 14.89 km away

Springbank, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Lees Valley, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?true
Directly Connected?true
Co-rupture Count139
Co-rupture Rate2.1832679E-5

Mt Arden, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Knowles Top, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?true
Directly Connected?false
Co-rupture Count34
Co-rupture Rate3.0066262E-6

Virginia, 0.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk North, 1.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk South, 3.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hurunui Peak, 8.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Mt Lawry, 9.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Boby Stream, 10 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sailor, 10.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Doctors, 12.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara South, 14.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
