Sugarloaf Details

Property	Value
Rupture Count	508
Ruptures Above Sect Min Mag	507
Ruptures w/ Nonzero Rates	28
Magnitude Range	[7.06, 8.35]
Length Range	[24, 498] km
Total Rate	1.0566906E-5 /yr
Multi-Fault Rate	1.0566906E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	62

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

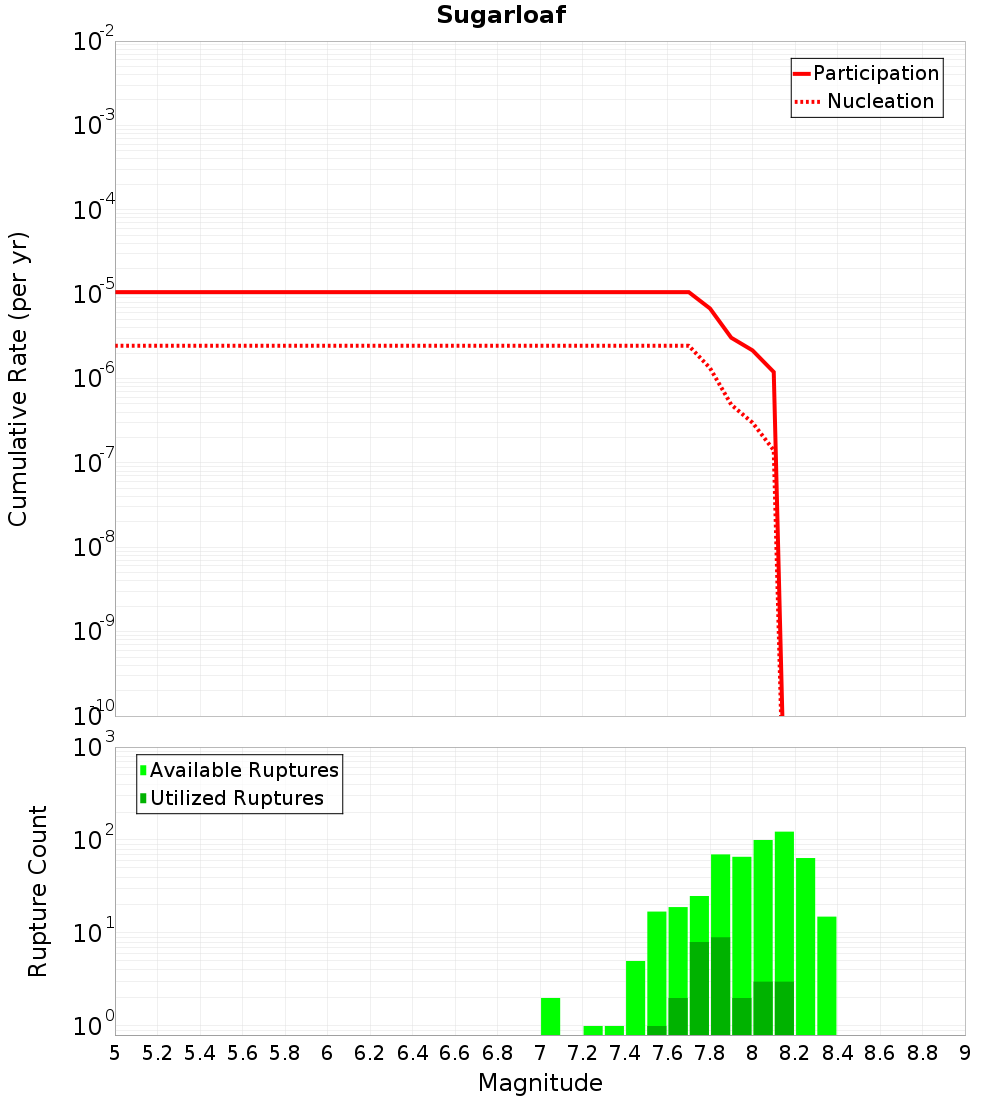

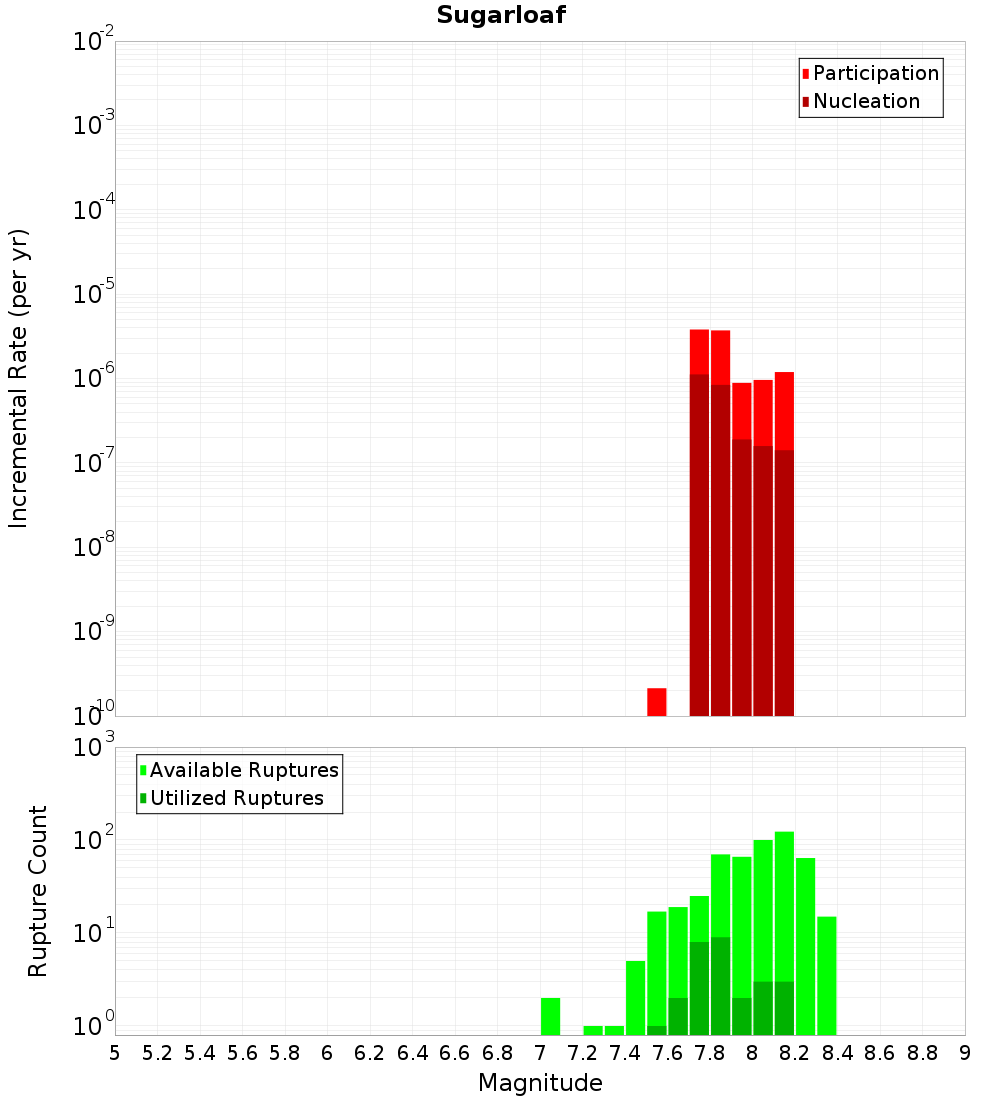

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

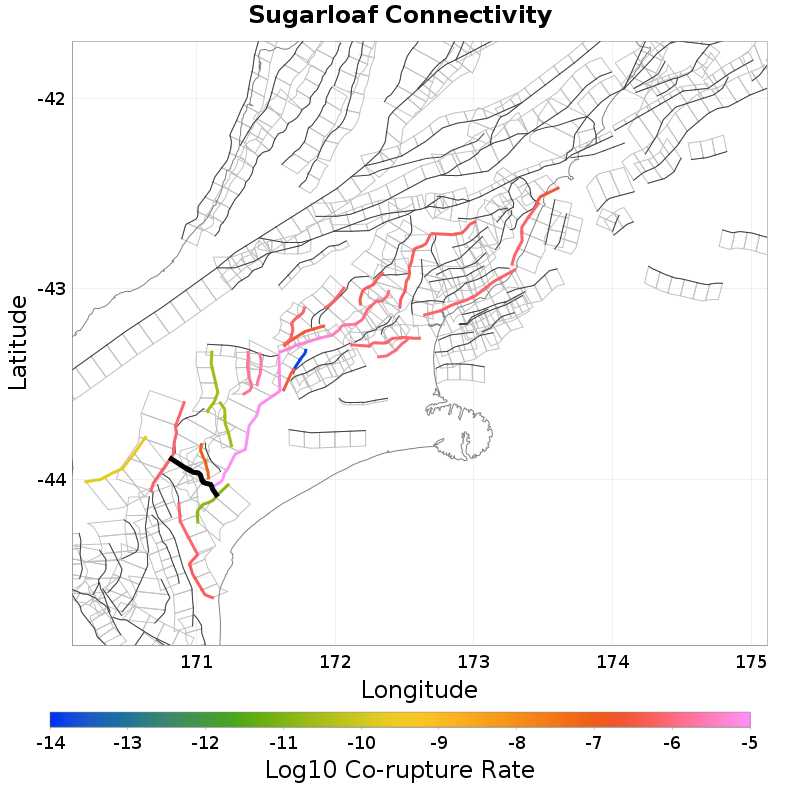

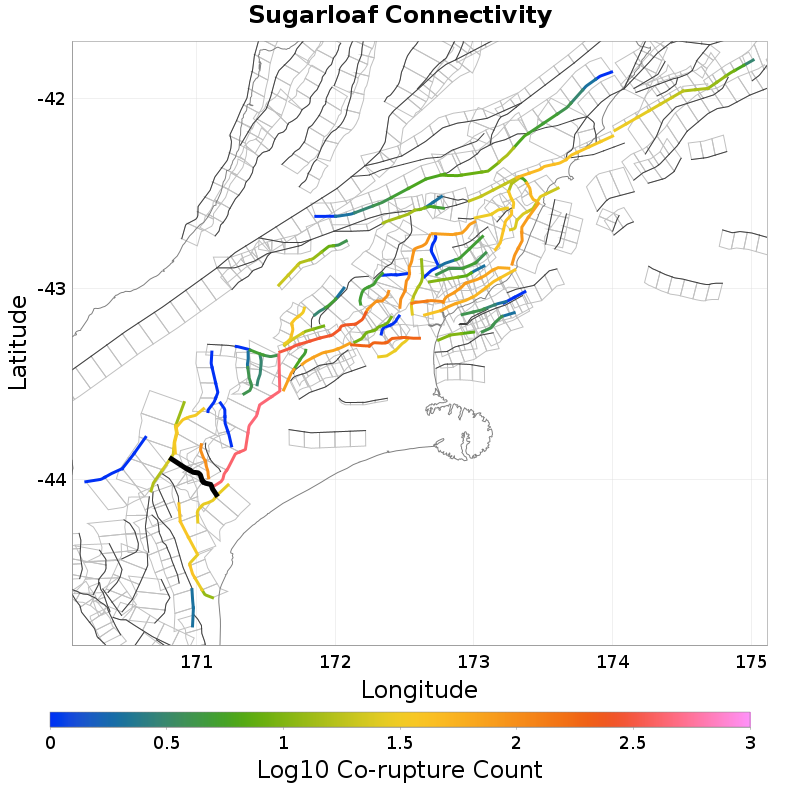

Connectivity

Nearby Sections

Fault Section
Brothers, 0.19 km away
Hutt Peel, 0.39 km away
Irishman Creek, 0.39 km away
Fox Peak, 0.68 km away
Opawa, 0.78 km away
Rapuwai, 0.81 km away
Catherine, 2.6 km away
Ben McLeod, 4.07 km away
Edith, 8.43 km away
Albury, 13.75 km away

Brothers, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?	true
Directly Connected?	true
Co-rupture Count	38
Co-rupture Rate	7.3408904E-7

Hutt Peel, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?	true
Directly Connected?	true
Co-rupture Count	447
Co-rupture Rate	9.831072E-6

Irishman Creek, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	2.1334019E-10

Fox Peak, 0.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?	true
Directly Connected?	true
Co-rupture Count	29
Co-rupture Rate	7.3562086E-7

Opawa, 0.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rapuwai, 0.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?	true
Directly Connected?	true
Co-rupture Count	28
Co-rupture Rate	1.2763949E-11

Catherine, 2.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?	true
Directly Connected?	true
Co-rupture Count	97
Co-rupture Rate	8.337522E-8

Ben McLeod, 4.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?	true
Directly Connected?	false
Co-rupture Count	35
Co-rupture Rate	0.0

Edith, 8.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Albury, 13.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MDkuMHM1bXk2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
