Hope: Conway Details

PropertyValue
Rupture Count25,517
Ruptures Above Sect Min Mag25,485
Ruptures w/ Nonzero Rates271
Magnitude Range[6.54, 8.42]
Length Range[16, 946] km
Total Rate0.0035426337 /yr
Multi-Fault Rate0.0035426337 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults166

Table Of Contents

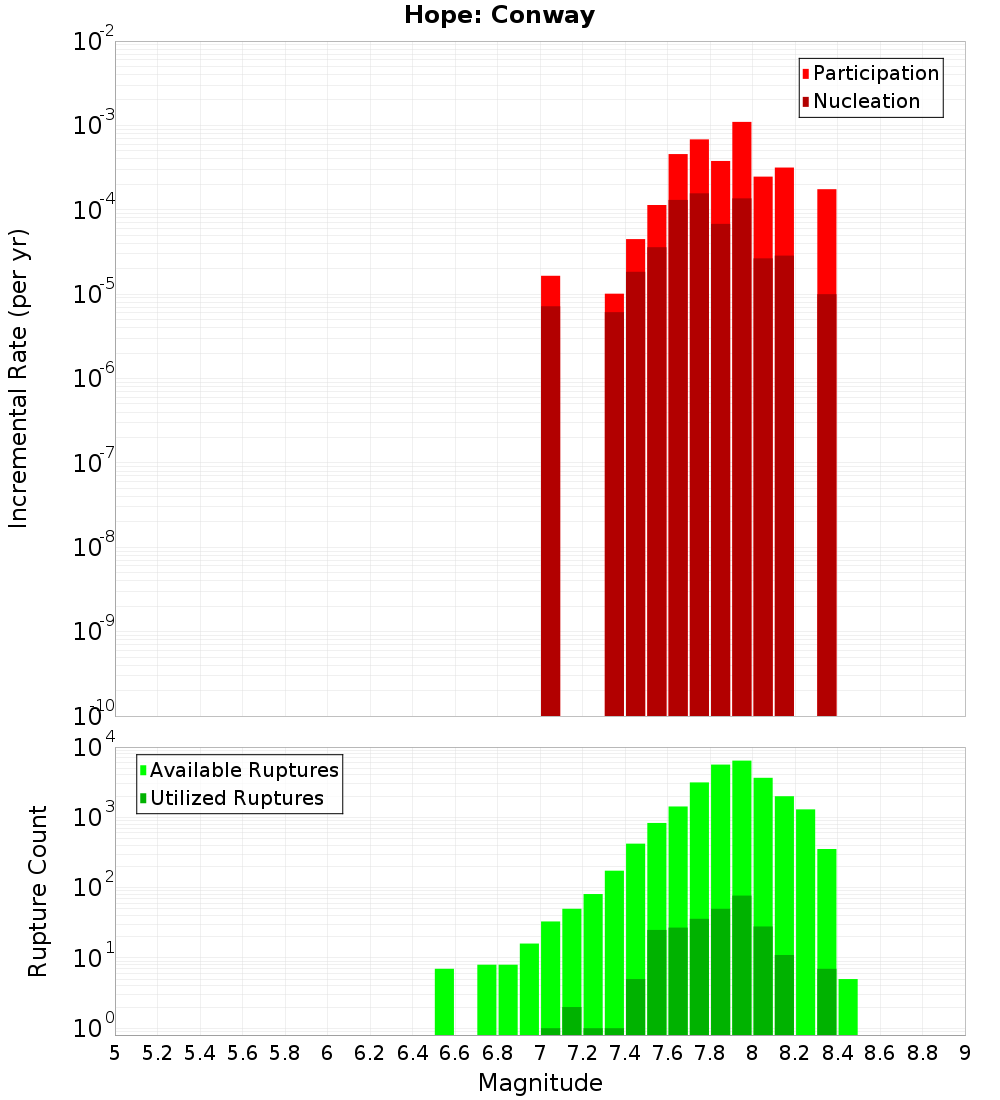

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

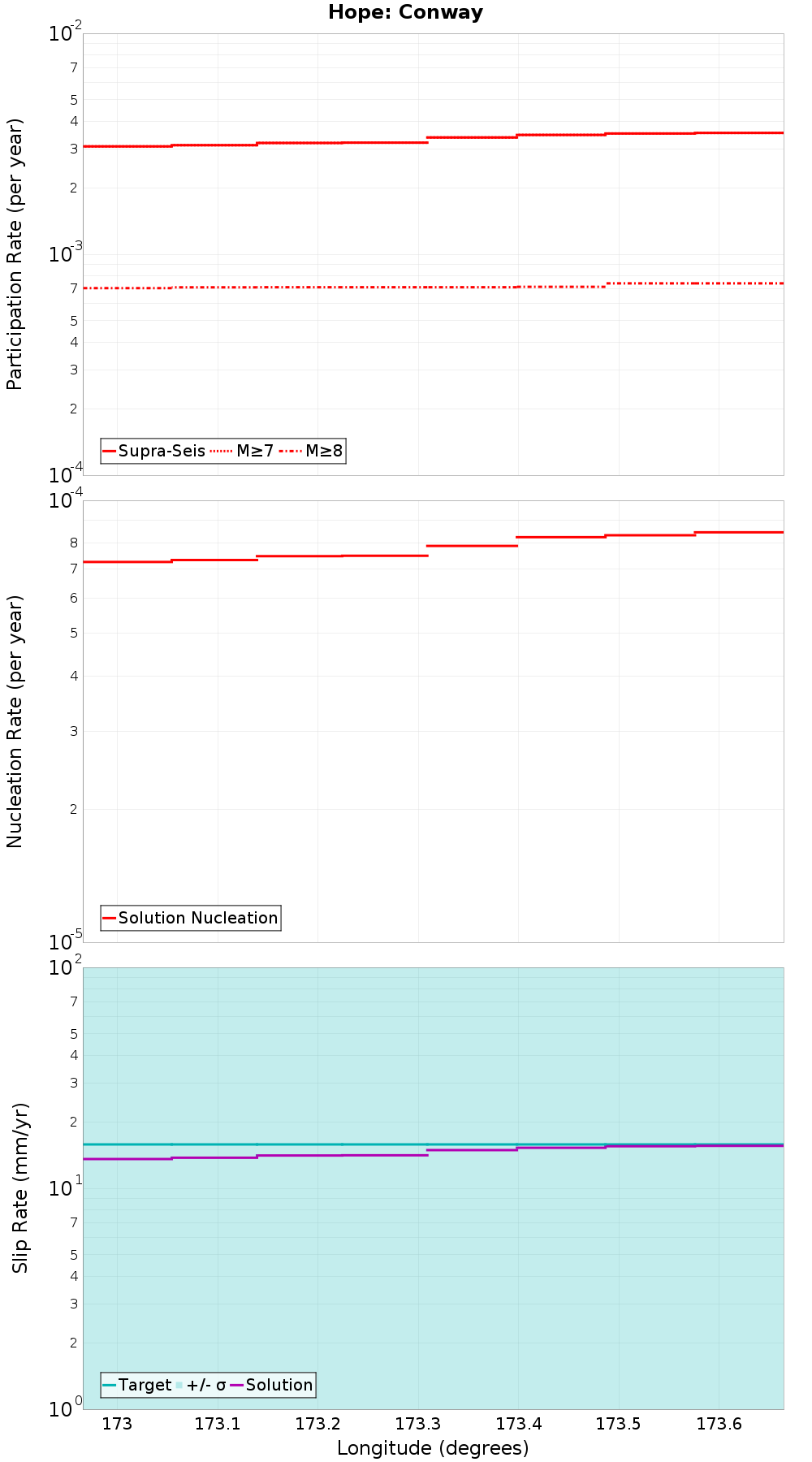

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Jordan, 0 km awayKaiwara North, 6.51 km away
Hope: Seaward, 0 km awayHundalee, 7.09 km away
Hanmer, 0 km awayPapatea, 10.19 km away
Hope: Hamner SE, 0 km awayThe Humps, 10.44 km away
Leader: North, 0.2 km awayElliott, 11.08 km away
StoneJug, 0.26 km awayMt Culverden, 12.62 km away
Kaikoura - Mangamaunu, 3.18 km awayHope: Hanmer NW, 12.84 km away
Leader: Central, 4.85 km awayHope: Hamner SW, 13.75 km away
Leader: South, 6.39 km away

Jordan, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?true
Directly Connected?true
Co-rupture Count10,536
Co-rupture Rate0.002738439

Hope: Seaward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?true
Directly Connected?true
Co-rupture Count12,247
Co-rupture Rate7.2520337E-4

Hanmer, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?true
Directly Connected?true
Co-rupture Count2,902
Co-rupture Rate4.4544405E-4

Hope: Hamner SE, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?true
Directly Connected?true
Co-rupture Count4,558
Co-rupture Rate0.0024074616

Leader: North, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?true
Directly Connected?true
Co-rupture Count173
Co-rupture Rate2.6295394E-5

StoneJug, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?true
Directly Connected?true
Co-rupture Count4,359
Co-rupture Rate8.998224E-6

Kaikoura - Mangamaunu, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?true
Directly Connected?true
Co-rupture Count520
Co-rupture Rate1.7344207E-4

Leader: Central, 4.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?true
Directly Connected?true
Co-rupture Count5,323
Co-rupture Rate2.3242132E-5

Leader: South, 6.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara North, 6.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?true
Directly Connected?false
Co-rupture Count4,692
Co-rupture Rate2.3242132E-5

Hundalee, 7.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?true
Directly Connected?false
Co-rupture Count346
Co-rupture Rate1.0140516E-17

Papatea, 10.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?true
Directly Connected?false
Co-rupture Count2,796
Co-rupture Rate2.3723324E-4

The Humps, 10.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?true
Directly Connected?false
Co-rupture Count238
Co-rupture Rate0.0

Elliott, 11.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?true
Directly Connected?true
Co-rupture Count313
Co-rupture Rate3.1093263E-5

Mt Culverden, 12.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?true
Directly Connected?false
Co-rupture Count1,865
Co-rupture Rate0.0

Hope: Hanmer NW, 12.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?true
Directly Connected?false
Co-rupture Count3,633
Co-rupture Rate0.0023033714

Hope: Hamner SW, 13.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MTkuMHdHSkNE
Connected?true
Directly Connected?false
Co-rupture Count2,755
Co-rupture Rate3.1533345E-4
