Ruahine: North Details

Property	Value
Rupture Count	34,593
Ruptures Above Sect Min Mag	34,590
Ruptures w/ Nonzero Rates	76
Magnitude Range	[7.07, 8.71]
Length Range	[24, 1,129] km
Total Rate	2.0719039E-4 /yr
Multi-Fault Rate	1.5694064E-4 /yr (75.75%)
Directly-Connected Faults	6
All Co-Rupturing Faults	133

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

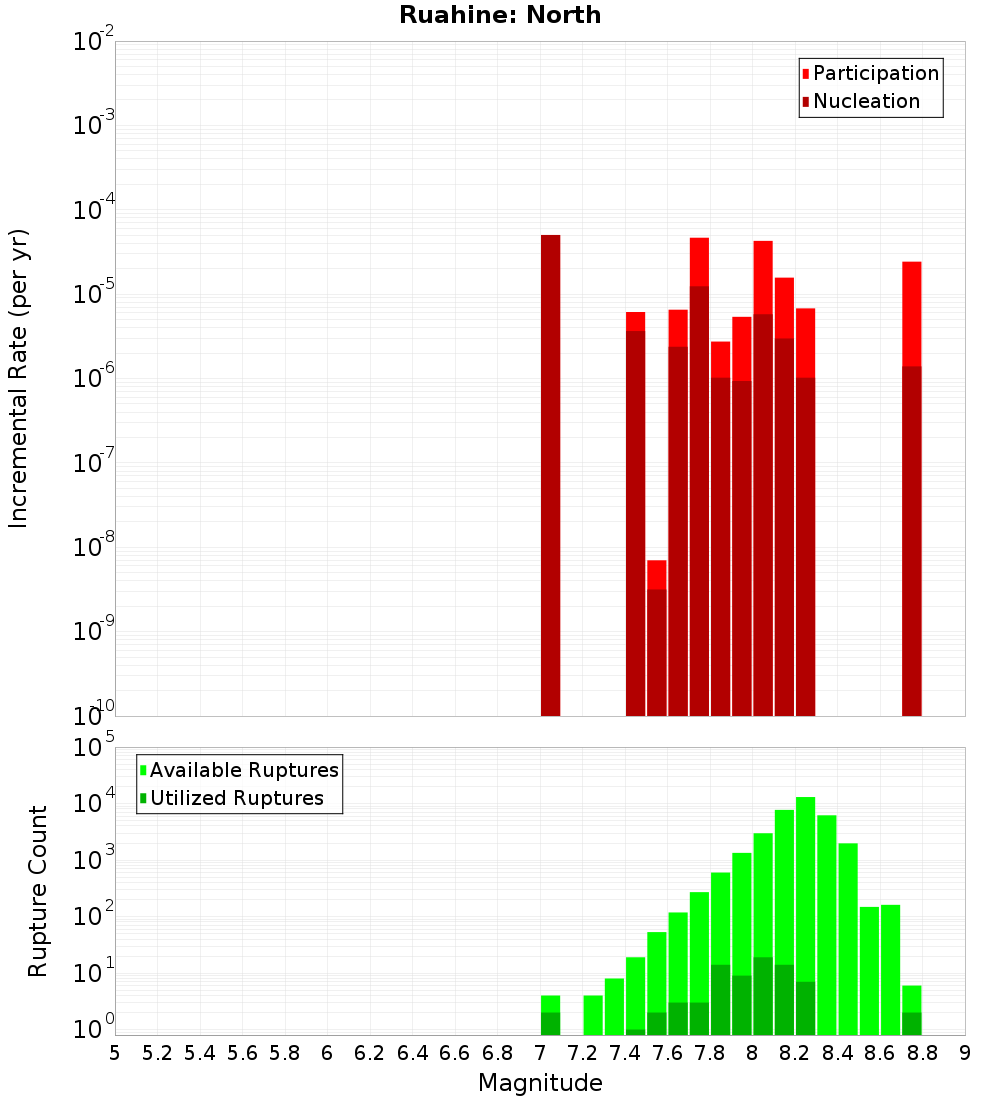

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

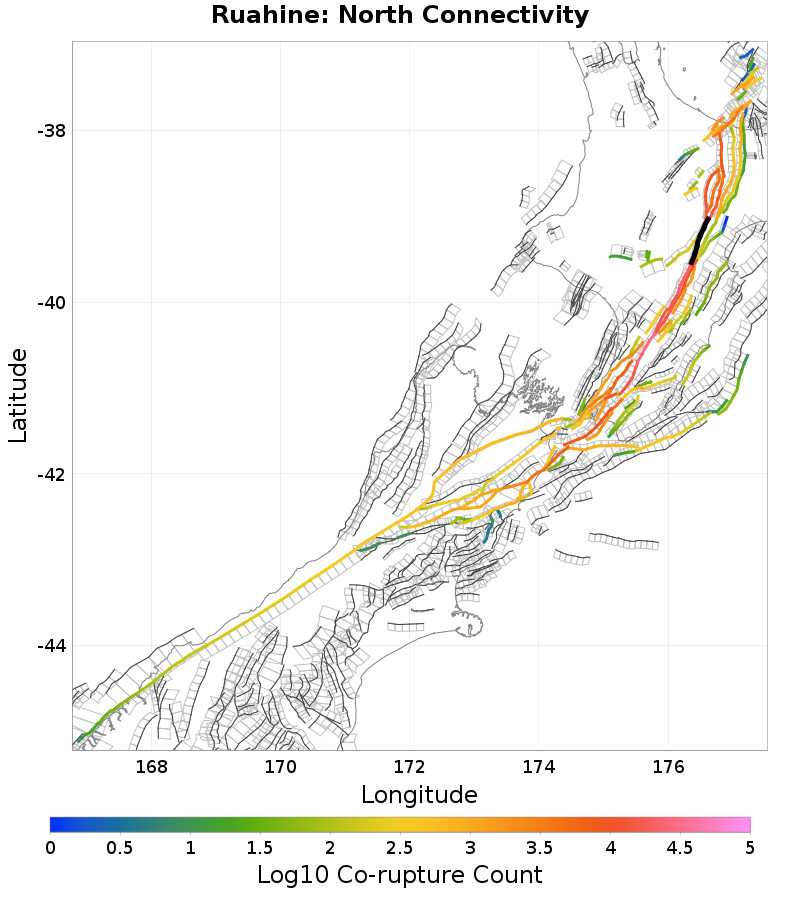

Connectivity

Nearby Sections

Fault Section
Waiohau: South, 0 km away
Ruahine: Central, 0 km away
Kaweka, 1.83 km away
Wheao: South, 2.68 km away
Wakarara, 4 km away
Mohaka: South, 4.35 km away
Mohaka: North, 5.2 km away
Patoka - Rangiora, 6.53 km away
Te Whaiti South, 9.06 km away
Whakatane: South, 11.52 km away
Waimana: South, 11.54 km away

Waiohau: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MjQuNXBQWHNK
Connected?	true
Directly Connected?	true
Co-rupture Count	14,944
Co-rupture Rate	8.085137E-5

Ruahine: Central, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MjQuNXBQWHNK
Connected?	true
Directly Connected?	true
Co-rupture Count	21,826
Co-rupture Rate	4.8394115E-5

Kaweka, 1.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MjQuNXBQWHNK
Connected?	true
Directly Connected?	true
Co-rupture Count	190
Co-rupture Rate	4.4154964E-5

Wheao: South, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MjQuNXBQWHNK
Connected?	true
Directly Connected?	true
Co-rupture Count	13,426
Co-rupture Rate	1.9390287E-5

Wakarara, 4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MjQuNXBQWHNK
Connected?	true
Directly Connected?	true
Co-rupture Count	1,485
Co-rupture Rate	2.160059E-6

Mohaka: South, 4.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MjQuNXBQWHNK
Connected?	true
Directly Connected?	true
Co-rupture Count	19,141
Co-rupture Rate	5.412782E-5

Mohaka: North, 5.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MjQuNXBQWHNK
Connected?	true
Directly Connected?	false
Co-rupture Count	206
Co-rupture Rate	3.6015765E-5

Patoka - Rangiora, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MjQuNXBQWHNK
Connected?	true
Directly Connected?	false
Co-rupture Count	94
Co-rupture Rate	6.9156245E-9

Te Whaiti South, 9.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MjQuNXBQWHNK
Connected?	true
Directly Connected?	false
Co-rupture Count	7,110
Co-rupture Rate	5.5178076E-5

Whakatane: South, 11.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MjQuNXBQWHNK
Connected?	true
Directly Connected?	false
Co-rupture Count	1,106
Co-rupture Rate	0.0

Waimana: South, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MjQuNXBQWHNK
Connected?	true
Directly Connected?	false
Co-rupture Count	244
Co-rupture Rate	0.0
