Vernon 2 Details

PropertyValue
Rupture Count2,479
Ruptures Above Sect Min Mag2,474
Ruptures w/ Nonzero Rates278
Magnitude Range[6.50, 8.44]
Length Range[13, 894] km
Total Rate5.26069E-4 /yr
Multi-Fault Rate5.26069E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults90

Table Of Contents

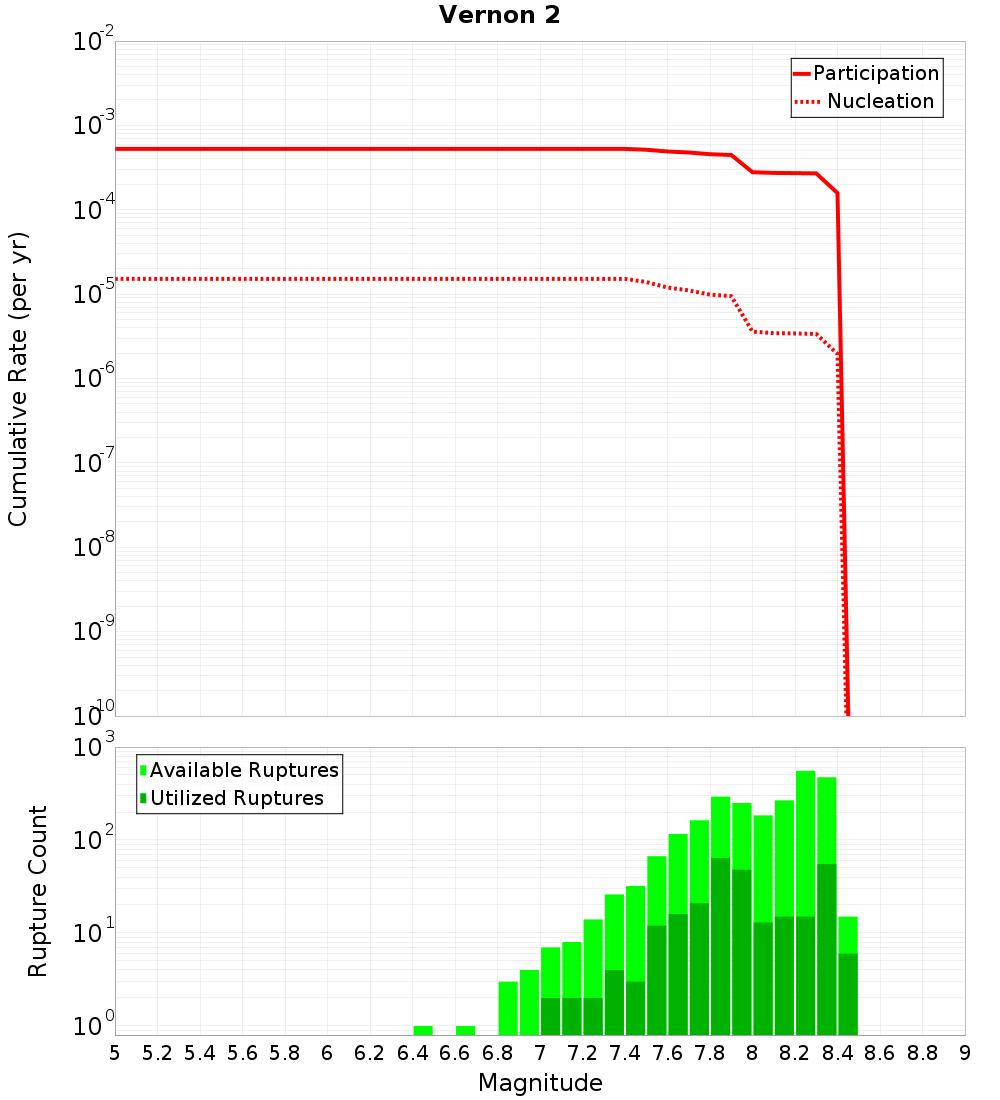

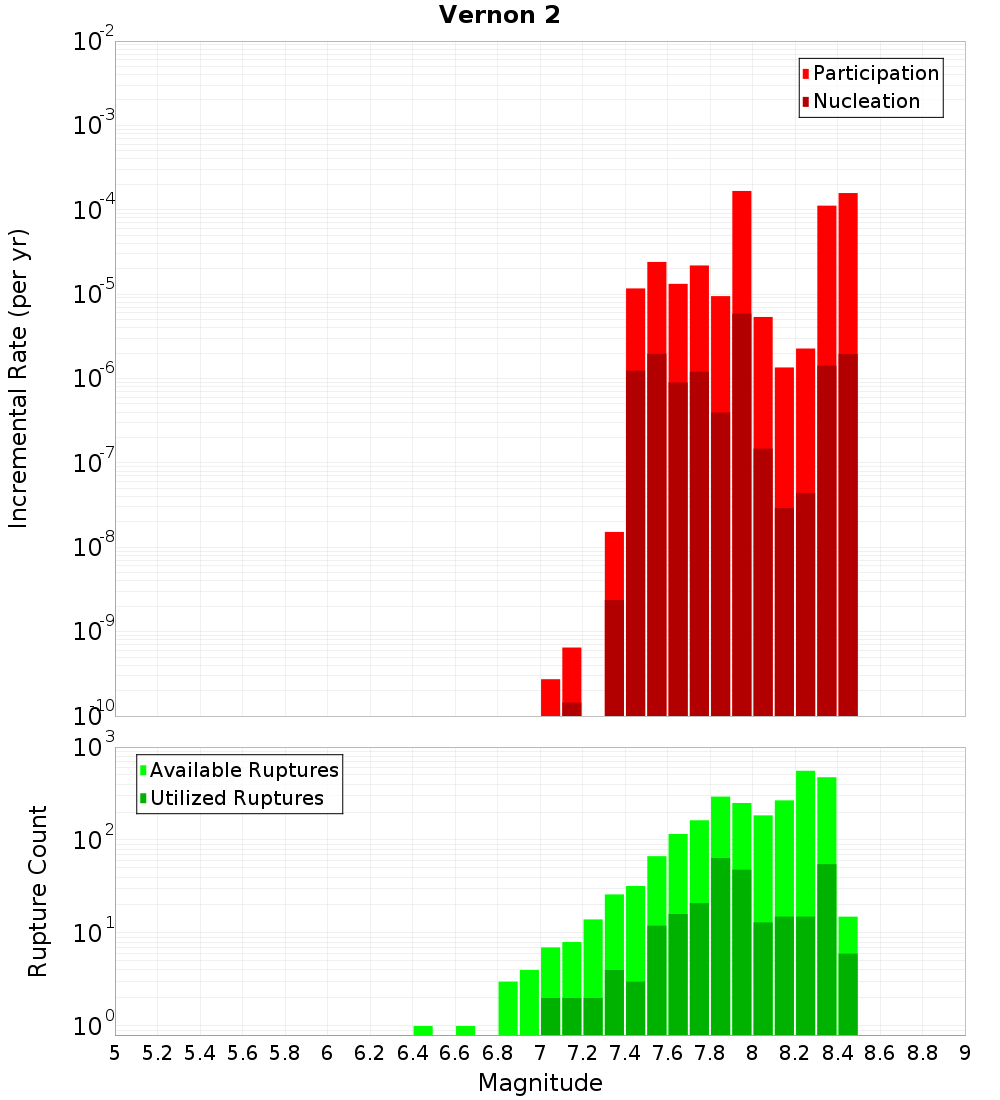

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

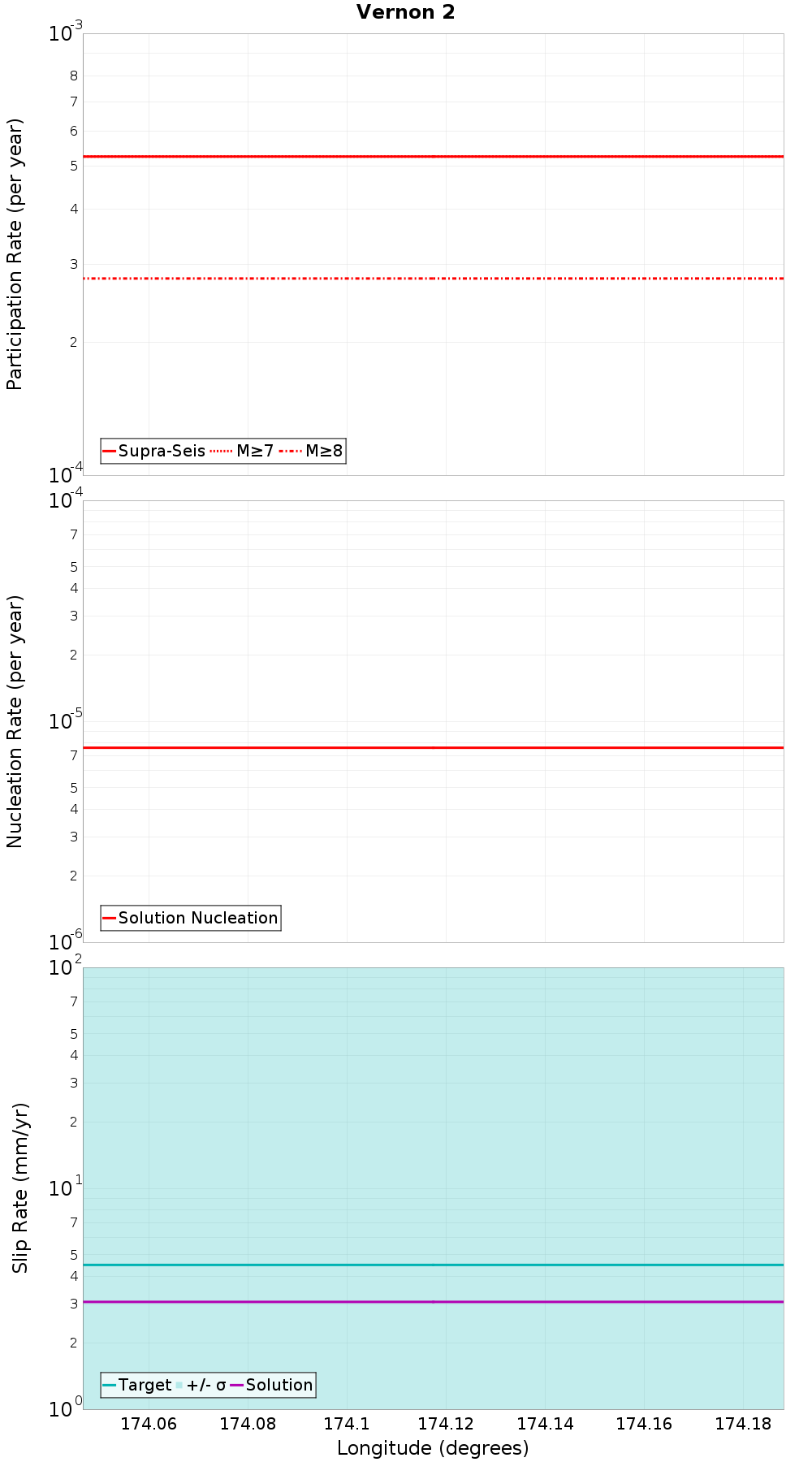

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

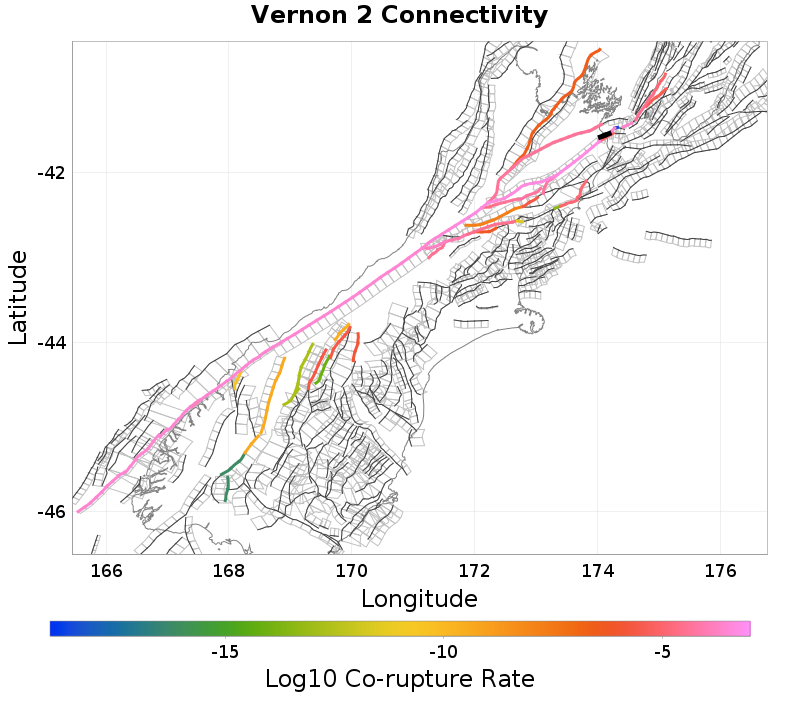

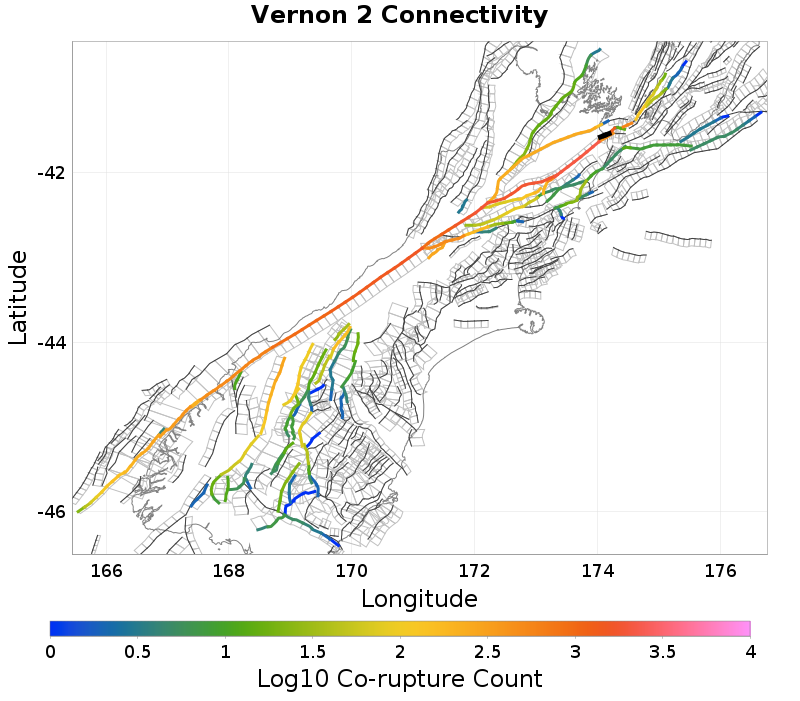

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Cloudy 1, 0 km away
Vernon 1, 0 km away
Vernon 3, 0 km away
Awatere: Northeast 2, 0.12 km away
Awatere: Northeast 1, 4.62 km away
Vernon 4, 5.22 km away
Cloudy 3, 7.26 km away
Cloudy 2, 8.36 km away
Needles East 2, 12.36 km away
Wairau, 14 km away
Wairarapa: Needles, 14.03 km away
Wairau 2, 14.3 km away

Cloudy 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MzEuMGhpM2lk
Connected?true
Directly Connected?true
Co-rupture Count1,258
Co-rupture Rate2.6452323E-4

Vernon 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MzEuMGhpM2lk
Connected?true
Directly Connected?true
Co-rupture Count450
Co-rupture Rate2.431809E-4

Vernon 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MzEuMGhpM2lk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Northeast 2, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MzEuMGhpM2lk
Connected?true
Directly Connected?true
Co-rupture Count460
Co-rupture Rate7.83987E-6

Awatere: Northeast 1, 4.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MzEuMGhpM2lk
Connected?true
Directly Connected?true
Co-rupture Count2,269
Co-rupture Rate4.8447106E-4

Vernon 4, 5.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MzEuMGhpM2lk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 3, 7.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MzEuMGhpM2lk
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Cloudy 2, 8.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MzEuMGhpM2lk
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate2.8793826E-19

Needles East 2, 12.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MzEuMGhpM2lk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau, 14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MzEuMGhpM2lk
Connected?true
Directly Connected?false
Co-rupture Count247
Co-rupture Rate4.1593197E-5

Wairarapa: Needles, 14.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MzEuMGhpM2lk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau 2, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2MzEuMGhpM2lk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
