Moonlight South Details

PropertyValue
Rupture Count7,737
Ruptures Above Sect Min Mag7,735
Ruptures w/ Nonzero Rates521
Magnitude Range[7.05, 8.46]
Length Range[28, 946] km
Total Rate3.8902485E-6 /yr
Multi-Fault Rate3.8902485E-6 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults90

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

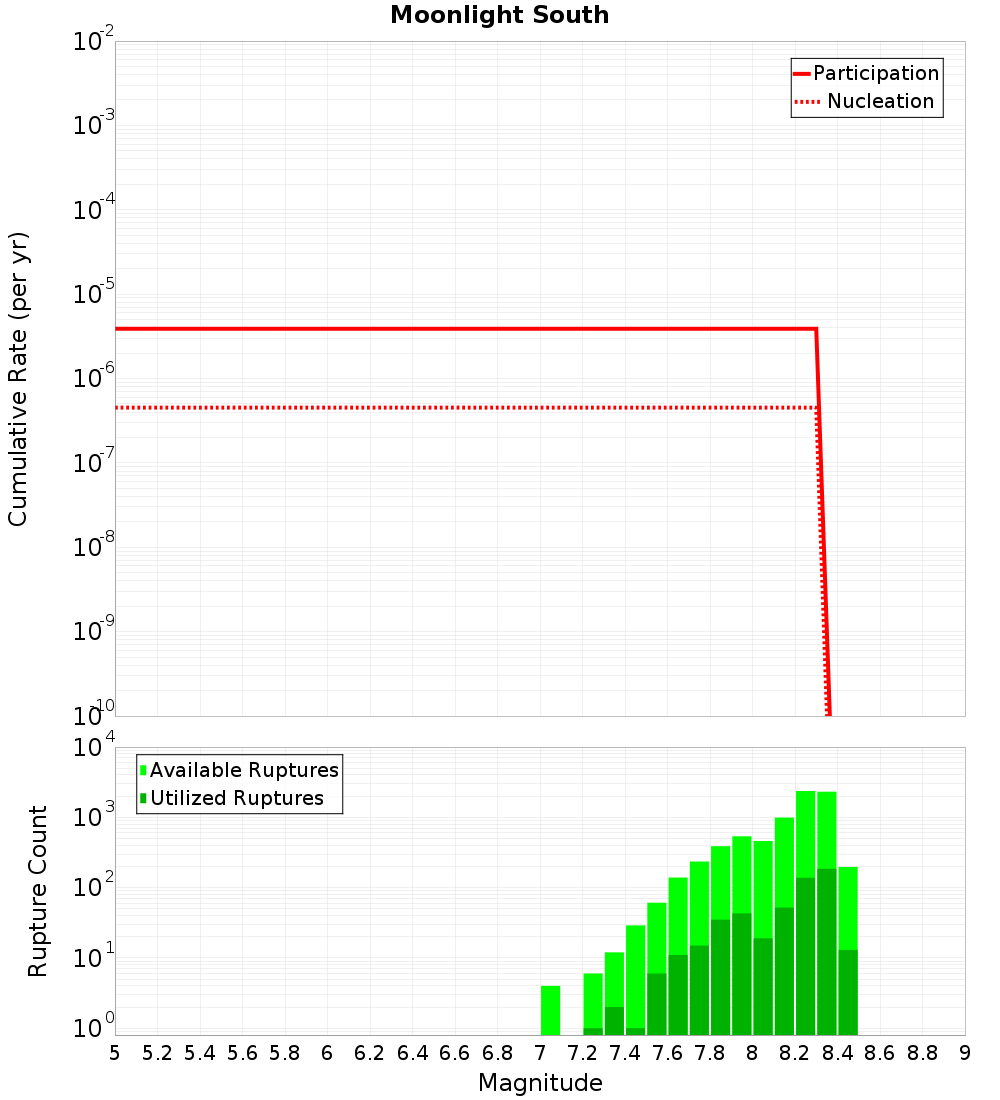

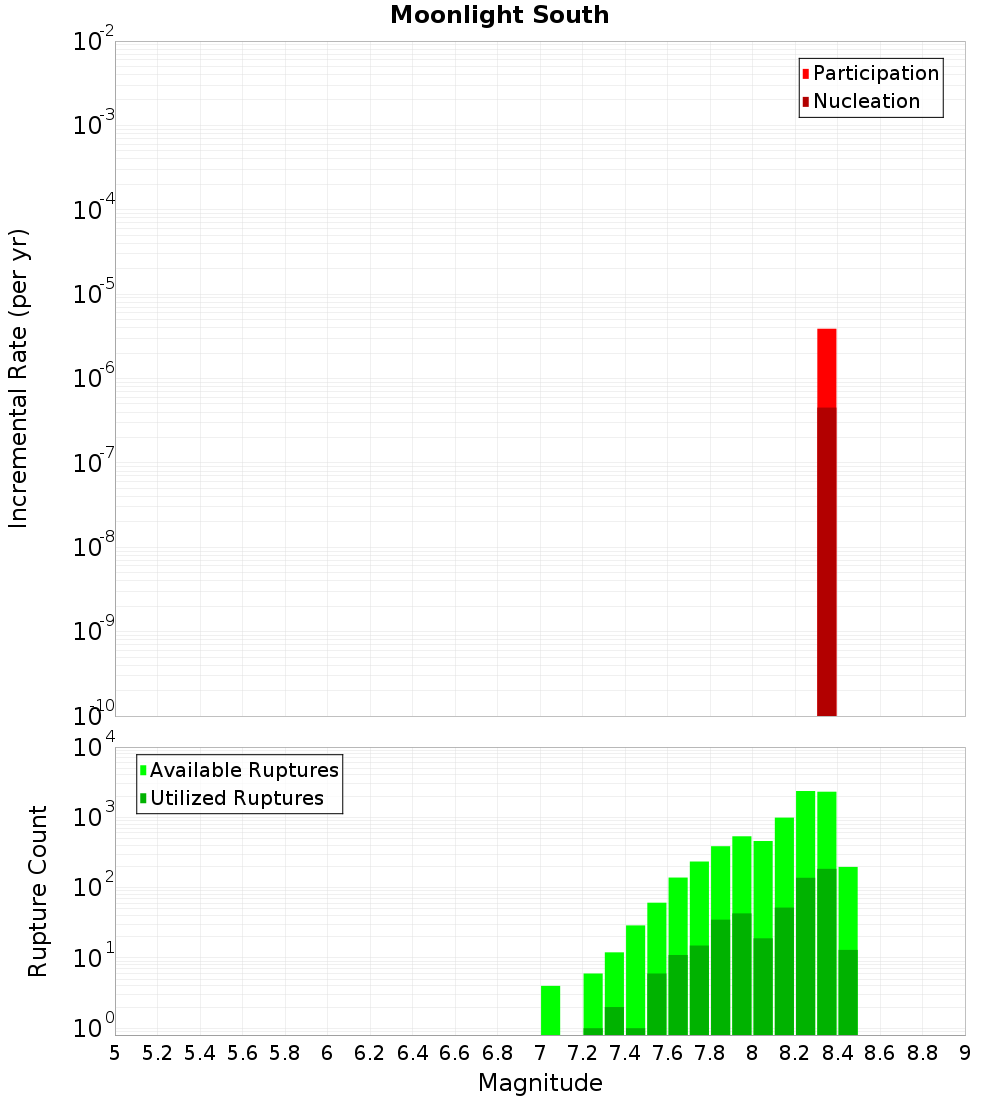

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

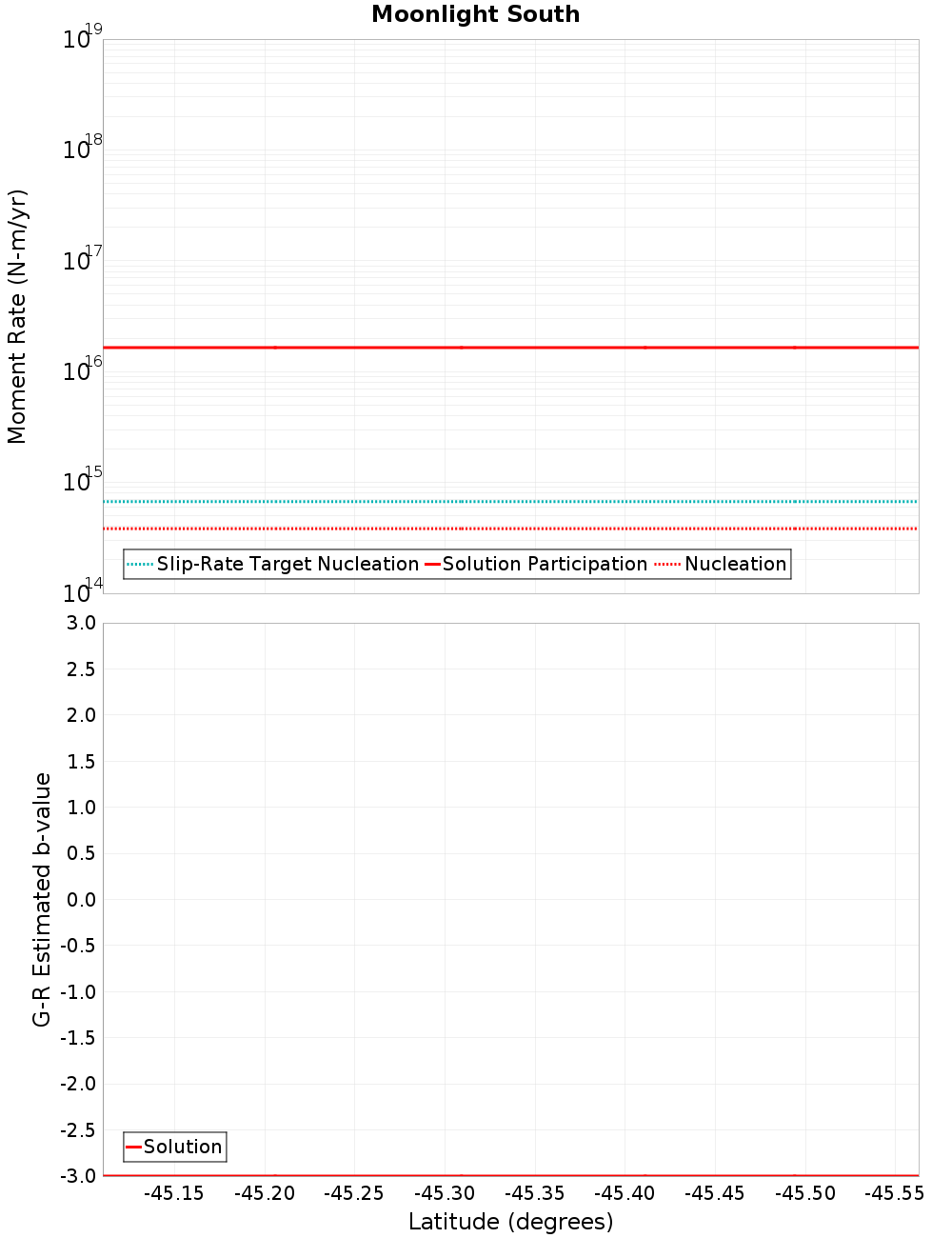

Moment-Rates and b-Values

(top)

Along-strike plot

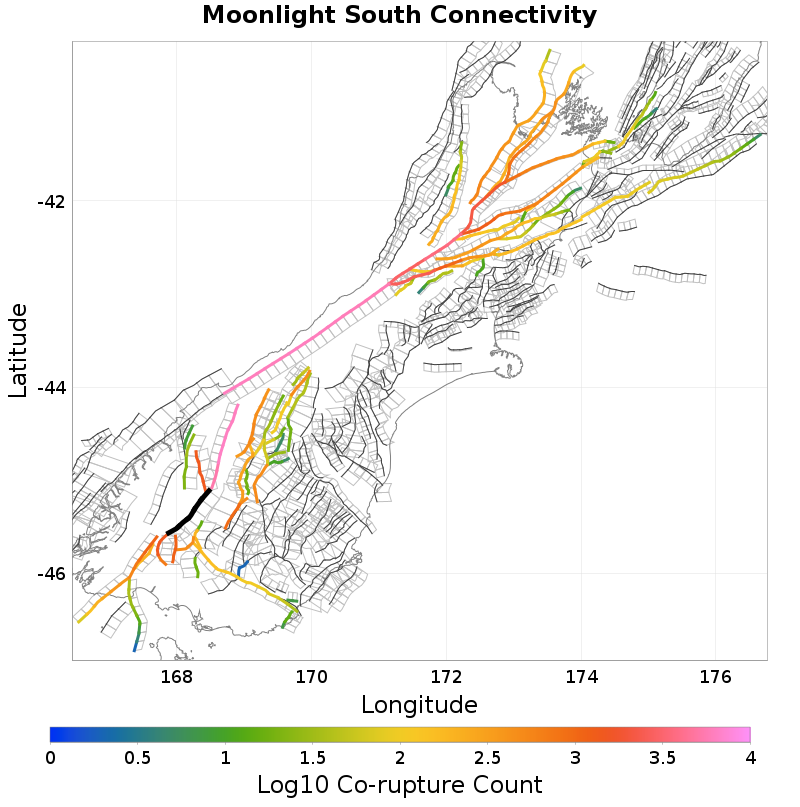

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mossburn, 0.15 km away
McKerchar, 0.52 km away
Tin Hut, 0.9 km away
Nevis, 1.43 km away
West Wakatipu, 1.86 km away
Moonlight North, 4.72 km away
Acton, 11.93 km away
Hokonui, 12.83 km away
Hauroko: North, 14.39 km away
White Hill, 14.52 km away

Mossburn, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?true
Directly Connected?true
Co-rupture Count484
Co-rupture Rate6.99895E-13

McKerchar, 0.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?true
Directly Connected?true
Co-rupture Count1,422
Co-rupture Rate3.890238E-6

Tin Hut, 0.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?true
Directly Connected?true
Co-rupture Count1,175
Co-rupture Rate1.2421343E-12

Nevis, 1.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?true
Directly Connected?true
Co-rupture Count977
Co-rupture Rate1.4976503E-12

West Wakatipu, 1.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?true
Directly Connected?true
Co-rupture Count1,441
Co-rupture Rate4.180676E-12

Moonlight North, 4.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?true
Directly Connected?true
Co-rupture Count6,577
Co-rupture Rate3.8902463E-6

Acton, 11.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?true
Directly Connected?true
Co-rupture Count194
Co-rupture Rate7.057809E-13

Hokonui, 12.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?true
Directly Connected?false
Co-rupture Count164
Co-rupture Rate2.070889E-14

Hauroko: North, 14.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?true
Directly Connected?true
Co-rupture Count1,056
Co-rupture Rate2.4523528E-12

White Hill, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate2.2748036E-17
