Pahaua Details

Property	Value
Rupture Count	8,138
Ruptures Above Sect Min Mag	8,110
Ruptures w/ Nonzero Rates	623
Magnitude Range	[6.68, 8.12]
Length Range	[19, 492] km
Total Rate	1.3799375E-11 /yr
Multi-Fault Rate	1.3794723E-11 /yr (99.97%)
Directly-Connected Faults	7
All Co-Rupturing Faults	60

Table Of Contents

Along-Strike Values
- Moment-Rates and b-Values

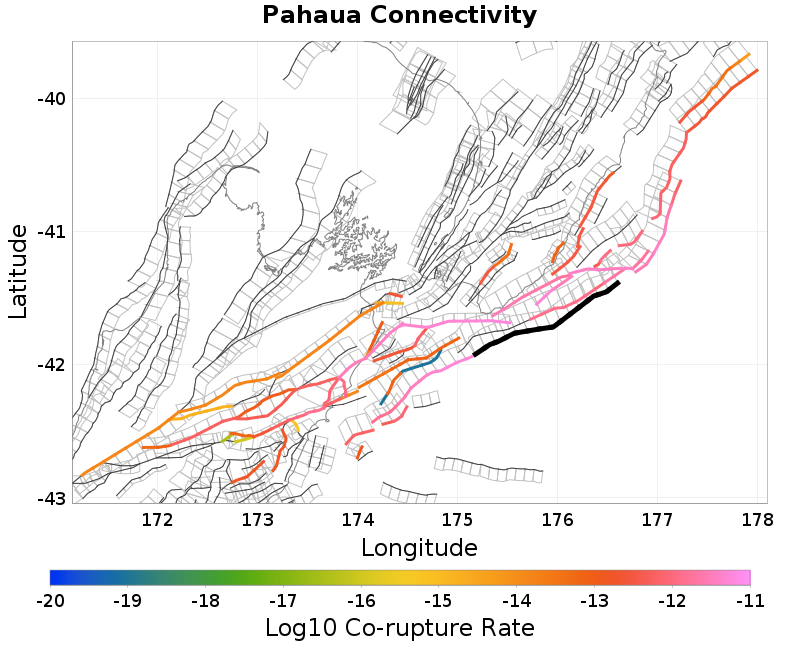

Connectivity
- Nearby Sections

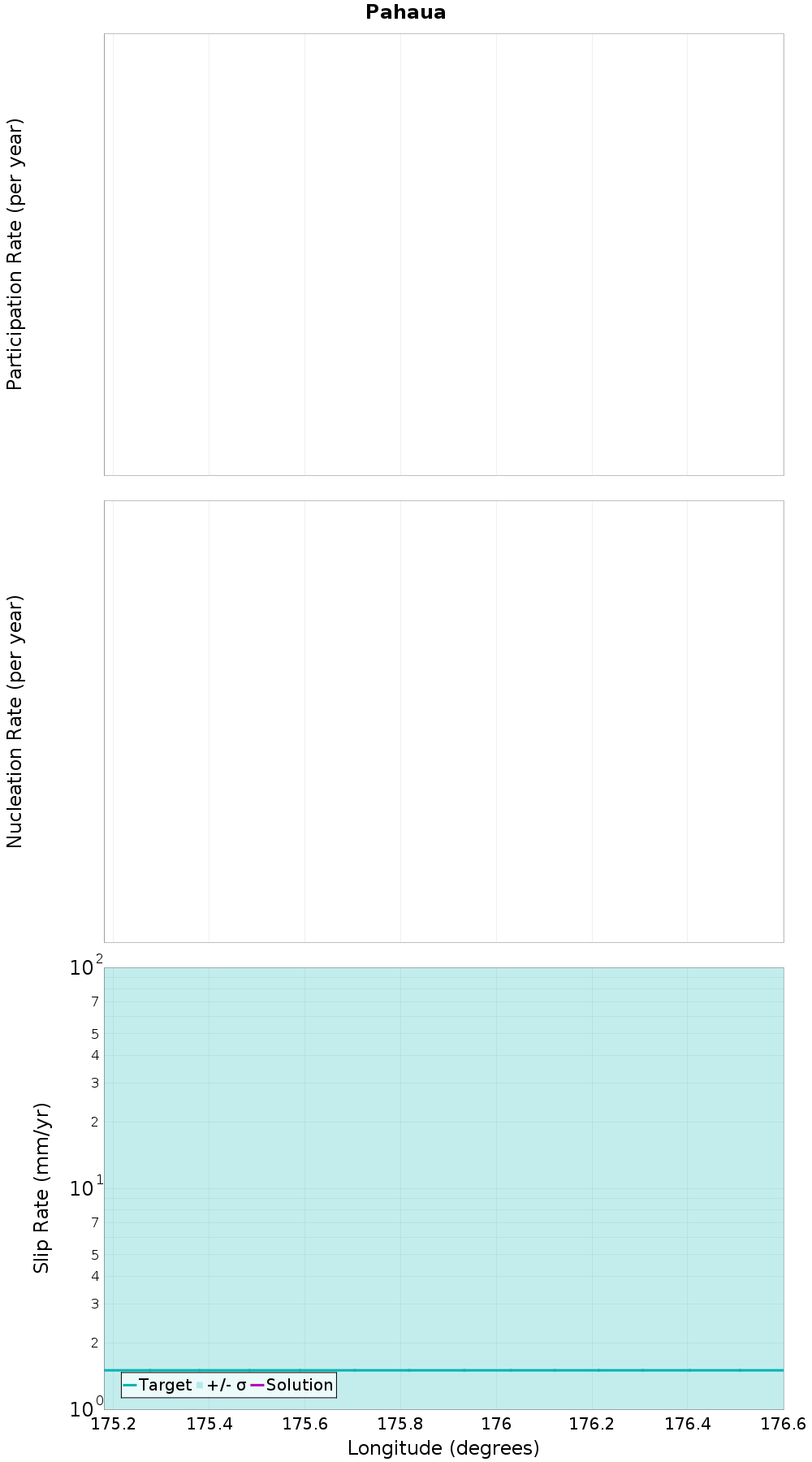

Along-Strike Values

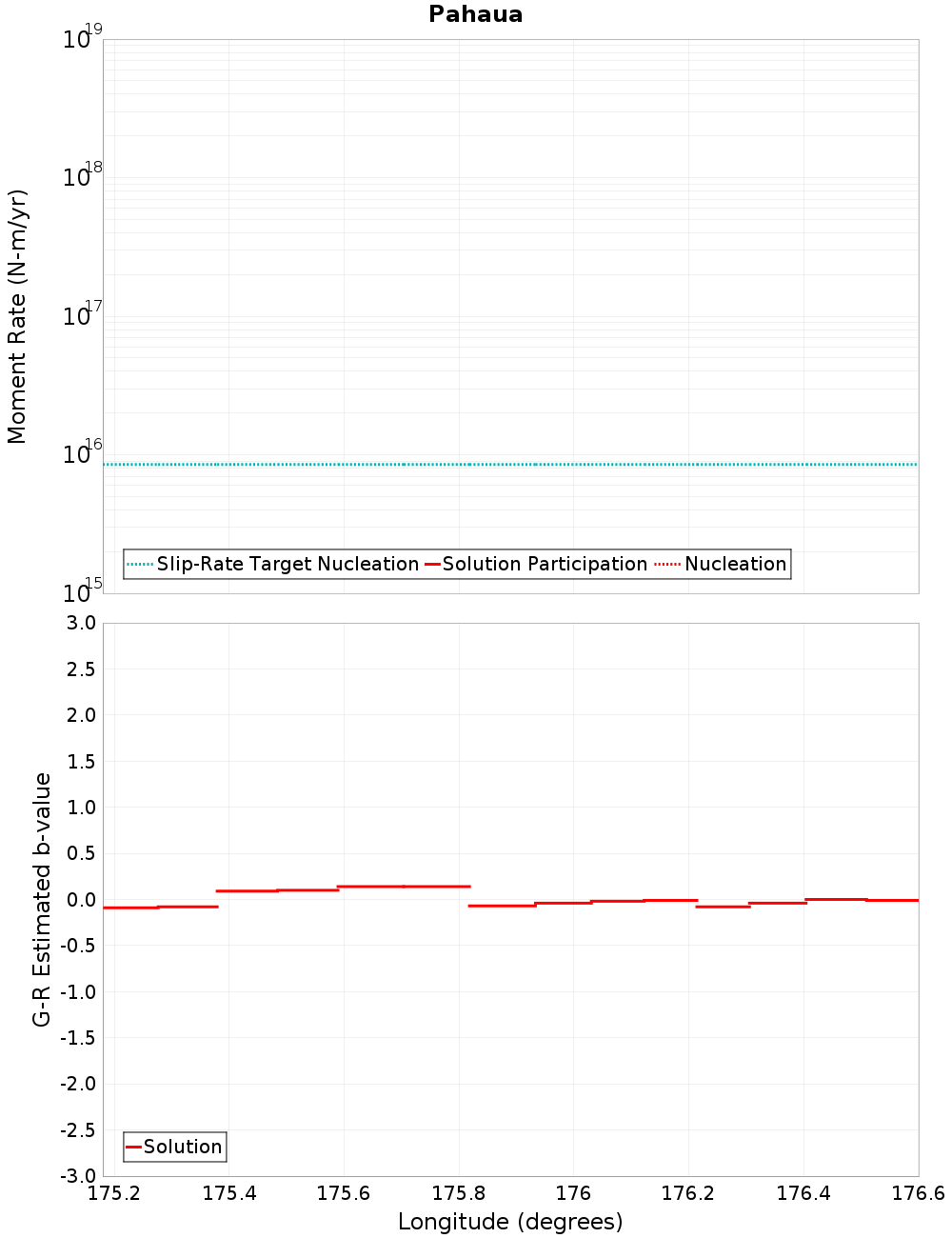

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kekerengu Bank, 0 km away
Uruti Basin 2, 0.14 km away
BooBoo, 0.16 km away
Uruti Basin, 0.28 km away
Opouawe - Uruti, 2.68 km away
Uruti East - PorWest 1, 7.19 km away
Te Rapa 2, 10.36 km away
Uruti Ridge 2, 12.05 km away
Honeycomb, 13.47 km away
Palliser - Kaiwhata, 13.63 km away

Kekerengu Bank, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,898
Co-rupture Rate	5.4909783E-12

Uruti Basin 2, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,733
Co-rupture Rate	1.3539649E-12

BooBoo, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?	true
Directly Connected?	true
Co-rupture Count	3,404
Co-rupture Rate	5.7294425E-12

Uruti Basin, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?	true
Directly Connected?	true
Co-rupture Count	3,436
Co-rupture Rate	5.798329E-12

Opouawe - Uruti, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,607
Co-rupture Rate	2.477186E-12

Uruti East - PorWest 1, 7.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?	true
Directly Connected?	false
Co-rupture Count	2,502
Co-rupture Rate	4.527215E-12

Te Rapa 2, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?	true
Directly Connected?	false
Co-rupture Count	207
Co-rupture Rate	6.404612E-14

Uruti Ridge 2, 12.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?	true
Directly Connected?	false
Co-rupture Count	1,132
Co-rupture Rate	1.6619495E-12

Honeycomb, 13.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,416
Co-rupture Rate	5.11784E-12

Palliser - Kaiwhata, 13.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NDIuMEhLalp1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,432
Co-rupture Rate	3.0403384E-12
