Alpine: Jacksons to Kaniere Details

PropertyValue
Rupture Count158,044
Ruptures Above Sect Min Mag158,024
Ruptures w/ Nonzero Rates15,829
Magnitude Range[6.82, 8.52]
Length Range[22, 1,132] km
Total Rate0.005747553 /yr
Multi-Fault Rate0.0049260072 /yr (85.71%)
Directly-Connected Faults9
All Co-Rupturing Faults196

Table Of Contents

Magnitude-Frequency Distribution

(top)

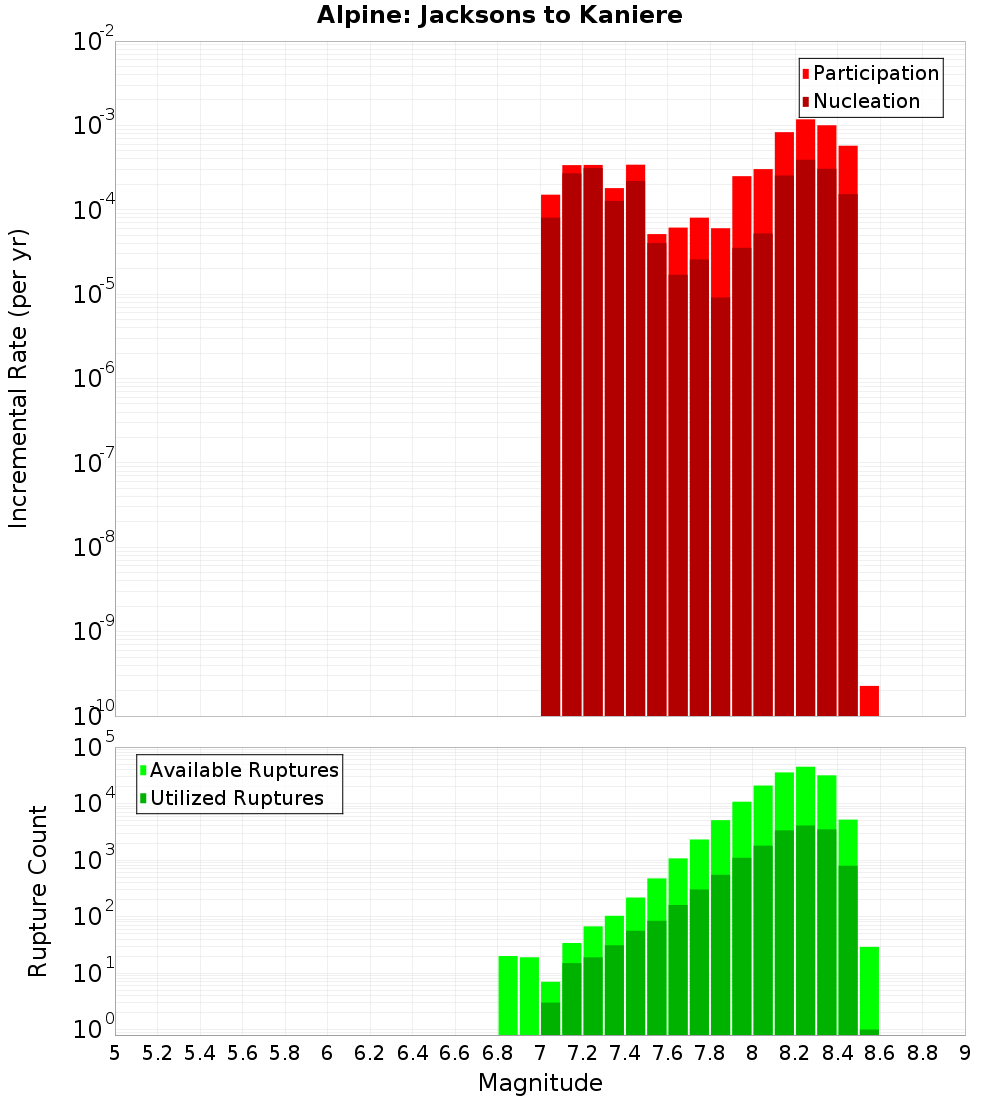

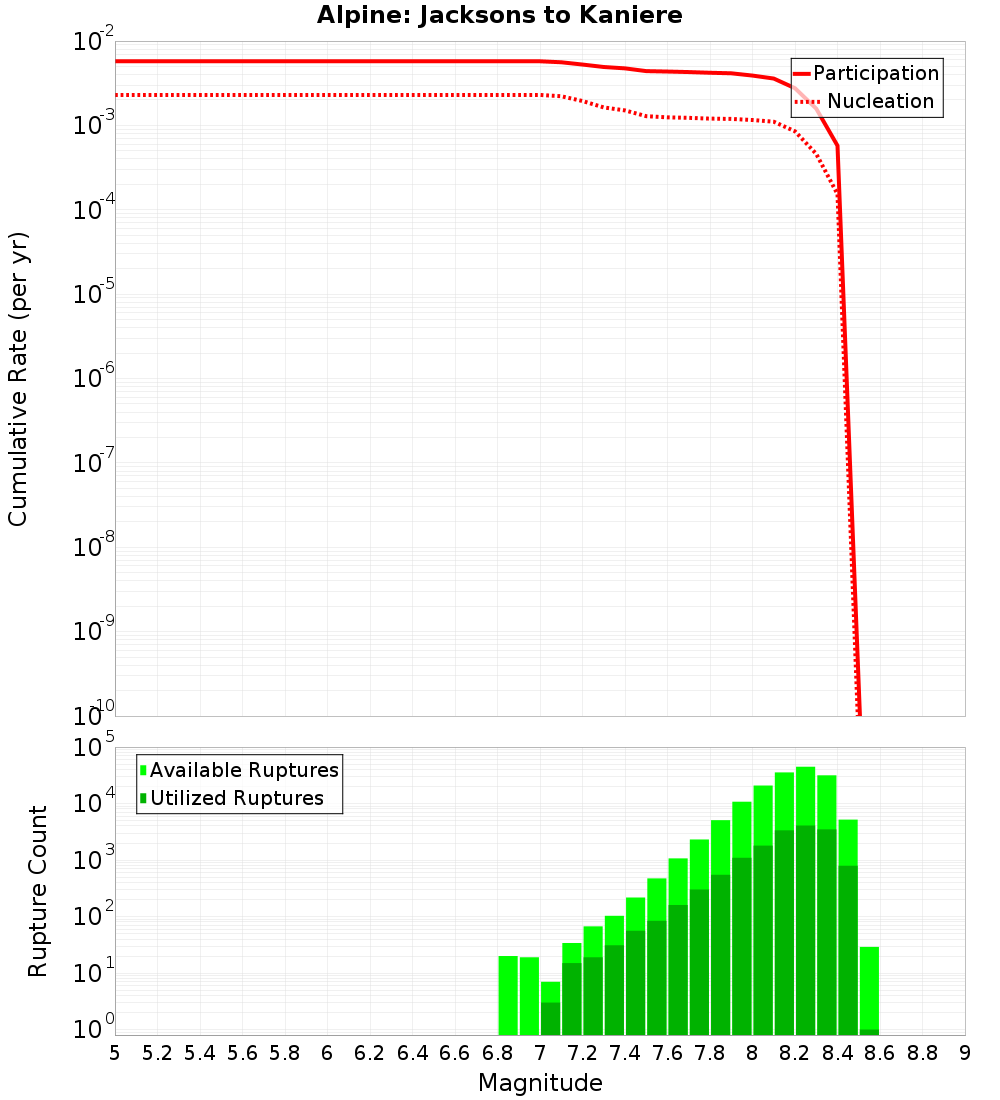

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kelly, 0 km away
Alpine: George to Jacksons, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Browning Pass, 0.34 km away
Moonlight North, 1.51 km away
Huxley, 1.8 km away
Hopkins, 5.91 km away
Barn, 8.94 km away
Barrier Range, 9.21 km away
Ostler North, 14.33 km away
Hunter Valley, 14.36 km away

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?true
Co-rupture Count56,730
Co-rupture Rate0.001636685

Alpine: George to Jacksons, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?true
Co-rupture Count55,249
Co-rupture Rate0.0034856882

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?true
Co-rupture Count117,557
Co-rupture Rate0.0025083274

Browning Pass, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?true
Co-rupture Count22,670
Co-rupture Rate1.2690101E-4

Moonlight North, 1.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?true
Co-rupture Count16,727
Co-rupture Rate6.7596757E-6

Huxley, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?true
Co-rupture Count11,659
Co-rupture Rate1.7170265E-5

Hopkins, 5.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?true
Co-rupture Count51,362
Co-rupture Rate9.6024385E-5

Barn, 8.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?false
Co-rupture Count570
Co-rupture Rate5.316279E-5

Barrier Range, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?false
Co-rupture Count6,002
Co-rupture Rate8.262514E-6

Ostler North, 14.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?true
Co-rupture Count3,341
Co-rupture Rate1.7963853E-4

Hunter Valley, 14.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?true
Co-rupture Count12,763
Co-rupture Rate1.0226077E-4
