Leader: South Details

PropertyValue
Rupture Count158
Ruptures Above Sect Min Mag152
Ruptures w/ Nonzero Rates40
Magnitude Range[6.50, 8.27]
Length Range[13, 663] km
Total Rate7.018537E-5 /yr
Multi-Fault Rate7.018537E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults41

Table Of Contents

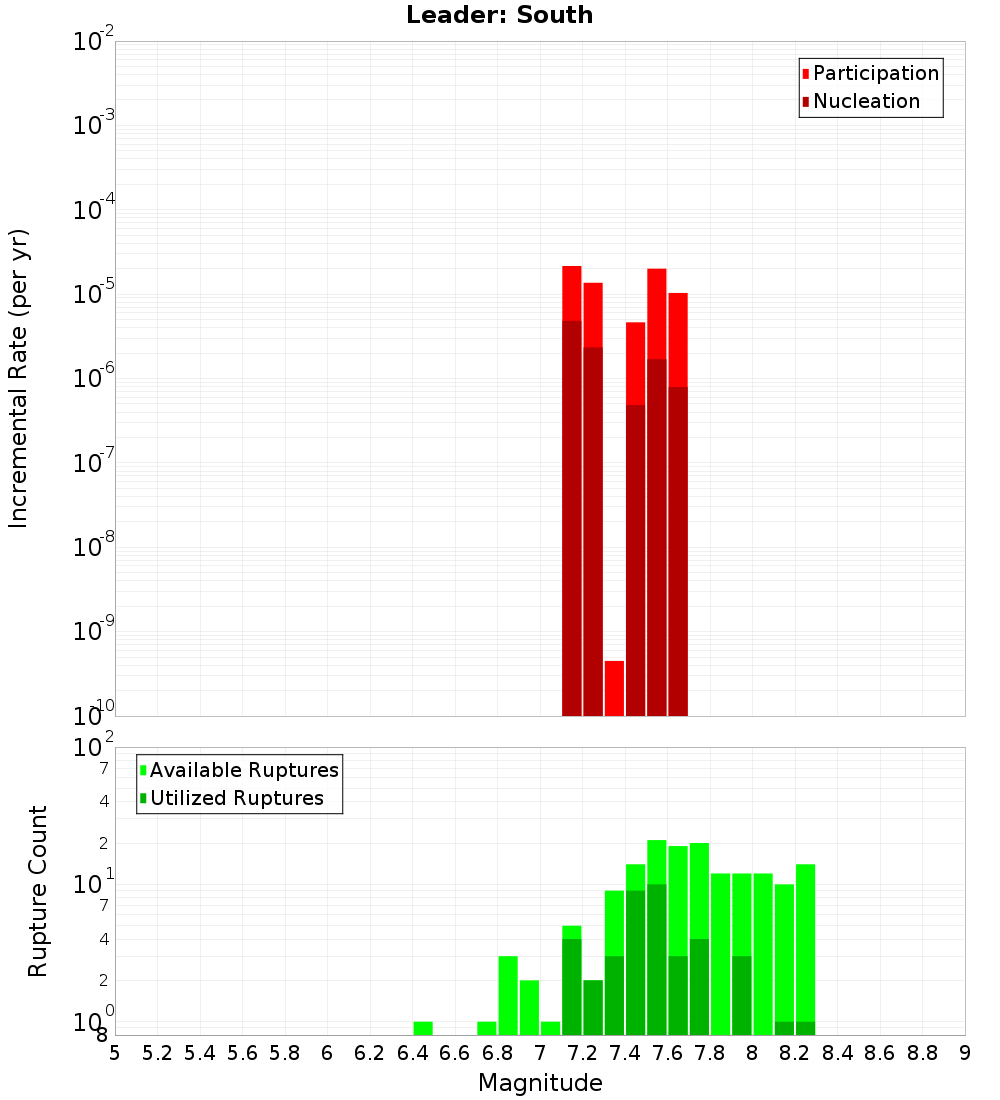

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Leader: Central, 0 km away
The Humps, 0.28 km away
Kaiwara North, 0.57 km away
Hundalee, 5.67 km away
Leonard Mound, 6.16 km away
Hope: Conway, 6.39 km away
Leader: North, 7.47 km away
StoneJug, 8.48 km away
Hawkswood, 10.66 km away
Hanmer, 11.1 km away
Mt Culverden, 11.62 km away
Lowry, 12.1 km away
Hope: Hamner SE, 13.69 km away

Leader: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?true
Co-rupture Count103
Co-rupture Rate1.6496758E-13

The Humps, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?true
Co-rupture Count50
Co-rupture Rate7.018537E-5

Kaiwara North, 0.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hundalee, 5.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?true
Co-rupture Count26
Co-rupture Rate4.0452738E-5

Leonard Mound, 6.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Conway, 6.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: North, 7.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?false
Co-rupture Count102
Co-rupture Rate1.6496758E-13

StoneJug, 8.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Hawkswood, 10.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hanmer, 11.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Culverden, 11.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?false
Co-rupture Count44
Co-rupture Rate3.4997338E-5

Lowry, 12.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hamner SE, 13.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
