Wheao: North Details

Property	Value
Rupture Count	10,335
Ruptures Above Sect Min Mag	10,333
Ruptures w/ Nonzero Rates	71
Magnitude Range	[6.47, 8.30]
Length Range	[11, 681] km
Total Rate	1.5867049E-4 /yr
Multi-Fault Rate	1.5867049E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	102

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

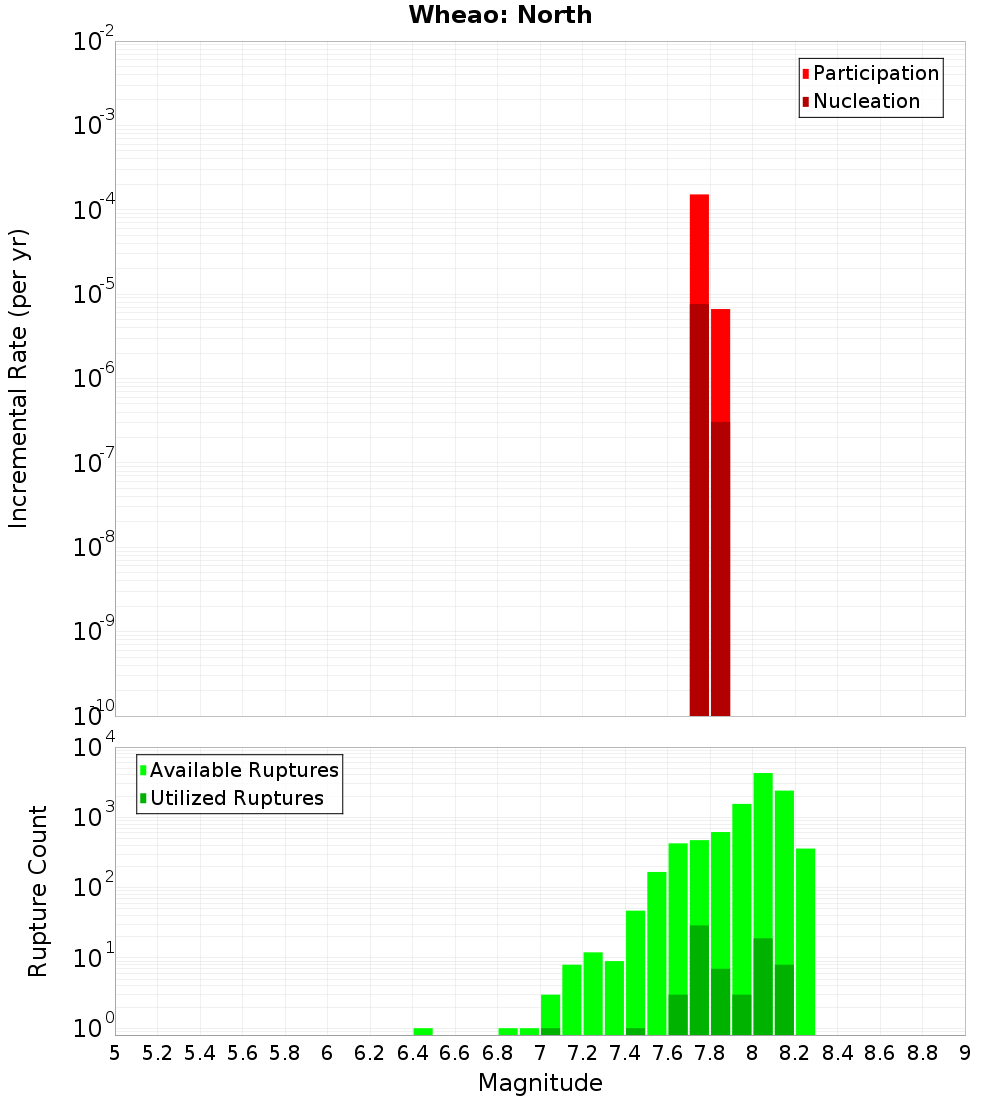

Magnitude-Frequency Distribution

Incremental	Cumulative

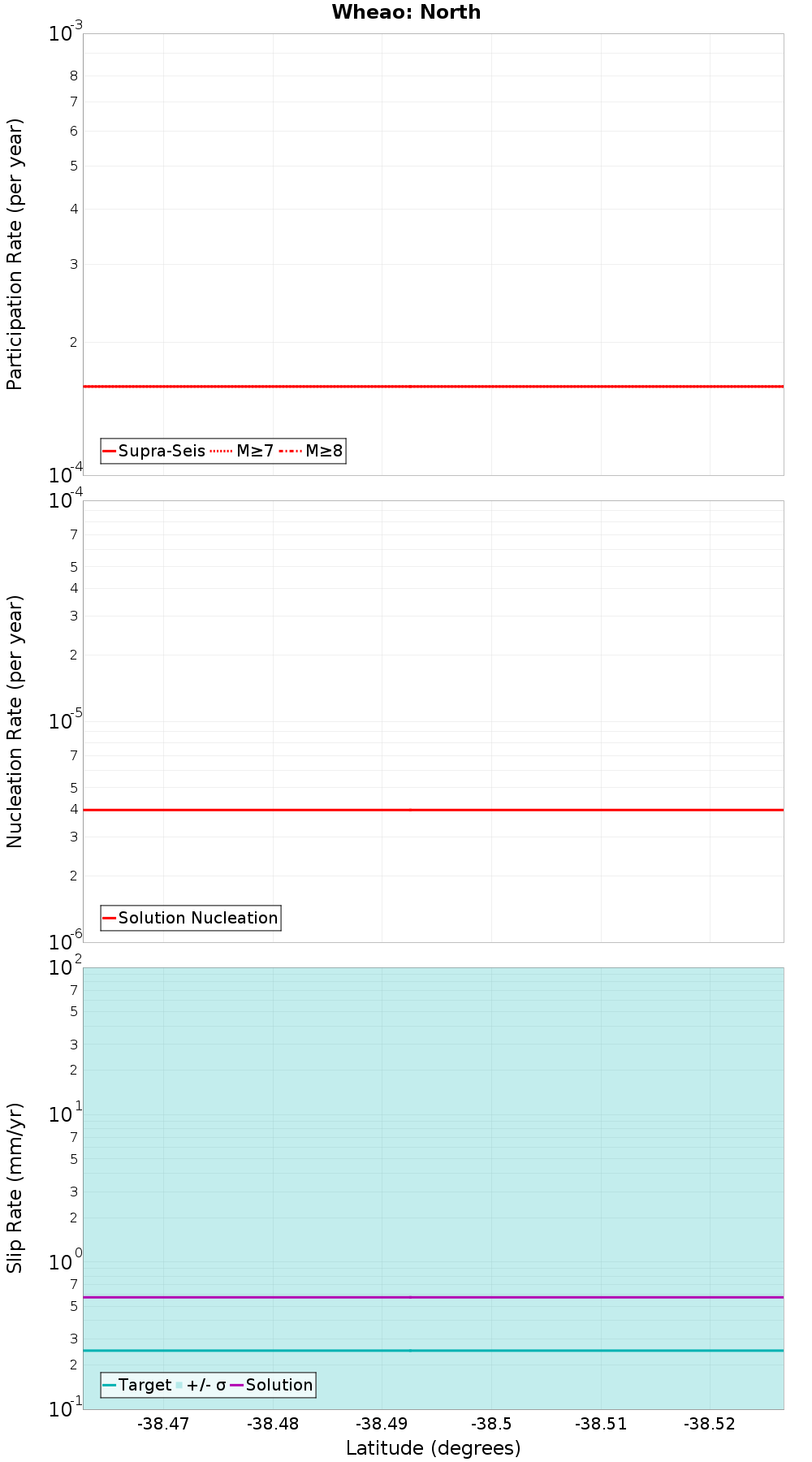

Along-Strike Values

Moment-Rates and b-Values

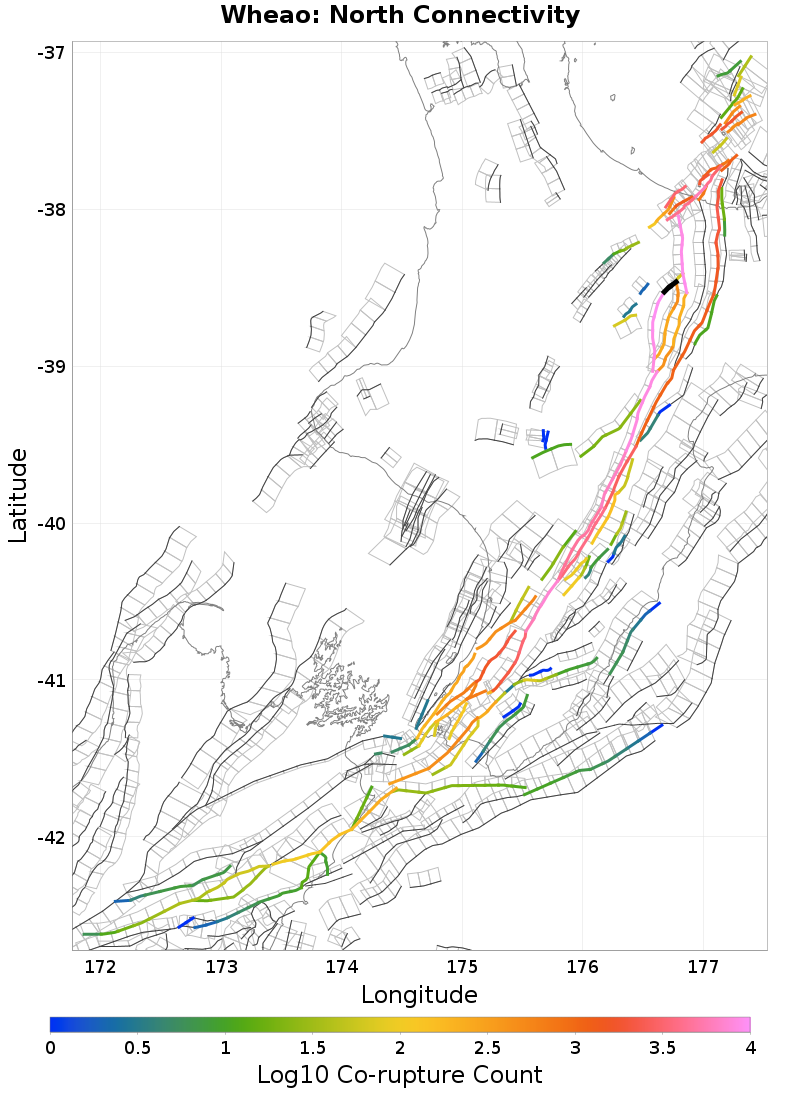

Connectivity

Nearby Sections

Fault Section
Wheao: South, 0 km away
Te Whaiti North, 0 km away
Te Whaiti South, 0 km away
Waiohau: North, 2.44 km away
Waiohau: South, 10.36 km away
Kaingaroa 3, 12.16 km away

Wheao: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?	true
Directly Connected?	true
Co-rupture Count	9,427
Co-rupture Rate	1.5866572E-4

Te Whaiti North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?	true
Directly Connected?	false
Co-rupture Count	63
Co-rupture Rate	6.142264E-16

Te Whaiti South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?	true
Directly Connected?	true
Co-rupture Count	477
Co-rupture Rate	2.007071E-15

Waiohau: North, 2.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?	true
Directly Connected?	true
Co-rupture Count	9,050
Co-rupture Rate	1.5867049E-4

Waiohau: South, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?	true
Directly Connected?	false
Co-rupture Count	430
Co-rupture Rate	2.007071E-15

Kaingaroa 3, 12.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0
