White Island 2 Details

PropertyValue
Rupture Count3,512
Ruptures Above Sect Min Mag3,509
Ruptures w/ Nonzero Rates512
Magnitude Range[6.66, 8.25]
Length Range[15, 644] km
Total Rate6.7525974E-4 /yr
Multi-Fault Rate6.7525974E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults67

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

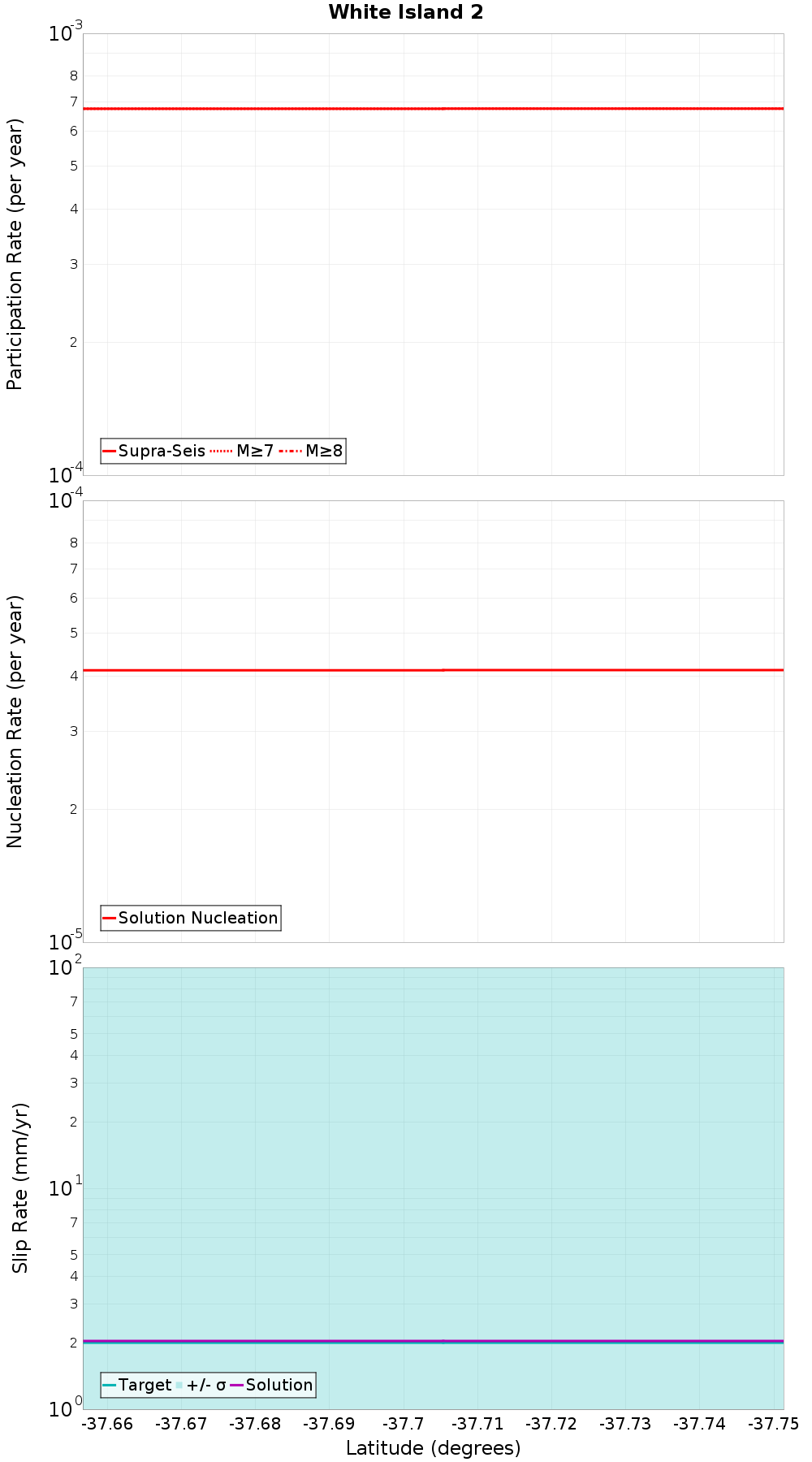

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

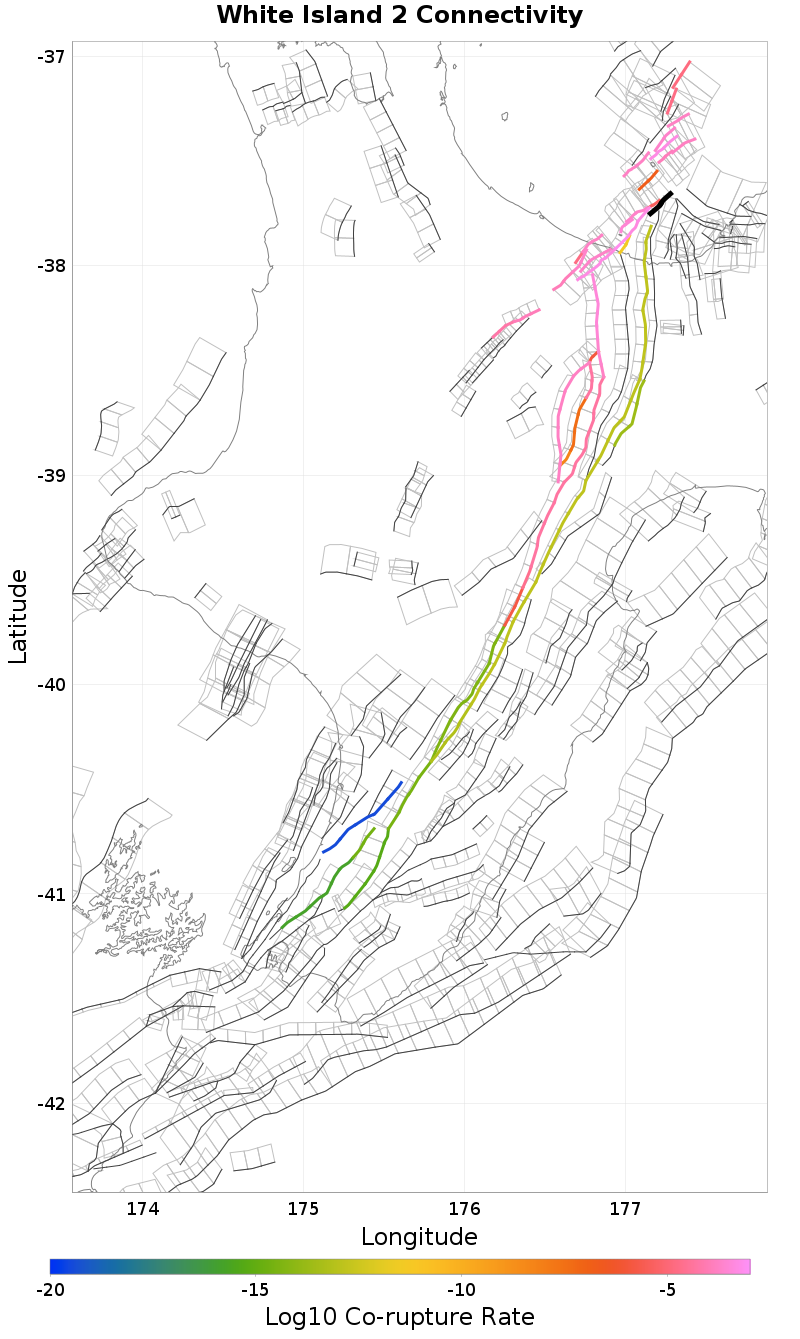

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakaari 4, 0.45 km awayWaimana: North, 6.76 km away
Ohiwa 1, 0.88 km awayRangitaiki 1, 9.3 km away
Waimanawa - Waikaremoana, 1.87 km awayHariki, 9.31 km away
White Island 1, 1.95 km awayCalypso 2, 10.04 km away
Rangitaiki 2, 2.66 km awayTe Arawa 2, 10.07 km away
Te Arawa 1, 3.53 km awayOhae 2, 12.01 km away
Opotiki 3, 3.83 km awayWaiotahi: North, 12.85 km away
Ohae 1, 4.4 km awayOpape 1, 14.68 km away
Tuatoru 1, 5.84 km away

Whakaari 4, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?false
Co-rupture Count512
Co-rupture Rate1.6025732E-4

Ohiwa 1, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?false
Co-rupture Count234
Co-rupture Rate3.9438005E-6

Waimanawa - Waikaremoana, 1.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 1.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?true
Co-rupture Count4,140
Co-rupture Rate7.5553113E-4

Rangitaiki 2, 2.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?true
Co-rupture Count915
Co-rupture Rate1.850384E-4

Te Arawa 1, 3.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?true
Co-rupture Count1,938
Co-rupture Rate4.971747E-4

Opotiki 3, 3.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 4.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?true
Co-rupture Count753
Co-rupture Rate1.1358043E-4

Waimana: North, 6.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?false
Co-rupture Count472
Co-rupture Rate1.2637173E-13

Rangitaiki 1, 9.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?false
Co-rupture Count1,372
Co-rupture Rate2.6279848E-4

Hariki, 9.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 10.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate1.6592159E-7

Te Arawa 2, 10.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?true
Directly Connected?false
Co-rupture Count742
Co-rupture Rate1.9374567E-4

Ohae 2, 12.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opape 1, 14.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NTcuMFVwRVBp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
