Boby Stream Details

PropertyValue
Rupture Count9,248
Ruptures Above Sect Min Mag9,247
Ruptures w/ Nonzero Rates342
Magnitude Range[6.80, 8.15]
Length Range[18, 538] km
Total Rate1.1941759E-4 /yr
Multi-Fault Rate1.1941759E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults81

Table Of Contents

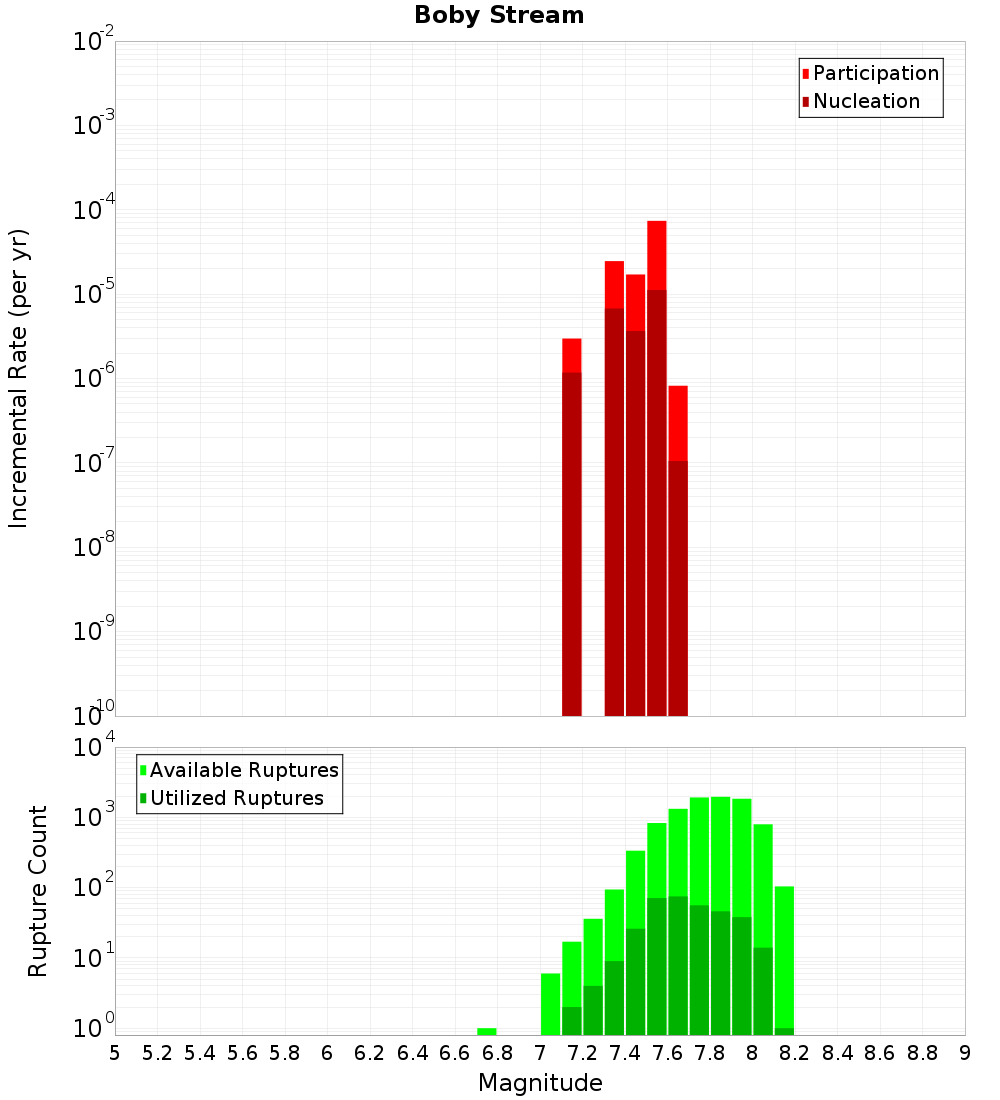

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

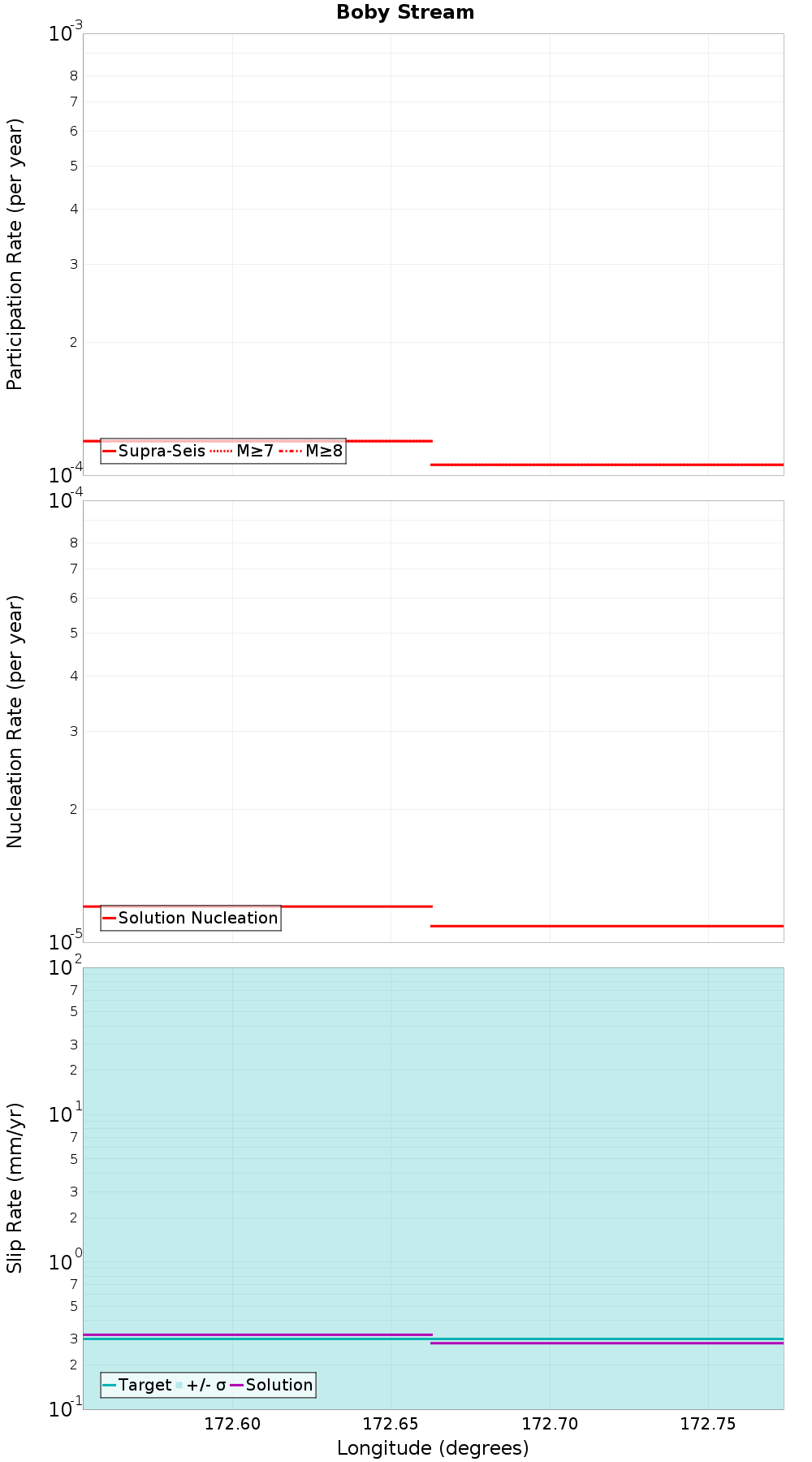

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

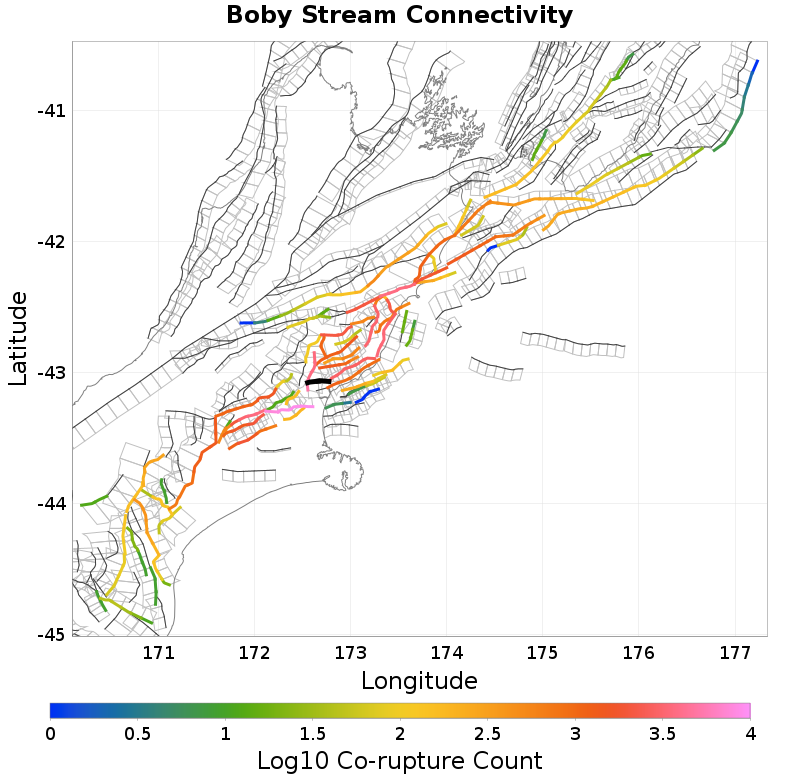

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Doctors, 0.22 km awayPancake, 10 km away
Starvation - Ashley, 0.62 km awayLees Valley, 10.27 km away
OmihiLwrHuru, 0.79 km awayLowry, 10.33 km away
AmberBlyth, 3.76 km awayAlexander, 10.71 km away
Mt Lawry, 4.87 km awayMotunau, 13.14 km away
Kaiwara South, 6.33 km awayKnowles Top, 13.88 km away
Mt Arden, 6.78 km awayNorth Canterbury Shelf 2, 14.97 km away
Springbank, 9.36 km awayLeithfield - NCVI - NCVII, 14.97 km away

Doctors, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?true
Directly Connected?true
Co-rupture Count5,039
Co-rupture Rate3.1476953E-5

Starvation - Ashley, 0.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?true
Directly Connected?true
Co-rupture Count8,865
Co-rupture Rate8.211795E-7

OmihiLwrHuru, 0.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?true
Directly Connected?true
Co-rupture Count3,217
Co-rupture Rate7.0815324E-5

AmberBlyth, 3.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?true
Directly Connected?true
Co-rupture Count1,371
Co-rupture Rate4.238803E-5

Mt Lawry, 4.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?true
Directly Connected?true
Co-rupture Count160
Co-rupture Rate9.939342E-5

Kaiwara South, 6.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?true
Directly Connected?false
Co-rupture Count1,372
Co-rupture Rate3.1159434E-5

Mt Arden, 6.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 9.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?true
Directly Connected?false
Co-rupture Count187
Co-rupture Rate1.0823408E-10

Pancake, 10 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lees Valley, 10.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?true
Directly Connected?false
Co-rupture Count1,612
Co-rupture Rate1.0652845E-10

Lowry, 10.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?true
Directly Connected?false
Co-rupture Count1,475
Co-rupture Rate3.4434102E-5

Alexander, 10.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?true
Directly Connected?false
Co-rupture Count740
Co-rupture Rate5.9035215E-6

Motunau, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?true
Directly Connected?false
Co-rupture Count253
Co-rupture Rate9.497062E-6

Knowles Top, 13.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate8.1452716E-13

North Canterbury Shelf 2, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leithfield - NCVI - NCVII, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?true
Directly Connected?false
Co-rupture Count55
Co-rupture Rate4.8510187E-14
