Waikaia Details

Property	Value
Rupture Count	20,978
Ruptures Above Sect Min Mag	20,976
Ruptures w/ Nonzero Rates	401
Magnitude Range	[7.05, 8.50]
Length Range	[28, 919] km
Total Rate	1.780714E-5 /yr
Multi-Fault Rate	1.1161825E-5 /yr (62.68%)
Directly-Connected Faults	8
All Co-Rupturing Faults	80

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

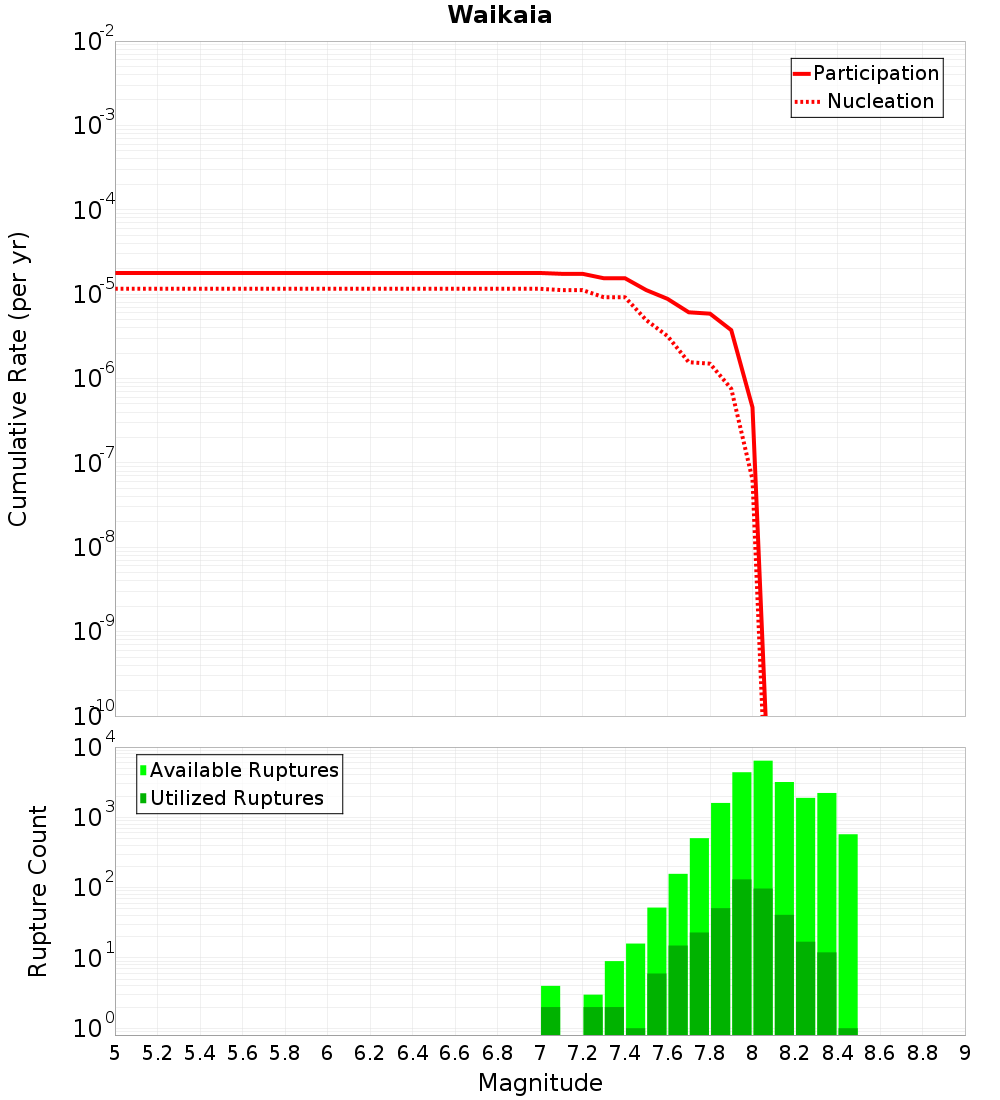

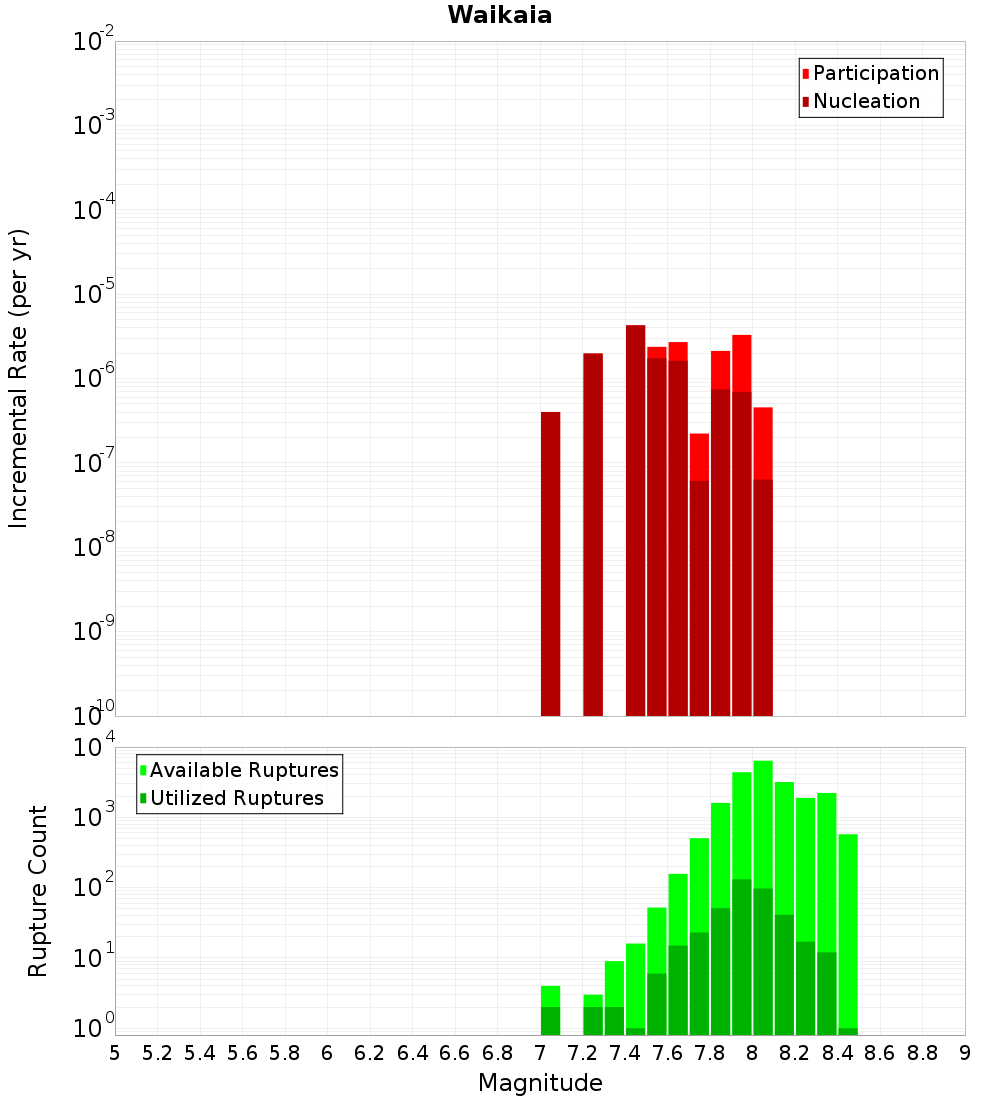

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

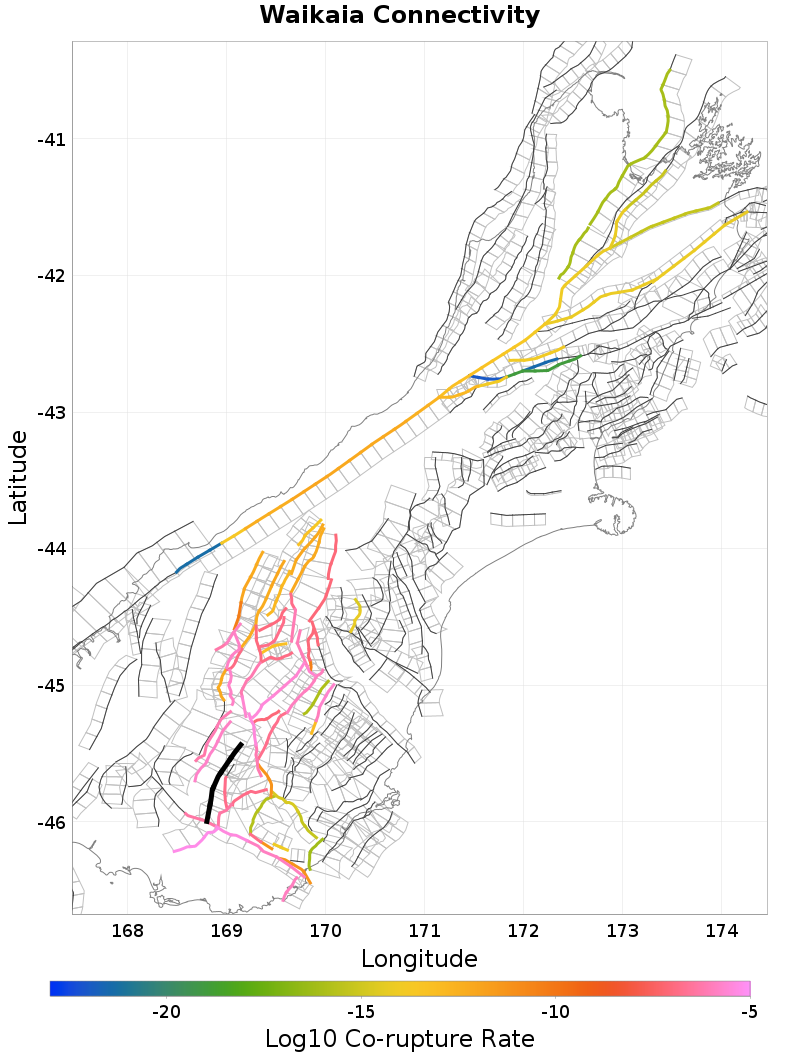

Connectivity

Nearby Sections

Fault Section
Waikaka, 0.04 km away
Old Man, 0.19 km away
Hokonui, 0.29 km away
Hedgehope, 0.33 km away
Teviot, 0.4 km away
Garvie, 1.7 km away
Wendon Valley, 3.01 km away
Hillfoot, 4.54 km away
Roaring Lion, 6.12 km away
Galloway, 6.91 km away
Lake Onslow, 9.49 km away
Backbone, 14.16 km away

Waikaka, 0.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?	true
Directly Connected?	true
Co-rupture Count	907
Co-rupture Rate	4.175466E-7

Old Man, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?	true
Directly Connected?	true
Co-rupture Count	18,237
Co-rupture Rate	3.9012716E-6

Hokonui, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?	true
Directly Connected?	true
Co-rupture Count	680
Co-rupture Rate	4.3073268E-7

Hedgehope, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?	true
Directly Connected?	true
Co-rupture Count	6,934
Co-rupture Rate	5.428253E-6

Teviot, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,796
Co-rupture Rate	6.256649E-12

Garvie, 1.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?	true
Directly Connected?	true
Co-rupture Count	4,685
Co-rupture Rate	1.6546876E-6

Wendon Valley, 3.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?	true
Directly Connected?	true
Co-rupture Count	394
Co-rupture Rate	1.5140702E-7

Hillfoot, 4.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?	true
Directly Connected?	true
Co-rupture Count	10,327
Co-rupture Rate	3.6155843E-6

Roaring Lion, 6.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?	true
Directly Connected?	false
Co-rupture Count	2,252
Co-rupture Rate	7.408878E-7

Galloway, 6.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?	true
Directly Connected?	false
Co-rupture Count	815
Co-rupture Rate	8.3919915E-8

Lake Onslow, 9.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Backbone, 14.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMDNNTlo5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
