Kekerengu 1 Details
| Property | Value |
|---|---|
| Rupture Count | 43,043 |
| Ruptures Above Sect Min Mag | 43,040 |
| Ruptures w/ Nonzero Rates | 287 |
| Magnitude Range | [6.75, 8.53] |
| Length Range | [18, 973] km |
| Total Rate | 0.0030234023 /yr |
| Multi-Fault Rate | 0.0030234023 /yr (100.00%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 182 |
Table Of Contents

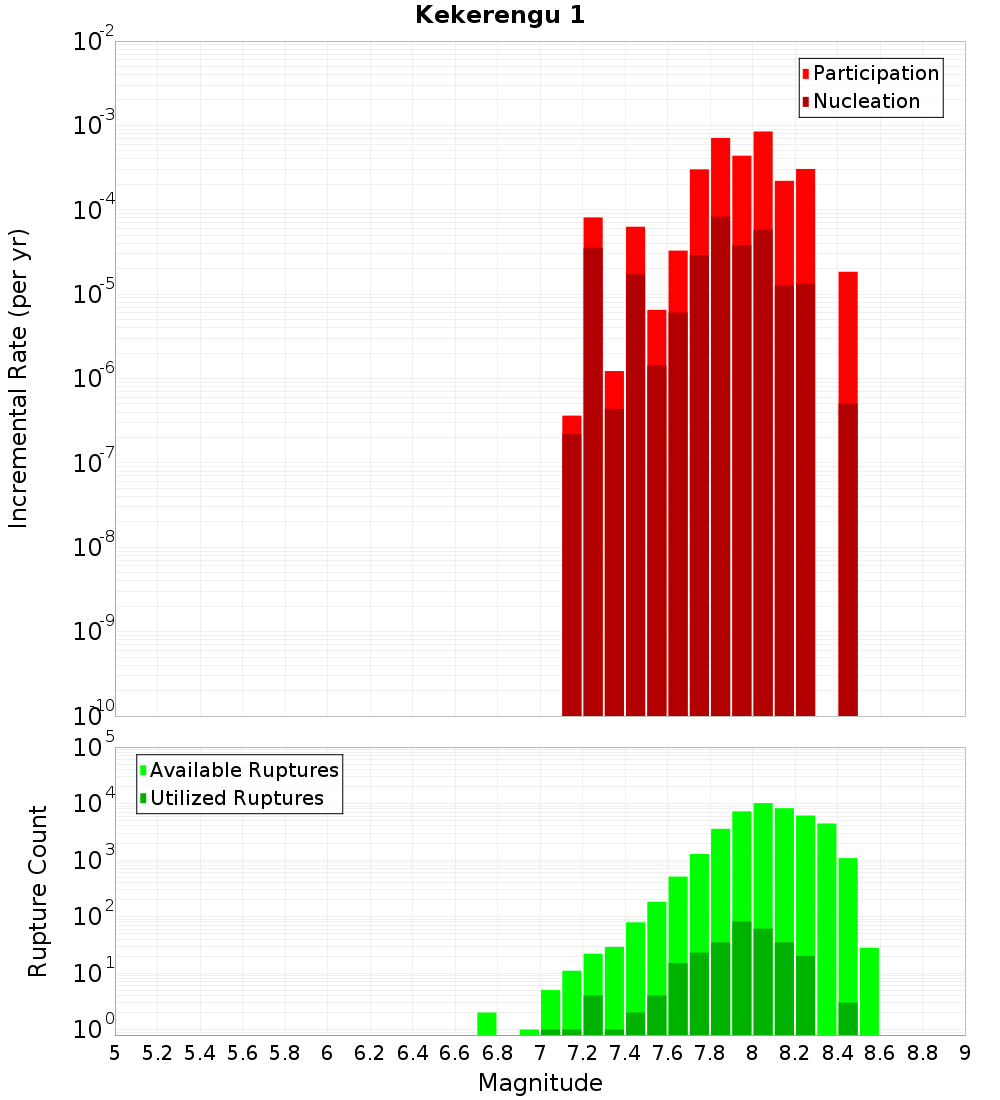

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

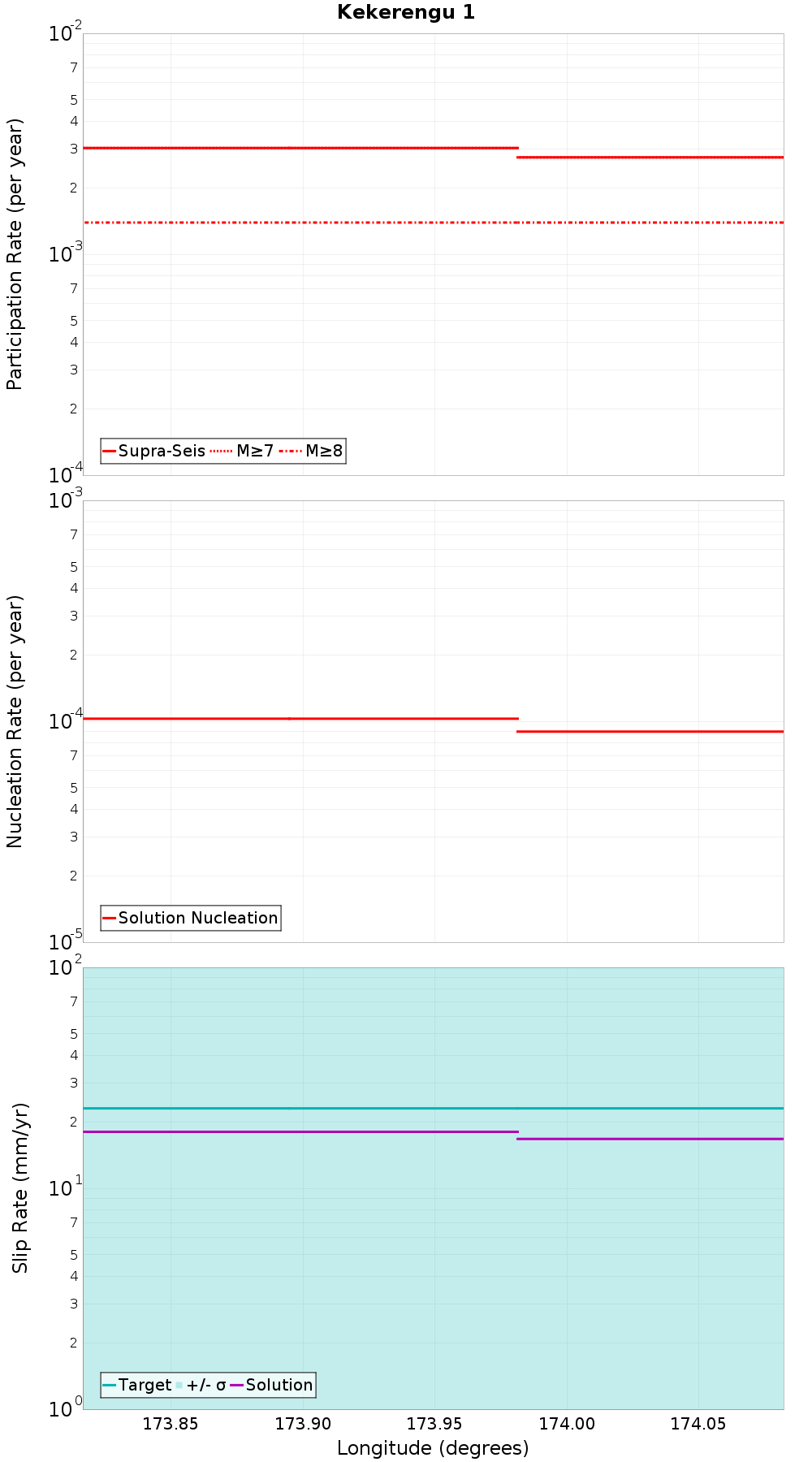

Along-Strike Values

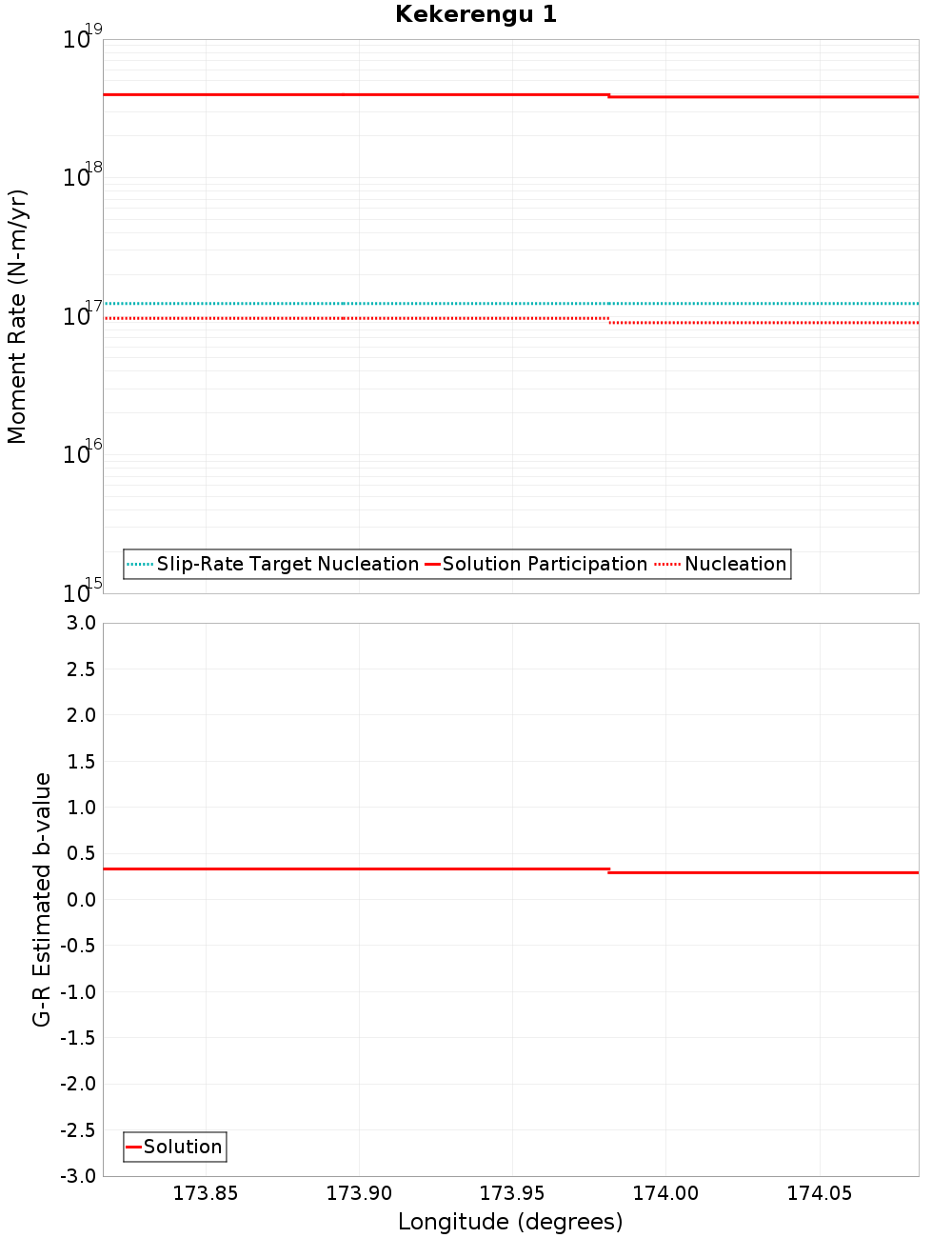

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Papatea, 0 km away |
| Fidget, 0 km away |
| Jordan, 0 km away |
| London Hill, 0 km away |
| Needles, 0 km away |
| Needles East 2, 4.78 km away |
| Chancet, 7.4 km away |
| Clarence: Northeast, 10.43 km away |
Papatea, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,329 |
| Co-rupture Rate | 2.667364E-4 |
Fidget, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 24,888 |
| Co-rupture Rate | 3.2136738E-4 |
Jordan, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10,955 |
| Co-rupture Rate | 0.0023708097 |
London Hill, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 814 |
| Co-rupture Rate | 4.9460214E-5 |
Needles, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 40,777 |
| Co-rupture Rate | 0.0025891408 |
Needles East 2, 4.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 478 |
| Co-rupture Rate | 4.4096178E-5 |
Chancet, 7.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 37 |
| Co-rupture Rate | 1.26642E-4 |
Clarence: Northeast, 10.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 182 |
| Co-rupture Rate | 2.7819906E-4 |
