Wairarapa: 3 Details

PropertyValue
Rupture Count13,048
Ruptures Above Sect Min Mag13,038
Ruptures w/ Nonzero Rates121
Magnitude Range[6.63, 8.50]
Length Range[15, 925] km
Total Rate9.375631E-4 /yr
Multi-Fault Rate9.375631E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults91

Table Of Contents

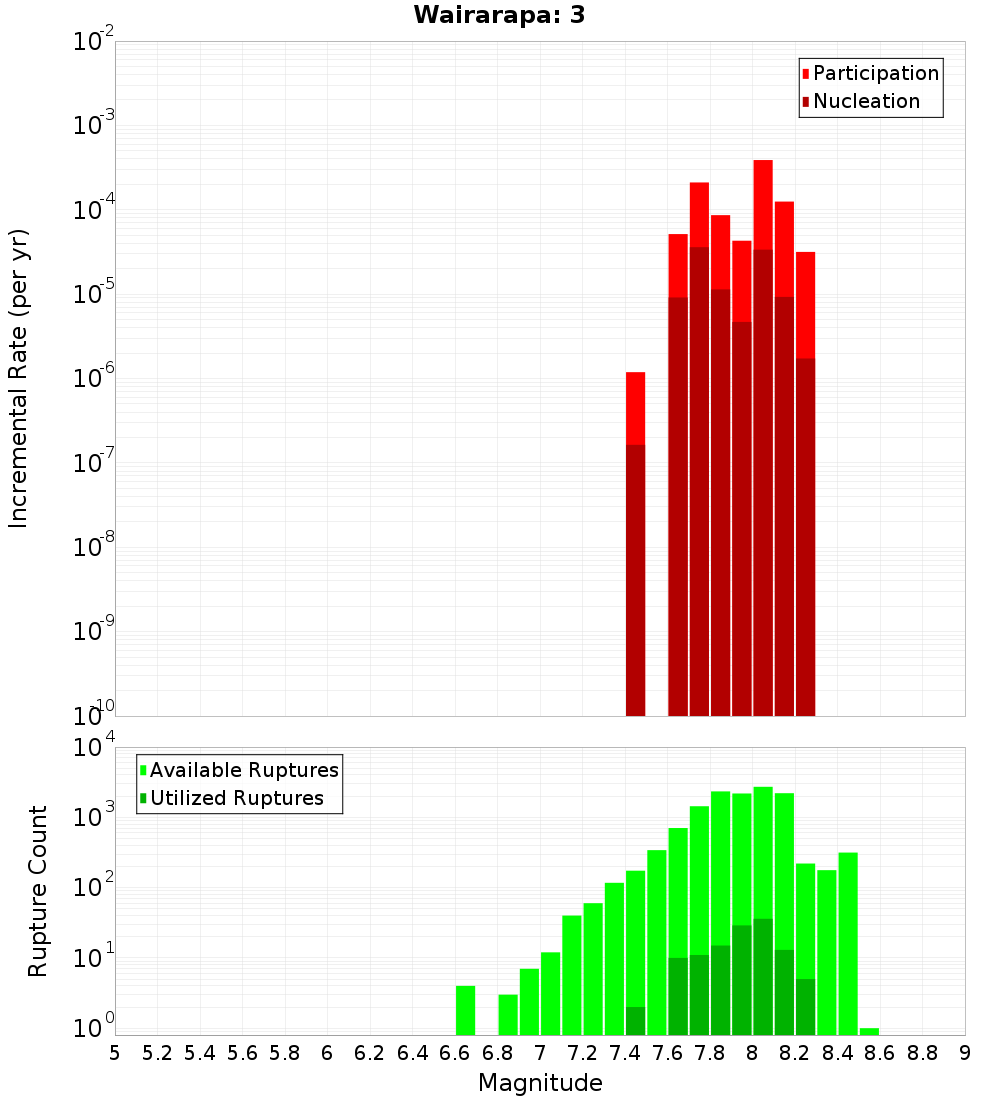

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Carterton, 0.02 km away
Wairarapa: 2, 0.03 km away
Mokonui Southwest, 0.12 km away
Masterton, 0.33 km away
Dreyers Rock, 0.46 km away
Pa Valley, 5.36 km away
Alfredton South, 7.46 km away
Wellington: Tararua 2, 7.95 km away
Wellington: Tararua 3, 9.13 km away
Martinborough, 9.53 km away
Bidwill, 10.11 km away
Mokonui Northeast, 10.14 km away
Tokomaru, 11.99 km away
Wellington: Tararua 1, 13.27 km away
Wellington: Pahiatua, 13.85 km away

Carterton, 0.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 2, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F
Connected?true
Directly Connected?true
Co-rupture Count12,790
Co-rupture Rate9.375631E-4

Mokonui Southwest, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F
Connected?true
Directly Connected?true
Co-rupture Count322
Co-rupture Rate2.607105E-5

Masterton, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dreyers Rock, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F
Connected?true
Directly Connected?true
Co-rupture Count9,245
Co-rupture Rate8.091035E-4

Pa Valley, 5.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F
Connected?true
Directly Connected?true
Co-rupture Count3,401
Co-rupture Rate2.4460178E-4

Alfredton South, 7.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F
Connected?true
Directly Connected?false
Co-rupture Count5,917
Co-rupture Rate5.322622E-4

Wellington: Tararua 2, 7.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Tararua 3, 9.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Martinborough, 9.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F
Connected?true
Directly Connected?true
Co-rupture Count127
Co-rupture Rate8.2538335E-8

Bidwill, 10.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Northeast, 10.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate0.0

Tokomaru, 11.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Tararua 1, 13.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Pahiatua, 13.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2NzAuMG5WaG9F
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
