Vernon 2 Details
| Property | Value |
|---|---|
| Rupture Count | 2,479 |
| Ruptures Above Sect Min Mag | 2,477 |
| Ruptures w/ Nonzero Rates | 22 |
| Magnitude Range | [6.70, 8.64] |
| Length Range | [13, 894] km |
| Total Rate | 6.779655E-4 /yr |
| Multi-Fault Rate | 6.779655E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 90 |
Table Of Contents

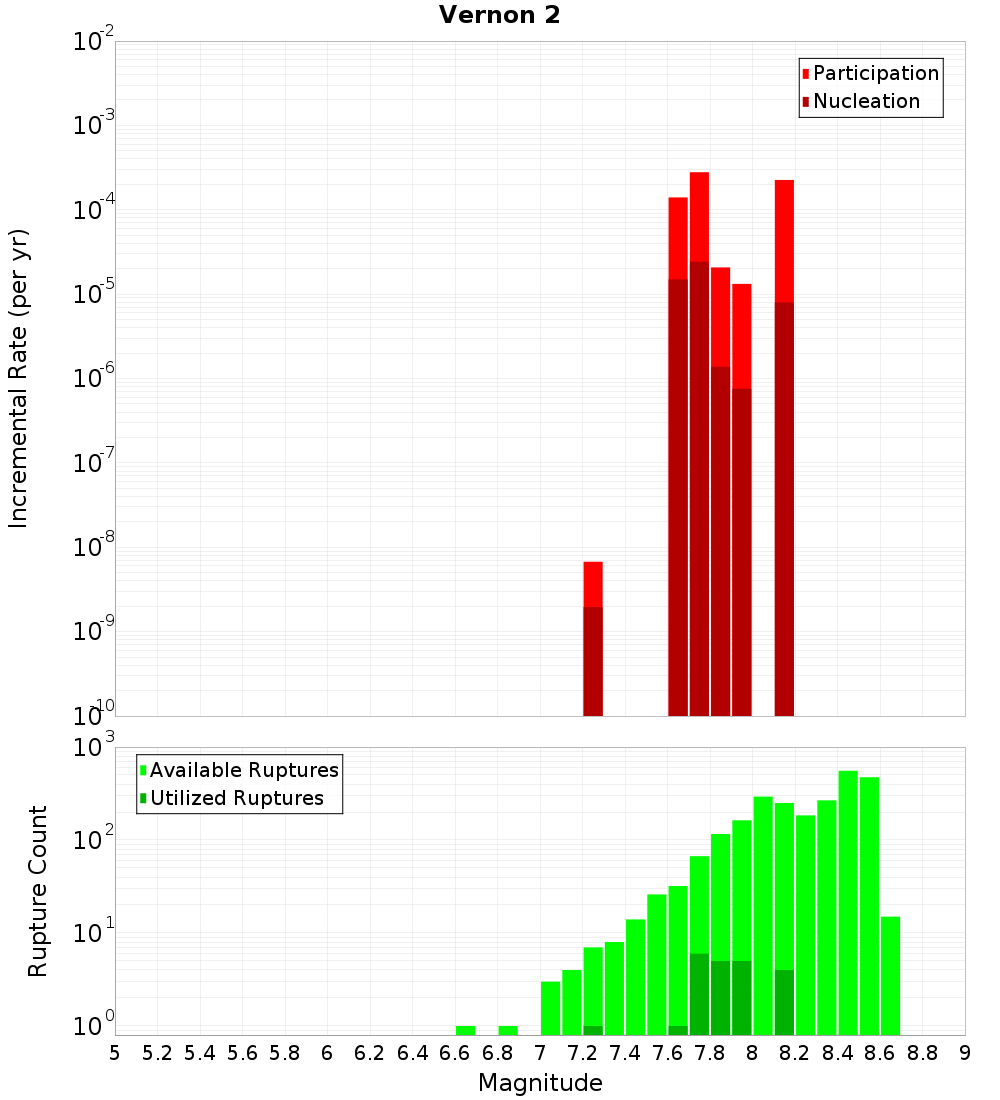

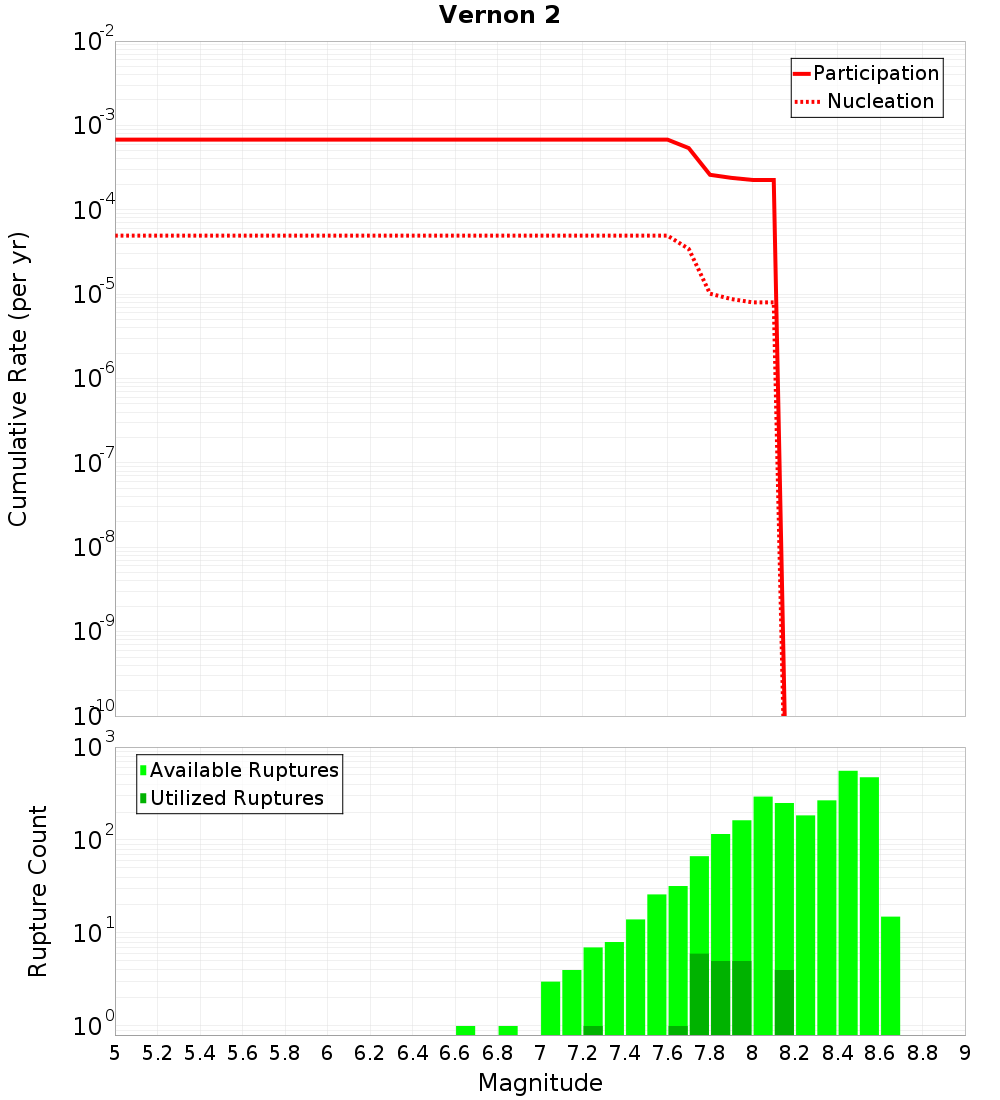

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

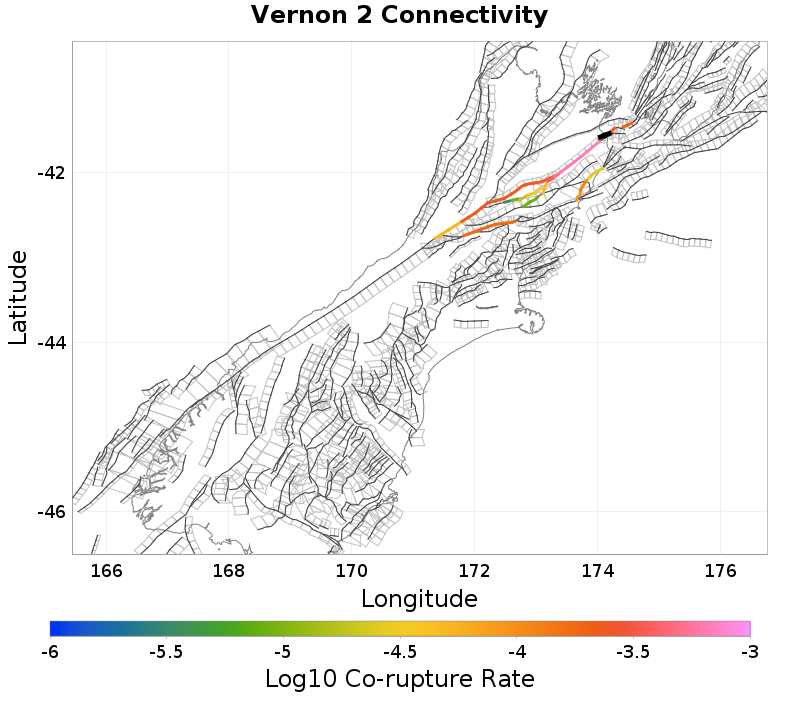

Connectivity
 |  |
|---|
Nearby Sections
Cloudy 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2ODMuMDZ6UHJY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,258 |
| Co-rupture Rate | 2.2274673E-4 |
Vernon 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2ODMuMDZ6UHJY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 450 |
| Co-rupture Rate | 4.7651373E-4 |
Vernon 3, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2ODMuMDZ6UHJY | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Awatere: Northeast 2, 0.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2ODMuMDZ6UHJY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 460 |
| Co-rupture Rate | 0.0 |
Awatere: Northeast 1, 4.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2ODMuMDZ6UHJY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,269 |
| Co-rupture Rate | 6.779655E-4 |
Vernon 4, 5.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2ODMuMDZ6UHJY | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cloudy 3, 7.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2ODMuMDZ6UHJY | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 14 |
| Co-rupture Rate | 0.0 |
Cloudy 2, 8.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2ODMuMDZ6UHJY | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Needles East 2, 12.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2ODMuMDZ6UHJY | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau, 14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2ODMuMDZ6UHJY | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 247 |
| Co-rupture Rate | 0.0 |
Wairarapa: Needles, 14.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2ODMuMDZ6UHJY | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau 2, 14.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg2ODMuMDZ6UHJY | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
