Hundalee Details

Property	Value
Rupture Count	3,854
Ruptures Above Sect Min Mag	3,837
Ruptures w/ Nonzero Rates	1,993
Magnitude Range	[6.55, 8.35]
Length Range	[16, 781] km
Total Rate	5.881335E-4 /yr
Multi-Fault Rate	5.881335E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	99

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

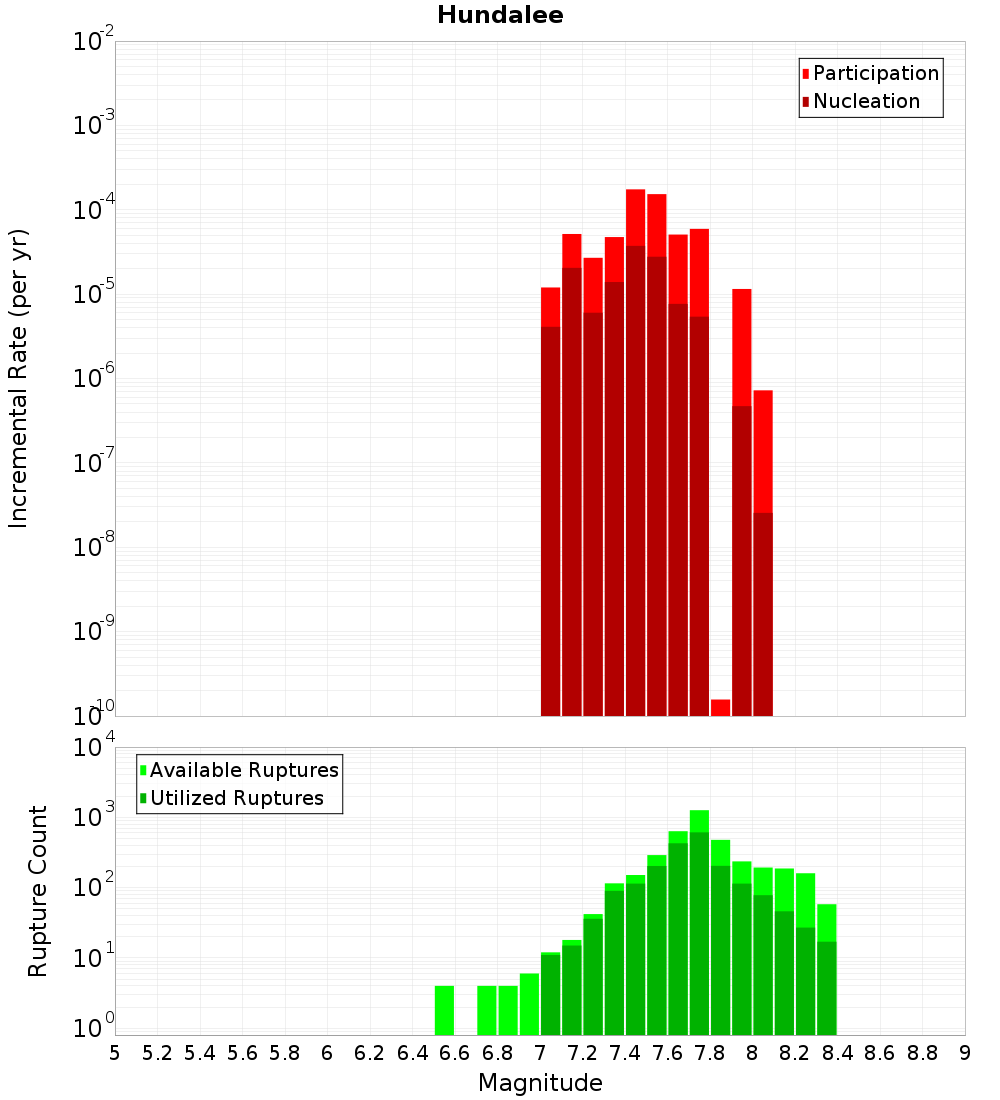

Magnitude-Frequency Distribution

Incremental	Cumulative

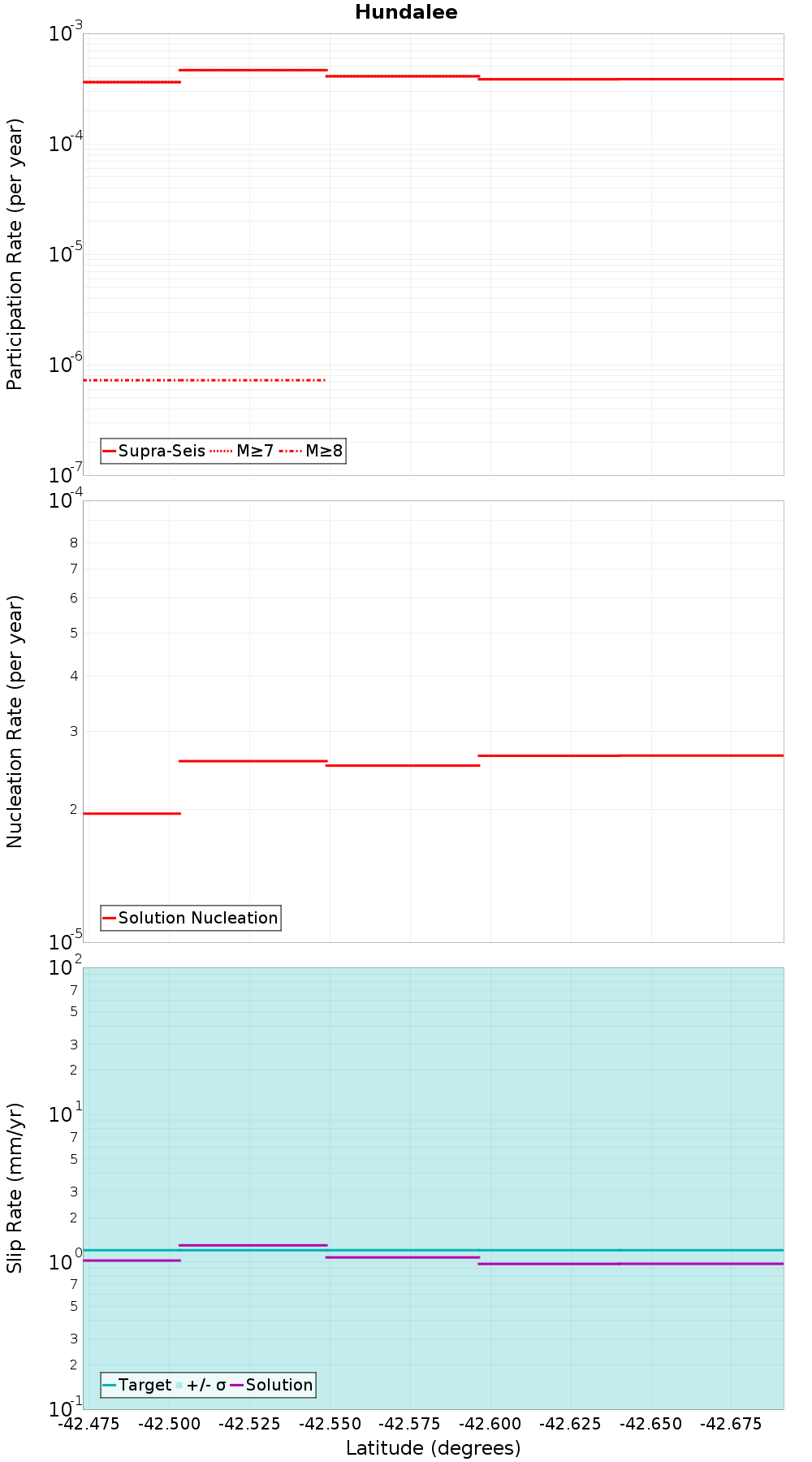

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Leader: Central, 0.1 km away
StoneJug, 0.16 km away
The Humps, 0.25 km away
Hawkswood, 0.87 km away
Kaiwara North, 3.47 km away
Conway Trough West, 5.24 km away
Leader: South, 5.67 km away
Hope: Conway, 7.09 km away
Leonard Mound, 9.87 km away
Leader: North, 12.74 km away

Leader: Central, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	true
Directly Connected?	true
Co-rupture Count	747
Co-rupture Rate	1.5301076E-8

StoneJug, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	true
Directly Connected?	true
Co-rupture Count	383
Co-rupture Rate	4.5349524E-9

The Humps, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,339
Co-rupture Rate	1.703091E-4

Hawkswood, 0.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,370
Co-rupture Rate	3.6310777E-4

Kaiwara North, 3.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	true
Directly Connected?	true
Co-rupture Count	174
Co-rupture Rate	5.5313234E-5

Conway Trough West, 5.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leader: South, 5.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	true
Directly Connected?	true
Co-rupture Count	26
Co-rupture Rate	4.5514334E-5

Hope: Conway, 7.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	true
Directly Connected?	false
Co-rupture Count	346
Co-rupture Rate	4.5801642E-9

Leonard Mound, 9.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	4.3810174E-5

Leader: North, 12.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	true
Directly Connected?	false
Co-rupture Count	382
Co-rupture Rate	1.5197875E-8
