Jordan Details

PropertyValue
Rupture Count11,416
Ruptures Above Sect Min Mag11,416
Ruptures w/ Nonzero Rates7,012
Magnitude Range[7.05, 8.31]
Length Range[29, 721] km
Total Rate0.0021758336 /yr
Multi-Fault Rate0.0021758336 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults152

Table Of Contents

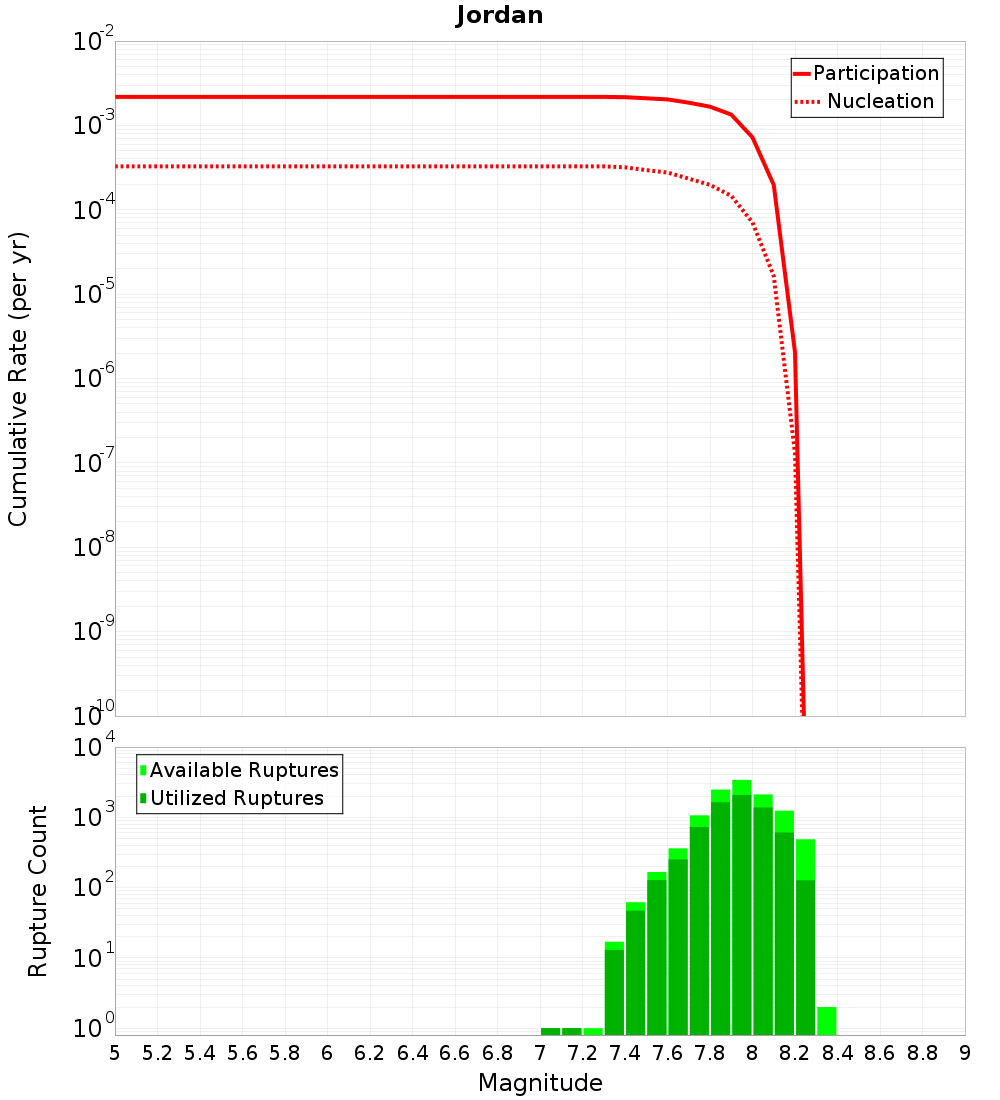

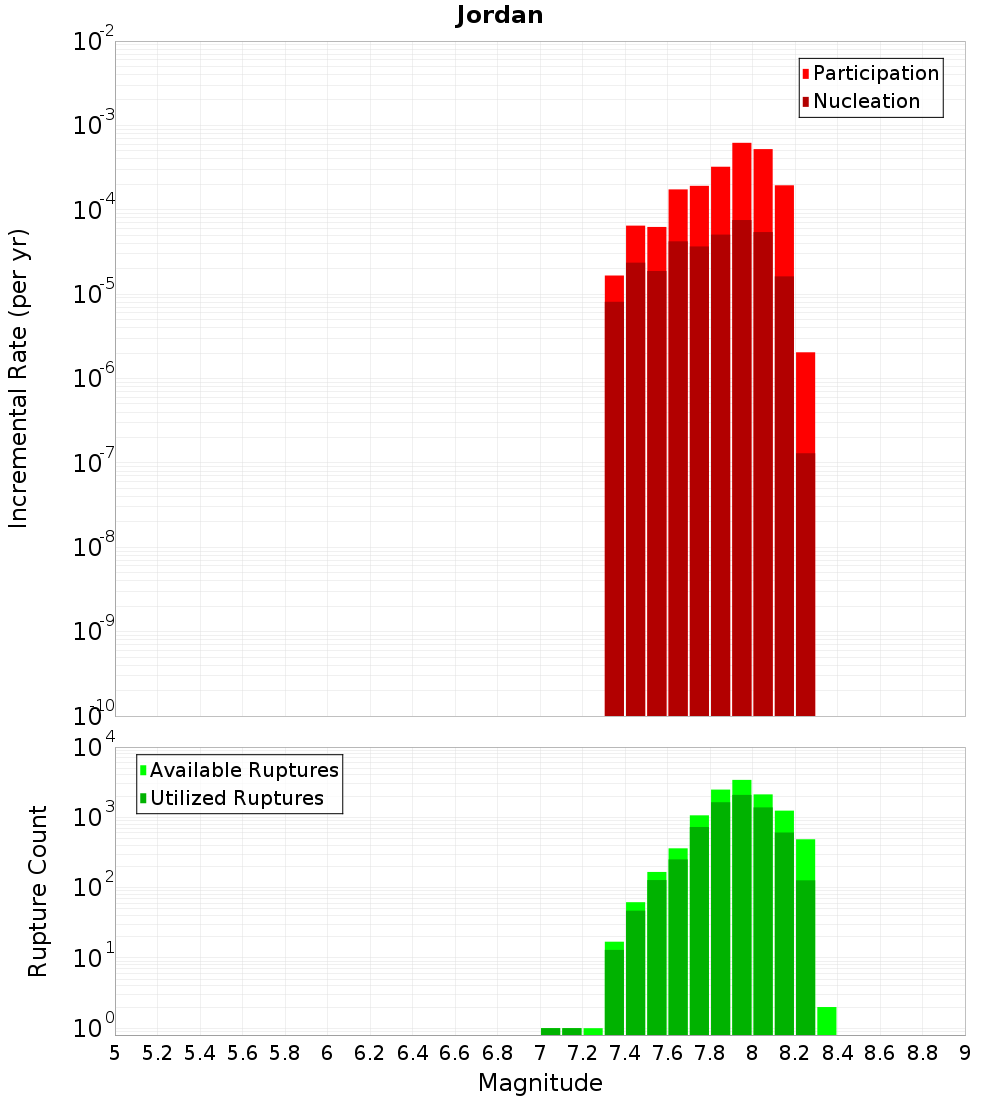

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

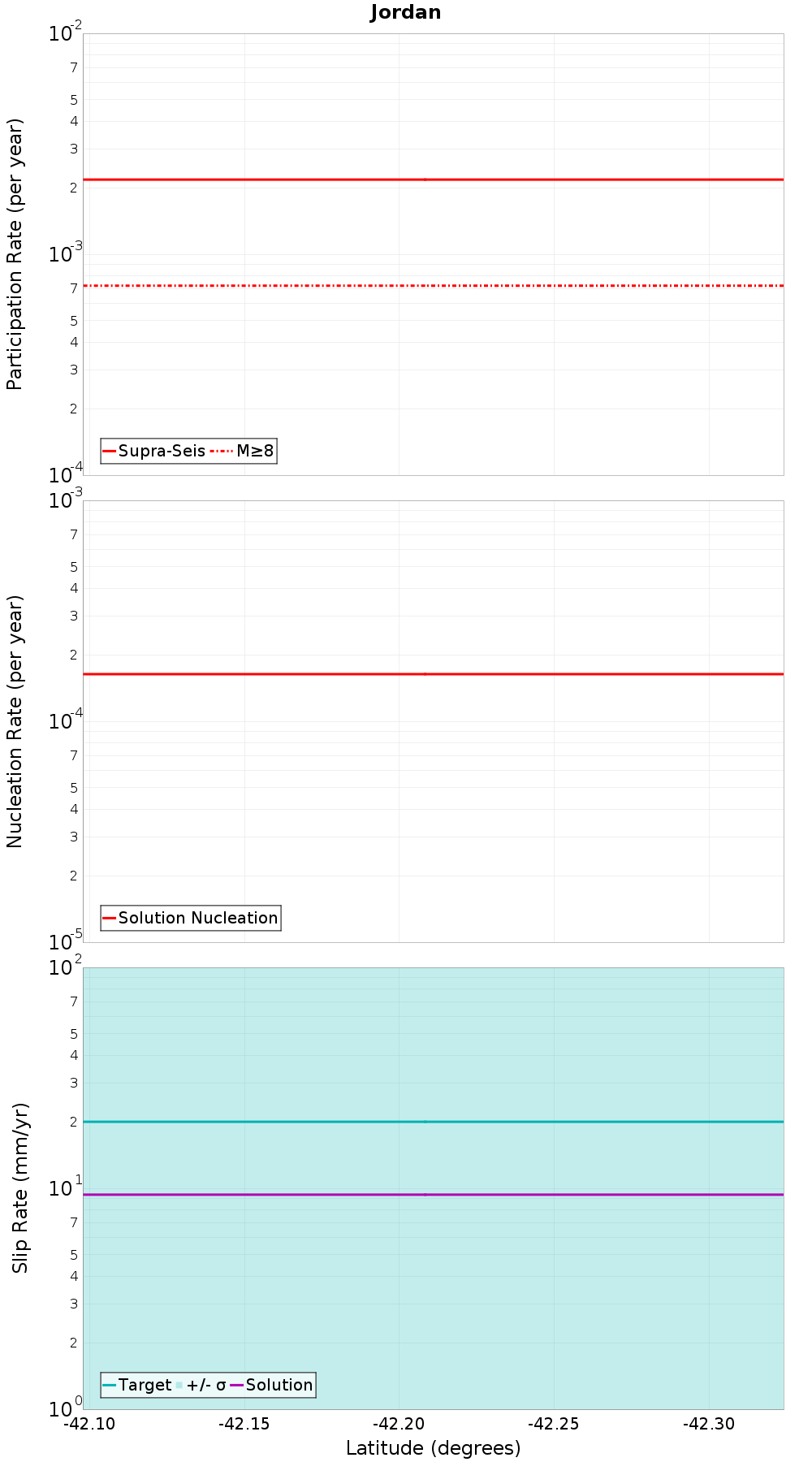

Along-Strike Values

(top)

Along-strike plot

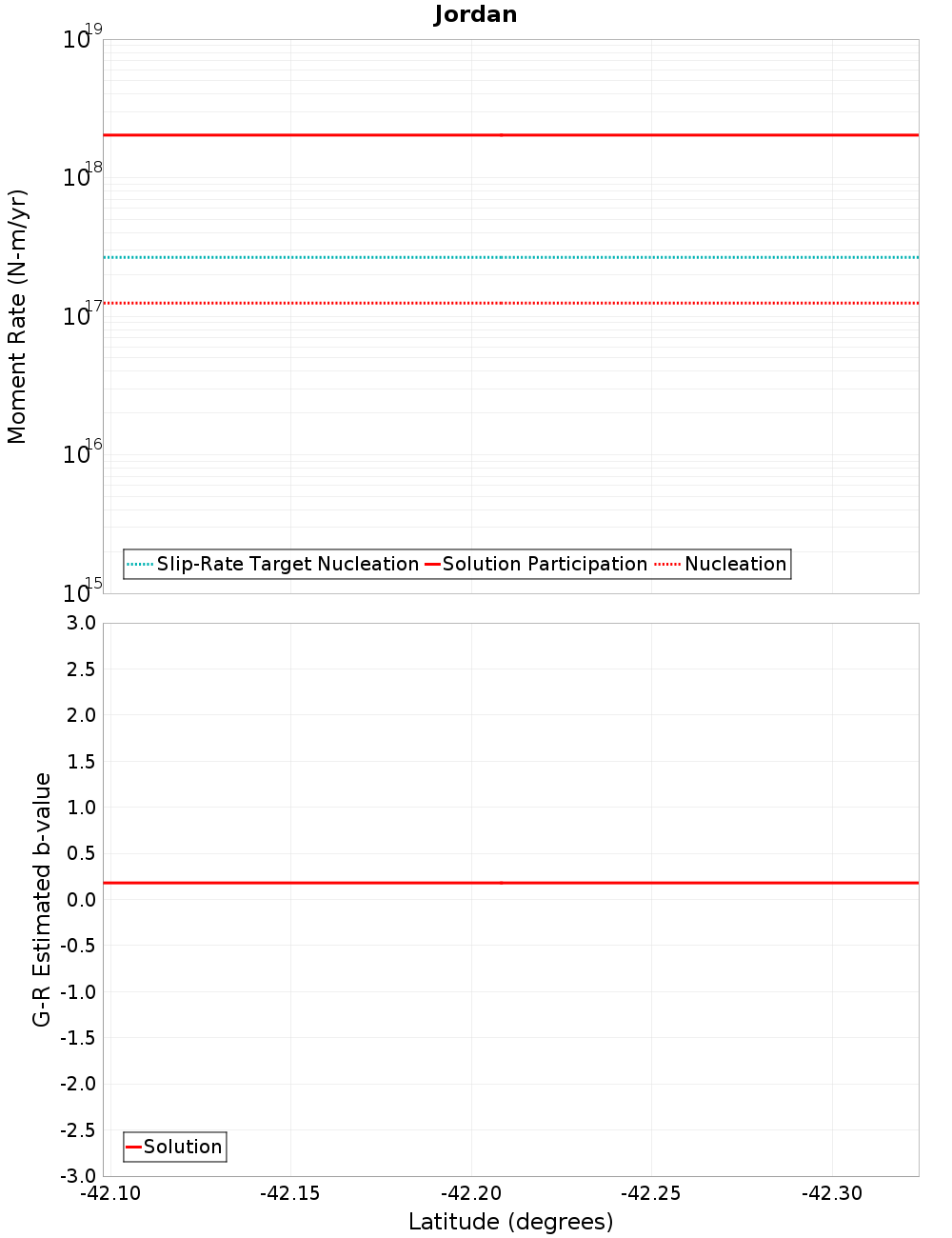

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Papatea, 0 km away
Hope: Conway, 0 km away
Kekerengu 1, 0 km away
Fidget, 0 km away
Hope: Seaward, 0 km away
Clarence: Northeast, 0.78 km away
Kaikoura - Mangamaunu, 2.75 km away
Clarence: Central, 7.52 km away
Elliott, 9.78 km away
Awatere: Northeast 1, 12.64 km away

Papatea, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Conway, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?true
Directly Connected?true
Co-rupture Count10,536
Co-rupture Rate0.0021468624

Kekerengu 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?true
Directly Connected?true
Co-rupture Count10,955
Co-rupture Rate0.0021230779

Fidget, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Seaward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?true
Directly Connected?false
Co-rupture Count118
Co-rupture Rate2.5202949E-8

Clarence: Northeast, 0.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?true
Directly Connected?true
Co-rupture Count151
Co-rupture Rate1.4525295E-4

Kaikoura - Mangamaunu, 2.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate1.07080916E-13

Clarence: Central, 7.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?true
Directly Connected?false
Co-rupture Count207
Co-rupture Rate4.918635E-5

Elliott, 9.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate2.5074685E-5

Awatere: Northeast 1, 12.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?true
Directly Connected?true
Co-rupture Count214
Co-rupture Rate9.97632E-6
