Papatea Details

Property	Value
Rupture Count	4,675
Ruptures Above Sect Min Mag	4,673
Ruptures w/ Nonzero Rates	2,649
Magnitude Range	[6.66, 8.28]
Length Range	[18, 697] km
Total Rate	3.4113522E-4 /yr
Multi-Fault Rate	3.4113522E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	156

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

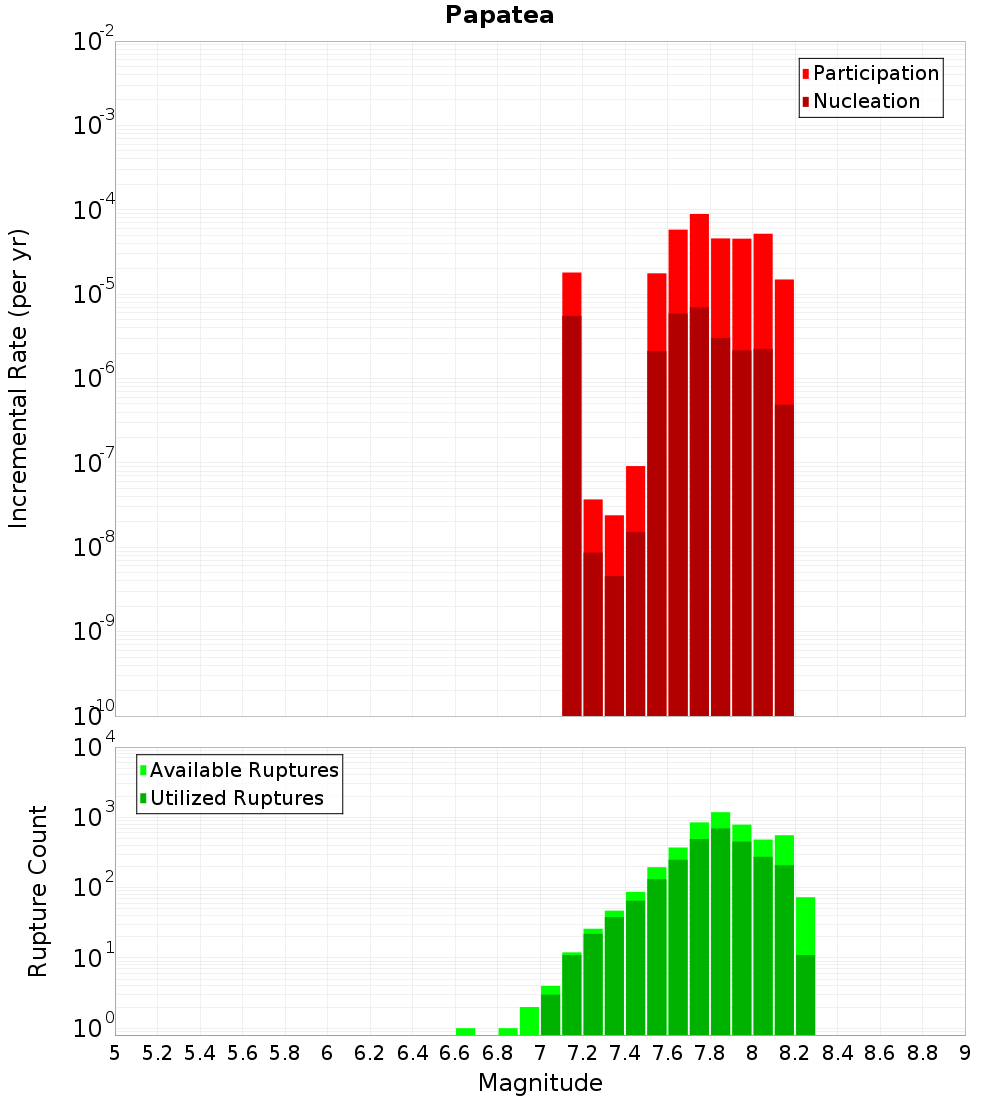

Magnitude-Frequency Distribution

Incremental	Cumulative

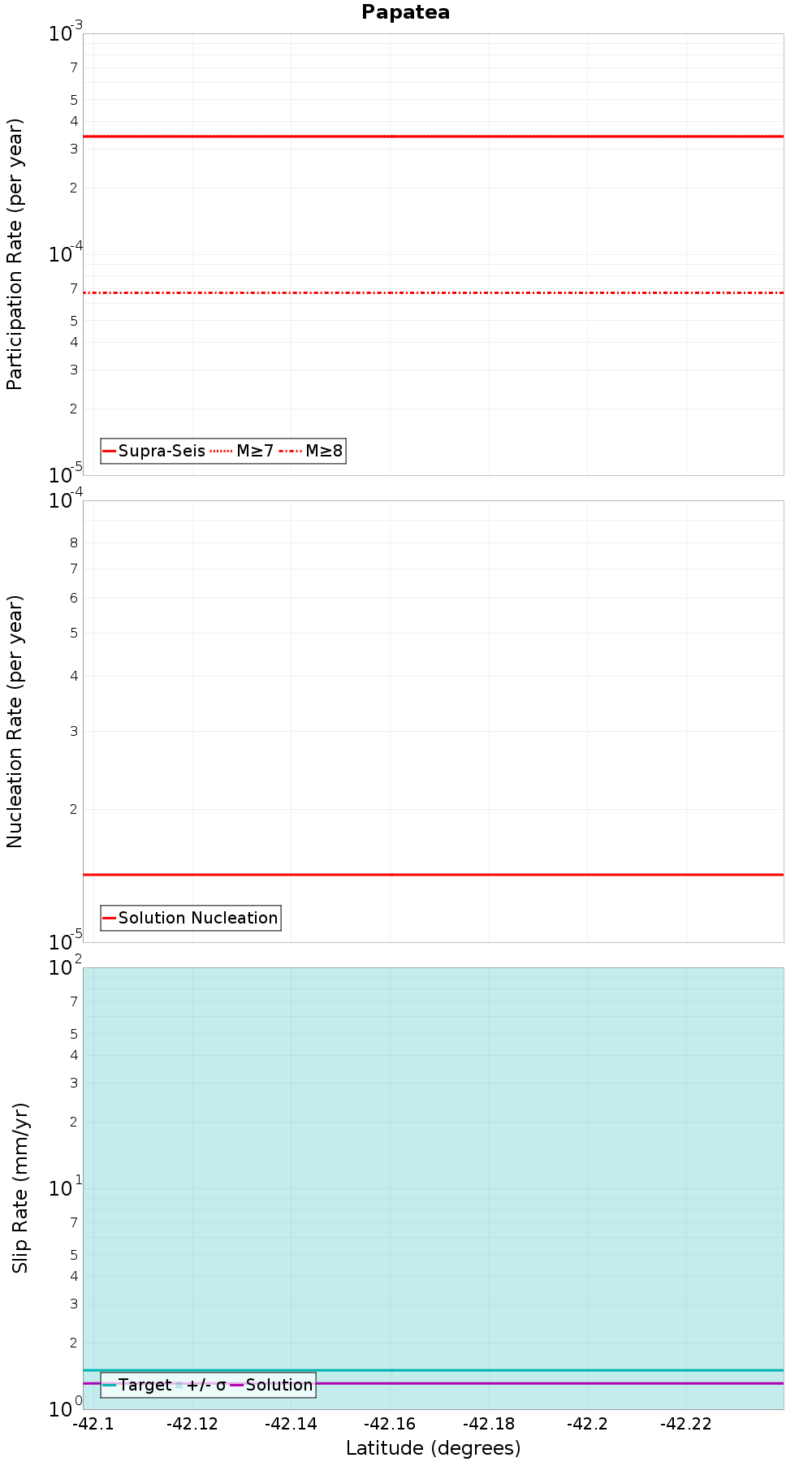

Along-Strike Values

Moment-Rates and b-Values

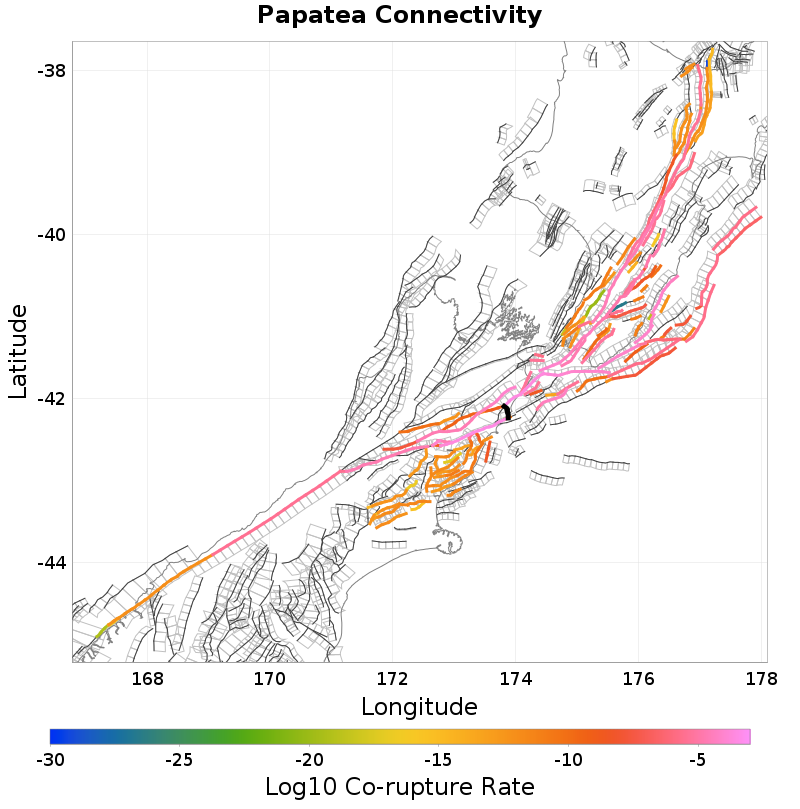

Connectivity

Nearby Sections

Fault Section
Kekerengu 1, 0 km away
Fidget, 0 km away
Jordan, 0 km away
Hope: Seaward, 0.03 km away
Kaikoura - Mangamaunu, 4.97 km away
Hope: Conway, 10.19 km away
Hope: Te Rapa, 11.56 km away
Clarence: Northeast, 11.87 km away

Kekerengu 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	true
Directly Connected?	true
Co-rupture Count	4,329
Co-rupture Rate	2.9896168E-4

Fidget, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	true
Directly Connected?	false
Co-rupture Count	40
Co-rupture Rate	9.80867E-10

Jordan, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Seaward, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	true
Directly Connected?	true
Co-rupture Count	3,358
Co-rupture Rate	3.15662E-4

Kaikoura - Mangamaunu, 4.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Conway, 10.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	true
Directly Connected?	false
Co-rupture Count	2,796
Co-rupture Rate	3.1147694E-4

Hope: Te Rapa, 11.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clarence: Northeast, 11.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?	true
Directly Connected?	true
Co-rupture Count	189
Co-rupture Rate	8.041003E-5
