Sliver Stream - Merton Details

PropertyValue
Rupture Count88
Ruptures Above Sect Min Mag87
Ruptures w/ Nonzero Rates53
Magnitude Range[6.96, 7.93]
Length Range[24, 205] km
Total Rate2.2158987E-5 /yr
Multi-Fault Rate2.2158987E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults24

Table Of Contents

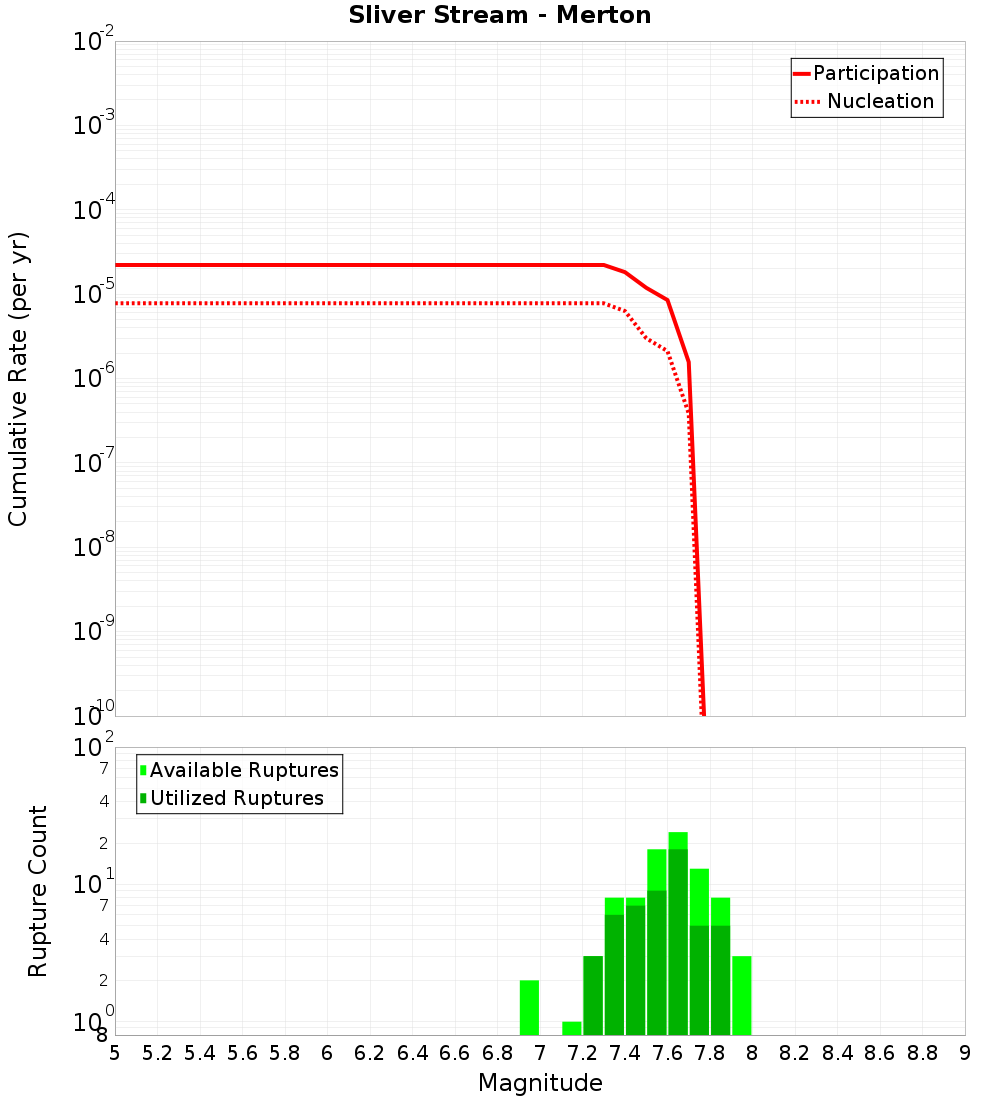

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

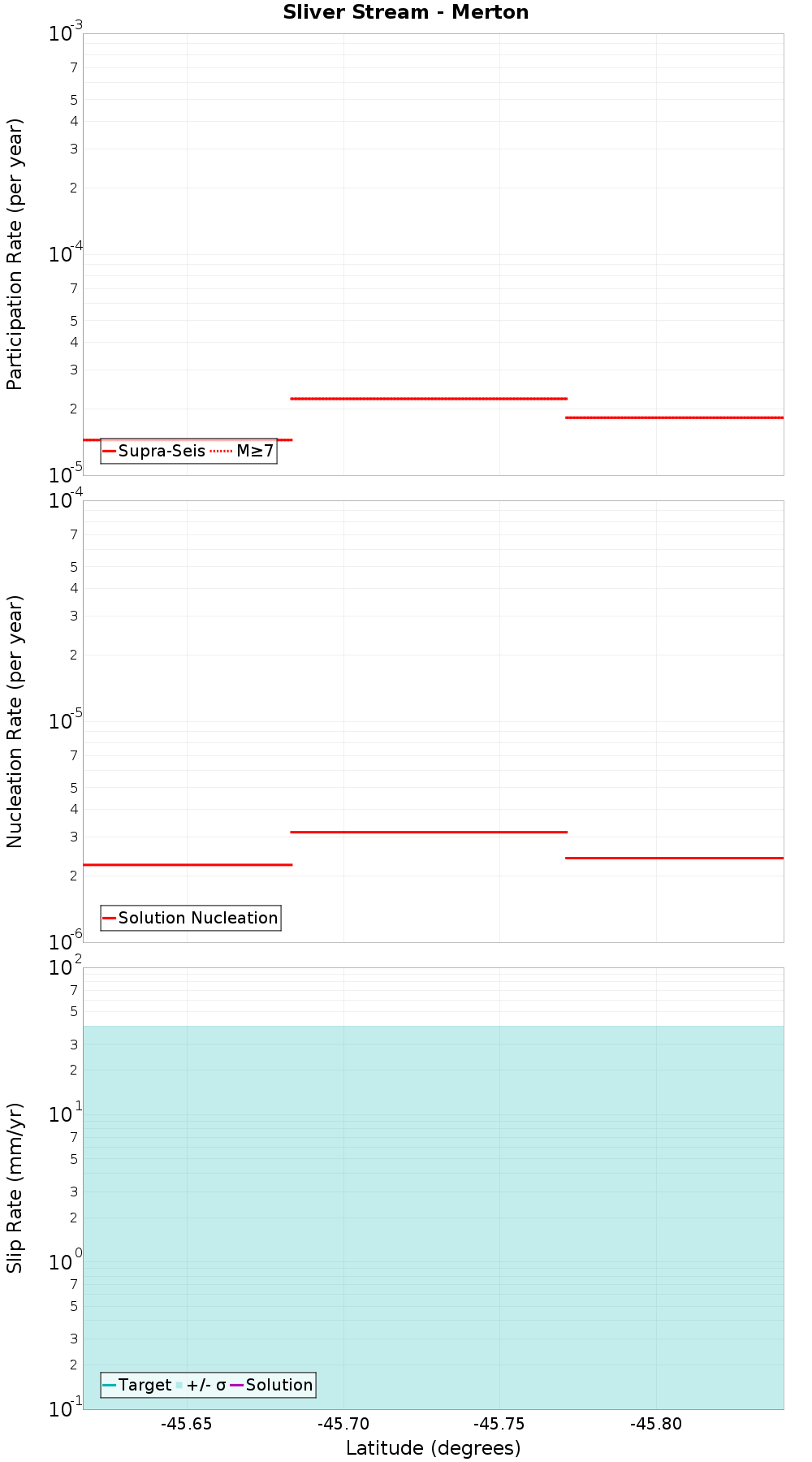

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Maungatua - North Taieri, 0.13 km away
Titri North, 0.88 km away
Kaikorai, 7.87 km away
Flat Stream - Glenpark, 8.28 km away
Dunback Hill, 11.65 km away
Nichols Rock, 12.31 km away
Green Island, 12.64 km away
Waipiata, 14.54 km away

Maungatua - North Taieri, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?true
Directly Connected?true
Co-rupture Count50
Co-rupture Rate6.938369E-6

Titri North, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate1.098585E-5

Kaikorai, 7.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate2.8163282E-7

Flat Stream - Glenpark, 8.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate3.9531346E-6

Dunback Hill, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?true
Directly Connected?true
Co-rupture Count27
Co-rupture Rate7.743028E-6

Nichols Rock, 12.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate3.5609011E-12

Green Island, 12.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate2.8163282E-7

Waipiata, 14.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MDUuMGh2Yjd4
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate2.6527924E-17
