Titri Central Details

PropertyValue
Rupture Count12
Ruptures Above Sect Min Mag12
Ruptures w/ Nonzero Rates7
Magnitude Range[7.23, 7.78]
Length Range[30, 120] km
Total Rate1.0162262E-4 /yr
Multi-Fault Rate8.169009E-5 /yr (80.39%)
Directly-Connected Faults3
All Co-Rupturing Faults7

Table Of Contents

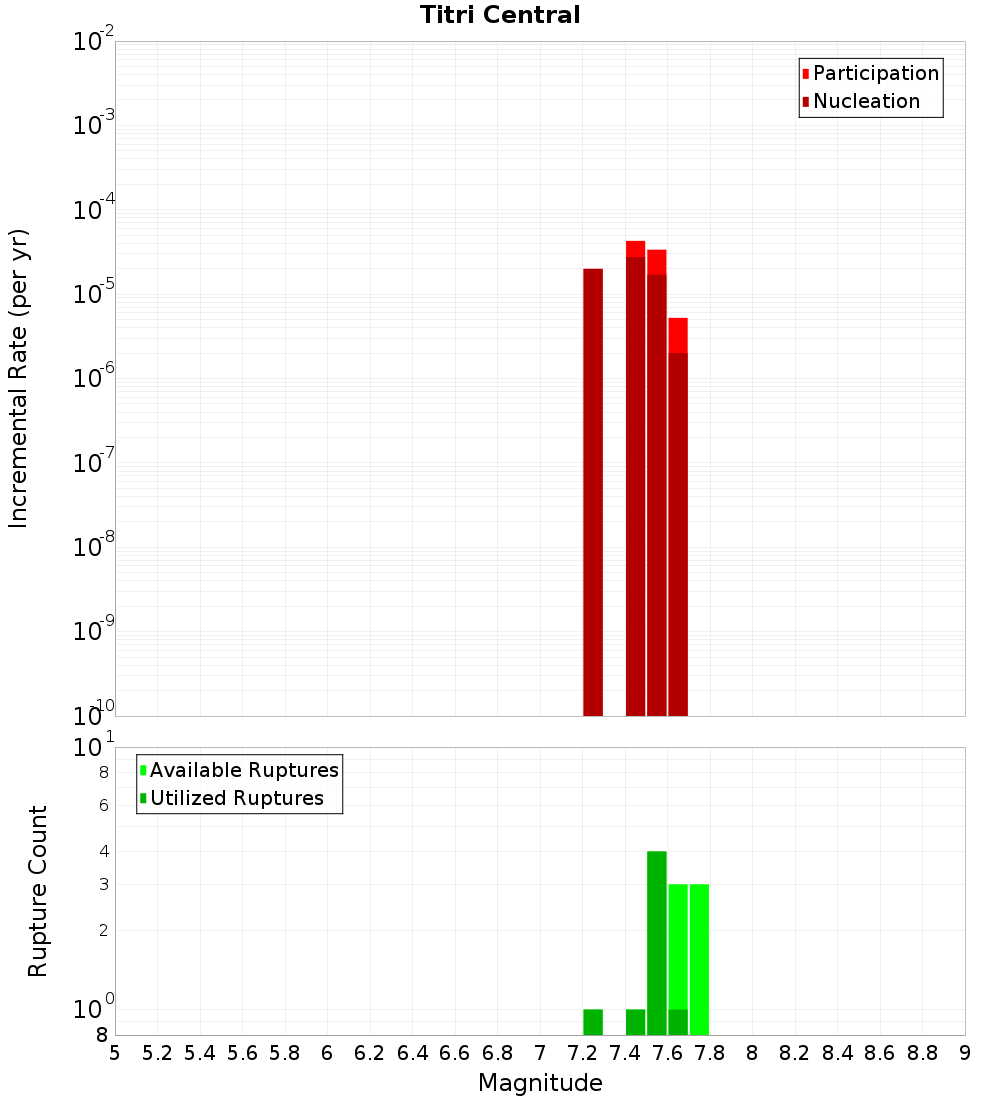

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

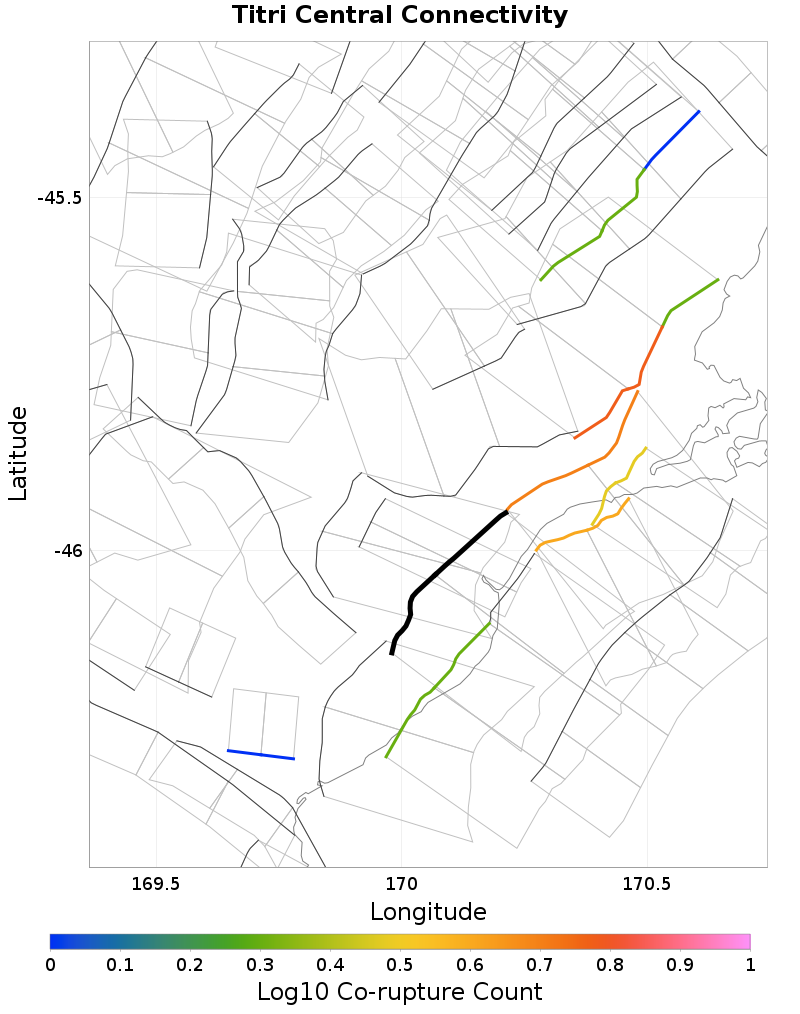

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Titri North, 0.03 km away
Titri South, 0.34 km away
Green Island, 5.11 km away
Akatore, 5.5 km away
Tuapeka, 6.22 km away
Maungatua - North Taieri, 7.17 km away
Waitahuna 1, 7.94 km away
Waitahuna 2, 8.3 km away
Kaikorai, 10.87 km away

Titri North, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTIuMDNEeGR2
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate2.4518864E-5

Titri South, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTIuMDNEeGR2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Green Island, 5.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTIuMDNEeGR2
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate5.3440923E-5

Akatore, 5.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTIuMDNEeGR2
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate3.7303043E-6

Tuapeka, 6.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTIuMDNEeGR2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungatua - North Taieri, 7.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTIuMDNEeGR2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 1, 7.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTIuMDNEeGR2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 2, 8.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTIuMDNEeGR2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaikorai, 10.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTIuMDNEeGR2
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate1.0640933E-5
