Awahokomo Details

Property	Value
Rupture Count	394
Ruptures Above Sect Min Mag	393
Ruptures w/ Nonzero Rates	58
Magnitude Range	[6.89, 8.29]
Length Range	[18, 422] km
Total Rate	1.5293625E-4 /yr
Multi-Fault Rate	1.5293625E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	34

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

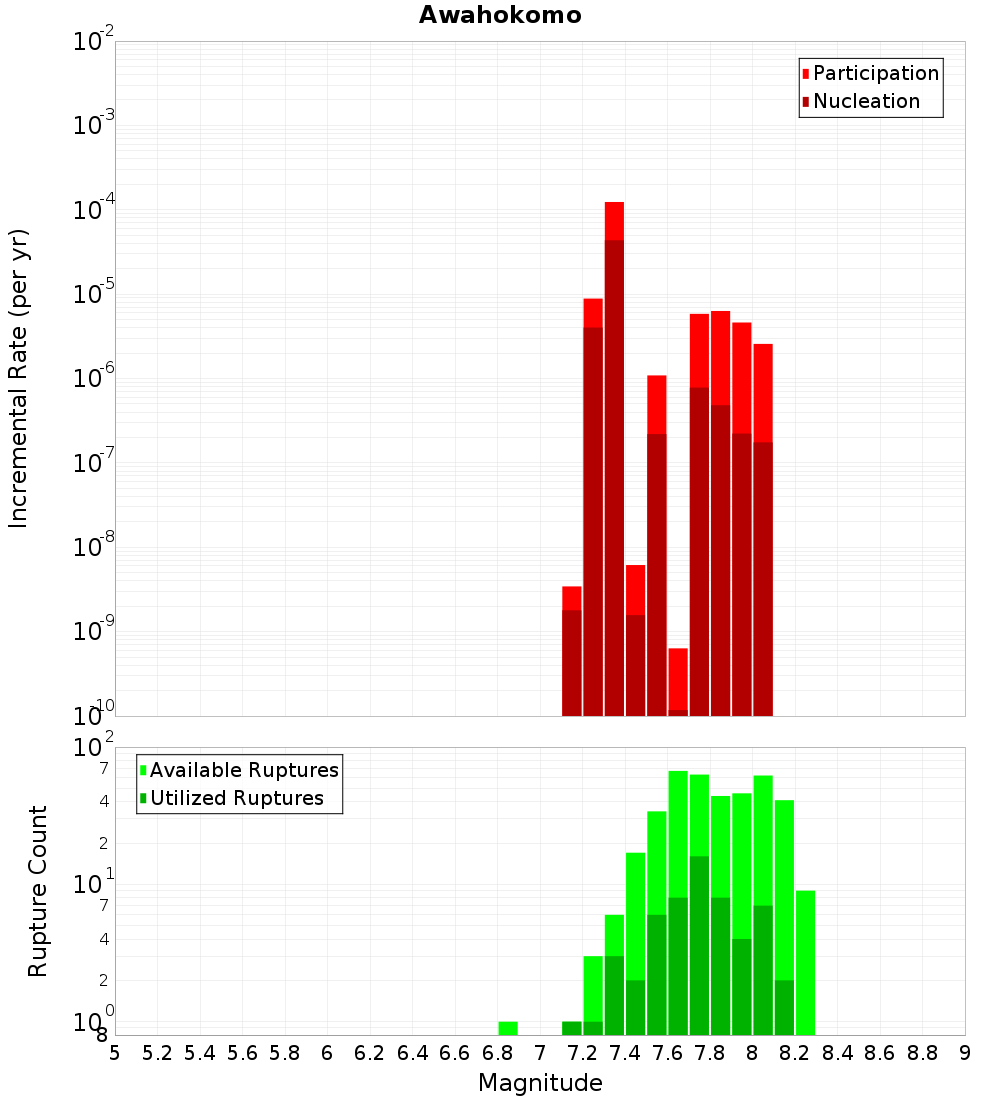

Magnitude-Frequency Distribution

Incremental	Cumulative

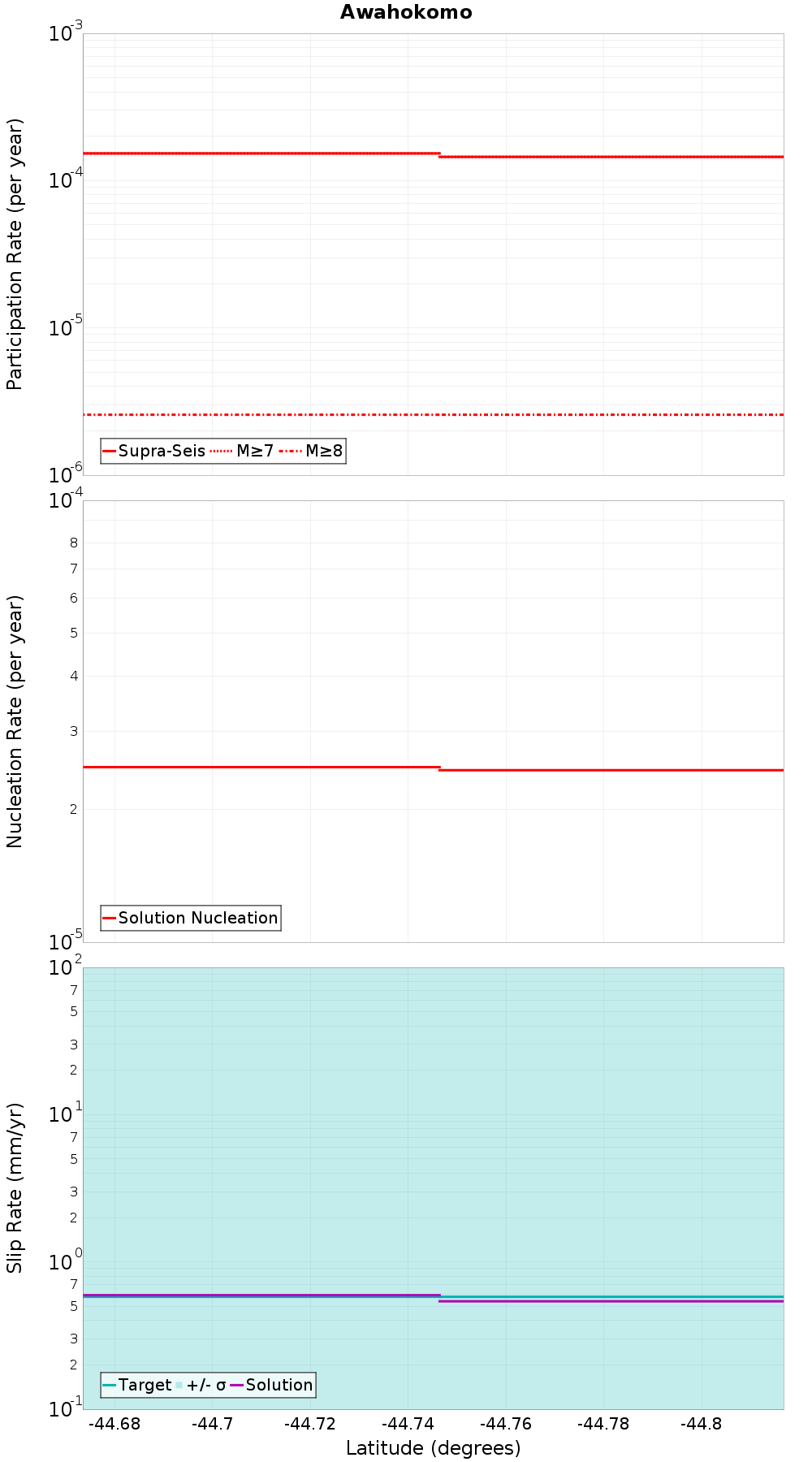

Along-Strike Values

Moment-Rates and b-Values

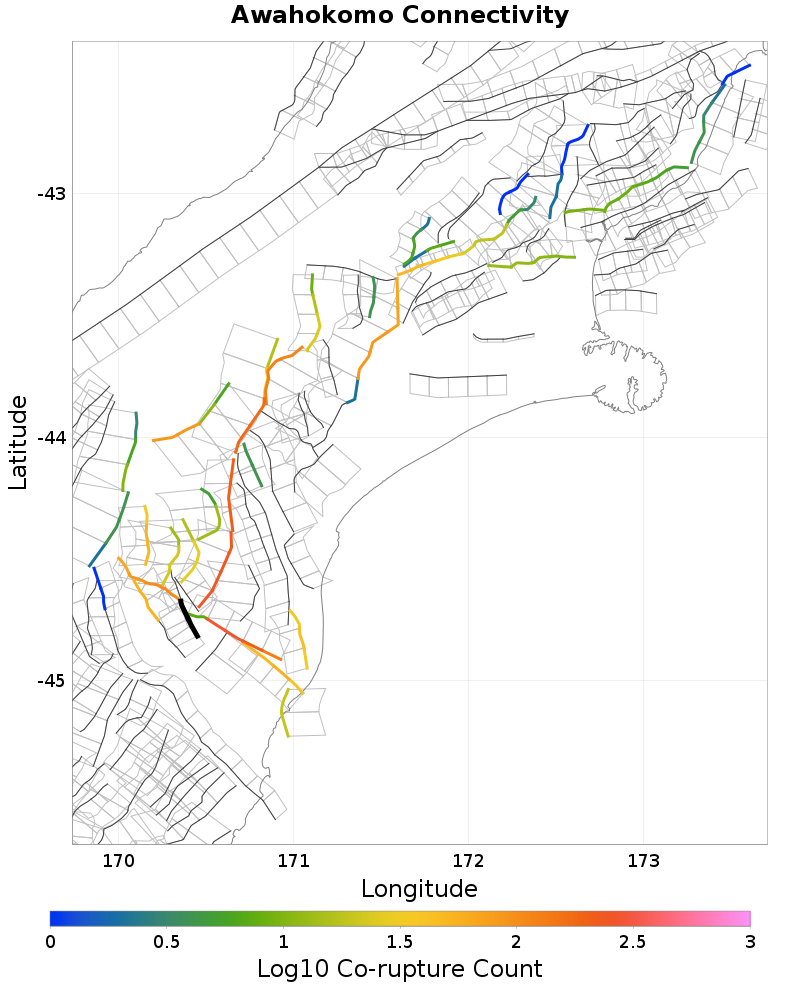

Connectivity

Nearby Sections

Fault Section
Middle Range, 0.03 km away
Waitangi, 0.42 km away
Fern Gully, 0.47 km away
Stonewall, 0.84 km away
Dryburgh, 3.91 km away
Kirkliston, 5.59 km away
Mt Sutton, 8.83 km away
Black Hill, 10.17 km away
Hawkdun, 10.54 km away
Gibson, 10.93 km away
Waihemo, 12.83 km away
Campbell Hills, 13.6 km away

Middle Range, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTYuMFB3UEpD
Connected?	true
Directly Connected?	true
Co-rupture Count	53
Co-rupture Rate	9.041473E-6

Waitangi, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTYuMFB3UEpD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fern Gully, 0.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTYuMFB3UEpD
Connected?	true
Directly Connected?	true
Co-rupture Count	118
Co-rupture Rate	1.3981505E-4

Stonewall, 0.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTYuMFB3UEpD
Connected?	true
Directly Connected?	true
Co-rupture Count	278
Co-rupture Rate	4.6605414E-6

Dryburgh, 3.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTYuMFB3UEpD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kirkliston, 5.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTYuMFB3UEpD
Connected?	true
Directly Connected?	true
Co-rupture Count	244
Co-rupture Rate	2.1229864E-5

Mt Sutton, 8.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTYuMFB3UEpD
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	0.0

Black Hill, 10.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTYuMFB3UEpD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hawkdun, 10.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTYuMFB3UEpD
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Gibson, 10.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTYuMFB3UEpD
Connected?	true
Directly Connected?	false
Co-rupture Count	22
Co-rupture Rate	3.819269E-11

Waihemo, 12.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTYuMFB3UEpD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Campbell Hills, 13.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTYuMFB3UEpD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
