Edgecumbe 1987 Details

Property	Value
Rupture Count	8,989
Ruptures Above Sect Min Mag	8,988
Ruptures w/ Nonzero Rates	271
Magnitude Range	[6.89, 8.48]
Length Range	[20, 679] km
Total Rate	1.8029542E-4 /yr
Multi-Fault Rate	1.8029542E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	76

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

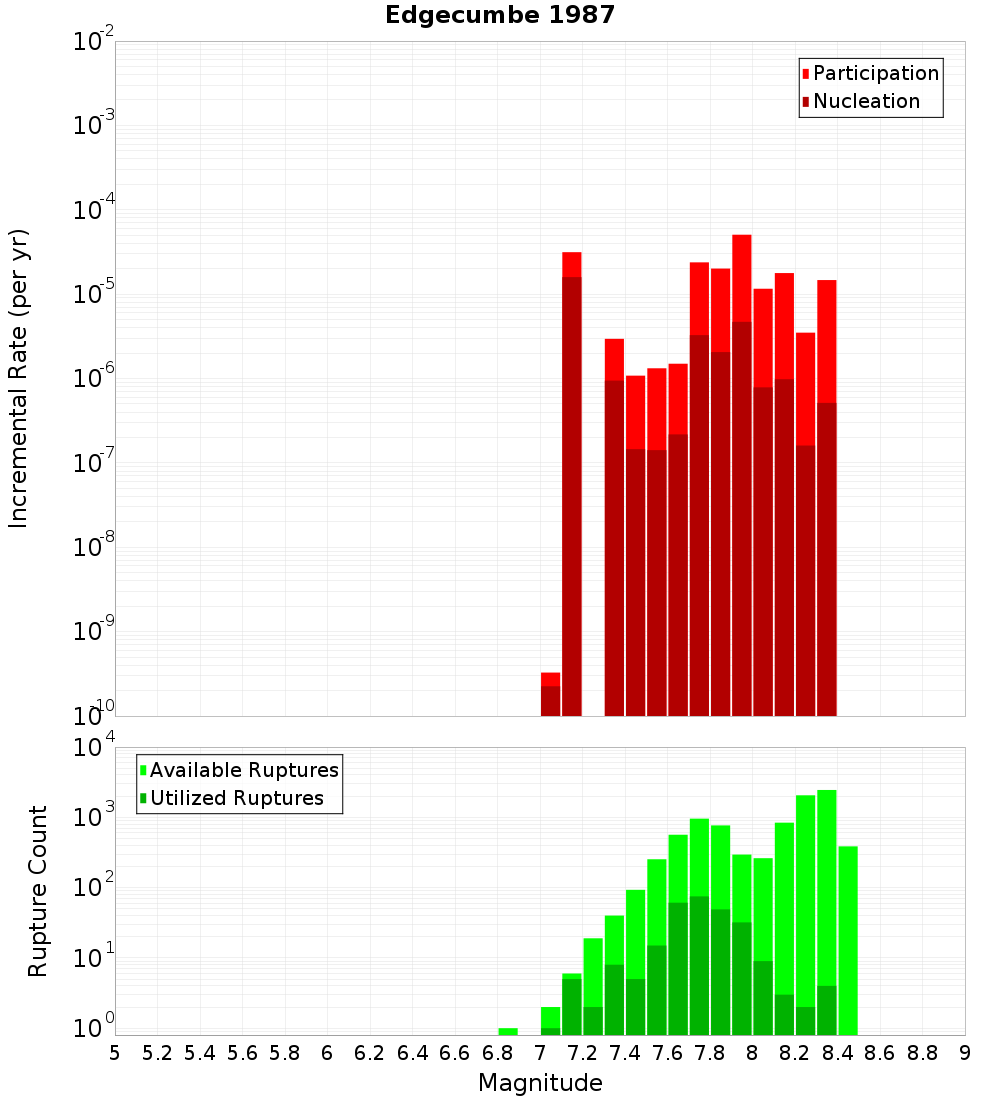

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

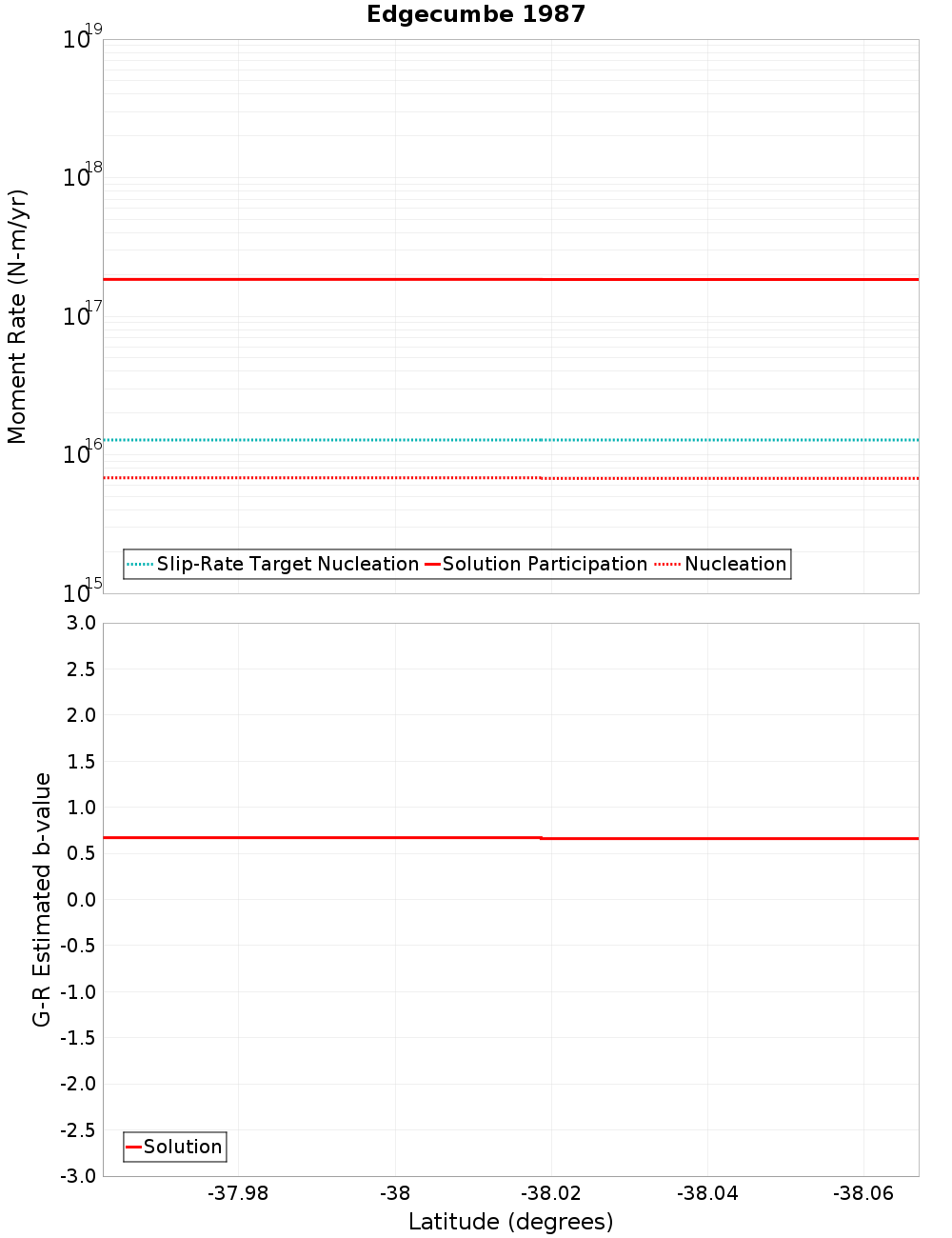

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0 km away
Otakiri, 0.19 km away
Matata, 0.29 km away
Braemar, 0.32 km away
Waiohau: North, 2.18 km away
White Island 1, 4.49 km away
Whakatane: North, 7.15 km away
Keepa, 8.09 km away

Edgecumbe Coastal, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTcuMHlCSGdT
Connected?	true
Directly Connected?	true
Co-rupture Count	6,312
Co-rupture Rate	1.7396112E-4

Otakiri, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTcuMHlCSGdT
Connected?	true
Directly Connected?	true
Co-rupture Count	2,010
Co-rupture Rate	4.848473E-5

Matata, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTcuMHlCSGdT
Connected?	true
Directly Connected?	false
Co-rupture Count	918
Co-rupture Rate	2.9860456E-10

Braemar, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTcuMHlCSGdT
Connected?	true
Directly Connected?	true
Co-rupture Count	181
Co-rupture Rate	5.788767E-6

Waiohau: North, 2.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTcuMHlCSGdT
Connected?	true
Directly Connected?	true
Co-rupture Count	6,955
Co-rupture Rate	1.2542427E-4

White Island 1, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTcuMHlCSGdT
Connected?	true
Directly Connected?	true
Co-rupture Count	8,273
Co-rupture Rate	1.5287756E-4

Whakatane: North, 7.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTcuMHlCSGdT
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Keepa, 8.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MTcuMHlCSGdT
Connected?	true
Directly Connected?	false
Co-rupture Count	900
Co-rupture Rate	0.0
