Upper Slope Details

Property	Value
Rupture Count	3,433
Ruptures Above Sect Min Mag	3,422
Ruptures w/ Nonzero Rates	2,683
Magnitude Range	[6.77, 8.07]
Length Range	[20, 467] km
Total Rate	4.8000875E-4 /yr
Multi-Fault Rate	4.8000872E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	84

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

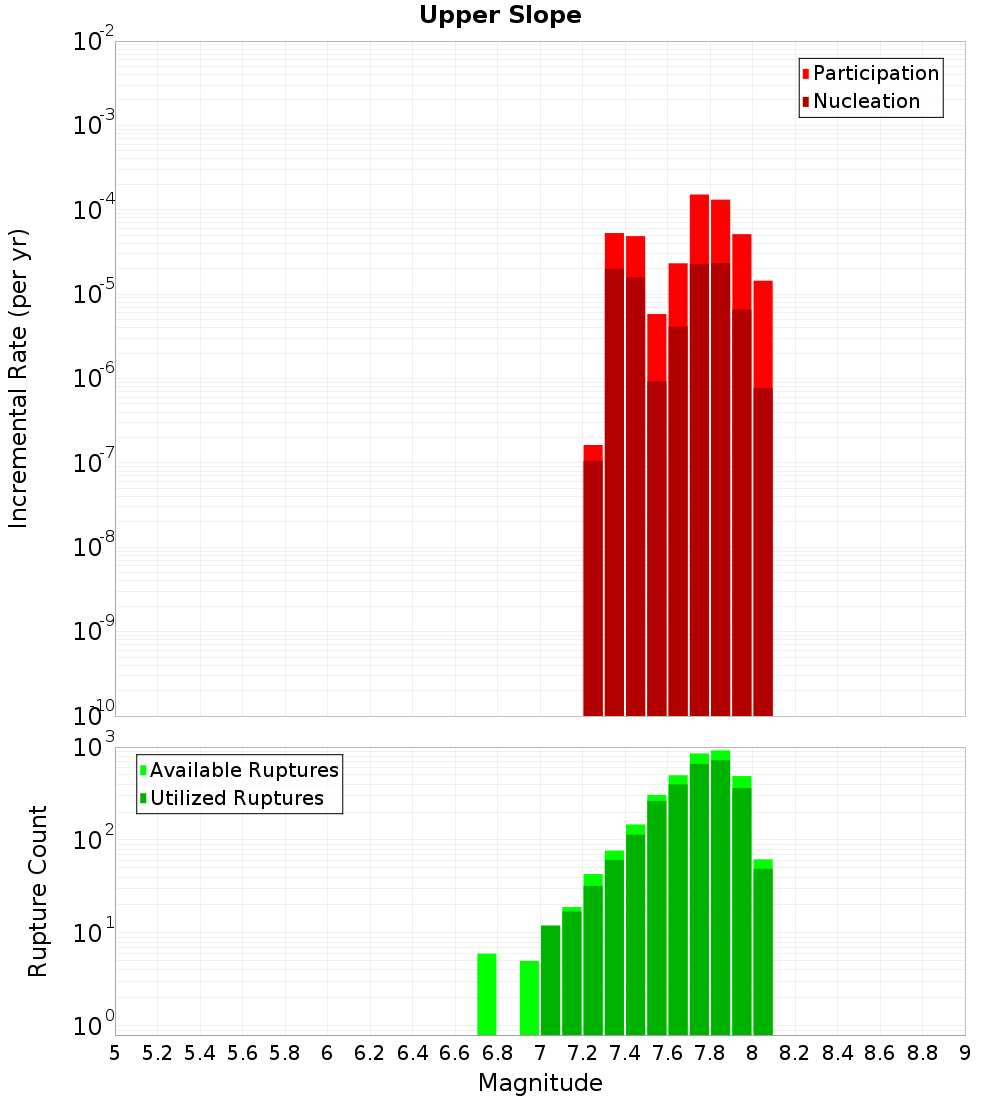

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

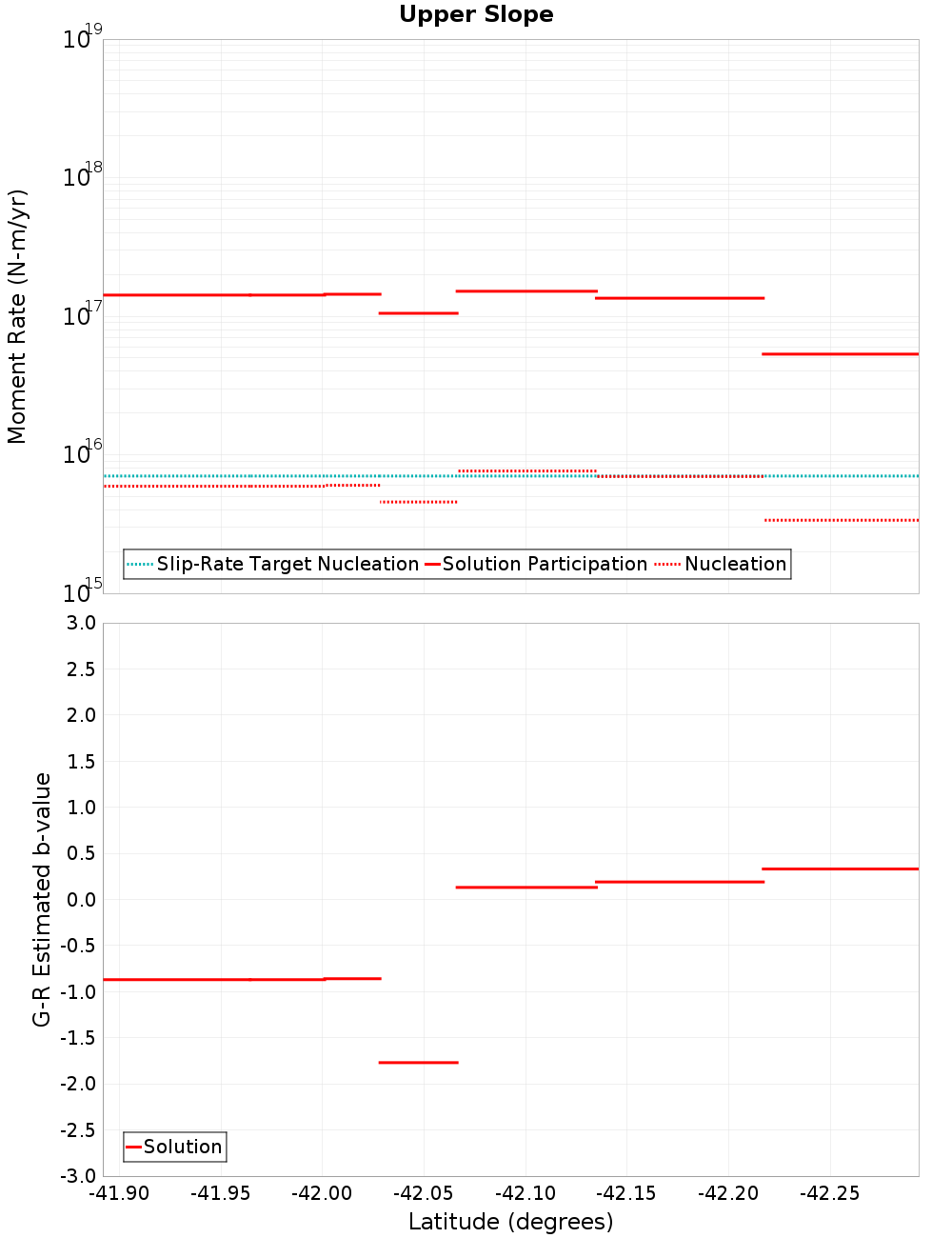

Moment-Rates and b-Values

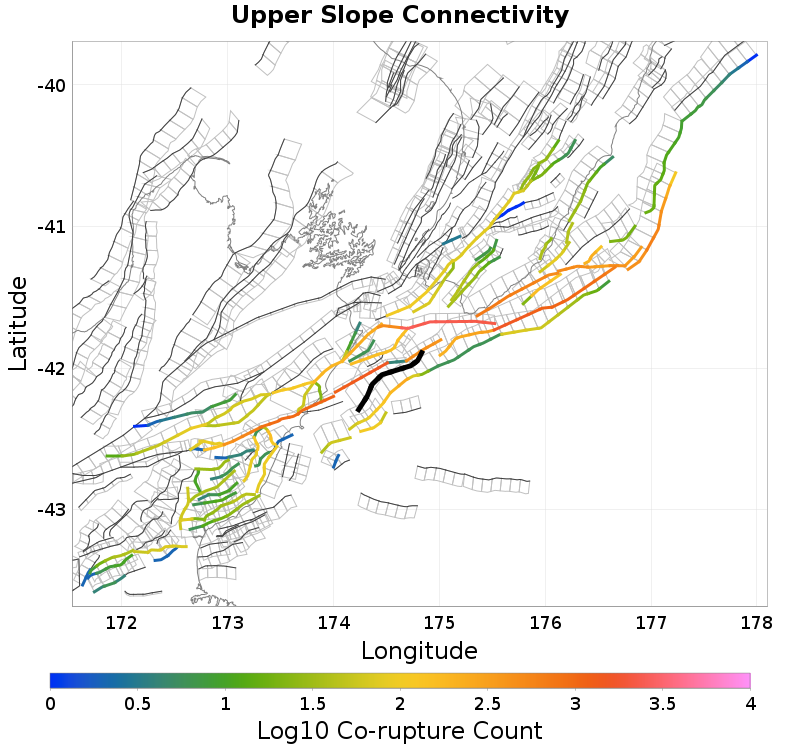

Connectivity

Nearby Sections

Fault Section
Hope: Te Rapa, 0.1 km away
Te Rapa 1, 0.13 km away
Te Rapa 2, 0.18 km away
Campbell Bank, 0.3 km away
London Hill, 0.69 km away
Wharanui, 1.45 km away
Chancet, 1.61 km away
Kekerengu Bank, 5.98 km away
Kaikoura - Mangamaunu, 6.47 km away
BooBoo, 9.5 km away
Hope: Seaward, 10.39 km away
Marlborough Slope 4, 12.3 km away
Opouawe - Uruti, 13.4 km away
Needles East 2, 13.52 km away
Needles, 14.3 km away

Hope: Te Rapa, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjYuMFFWOUE2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,500
Co-rupture Rate	2.77085E-5

Te Rapa 1, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjYuMFFWOUE2
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	9.377054E-12

Te Rapa 2, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjYuMFFWOUE2
Connected?	true
Directly Connected?	true
Co-rupture Count	469
Co-rupture Rate	2.7761575E-5

Campbell Bank, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjYuMFFWOUE2
Connected?	true
Directly Connected?	false
Co-rupture Count	157
Co-rupture Rate	2.2298358E-4

London Hill, 0.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjYuMFFWOUE2
Connected?	true
Directly Connected?	true
Co-rupture Count	52
Co-rupture Rate	8.292267E-11

Wharanui, 1.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjYuMFFWOUE2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Chancet, 1.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjYuMFFWOUE2
Connected?	true
Directly Connected?	true
Co-rupture Count	163
Co-rupture Rate	2.3672287E-4

Kekerengu Bank, 5.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjYuMFFWOUE2
Connected?	true
Directly Connected?	true
Co-rupture Count	252
Co-rupture Rate	6.321509E-5

Kaikoura - Mangamaunu, 6.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjYuMFFWOUE2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

BooBoo, 9.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjYuMFFWOUE2
Connected?	true
Directly Connected?	true
Co-rupture Count	2,826
Co-rupture Rate	3.2112625E-4

Hope: Seaward, 10.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjYuMFFWOUE2
Connected?	true
Directly Connected?	false
Co-rupture Count	1,113
Co-rupture Rate	7.157053E-5

Marlborough Slope 4, 12.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjYuMFFWOUE2
Connected?	true
Directly Connected?	true
Co-rupture Count	107
Co-rupture Rate	9.154471E-5

Opouawe - Uruti, 13.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjYuMFFWOUE2
Connected?	true
Directly Connected?	false
Co-rupture Count	1,629
Co-rupture Rate	4.8517806E-5

Needles East 2, 13.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjYuMFFWOUE2
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	1.3738312E-5

Needles, 14.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjYuMFFWOUE2
Connected?	true
Directly Connected?	false
Co-rupture Count	247
Co-rupture Rate	1.5913132E-4
