StoneJug Details

PropertyValue
Rupture Count5,506
Ruptures Above Sect Min Mag5,503
Ruptures w/ Nonzero Rates31
Magnitude Range[6.63, 8.35]
Length Range[12, 538] km
Total Rate2.6644937E-5 /yr
Multi-Fault Rate2.6644937E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults117

Table Of Contents

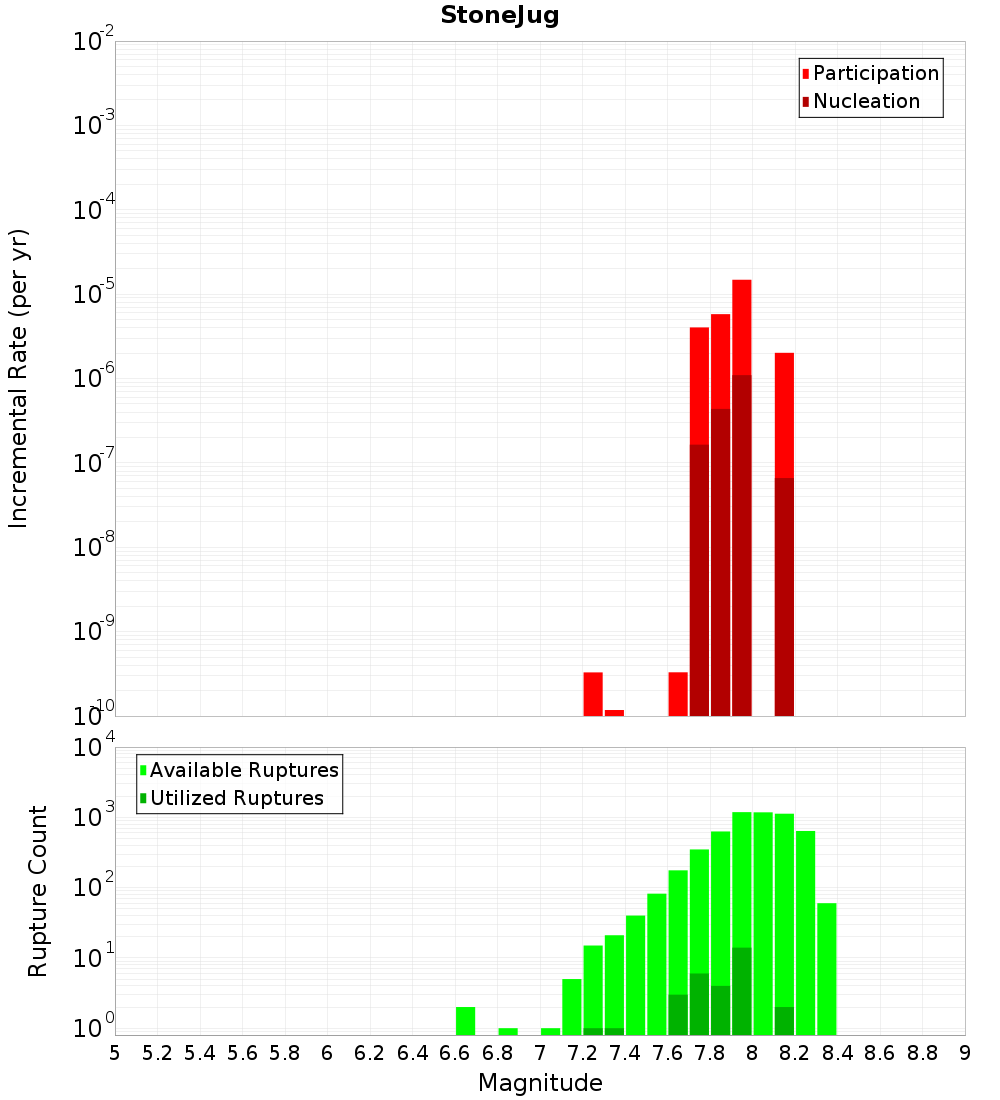

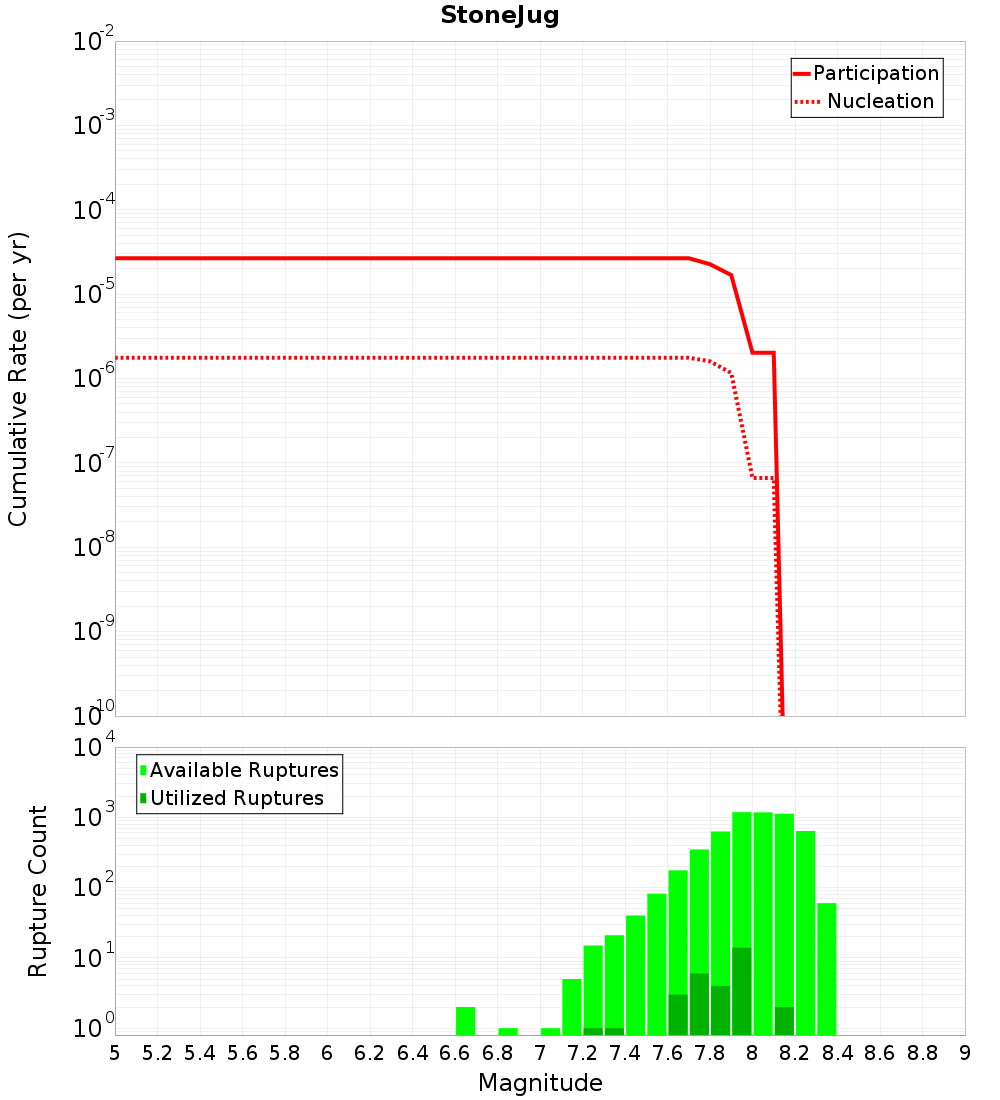

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hundalee, 0.16 km away
Hope: Conway, 0.26 km away
Leader: North, 0.61 km away
Hawkswood, 2.25 km away
Leader: South, 8.48 km away
Leader: Central, 9.3 km away
Conway Trough West, 10.85 km away
Kaiwara North, 13.46 km away
The Humps, 14.2 km away
Elliott, 14.23 km away

Hundalee, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjkuMFNOeTI2
Connected?true
Directly Connected?true
Co-rupture Count383
Co-rupture Rate0.0

Hope: Conway, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjkuMFNOeTI2
Connected?true
Directly Connected?true
Co-rupture Count4,359
Co-rupture Rate8.409997E-6

Leader: North, 0.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjkuMFNOeTI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkswood, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjkuMFNOeTI2
Connected?true
Directly Connected?true
Co-rupture Count4,518
Co-rupture Rate2.1167609E-5

Leader: South, 8.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjkuMFNOeTI2
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Leader: Central, 9.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjkuMFNOeTI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Conway Trough West, 10.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjkuMFNOeTI2
Connected?true
Directly Connected?true
Co-rupture Count80
Co-rupture Rate4.0314976E-6

Kaiwara North, 13.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjkuMFNOeTI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Humps, 14.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjkuMFNOeTI2
Connected?true
Directly Connected?false
Co-rupture Count81
Co-rupture Rate0.0

Elliott, 14.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3MjkuMFNOeTI2
Connected?true
Directly Connected?true
Co-rupture Count325
Co-rupture Rate1.8234743E-5
