Waikuku Details

PropertyValue
Rupture Count581
Ruptures Above Sect Min Mag564
Ruptures w/ Nonzero Rates46
Magnitude Range[6.49, 7.94]
Length Range[14, 311] km
Total Rate6.289474E-5 /yr
Multi-Fault Rate6.289474E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults29

Table Of Contents

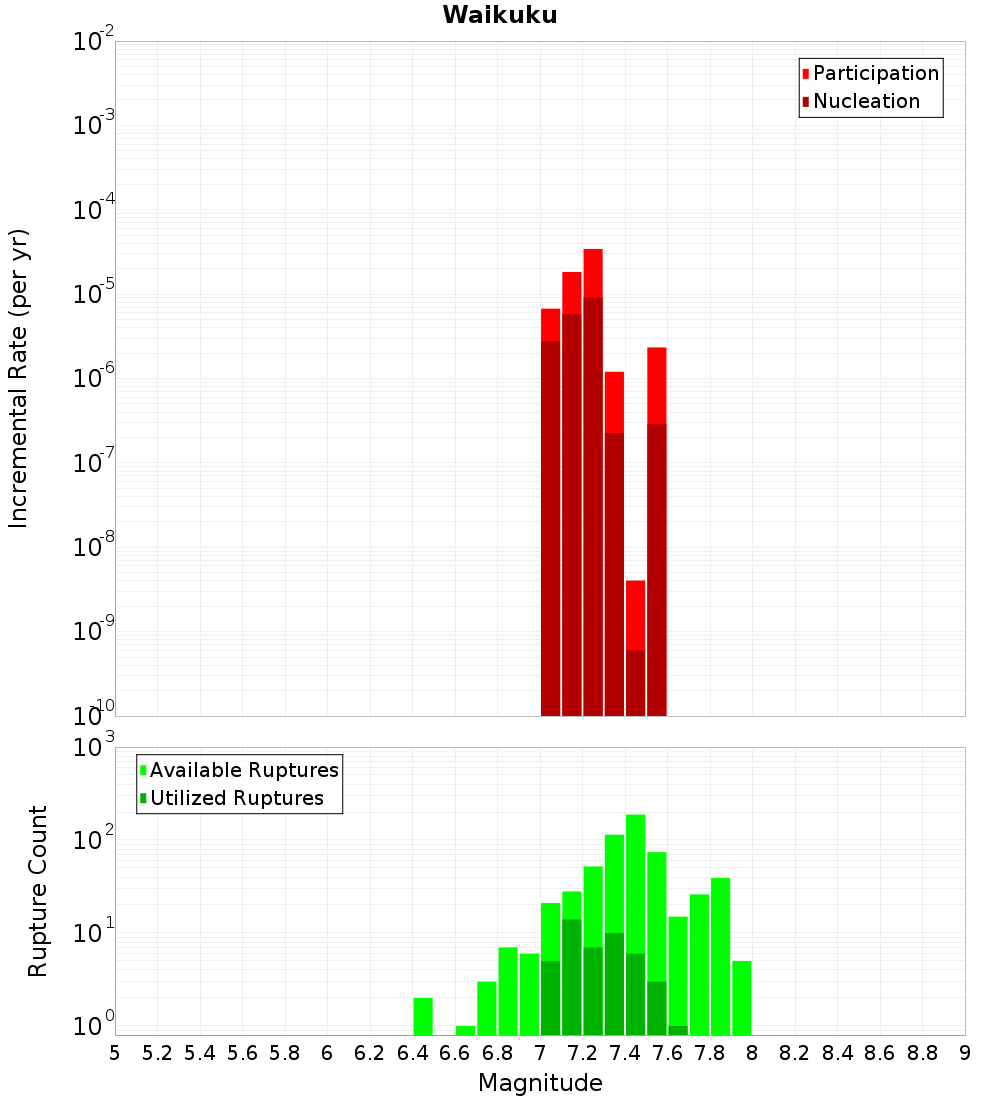

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

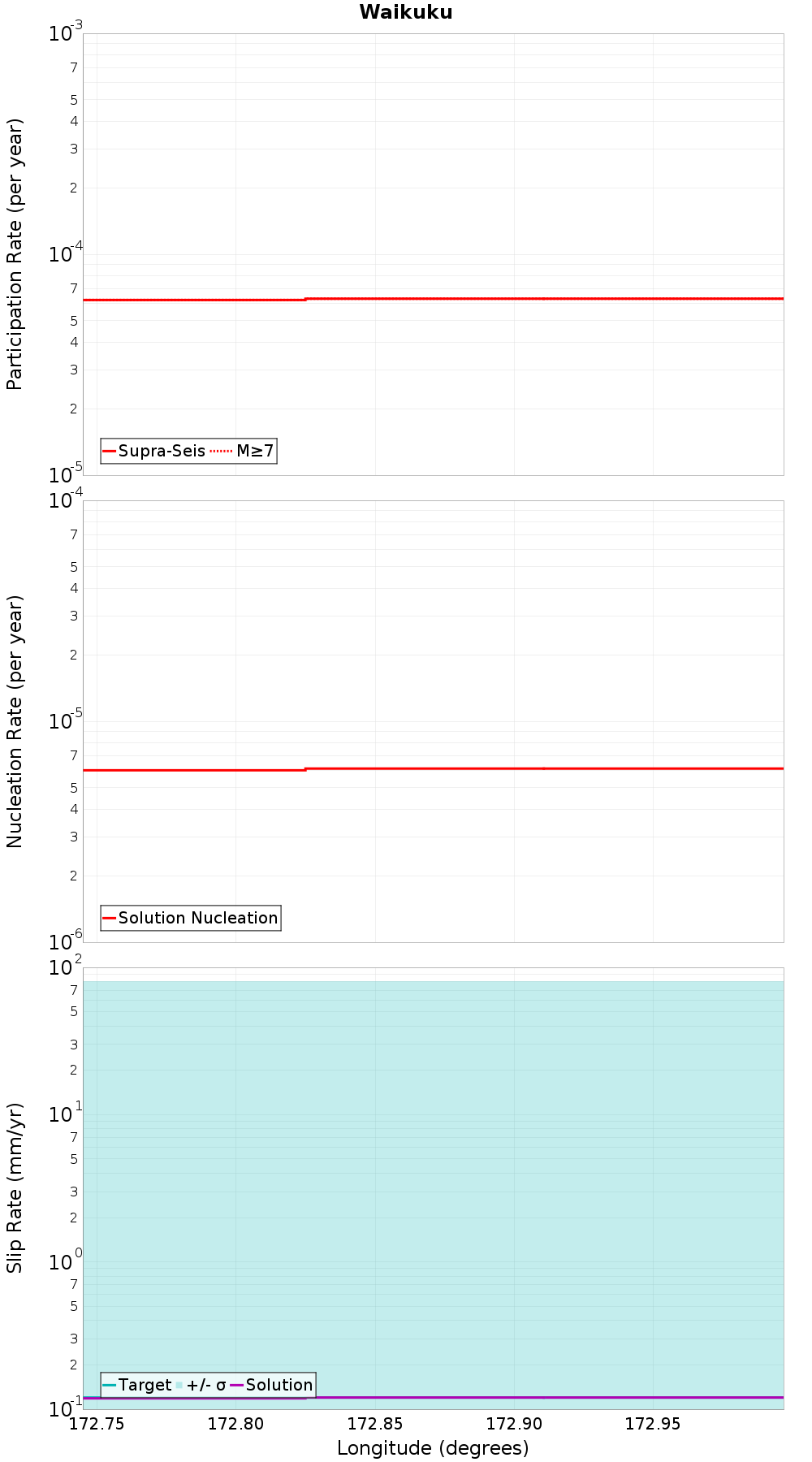

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

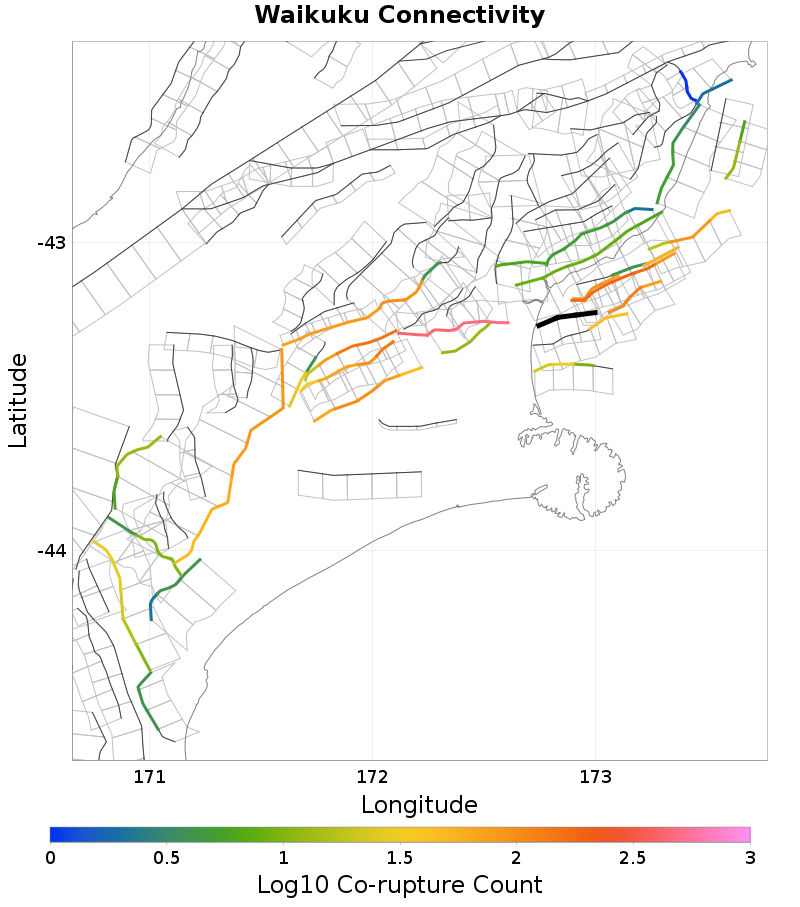

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pegasus Bay, 3.19 km away
Leithfield - NCVI - NCVII, 4.07 km away
North Canterbury Shelf 2, 4.61 km away
North Canterbury Shelf 4, 5.12 km away
Motunau, 9.01 km away
AmberBlyth, 9.2 km away
Starvation - Ashley, 11.22 km away
CenPeg1n2, 11.9 km away
OmihiLwrHuru, 14.73 km away

Pegasus Bay, 3.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NDkuMGFxN2ZG
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate5.936472E-6

Leithfield - NCVI - NCVII, 4.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NDkuMGFxN2ZG
Connected?true
Directly Connected?true
Co-rupture Count221
Co-rupture Rate4.9762275E-5

North Canterbury Shelf 2, 4.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NDkuMGFxN2ZG
Connected?true
Directly Connected?true
Co-rupture Count96
Co-rupture Rate2.1033078E-5

North Canterbury Shelf 4, 5.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NDkuMGFxN2ZG
Connected?true
Directly Connected?true
Co-rupture Count124
Co-rupture Rate6.06668E-8

Motunau, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NDkuMGFxN2ZG
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate7.1959607E-6

AmberBlyth, 9.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NDkuMGFxN2ZG
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate3.1208786E-11

Starvation - Ashley, 11.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NDkuMGFxN2ZG
Connected?true
Directly Connected?true
Co-rupture Count474
Co-rupture Rate2.3390648E-6

CenPeg1n2, 11.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NDkuMGFxN2ZG
Connected?true
Directly Connected?true
Co-rupture Count31
Co-rupture Rate5.2443324E-5

OmihiLwrHuru, 14.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTg3NDkuMGFxN2ZG
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0
